Kubota 05 Series Diesel Engine Workshop Manual – D905 D1005 D1105 V1205 V1305 V1505

Description

Kubota 05 Series Diesel Engine Workshop Manual – D905 D1005 D1105 V1205 V1305 V1505

This Kubota 05 Series Diesel Engine Workshop Manual – D905 D1005 D1105 V1205 V1305 V1505 delivers factory-level technical guidance, overhaul procedures, and maintenance specifications for Kubota’s widely utilized multi-cylinder water-cooled diesel powerplants. Whether operating stationary generator sets, agricultural equipment, or industrial machinery, technicians and engine rebuilders require exact clearance limits, tightening sequences, and fuel system calibration data. This manual is structured into two comprehensive technical parts: Mechanism, detailing construction and operating principles, and Disassembling and Servicing, providing hands-on troubleshooting, inspection limits, and step-by-step rebuilding instructions.

File Details

• Manual Type: Workshop Manual (WSM)
• Brand: Kubota Corporation
• Applicable Series: 05 Series Multi-Cylinder Water-Cooled 4-Cycle Diesel Engines
• Covered Models:
  • D905-B (E)
  • D1005-B (E)
  • D1105-B (E)
  • V1205-B (E)
  • V1205-T-B (E)
  • V1305-B (E)
  • V1505-B (E)
  • V1505-T-B (E)
• Document / Publication Code: 01640200040 (WSM 01640)
• Publication Date: May 1996
• Language: English (English language only)
• Page Count: 124 pages
• File Format: Portable Document Format (PDF)

Chapters Covered

• Mechanism

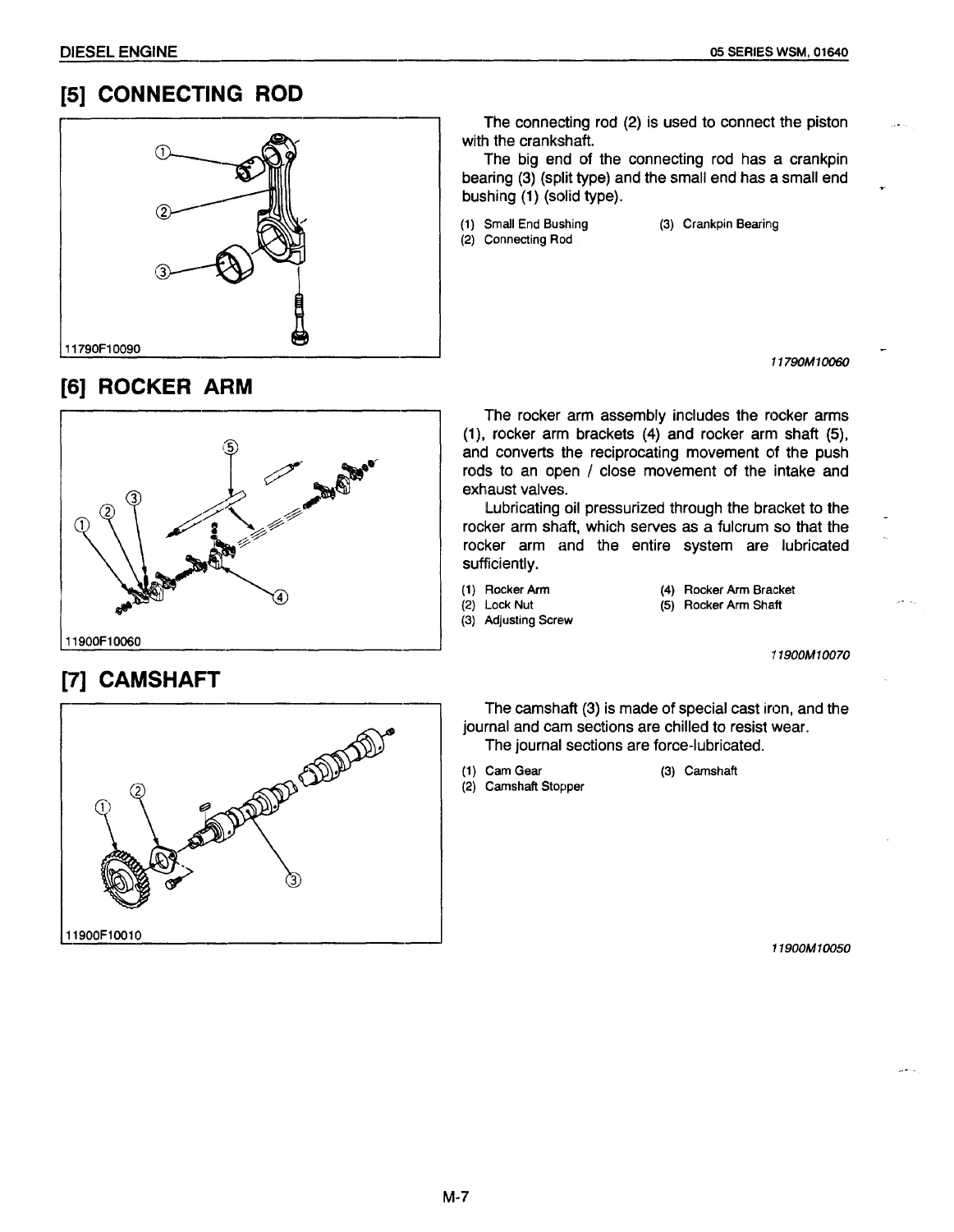

  • Engine Body: Cylinder Block, Cylinder Head, Crankshaft, Piston and Piston Rings, Connecting Rod, Rocker Arm, Camshaft, Fuel Camshaft, and Flywheel
  • Lubricating System: General Flow Circuit, Trochoid Oil Pump Operation, Relief Valve Function, Oil Filter Cartridge, and Oil Pressure Switch
  • Cooling System: General Circulation, Centrifugal Water Pump, Wax-Pellet Thermostat, Corrugated Fin Radiator, and Radiator Cap Pressure Valve
  • Intake / Exhaust System: Cyclone Air Cleaner and Glass-Wool Absorbing Muffler
  • Fuel System: Circuit Layout, Bosch MD Type Mini Injection Pump (Plunger, Delivery Valve, Dumping Valve, Injection Control), Injection Nozzles, Cartridge Fuel Filter, Mechanical Governor, and Centrifugal Automatic Advance Timer
  • Electrical System: Compact Alternator with Integrated IC Regulator Circuitry
  • Turbo Charger System: Turbocharger Mechanism, Radial Flow Turbine, Backward-Curved Compressor, Floating Sleeve Bearings, and Piston Ring Oil Seals
• Disassembling and Servicing
  • General: Engine Identification, General Precautions, Tightening Torques for Special and General Fasteners, Diagnostic Troubleshooting Charts, Servicing Specifications, Maintenance Check List, Periodic Inspection Intervals, and Special Service Tools
  • Engine Body: Compression Pressure Testing, Piston Top Clearance Measurement, Draining Procedures, External Component Removal, Cylinder Head Disassembly and Servicing, Valve Grinding and Lapping, Timing Gear Train and Camshaft Inspection, Piston and Connecting Rod Overhaul, Crankshaft and Main Bearing Fitting, and Cylinder Boring / Honing
  • Lubricating System: Engine Oil Pressure Testing, Relief Valve Inspection, and Oil Pump Rotor Clearance Servicing
  • Cooling System: Fan Belt Tensioning, Radiator Pressure and Cap Testing, Thermostat Function Checks, and Water Pump Overhaul
  • Fuel System: Injection Pump Timing and Shim Adjustment, Delivery Valve Tightness Testing, Injection Nozzle Pressure Setting, and Fuel Bleeding
  • Electrical System: Starter Bench Testing and Overhaul, Alternator Bench Inspection, Rotor / Stator Resistance Checks, and Glow Plug Continuity Checks
  • Turbo Charger System: Turbine Shaft End Play, Radial Clearance Inspection, Actuator Boost Testing, and Cleaning Procedures

By studying both the operating theory and the disassembling workflows, mechanics gain a thorough understanding of component interaction, allowing rapid fault diagnosis, precise component measurement against factory limits, and professional rebuild results across every engine sub-assembly.

IMAGES PREVIEW

Core Mechanism & Technological Features

The Kubota 05 Series incorporates high-efficiency engineering that sets it apart in industrial and commercial duty cycles. Key design characteristics thoroughly outlined in this Kubota 05 Series Diesel Engine Workshop Manual include:

• Combustion Chamber Evolution: Covers both traditional N-TVCS spherical chambers (engines prior to S/N 489290) and the advanced E-TVCS (Three Vortex Combustion System) introduced on January 1994 clean exhaust engines (S/N 489291 and higher), providing superior air-fuel swirl, minimized exhaust soot, and exceptional fuel economy.
• Heavy-Duty Tunnel-Type Cylinder Block: Features a rigid tunnel-type crankcase casting with integrated bearing carriers, eliminating traditional main bearing caps for exceptional bottom-end rigidity, minimal cylinder distortion, and reduced operational noise.
• Cross-Flow Cylinder Head: Opposed intake and exhaust port layout ensures cool, dense incoming air charges are isolated from heated exhaust gases, boosting volumetric efficiency and stabilizing thermal gradient across the head.

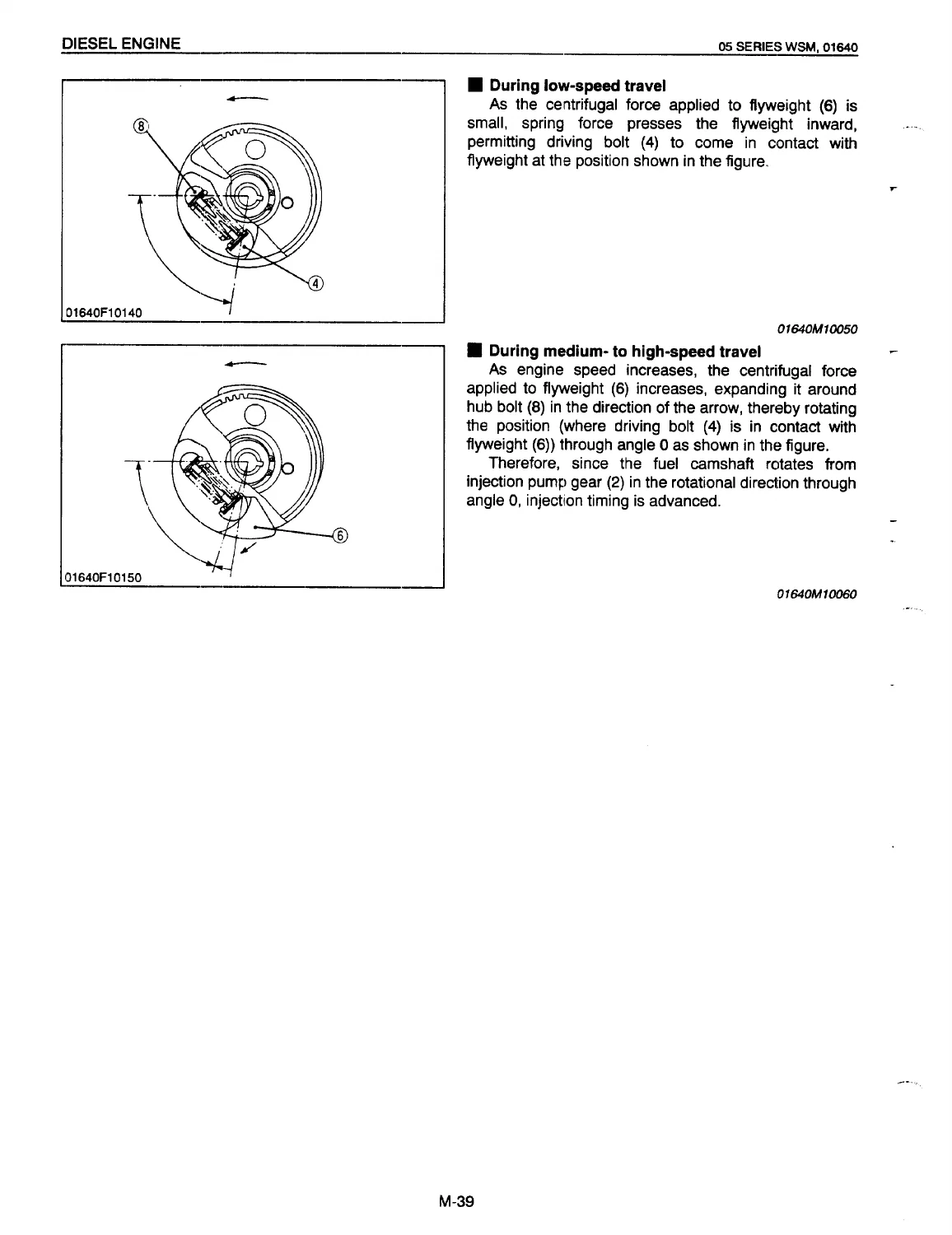

• Precision Fuel Injection & Timing: Bosch MD type mini injection pump with left-hand lead plungers, equipped with delivery valve suck-back control and dumping valves to prevent secondary injection dribble. High-speed models feature an automatic centrifugal timing advance unit to dynamically adjust injection timing across rpm changes.
• Forced Lubrication System: Crankshaft-driven trochoid pump feeding induction-hardened alloy crankshaft journals, camshaft bearings, timing gears, and valvetrain pushrod circuits with full-flow cartridge filtration and electrical low-pressure alert monitoring.
• Turbocharging Engineering: Turbocharged models (V1205-T-B and V1505-T-B) utilize precision balanced turbine and compressor assemblies running on hydrodynamic floating sleeve bearings pressurized directly from the engine oil gallery.

Factory Servicing Specifications & Overhaul Tolerances

Performing repairs with this Kubota 05 Series service manual eliminates guesswork by providing original factory dimensions alongside maximum allowable wear limits:

• Compression Pressure: Factory specification is 2.84 to 3.24 MPa (29.0 to 33.0 kgf/cm², 412 to 469 psi), with an allowable service limit of 2.26 MPa (23.0 kgf/cm², 327 psi) and a maximum 10% variance between cylinders.
• Piston Top Clearance: 0.55 to 0.70 mm (0.0217 to 0.0276 in.) measured using crushable fuse wire.
• Valvetrain & Cylinder Head: Cold valve lash of 0.145 to 0.185 mm (0.0057 to 0.0072 in.); valve face angles of 60° (intake) and 45° (exhaust); valve recessing limit of 0.4 mm (0.016 in.); cylinder head surface flatness limit of 0.05 mm (0.0019 in.).
• Piston Rings & Bores: Piston ring end gap limits of 1.25 mm (0.0492 in.) for compression rings; cylinder bore service wear limit of +0.15 mm (+0.0059 in.) before boring to 0.5 mm oversize.
• Crankshaft & Connecting Rods: Crankpin oil clearance factory range of 0.029 to 0.091 mm (limit 0.20 mm); journal oil clearance range of 0.034 to 0.098 mm (limit 0.20 mm); crankshaft side end-play 0.15 to 0.31 mm (limit 0.50 mm). Undersize bearings available at 0.2 mm and 0.4 mm.
• Injection Pressures: Nozzle pop-off pressure calibrated to 13.73 to 14.71 MPa (140 to 150 kgf/cm², 1991 to 2133 psi), adjusted via precision shim washers.
• Lubrication Pressures: Minimum 49 kPa (0.5 kgf/cm², 7 psi) at idle; operating pressure between 196.0 and 441.0 kPa (2.0 to 4.5 kgf/cm², 28.0 to 64.0 psi) at rated operating speed.

Critical Fastener Tightening Torques

Proper clamp load is critical for head gasket sealing and rotating assembly longevity. Key torque values detailed in the text include:

• Cylinder Head Screws (M10 x 1.25 oiled): 63.7 to 68.6 N·m (6.5 to 7.0 kgf·m, 47.0 to 50.6 ft-lbs) tightened in progressive diagonal order from the center outward.
• Connecting Rod Screws (M8 x 1.0 oiled): 41.2 to 46.1 N·m (4.2 to 4.7 kgf·m, 30.4 to 34.0 ft-lbs).
• Flywheel Mounting Screws (M10 x 1.25 oiled): 53.9 to 58.8 N·m (5.5 to 6.0 kgf·m, 39.8 to 43.4 ft-lbs).
• Main Bearing Case Screws: Case Screws 1 (M8 x 1.25) at 29.4 to 34.3 N·m (21.7 to 25.3 ft-lbs); Case Screws 2 (M9 x 1.25) at 49.0 to 53.9 N·m (36.2 to 39.8 ft-lbs).
• Crankshaft Nose End Bolt: 142.2 to 152.0 N·m (104.9 to 112.1 ft-lbs) on serial numbers up to 604086; upgraded to 235.4 to 245.2 N·m (173.6 to 180.8 ft-lbs) on serial numbers 604087 and above.
• Fuel Injection Components: Nozzle holder body (M20 x 1.5) at 49.0 to 68.6 N·m (36.2 to 50.6 ft-lbs); injection pipe flare nuts (M12 x 1.5) at 24.5 to 34.3 N·m (18.1 to 25.3 ft-lbs).
• Glow Plugs: M10 x 1.25 plugs (up to S/N 489290) at 19.6 to 24.5 N·m (14.5 to 18.1 ft-lbs); M8 x 1.0 plugs (S/N 489291 and later) at 7.8 to 14.7 N·m (5.8 to 10.8 ft-lbs).

Professional Rebuild Capability & Instant PDF Delivery

Having the complete Kubota 05 Series Diesel Engine Workshop Manual – D905 D1005 D1105 V1205 V1305 V1505 ensures you can undertake any repair with absolute confidence. From routine valve lash adjustments, timing gear alignment, and fuel filter servicing to complete block machining, crankshaft grinding, and injection pump timing adjustments, this manual equips you with exact technical standards directly from the manufacturer. Adhering to genuine factory clearances and torque sequences prevents costly assembly errors, head gasket failures, and premature bearing wear, maximizing the working life of your diesel engine. Delivered as an instant PDF download immediately upon purchase, this manual is free of shipping delays and can be saved to your computer, tablet, or smartphone for convenient workshop use or printed out for direct bench-side reference.
