Kubota L3130, L3430, L3830, L4330, L4630, L5030 Tractor Workshop Service Manual

Description

Kubota L3130, L3430, L3830, L4330, L4630, L5030 Tractor Workshop Service Manual

The Kubota L3130, L3430, L3830, L4330, L4630, L5030 Tractor Workshop Service Manual provides professional technicians, agricultural mechanics, and tractor owners with complete technical mechanism descriptions, servicing standards, and step-by-step overhaul instructions for Kubota L30 Series tractors. Designed for workshop bench use and field service, this factory technical publication covers both ROPS and integrated air-conditioned CABIN variants equipped with standard manual synchronized shuttle transmissions, Glide Shift Transmission (GST), or 3-range variable Hydrostatic Transmission (HST) systems.

File Details

• Manual Type: Workshop Manual (WSM)
• Brand: Kubota
• Model Coverage: L3130, L3430, L3830, L4330, L4630, L5030 (2WD and 4WD configurations)
• Document Code: 9Y011-13003 (KISC Issued 06, 2006 A / First Published October 2002)
• Language: English
• Format: High-resolution digital PDF printable document

Chapters Covered

• General: Tractor identification, model name and serial numbers, E2 engine identification, cylinder numbering sequence, general disassembly precautions, electrical wiring handling rules, battery care, lubricants, fuel, and coolant selection charts, general screw/bolt tightening torques, periodic maintenance interval schedules, initial 50-hour and routine service points, engine and tractor special service tools, tire inflation tables, adjustable wheel tread settings, liquid ballast injection, and implement limitation tables.

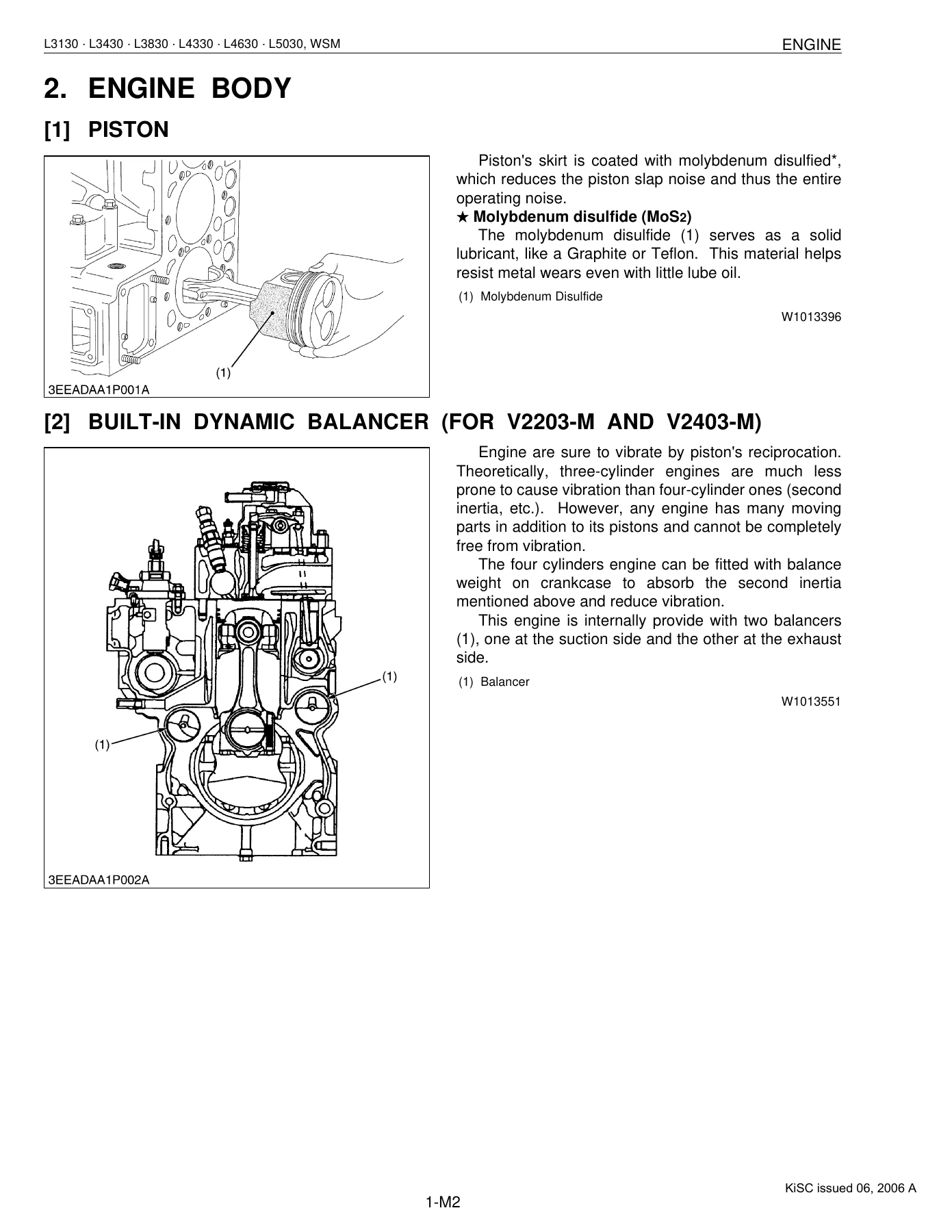

• Engine Mechanism: 03-M Series diesel engine features, molybdenum disulfide (MoS2) coated piston skirts, dual internal dynamic balancers for 4-cylinder engines (V2203-M and V2403-M), half-floating noise-reducing cylinder head cover, bottom-bypass cooling system and thermostat operation, complete fuel delivery circuits, and pressurized lubrication system gallery flow.
• Engine Servicing: Comprehensive engine troubleshooting charts, servicing specifications and allowable wear limits, special tightening torques, engine tractor separation sequence, compression testing procedures, cold valve clearance adjustment, top clearance checks, cylinder head removal, valve seat cutting and lapping, valve spring load testing, timing gear backlash, camshaft and balancer shaft inspection, piston ring gap alignment, connecting rod small end bushing replacement, crankshaft main journal and crankpin plastigage clearances, bearing undersize machining dimensions, cylinder bore wear evaluation, +0.25 mm oversize honing, oil pump rotor lobe clearance, cooling system flushing, and injection pump timing shim calculations.
• Clutch: Dry single-plate diaphragm spring clutch mechanism, hanging pedal linkage, release fork operation, clutch troubleshooting, pedal free play adjustment (20 to 30 mm), splitting engine from clutch housing, release bearing renewal, clutch disc rivet depth wear inspection, disc spline backlash, pressure plate flatness limits, and diaphragm spring tip alignment.

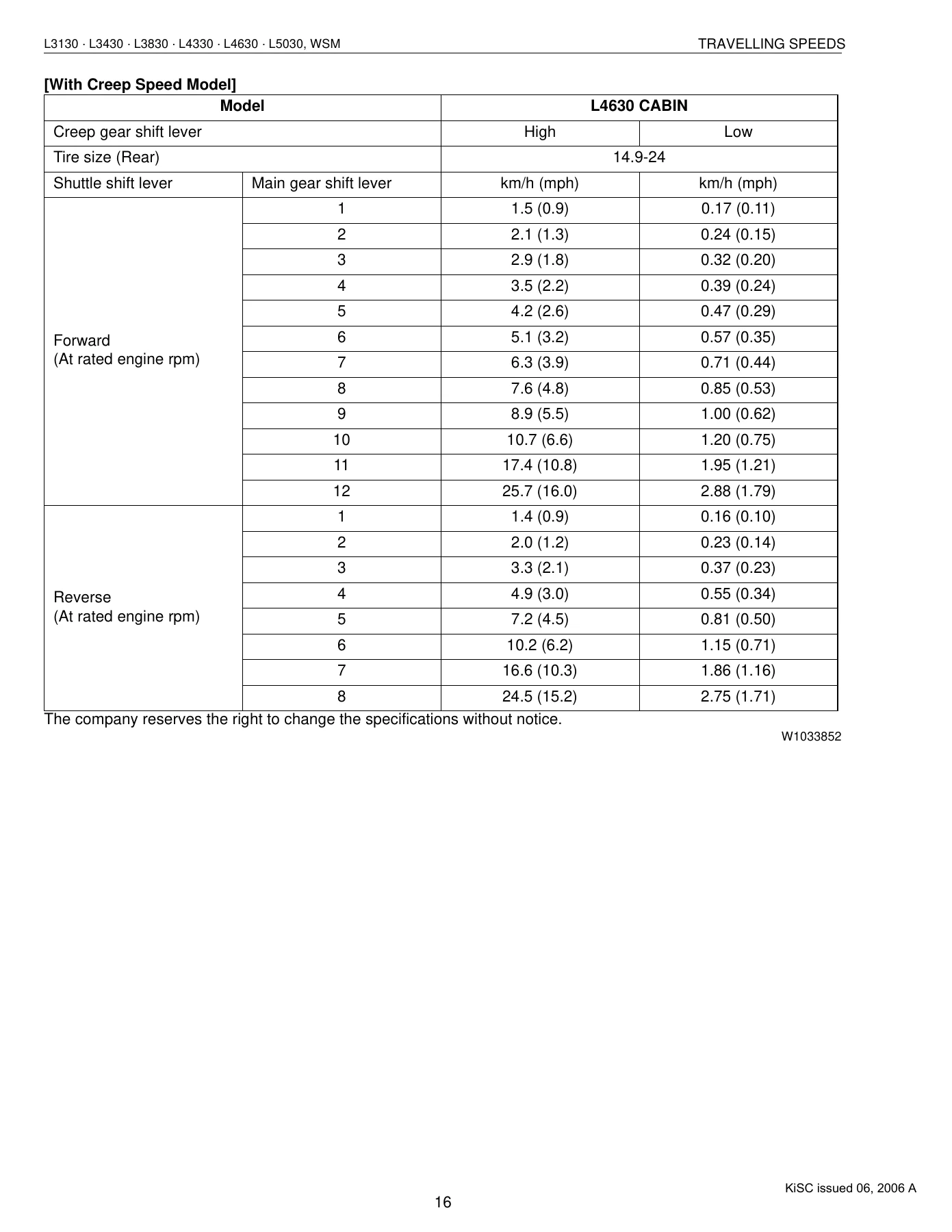

• Transmission & Traveling Systems: Mechanism and servicing for F8/R8 fully synchronized main and shuttle transmission, F12/R8 Glide Shift Transmission (GST) with electronic clutch modulation, and 3-range Hydrostatic Transmission (HST) systems; traveling speed calculations; range gear shift linkage; propeller shaft separation for 4WD; and neutral safety switch adjustments.
• Brakes & Rear Axle: Wet multi-plate disc braking system, independent pedal latching, brake pedal free travel adjustment (15 to 20 mm), differential lock linkage, bevel gear backlash, and rear axle housing servicing.
• Front Axle & Steering: 2WD adjustable telescopic front axle, 4WD bevel gear front drive axle, front axle pivot adjustment, tie-rod toe-in alignment (2 to 8 mm), hydrostatic power steering controller, and power steering relief pressure diagnostics.
• Hydraulic System: Main gear pump, hydraulic block, position control valve, draft control test bar procedures, 3-point hitch lift cylinder servicing, hydraulic arm shaft bushing installation, system relief pressure testing, and oil cooler flow circuits.
• Electrical System & Cabin: IntelliPanel instrument display, safety start circuitry, alternator charging, starter motor overhaul, fuse ratings, wiring harness routing, factory CABIN climate control, R134a refrigerant charging and manifold gauge testing, compressor magnetic clutch servicing, and cabin isolation mount inspection.

IMAGES PREVIEW

By studying this comprehensive breakdown, technicians gain an organized reference covering every critical assembly. The detailed procedures allow shop mechanics to proceed systematically through complex diagnostic, dismantling, measuring, and reassembly operations without relying on guesswork.

Comprehensive General Servicing and Tractor Maintenance

Routine service intervals in the Kubota L3130, L3430, L3830, L4330, L4630, L5030 Tractor Workshop Service Manual are documented across structured 50, 100, 200, 400, 600, 800, 1500, and 3000-hour checkpoints. Technicians are provided with exact fluid capacity specifications for each chassis variant, including 40 L fuel capacity (43 L on the L5030), engine oil crankcase capacities of 5.7 L (L3130, L3430), 6.7 L (L3830), and 8.2 L (L4330, L4630, L5030), and transmission cases holding 42 L to 45 L of Kubota Super UDT fluid. Step-by-step walk-throughs explain oil and filter changes, fuel system air bleeding via the injection pump vent cock, fan belt deflection checks (7.0 to 9.0 mm at 98 N force), toe-in adjustments, and front axle pivot pin clearance settings to prevent steering oscillation.

In-Depth 03-M Series Diesel Engine Overhaul Procedures

The manual provides extensive coverage for the Kubota 03-M engine family, including the 3-cylinder D1503-MA-E/E2, D1703-MA-E/E2, and D1803-M-E/E2 engines, as well as the 4-cylinder V2203-MA-E/E2, V2203-MB-E/E2, and V2403-MA-E/E2 powerplants. Clear disassembly sequences explain how to safely pull the cylinder head, inspect surface flatness (0.05 mm allowable limit), measure top clearance (0.55 to 0.70 mm factory specification), and service intake and exhaust valves. Detailed sections guide the technician through timing gear backlash checks (0.0415 to 0.1154 mm factory specification), matching balancer gear timing marks on 4-cylinder engines, checking camshaft journals, inspecting piston ring side clearance, measuring cylinder bore ovality, and fitting +0.25 mm oversize pistons. Factory torque values are established for all critical fasteners, including cylinder head bolts (93.1 to 98.0 N·m), connecting rod screws (44.1 to 49.0 N·m), flywheel bolts (98.0 to 107.8 N·m), and the fan drive pulley nut (137.3 to 156.9 N·m).

Transmission, Drivetrain, Hydraulics, and Cabin Diagnostics

Full mechanical and hydraulic servicing procedures are provided for all three drivetrain options found across the Kubota L30 tractor series. The guide explains splitting the engine and clutch housing, checking diaphragm spring mutual tip alignment (within 0.5 mm), servicing release bearings, setting mechanical shift linkages, and troubleshooting proportional reducing valves and solenoid coils on GST electronic transmissions. Hydraulic chapters detail pressure diagnostics for the 31.5 to 37.0 L/min main pumps, adjusting main relief valves (17.1 to 19.1 MPa depending on model), and calibrating draft control linkage. For CABIN-equipped tractors, dedicated sections explain R134a refrigeration circuit testing with manifold gauges, compressor magnetic clutch air gap adjustment, condenser cleaning, and cabin air filter maintenance.

Professional Capability and Instant Delivery

Whether performing scheduled maintenance, diagnosing intermittent electrical safety interlocks, overhauling a worn hydraulic lift cylinder, or rebuilding a complete 4-cylinder diesel engine, having the Kubota L3130, L3430, L3830, L4330, L4630, L5030 Tractor Workshop Service Manual ensures jobs are done strictly according to factory standards. Applying exact torque values, service limits, and alignment procedures prevents premature component failure, keeps tractors running at peak operational capacity, and eliminates costly diagnostic guesswork. This digital workshop manual is delivered as an instant PDF download immediately upon checkout, allowing you to begin repairs immediately on your computer, tablet, or smartphone, or print out crisp shop-floor pages whenever needed.
