Description

Landini LandForce 115-125 Tractor Operator Manual – Cab & ROPS Edition

This Landini LandForce 115-125 Tractor Operator Manual is the complete operator reference for LandForce 115 and LandForce 125 tractors supplied with a cab or ROPS safety frame. Published under document number 651 6464 and issued 11/2015, it covers the controls, safe operation, routine servicing, electrical system and technical data needed to run and maintain these tractors correctly. Because the manual applies to both cab and footstep/ROPS versions, it also identifies where equipment may differ by market or ordered option.

File Details

• Manual type: Operator Manual / Original Instructions
• Brand: Landini
• Models covered: LandForce 115, LandForce 125
• Configurations: Tractors with cab or ROPS safety frame
• Language: English
• Page count: 282 pages
• File format: PDF
• Publication number: 651 6464
• Issue date: 11/2015

Chapters Covered

• Section 1 – Tractor identification, Introduction, Warranty and Safety
• Section 2 – Safety notes
• Section 3 – Controls – Cab
• Section 4 – Instrument panel
• Section 5 – Operation
• Section 6 – Tyres, wheels, ballasting
• Section 7 – Regular service intervals
• Section 8 – Electric system
• Section 9 – Specifications

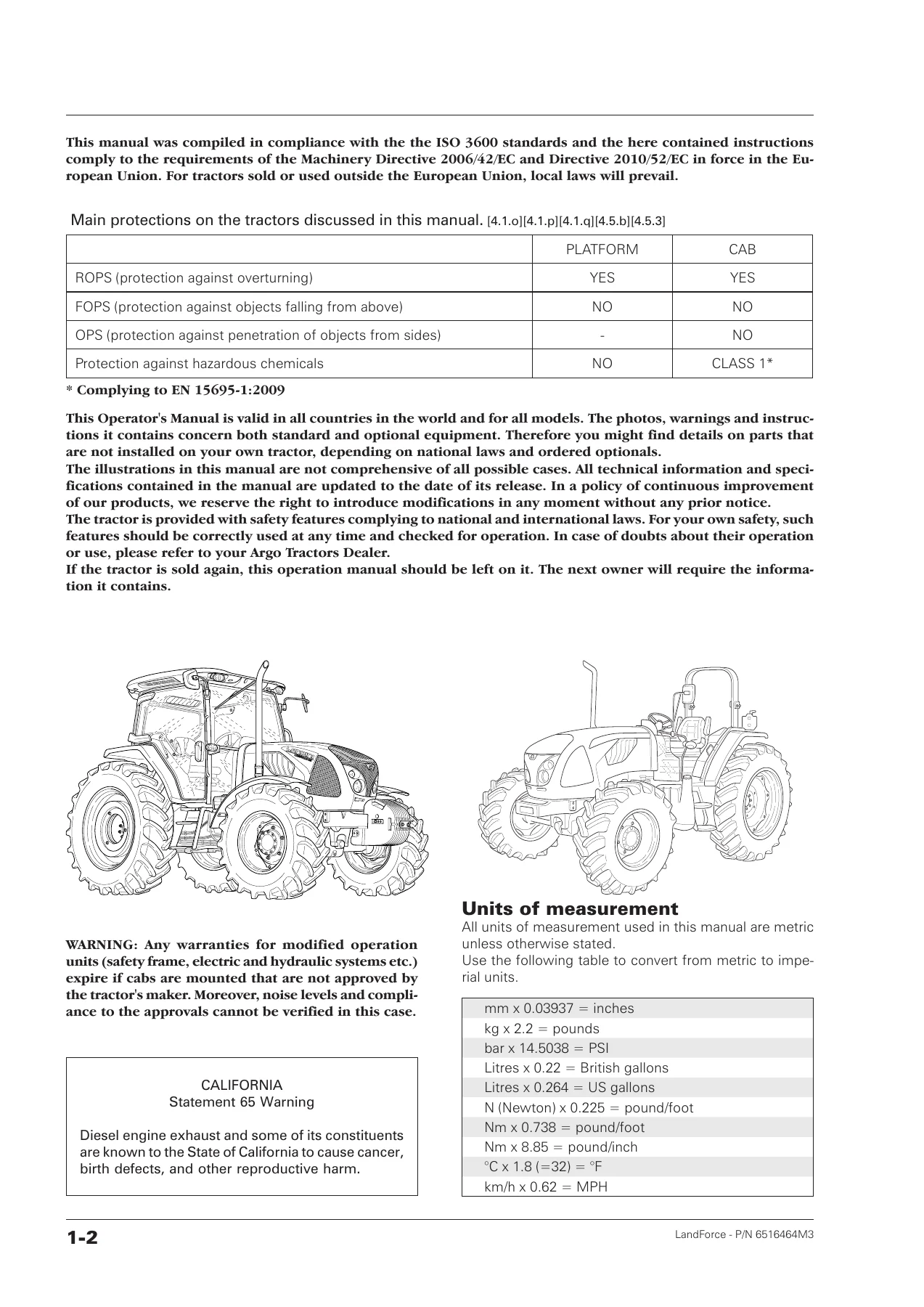

Tractor Identification, Introduction, Warranty and Safety

This opening section explains how the tractor, cab, safety frame and engine are identified, including the locations of the manufacturer plate, chassis number, engine data plate and ROPS serial plate. It also sets out the warranty process, pre-delivery inspection expectations, spare-parts warnings and the basic safety responsibilities that apply before the tractor is used.

Safety Notes

The safety chapter is extensive and covers the real operating risks associated with agricultural tractors. It includes safety-alert symbols and terms, personal protection devices, cab and ROPS safety, seat belts, safe starting and stopping, mounting and dismounting, safe use of the PTO, implement and trailer hitching, road transport, overturning risks and the correct interpretation of the safety decals. The decal-position illustrations are particularly useful when checking that all warnings are present and readable.

Controls – Cab

This section describes the cab layout and operator station. It covers the operator seat adjustments, seat belt, instructor seat where fitted, operator presence sensor, dashboard controls, heating and air-conditioning controls, external controls, mirrors, roof controls and other cab fittings. It is the section to read when becoming familiar with control locations before operation.

Instrument Panel

The instrument panel chapter identifies the warning lights, indicator lights, gauges and digital displays used on LandForce 115 and 125 tractors. It explains the engine speed and hour meter, clock, PTO speed display, speedometer, coolant temperature gauge, fuel gauge and LCD adjustment modes. Diagnostic alarm messages for the hydraulic reverse shuttle setup are also covered, making this chapter useful when interpreting panel warnings.

Operation

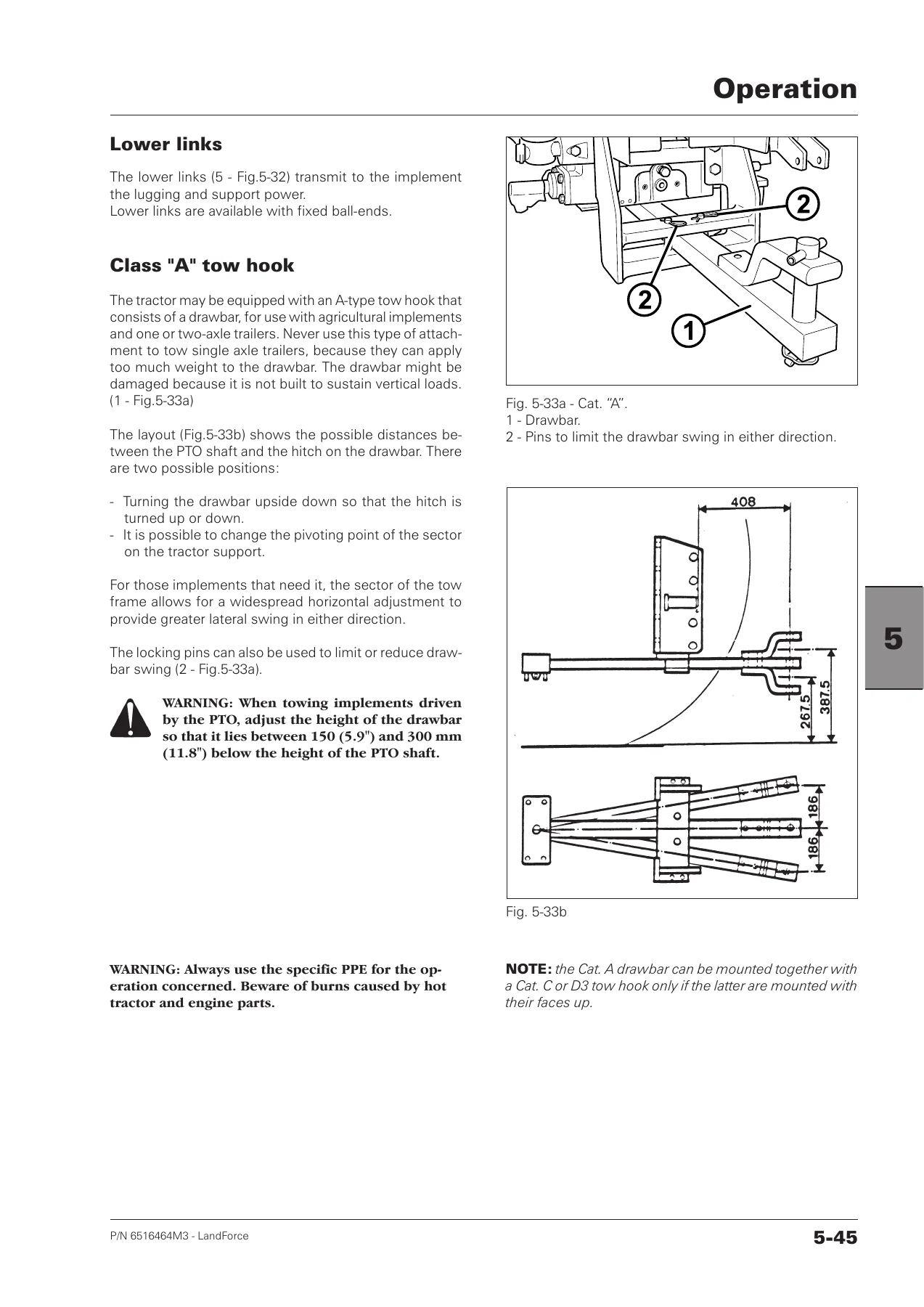

The operation chapter is the working heart of the manual. It covers daily checks, running-in recommendations, normal and cold-weather starting, stopping and parking procedures, transmission configurations, clutch and reverse shuttle operation, gearbox and range selection, PTO engagement and speed selection, brakes, parking brake, differential lock, four-wheel drive, three-point linkage, mechanical and electronic hitch control, auxiliary control valves, ROPS frame use and tractor transport. Specific procedures are included for the mechanical reverse shuttle and the hydraulic reverse shuttle with High-Medium-Low ranges.

Tyres, Wheels, Ballasting

This chapter brings together tyre inflation specifications, tyre pressures and load capacities, tyre and wheel service, wheel removal, front wheel toe-in, maximum steering angle adjustment, track-width adjustment tables and ballasting. It explains front ballast plates, rear wheel rings and water ballasting with calcium chloride solution, along with the associated safety precautions. The track tables are especially helpful when setting the tractor up for different row widths or implements.

Regular Service Intervals

The maintenance section provides the routine maintenance table and the procedures needed to keep the tractor serviceable. It covers engine oil and filters, transmission and hydraulic oil checks, fuel filters and water separation, coolant level, air filters, brake and clutch fluid checks, battery checks, greasing points, belt inspection, cab air filters, fuel-system bleeding and preparation for long idle periods. The interval tables make it practical to plan daily, 50-hour, 500-hour and longer-term servicing.

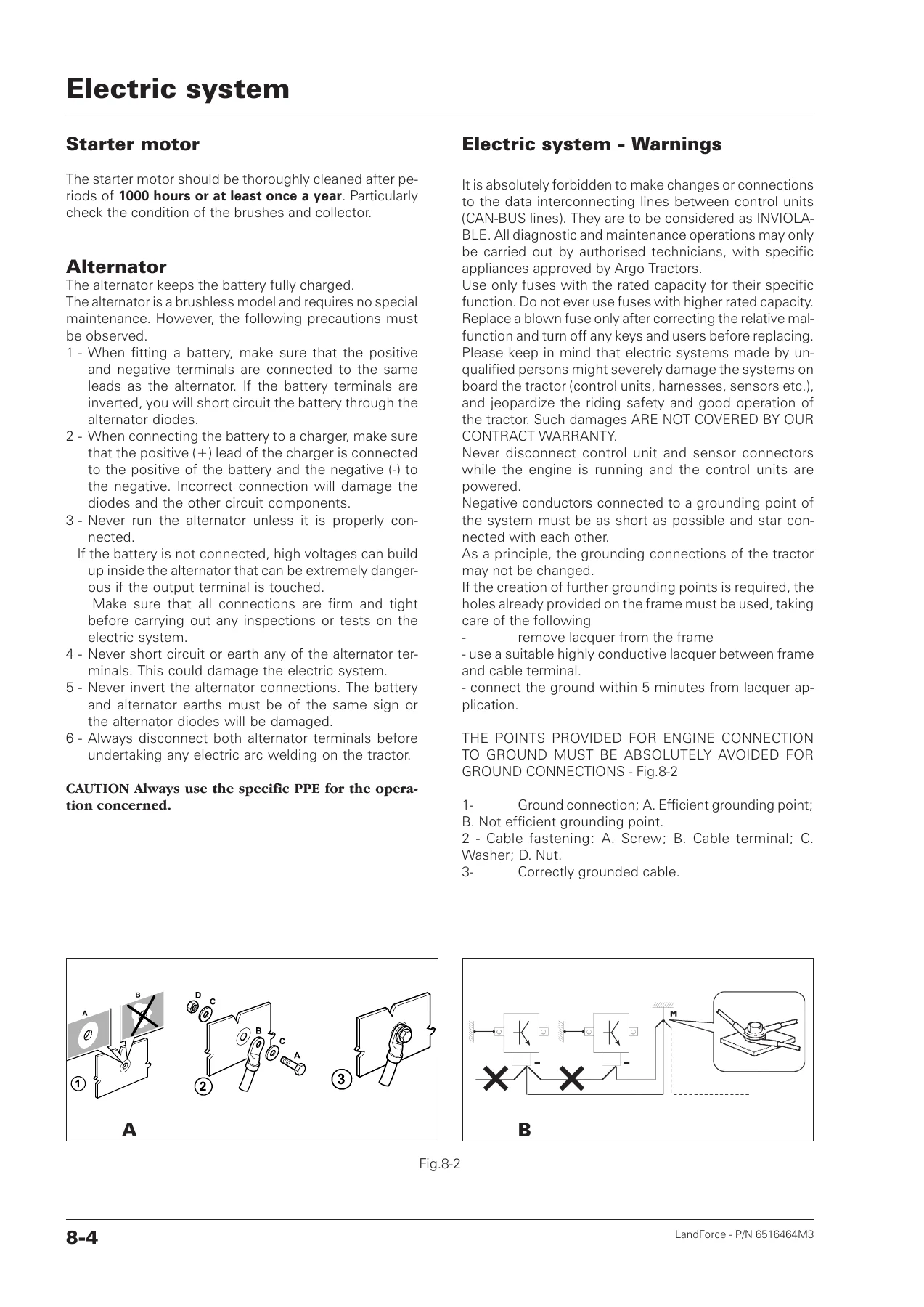

Electric System

The electrical chapter covers the battery, charging system, lighting and bulb replacement, fuses and relays, and the 7-pin trailer socket. It includes battery maintenance and safety warnings, headlight alignment, fuse and relay identification for different tractor setups, and basic electrical-system precautions. This is the section to consult before tracing a lighting fault, replacing a fuse or checking trailer connections.

Specifications

The specifications chapter provides the technical reference data for LandForce 115 and 125 tractors, including weights and dimensions, engine data, transmission and rear axle details, PTO speeds, brakes, 4WD front axle data, steering system, hydraulic circuit data, hitch and three-point linkage information, electrical system ratings and lubricant capacities. It also lists noise-level values and implement attachment-point dimensions.

Who This Landini LandForce Operator Manual Is For

This manual suits owners, operators, farm managers and service technicians who need the manufacturer’s operating instructions and service data for the LandForce 115 or LandForce 125. It is written for tractors with a cab or ROPS frame, so the safety and control sections reflect both configurations. Because it is a worldwide operator manual, some photographs and descriptions may show optional equipment that is not fitted to every tractor; always compare the manual content with the machine and the options actually installed.

Practical Coverage for Daily Work and Long-Term Maintenance

The value of this Landini LandForce 115-125 Tractor Operator Manual is in the range of tasks it supports. It helps with pre-start checks, safe starting, correct use of the transmission and PTO, implement hitching, ballasting decisions, tyre pressures, brake checks, fuse identification and routine service intervals. When a warning light appears on the instrument panel, the relevant indicator explanation and diagnostic code section can be checked. When servicing is due, the maintenance table and fluid capacities provide a clear reference. When the tractor is used on the road or with trailers, the safety and transport instructions set out the required precautions.

For anyone maintaining a LandForce 115 or 125, having the correct procedures in one place reduces guesswork. The manual is especially useful for checking PTO speed selection, transmission range operation, hydraulic hitch settings, track-width adjustment and the correct lubricants and capacities before work begins. It also helps avoid the expensive mistakes that come from using the wrong fluid, the wrong PTO speed or an incorrect hitching point.
