Landini Mythos 90 100 110 Tractor Training Manual – P/N 3659955M1 PDF

Description

File Details

• Manual Type: Training Manual (Draft Copy)
• Brand: Landini
• Models Covered: Mythos 90, Mythos 100, Mythos 110
• Document Number: P/N 3659955M1
• Language: English
• File Format: PDF

Chapters Covered

• 1. Introduction — How to consult the manual, tractor identification and technical specifications, working in safety, pre-delivery inspection and maintenance, conversion tables, sealants, bolt driving torques.
• 2. Engine — Technical specifications, driving torques for 1004-40T and 1006-60 engines, engine timing, compression TDC, camshaft timing, injection pump timing.
• 3. Clutch — Powerfive and Deltafive version drawings, operation, technical specifications, inspections, special tools.
• 4. Powerfive / Deltafive Transmission — General description, technical specifications, ground speed tables, gearbox-axle assembly, gearbox, bevel gear pair and differential, side final drives, rear brakes, special tools.
• 5. 4WD Front Axle — General description, technical specifications, demounting/remounting/adjustment, front brakes, special tools.
• 6. Power Take-Off — General description, technical specifications, demounting/remounting/adjustment, special tools.
• 7. Hydraulic Circuit — General hydraulic circuit, low pressure and high pressure circuits, cooling and lubricating circuit, technical specifications, hydraulic braking system, main components, operating pressure tests, special tools.
• 8. Mechanical Power Lift — General description, operating modes, valve system components, control valve phases, technical specifications, inspections, adjustments, troubleshooting, special tools.
• 9. Electronic Power Lift — General description, technical specifications, hydraulic circuit, control valve unit, electrical system, wiring diagram, sensors, functionality inspections, check-control and troubleshooting, hydraulic tests, special tools.
• 10. Electrical System — General definitions, electrical symbols, wiring diagrams, technical specifications, starter motor-battery line, front lines, internal cab lines, roof lines, rear lines, sensors, solenoid valves, switches, dashboard, check-control and troubleshooting.
• 11. Cab and Air Conditioning System — Basic principles, operating principle of a chilling cycle, main components, A/C system, ECC system, emptying and charging, inspections and troubleshooting.
• 12. Special Tools — Constructional drawings.
• LandTools Software — General description, main control panel, functional tests, calibration, replacing the electronic plant.

This Landini Mythos 90 100 110 tractor training manual (P/N 3659955M1) is a comprehensive technical document produced for the Landini training center. It covers three Mythos models — the 90, 100, and 110 — and provides the technical specifications, mechanical and hydraulic layouts, wiring diagrams, and operating and adjustment instructions that a technician needs when working on these tractors. The manual is marked as a draft copy and is intended for persons attending Landini training courses, where it is supplemented by the theoretical and practical explanations given by instructors.

What This Landini Mythos Training Manual Covers in Detail

The engine section deals with the Perkins 1004-40T four-cylinder turbo engine fitted to the Mythos 90 and 100, and the Perkins 1006-60 six-cylinder naturally aspirated engine used in the Mythos 110. You get the full technical specifications — bore, stroke, swept volume, compression ratio, power ratings, torque figures, injection pump data, injector settings, and valve clearances — along with the driving torques for cylinder head bolts, connecting rods, main bearings, and other critical fasteners. The engine timing chapter walks through finding compression TDC on cylinder number one, camshaft timing, and injection pump timing with the lock screw and timing pin procedures.

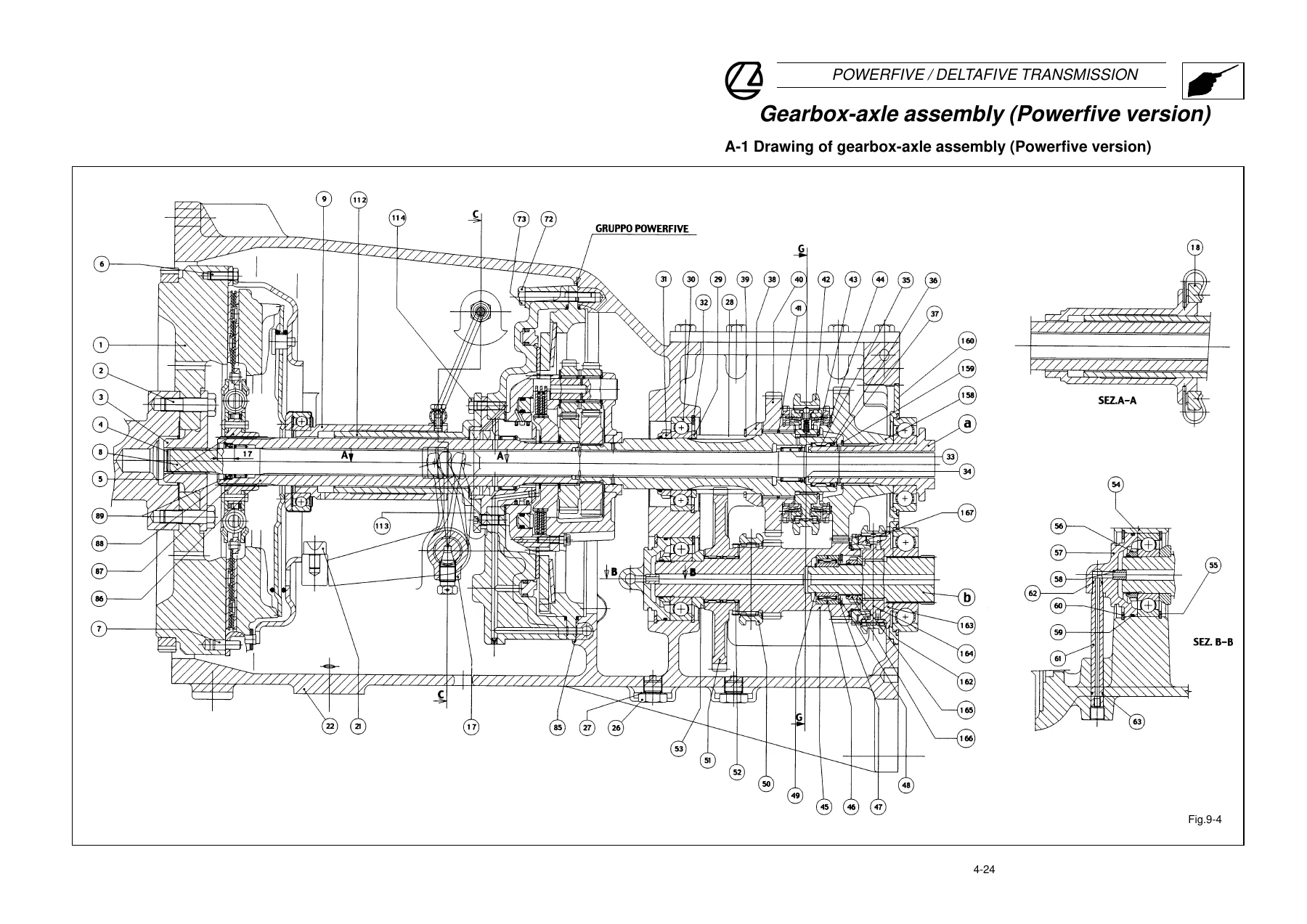

The transmission section is particularly extensive, covering both the Powerfive and Deltafive versions. The Powerfive is an epicyclic final drive that reduces each gearbox speed by 20%, giving 30 forward and 30 reverse speeds in standard form. The Deltafive adds underdrive and overdrive ranges on load, giving 44 forward speeds in its basic configuration. You get complete ground speed tables for both versions with the various tyre options, along with the demounting, remounting, and adjustment instructions for the gearbox-axle assembly, the gearbox itself, the bevel gear pair and differential, the side final drives, and the rear brakes. Shim calculation procedures for the synchromesh units and bearing preloads are included.

The 4WD front axle chapter covers the spheroidal cast iron axle with central pivot, the 8/31 reduction ratio, the Spring-on electro-hydraulic clutch control, and the oil-cooled front brakes. Adjustments for bevel pinion positioning, bearing preloads, and ring gear and pinion backlash are given. The power take-off section describes the independent electro-hydraulic PTO with 2-speed or 4-speed options — 540/540ECO RPM, 540/1000 RPM, or 540/540ECO/1000/1000ECO RPM — including the hydraulic clutch, brake, and proportional ground-speed operation.

The hydraulic circuit is split into low pressure (17/18 bar) and high pressure (180 bar) sections. The low pressure circuit supplies the power steering, Powerfive or Deltafive engagement, hydraulic PTO, differential locks, PTO brake, 4WD clutch, and creeper clutch. The high pressure circuit feeds the trailer brake valve, auxiliary control valves, and the mechanical or electronic power lift. You get the pump specifications — a double gear pump in tandem with 14 cc/rev and 28 cc/rev stages depending on model — along with filter ratings, steering system data, and pressure test procedures for both circuits.

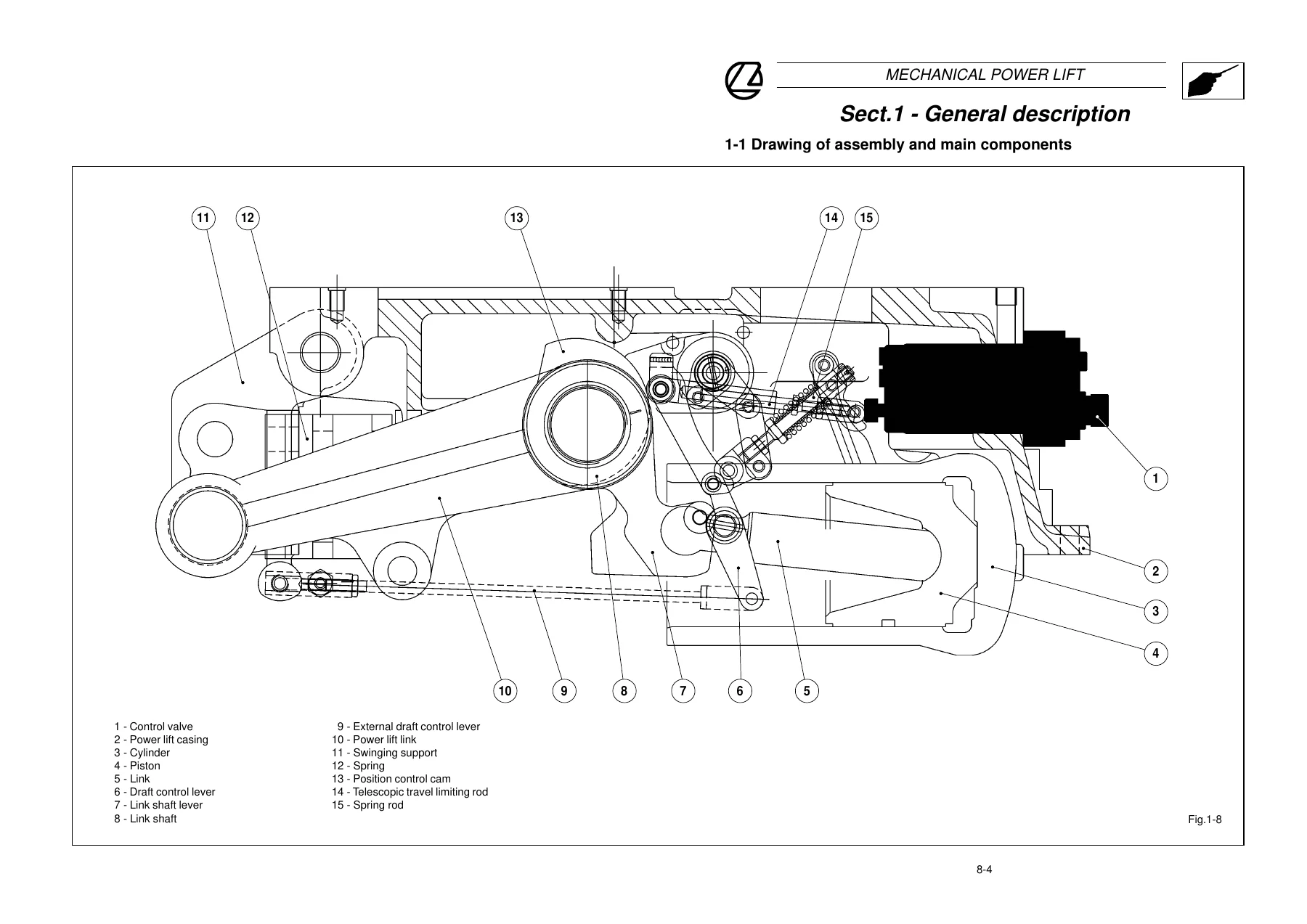

The mechanical power lift chapter covers the four operating modes — position control, draft control, mixed control, and floating position — and the control valve operating phases (neutral, lifting, discharge). The electronic power lift chapter goes into the control console, sensors, electronic plant, and control valve unit, with the full wiring diagram, fault code charts, and troubleshooting procedures. The check-control system uses flashing LED codes to identify faults, and the manual explains how to interpret them and carry out the electrical tests.

The electrical system chapter covers the battery, alternator, and starter motor specifications, along with the relay and fuse box layouts. Wiring sections detail the starter motor-battery line, front lines for 4-cylinder and 6-cylinder engines, internal cab lines for A/C and ECC versions, roof lines, and rear lines. Component identification covers sensors, solenoid valves, switches, buttons, and the dashboard — including the microswitch settings for calibrating the speedometer when different tyre sizes are fitted.

The cab and air conditioning section explains the basic principles of refrigeration, the chilling cycle, and the components of both the A/C and ECC (automatic climate control) systems. Safety notes, maintenance instructions, and the recharging procedure with pressure and temperature tables are included. The manual also includes a LandTools software guide covering the diagnostic and calibration program used with the Deltafive electronic management system, with the functional tests module, calibration module, and the procedure for replacing the electronic plant.

Why This Landini Mythos 90 100 110 Training Manual Matters

Working on modern agricultural tractors without the correct technical information is a recipe for expensive mistakes. Torque values that are wrong can lead to stretched bolts or cracked components. Hydraulic pressures set too high can damage seals and clutches. Electrical faults traced without a wiring diagram can take hours longer than they should. This Landini Mythos 90 100 110 training manual gives you the specifications, procedures, and diagrams needed to do the job correctly — whether you are servicing a single tractor on your own farm or running a workshop that sees these machines regularly.

The manual covers both Powerfive and Deltafive transmission versions, so it is suitable for tractors across the Mythos range regardless of which transmission option was specified. The engine coverage spans both the four-cylinder 1004-40T and the six-cylinder 1006-60, and the hydraulic and electrical sections are detailed enough to support real diagnostic work. Because this is a training manual rather than a full workshop manual, it focuses on the specifications, layouts, and adjustment procedures that require particular expertise or recommendations. It is designed to be used alongside the practical instruction given at the Landini training center — but the technical content stands on its own as a reference for anyone who needs accurate data for these tractors.

IMAGES PREVIEW

This Landini Mythos 90 100 110 tractor training manual is delivered as an instant PDF download. No shipping, no waiting. You can view it on any device — laptop, tablet, or phone — and print the pages you need for the workshop. Whether you are diagnosing a hydraulic fault, rebuilding a transmission, adjusting the power lift, or tracing an electrical problem, having the right manual at hand saves time, reduces frustration, and helps you get the tractor back to work sooner.
