LEEBOY RW-35B Road Widener Operations, Service & Parts Manual SN 1012048-02 PDF DOWNLOAD

Description

LEEBOY RW-35B Road Widener Operations, Service & Parts Manual SN 1012048-02 PDF DOWNLOAD

FILE DETAILS:

LEEBOY RW-35B Road Widener Operations, Service & Parts Manual SN 1012048-02 PDF DOWNLOAD

Language : English
Pages : 195
Downloadable :Yes
File Type : PDF

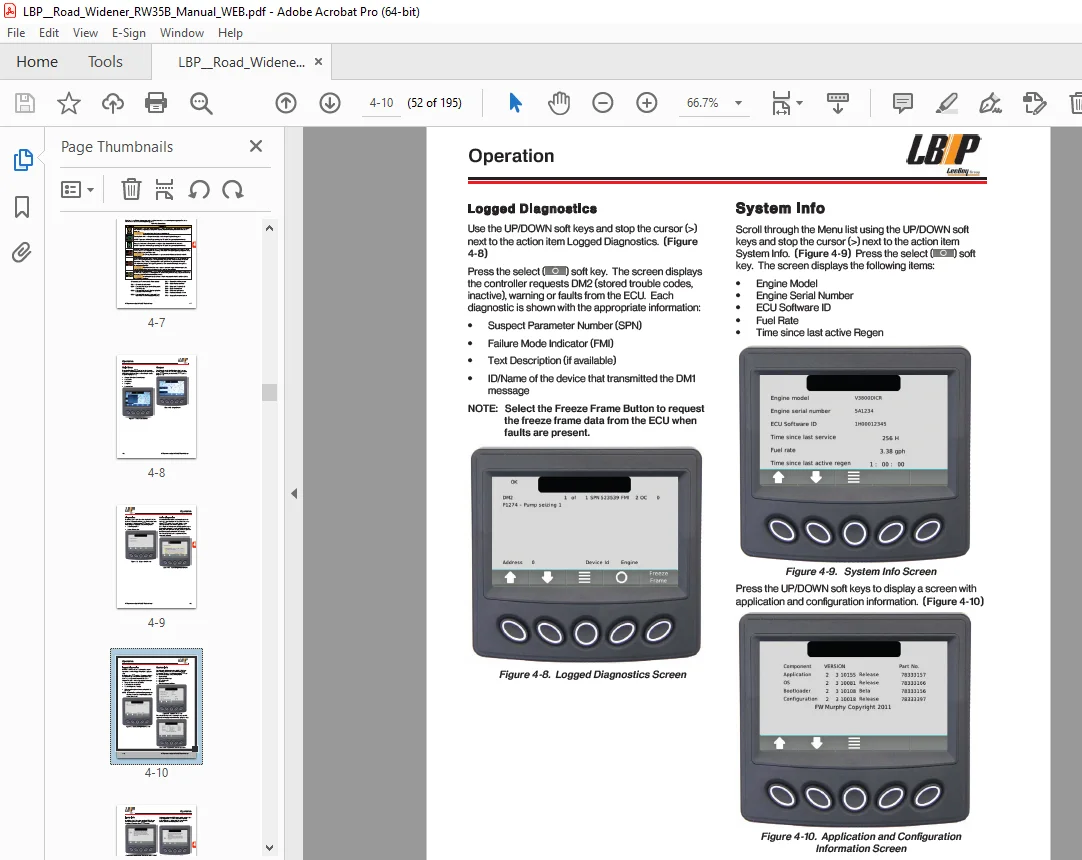

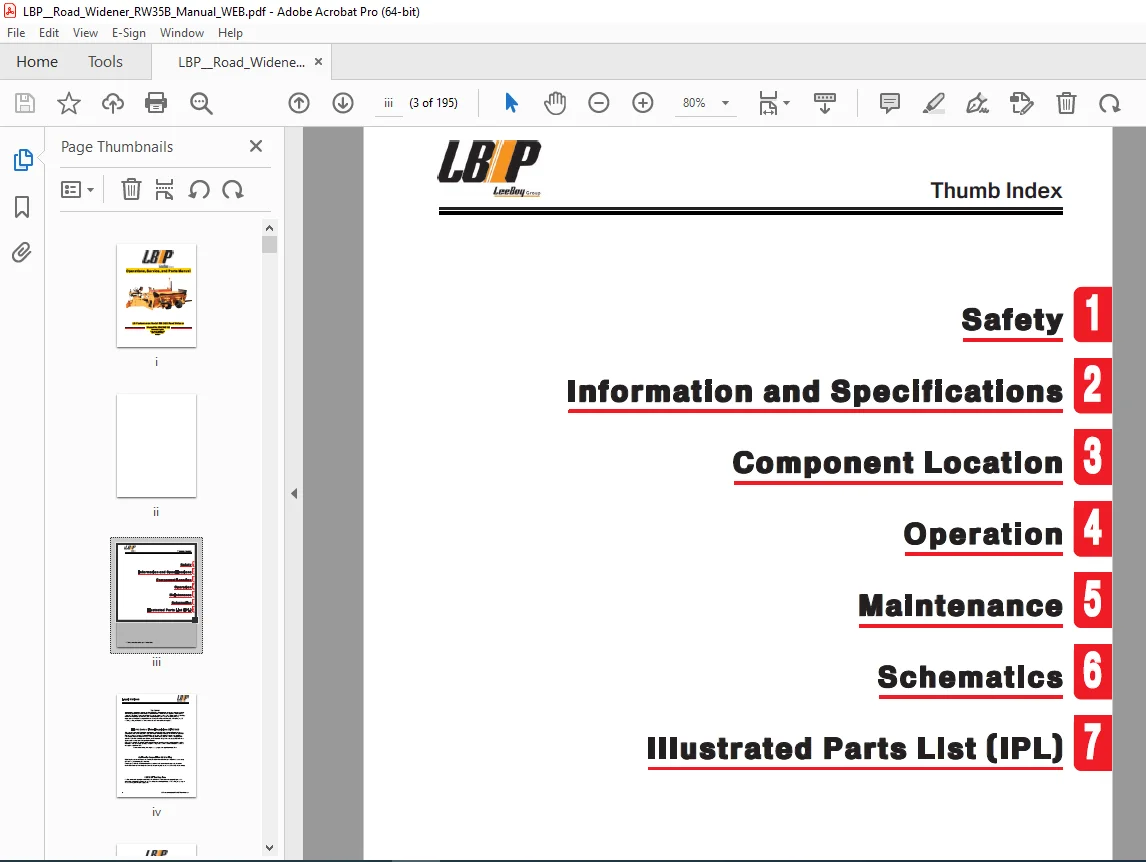

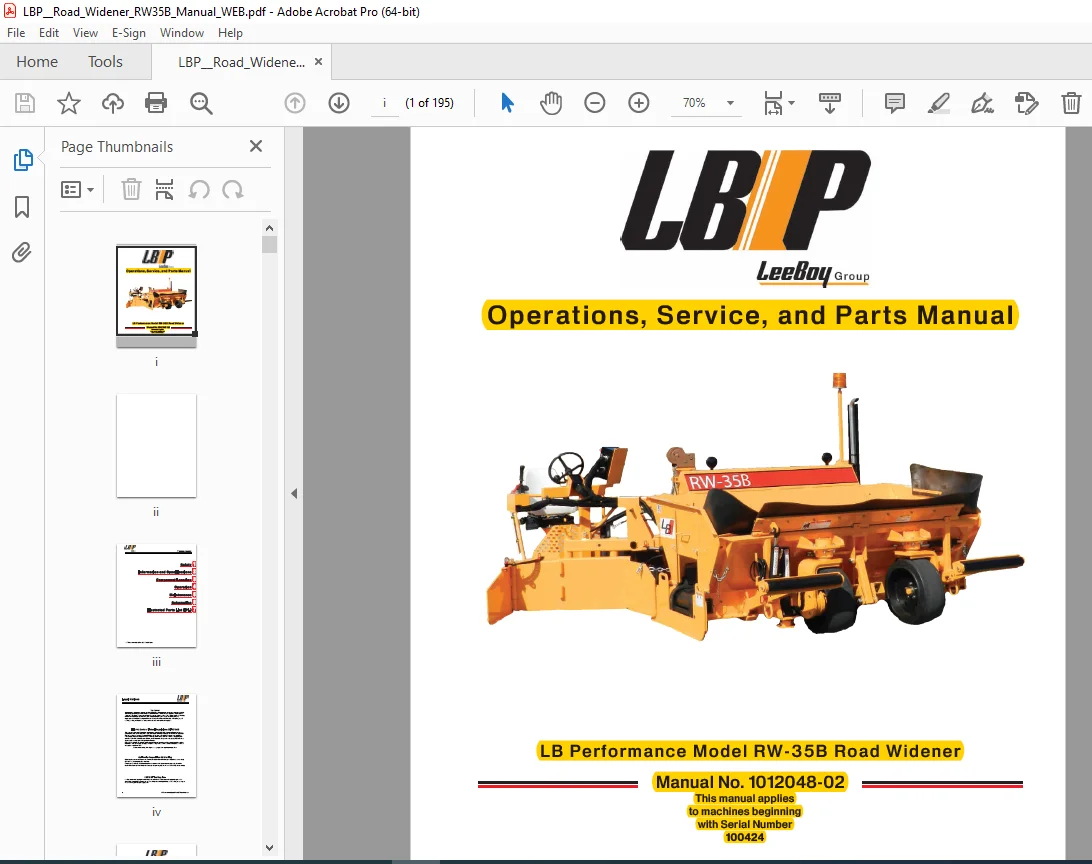

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

LEEBOY RW-35B Road Widener Operations, Service & Parts Manual SN 1012048-02 PDF DOWNLOAD

Manual no . 10120428-02

Introduction ix
Safety 1-1
Safety Overview 1-4
Pre-Operation Hazard 1-4
Safety Labels 1-7
Safety Decals Care 1-8
Safety Precautions 1-9
Hot Material Precautions 1-9
Hydraulic System Precautions 1-9
Refueling Precautions 1-9
Battery Precautions 1-10
Tire Precautions 1-10
Operating Precautions 1-12
Storage Precautions 1-12
Maintenance Precautions 1-13
Information and Specifications 2-1
Limited Warranty Policy 2-2
Contact Information 2-3
Specification Charts 2-4
Torque Specifications 2-7
Standard Inch Fasteners 2-7
Metric Fasteners 2-8
Hydraulic Fittings 2-8
Determining Proper Torque 2-9
Component Location 3-1
Machine Overview 3-2
Operator Control Console 3-4
Operator Control Box 3-5
Strike-Off 3-6
OPERATION 4-1
Introduction 4-3
Receiving the Machine 4-3
Initial and Daily Inspection 4-4
Start-Up Procedure 4-4
PV480 Powerview™ Display 4-5
Gauge Screens 4-5
Soft Keys 4-6
Status Icons 4-7
Main Menu 4-8
Gauges 4-8
System Info 4-10
Lamp Info 4-11
User Settings 4-12
Regeneration 4-15
Messages, Cautions and Warnings 4-18
Machine Adjustments 4-19
Hopper Wings 4-19
Strike-Off 4-20
Operator Platform 4-21
Machine Operation 4-22
Basic Road Widening 4-22
Rear Wheel Cylinder Stop 4-22
Machine Shut-Down 4-23
Towing 4-23
Disconnect Tow Hitch 4-24
Umbrella (Option) 4-25
Maintenance 5-1
General Information 5-3
Maintenance Schedule 5-4
Preparing Machine for Maintenance 5-4
10-Hour or Daily Routine Maintenance 5-4
50-Hour or Weekly Routine Maintenance 5-5
100-Hour or Monthly Routine Maintenance 5-5
250-Hour or Quarterly Routine Maintenance 5-5
500-Hour or Semi-Annual Routine Maintenance 5-5
1000-Hour or Annual Routine Maintenance 5-5
Lubrication 5-6
Tire Maintenance 5-7
Hydraulic System 5-7
Check Hydraulic Oil Level 5-7
Hydraulic System Check 5-8
Check and Clean Hydraulic Oil Reservoir Filler Cap 5-9
Change Hydraulic Oil and Filters 5-9
Engine Maintenance 5-10
Check Engine Oil Level 5-10
Change Engine Oil and Filter 5-10
Air Filter 5-11
Electrical System 5-12
Check Battery and Cables 5-12
Alternator 5-12
Circuits and Fuses 5-13
Lighting 5-13
Check Neutral Start System 5-13
Fuel System 5-14
Fuel Filter 5-14
Cooling System 5-15
Inspect Cooling Fan 5-15
Inspect Cooling Fan Drive Belts 5-15
Check and Clean Radiator 5-15
Check and Fill Reservoir 5-15
Storage 5-16
Preparing For Long-Term Storage 5-16
Weldment 5-16
Periodic Maintenance During Storage 5-17
Removing Machine From Storage 5-17
Troubleshooting Chart 5-18
PV480 Diagnostic Trouble Code (DTC) Chart 5-19
Schematics 6-1
Electrical 1 of 4 (Control Box, Tier 4, Sheet 1 of 2) 6-3
Electrical 2 of 4 (Control Box, Tier 4, Sheet 2 of 2) 6-5
Electrical 3 of 4 (Harness, Main, Tier 4, RW35B) 6-7
Electrical 4 of 4 (Harness, Tail Light) 6-9
Hydraulic 1 of 2 6-11
Hydraulic 2 of 2 6-13
Diagram, Electrical, RW35B – 1 of 2 6-15
Diagram, Electrical, RW35B – 2 of 2 6-17
Quick Reference Guide 7-3
Conveyor / Hopper Group, 1 of 2 7-4
Conveyor / Hopper Group, 2 of 2 7-6
Conveyor Assembly With Components 7-10
Roller Bearing Assembly 7-12
Conveyor Tail Pulley 7-14
Conveyor Drive Pulley 7-16
Conveyor Belt Assembly 7-18
Control Group 7-20
Operator Station Assembly 7-22
Control Box 7-24
Covers and Panels Group 7-26
Drive Group 7-28
Left and Right Rear Wheels 7-30
Rear Wheel Locking Hub 7-32
Steering Linkage Assembly 7-34
Hardware Reference Assembly 7-36
Front Wheel Assemblies 7-38
Engine Group 7-40
Engine Assembly 7-42
Tanks Group 7-46
Hydraulic Group 7-48
Strike-Off Group, 1 of 2 7-50
Strike-Off Group, 2 of 2 7-52
Detail Group, 1 of 2 7-54
Detail Group, 2 of 2 7-56
Push Roller Assembly 7-58
Hitch Stabilizer Bar Assembly 7-60
Road Hitch Assembly 7-62
Chain Assembly (for Hitch) 7-64
Alphabetical Parts Index 7-66
