Lexmark X464 Service Manual – Repair, Diagnostics & Error Code Guide PDF

Description

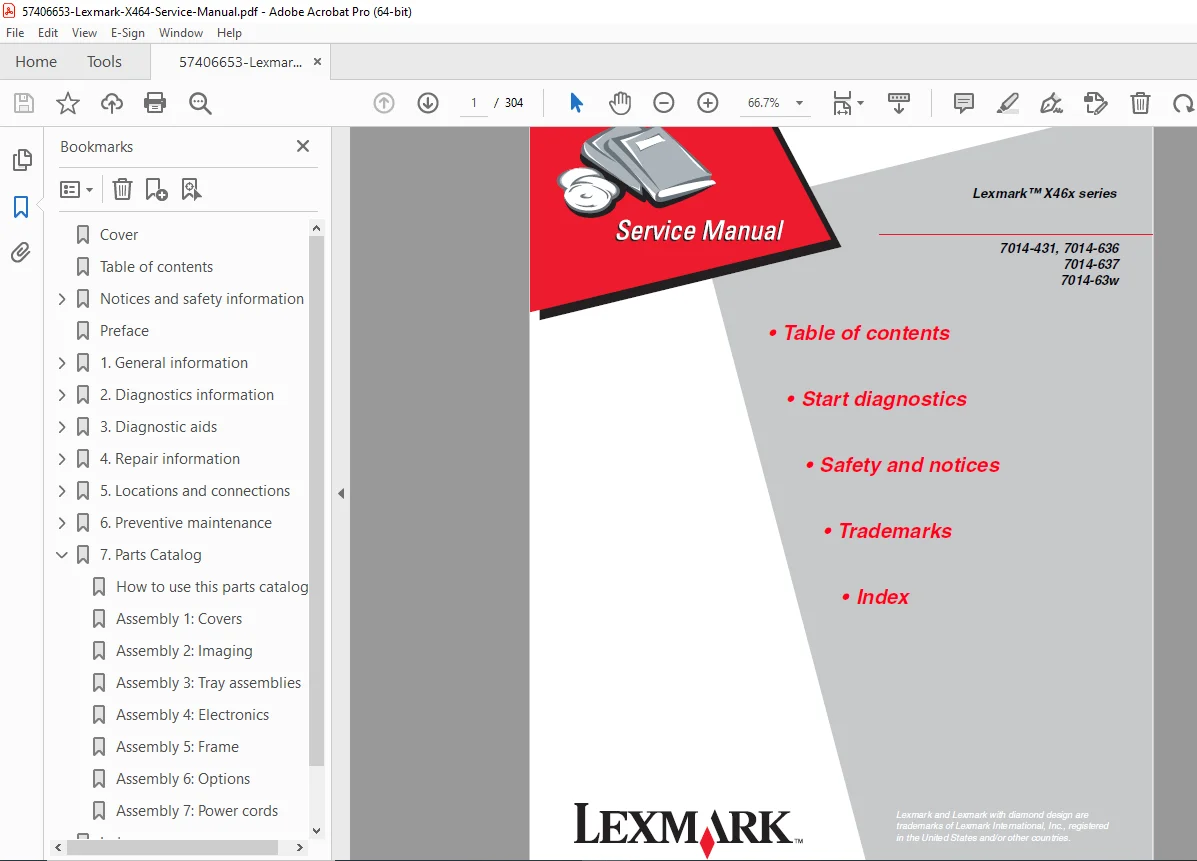

Lexmark X464 Service Manual – Repair, Diagnostics & Error Code Guide PDF DOWNLOAD

DESCRIPTION

This factory-original Lexmark X464 / X46x Series Service Manual provides complete technical coverage for repair, maintenance, diagnostics, error code interpretation, and advanced troubleshooting.
Models covered include: 7014-431, 7014-636, 7014-637, 7014-63W.

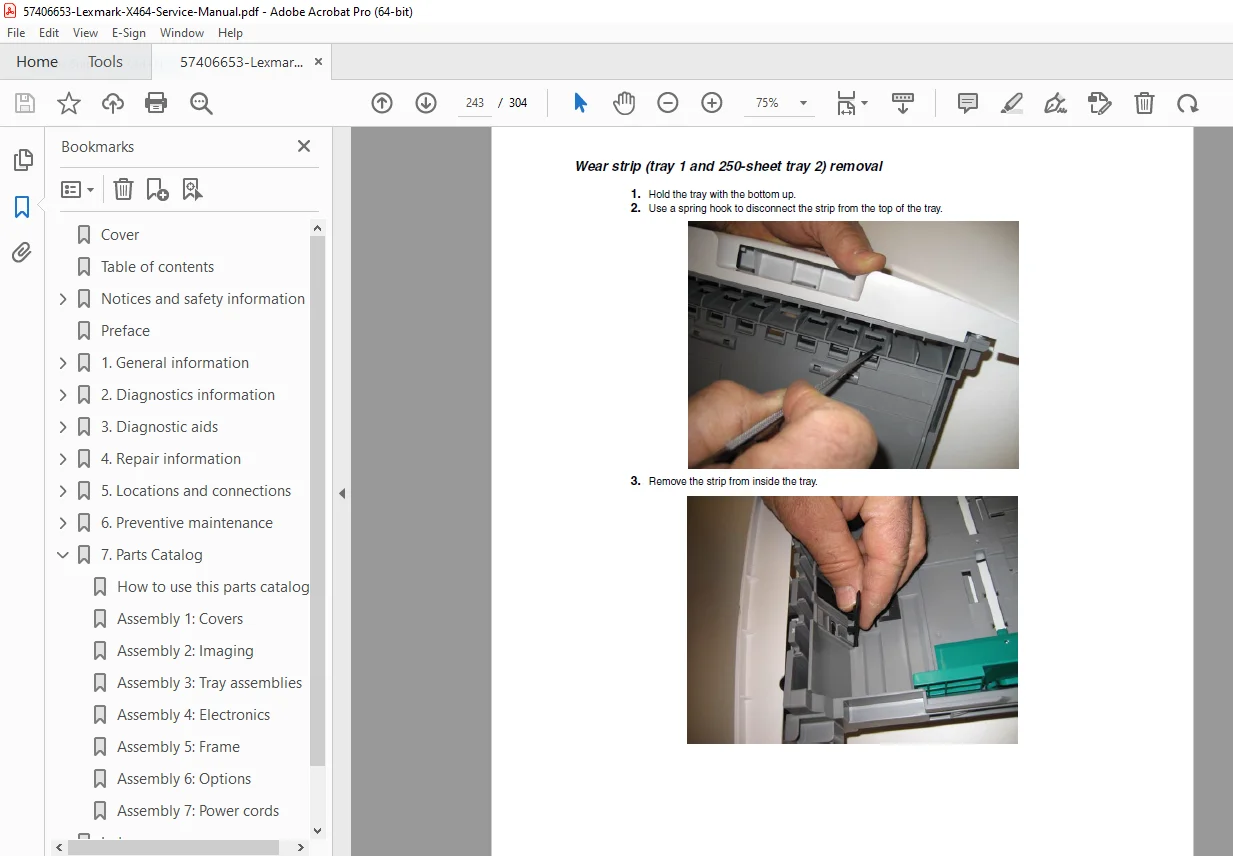

Designed for professional service technicians, this PDF manual includes step-by-step disassembly, component-level service checks, engine diagnostics, paper path troubleshooting, scanner/ADF repair, and fax system verification.

 TABLE OF CONTENTS

1. Notices & Safety Information

• Laser safety notice

• Lithium battery warning

• Safety precautions and servicing rules

2. General Information (Chapter 1)

• Maintenance approach

• Print engine specifications

• Memory configuration

• Print quality settings

• Operating environment & dimensions

• Connectivity & media support

• Digital imaging specifications

• Flatbed & ADF scanning specifications

• Fax specifications

• Supported file formats & scan destinations

• Tools and acronyms

3. Diagnostics Information (Chapter 2)

• Diagnostic start-up workflow

• Symptom tables:

  • POST issues

  • Printer faults

  • Scan/Fax/Copy symptoms

• Complete Error Code Library:

  • 200-series paper jams

  • 800/900 service errors

  • Cartridge errors

  • Fax error codes

• Messages & user attendance messages

• Operator panel menu overview

• Touchscreen buttons and menu diagrams

4. Service Checks (Chapter 2-35 onwards)

Detailed mechanical/electrical checks for:

• Controller board

• Engine board

• Card reader

• Cooling fans

• Interlock switches

• Paper feed system

• Fuser assembly

• LVPS/HVPS units

• Main motor

• Print quality diagnostics

• CCD service check

• Flatbed motor & home position

• ADF feed, jam, duplex checks

• Fax transmission/reception service checks

5. Diagnostic Aids (Chapter 3)

• Accessing service menus

• Configuration Menu

• Maintenance count reset

• USB Scan-to-Local

• Event logs & error history

• Disk tests (Quick & Clean)

• Print tests, hardware tests, duplex tests

• Input/output tray feed tests

• Scanner tests and sensor checks

6. Printer Setup & Engine Parameters

• Printed page count & permanent count

• Model name & configuration ID

• Engine settings level 1–4

• Edge-to-edge adjustments

• Print contrast, fuser temperature, warm-up time

• Charge roll, transfer settings

• Auto dark adjust

7. Printhead Assembly Adjustments

• Electronic adjustment

• Mechanical alignment

8. SE (Service Engineer) Menus

• Code revision info

• NVRAM tools

• MAC & network info

• History logs
