LGMG CMT96 Off-Highway Dump Truck Operation and Maintenance Manual 2020

Description

LGMG CMT96 Off-Highway Dump Truck Operation and Maintenance Manual

This LGMG CMT96 Off-Highway Dump Truck Operation and Maintenance Manual is the complete guide for operating, servicing, and maintaining the CMT96 mining dump truck manufactured by Lingong Group Jinan Heavy Machinery Co., Ltd. Published in October 2020 as the first edition, this manual covers every major system on the truck, from daily pre-start checks through major assembly overhaul procedures. Whether you are an operator running the truck on site or a technician responsible for keeping it in service, this document provides the procedures, specifications, and maintenance intervals you need.

The CMT96 is a 100,000 kg class off-highway dump truck powered by an MC13.54T30 inline six-cylinder diesel engine producing 397 kW and 2,500 Nm of torque, mated to an Allison 48000RS_PR automatic transmission. This manual addresses the specific systems and components of that configuration.

File Details

• Manual Type: Operation and Maintenance Manual
• Brand: LGMG (Lingong Group Jinan Heavy Machinery Co., Ltd.)
• Model: CMT96
• Machine Type: Off-Highway Dump Truck
• Edition: 1st Edition
• Publication Date: October 2020
• Language: English
• Page Count: 152
• File Format: PDF

Chapters Covered

• Chapter I — Safety
  • Basic precautions
  • Operation precautions
  • Other precautions
  • Notices, signs, and their pasting positions
• Chapter II — Product Introduction

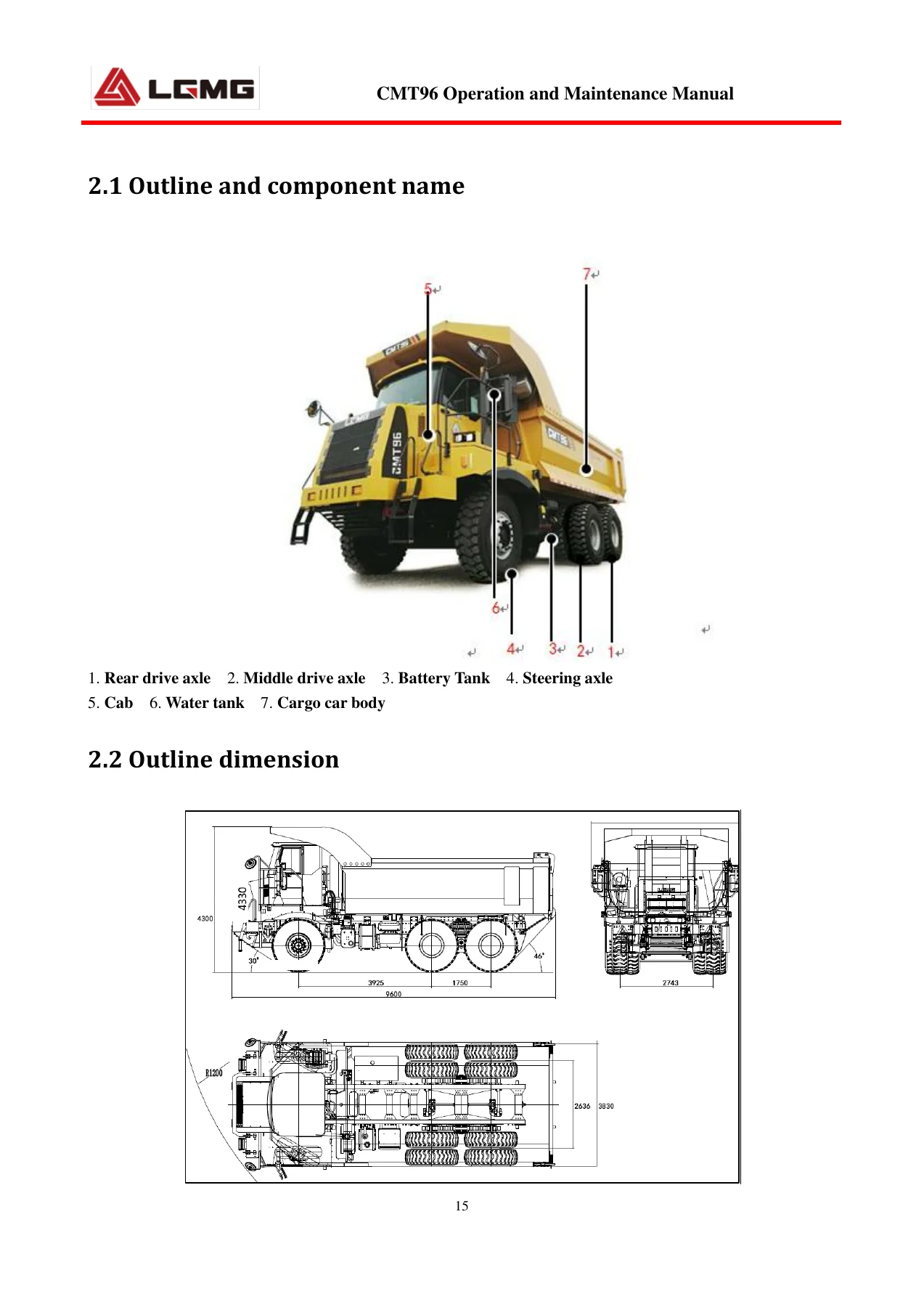

  • Outline and component name
  • Outline dimension
  • Application
  • Work environment requirement
  • Vehicle parameters — performance, dimensions, engine, transmission system, braking system, steering system, lifting system, fill capacities
• Chapter III — Operation
  • Door operation
  • Cab interior devices — instrument cluster, steering wheel and switch panel, alarm indicators, rocker switches, power switch, combination switch, retarder control, seat, transmission gearshift lever, hand brake valve, other interior devices
  • Cab exterior devices — radiator cover, rearview mirrors, working lamps, expansion tank
  • Preparation before driving — routine inspections, engine start, oil pressure, supercharger operation
  • Start-up and gearshift — transmission gears, differential lock, cargo lifting operation
  • Operation at low temperature environment
  • Wheel replacement and tire pressure
• Chapter IV — Operation and Maintenance of Main Assemblies
  • Engine — oil and filter changes, fuel filter, routine maintenance
  • Intake system — paper air filter, oil-bath air filter
  • Transmission — Allison 48000RS_PR operation, torque converter, planetary gear sets, hydraulic retarder, cooling system, shift lever use, oil level checks, fault codes
  • Front axle — operation, maintenance, brake shoe friction plate, periodic maintenance
  • Suspension system — front and rear suspension, leaf springs, fasteners, balance shaft
  • Steering system — steering control, hydraulic power steering, maintenance, troubleshooting
  • Brake system — service brake, engine exhaust brake, emergency/parking brake, air dryer, brake line maintenance, driving on slopes, icy/rainy/foggy conditions
  • A/C system — operation, maintenance, fault diagnosis
  • Rear view system — display screen operation
• Chapter V — Maintenance
  • Mileage for routine inspection and maintenance interval
  • Details on mandatory maintenance of CMT96 mining dump truck
  • Key points of maintenance — routine items, cleaning and inspection, maintenance level tables, oil product selection
  • Lubrication of chassis — lubrication requirements, lubricant categories, lubrication diagram
• Chapter VI — Annex
  • List of bulbs
  • Schematic diagram of brake
  • Hydraulic system schematic diagram
  • Engine diagnostic codes

This LGMG CMT96 operation and maintenance manual gives technicians and operators a single reference for the complete machine. The safety chapter establishes the warning conventions and site rules that apply before any work begins. The product introduction defines the truck’s dimensions, weight limits, and working environment boundaries so you know what the machine is designed to handle. The operation chapter walks through every control and gauge in the cab, the correct start-up sequence, warm-up requirements for the turbocharger, and low-temperature operating procedures. The assembly chapters break down each major system — engine, transmission, axles, suspension, steering, brakes, A/C, and rear view — with maintenance intervals, fluid capacities, torque values, and troubleshooting guidance. The maintenance chapter ties everything together with a mileage-based schedule and a chassis lubrication diagram that shows every grease point and its service interval.

What This Manual Enables You to Do

With this CMT96 off-highway dump truck manual on hand, you can perform the full range of scheduled maintenance without guesswork. The mandatory maintenance tables specify exactly what to replace and when — from the 100-hour initial inspection through the 1,000-hour service — including oil filters, fuel filters, air filters, gear oil, and hydraulic oil. The engine section covers oil and filter changes with torque values for drain plugs and filter covers. The transmission chapter explains the Allison 48000RS_PR automatic transmission operation, including shift lever use, oil level check procedures using the electronic oil level sensor or dipstick, and a comprehensive fault code table for diagnosing transmission issues.

The axle chapters provide brake shoe friction plate wear limits, brake clearance specifications, wheel nut tightening torques, and periodic maintenance intervals. The suspension section covers leaf spring inspection, fastener torque values, and the disassembly and assembly procedure for the maintenance-free balance shaft. The steering chapter includes a full troubleshooting table for hard steering, oil leaks, and irregular steering behavior. The brake system chapter explains the dual-circuit pneumatic brake, engine exhaust brake, and spring parking brake, with pressure inspection criteria and a troubleshooting table for common air system faults.

Correct procedures and specifications matter on a machine of this size and weight. The CMT96 has a maximum total mass of 100,000 kg and a 31.5 m³ (paperbacked) or 38.5 m³ (stacked) cargo body volume. Operating it outside the specified limits or skipping maintenance intervals can lead to component failure, unsafe operating conditions, and costly downtime. This manual gives you the factory-defined intervals, fluid types, and adjustment values to keep the truck running within its design parameters.

Additional Reference Material Included

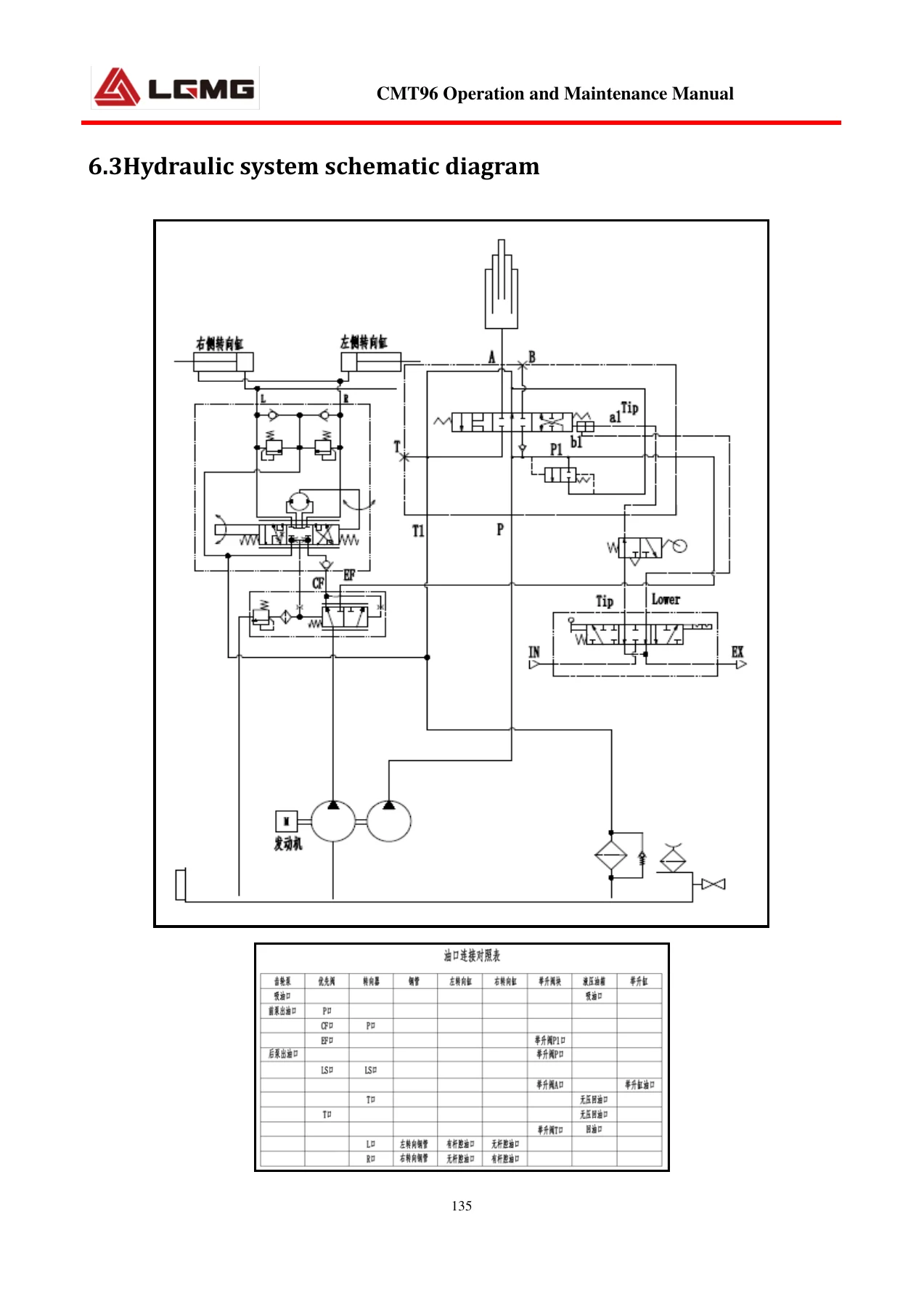

Beyond the chapter content, this LGMG CMT96 dump truck manual includes a brake schematic diagram showing the full pneumatic circuit, a hydraulic system schematic covering the lifting and steering circuits, an engine diagnostic code table listing fault codes with descriptions and P-codes, and a bulb list for the lighting system. The lubrication diagram identifies every grease point on the chassis with the correct lubricant type and service interval, from the cargo body swivel shaft and brake adjustment arms to the propeller shaft cross shafts and leaf spring pins.

The annex also provides a reference table for oil products in China and abroad, covering engine oil, hydraulic oil, gear oil, brake fluid, and gearbox oils with equivalent grades from major brands. This makes it practical to source the correct lubricants regardless of your location or supplier.

IMAGES PREVIEW

Instant PDF Delivery — No Shipping, No Waiting

This LGMG CMT96 Off-Highway Dump Truck Operation and Maintenance Manual is delivered as an instant PDF download immediately after payment. There is no physical book to ship, no waiting for delivery, and no risk of a damaged or lost package. You can access the manual on any device — laptop, tablet, or smartphone — and print the pages you need for the workshop or the field. The PDF format lets you keep the complete manual on file for quick reference whenever a maintenance task or repair comes up.

Whether you are performing a routine 500-hour service, diagnosing a transmission fault code, adjusting brake clearance, or looking up the correct hydraulic oil specification, this manual puts the information directly in your hands. Keep it accessible in the cab, the workshop, or on your service truck, and use it to keep your CMT96 running safely and efficiently.
