Liebherr A 900 C – A 924 C Litronic EDC Service Manual 2004-2012

Description

File Details

• Manual type: Workshop Service Manual
• Brand: Liebherr
• Models covered: A 900 C, A 904 C, A 914 C, A 924 C Litronic EDC
• Document number: 10216479
• Edition: 09/2004, with updates through 11/2012
• Language: English
• Page count: 3181
• File format: PDF

Chapters Covered

• General Information, Tools, Technical Data and Maintenance Guidelines
• Engine — D 934 S/L A6 technical data, tightening torques, installation and check lists
• Clutch and Splitterbox — coupling design, dismantling and installation, pump distributor gear
• Hydraulic System — LSC system, LUDV, hydraulic schematics for all model variants
• Hydraulic Components — pumps (DPVO 165, DPVP 108), motors (FMF, HMF 75-02P, DMVA), cylinders, valve blocks, pilot controls
• Electrical System — symbols, component arrangement, wiring diagrams, error code list, monitoring display menus
• Swing Gear — SAT 225/229, SAT 275/237-238, brake system, positioning slewing brake
• Swing Ring — design, play measurements, dismantling and mounting
• Two Speed Gear Box — 2 HL 290 transmission, shift lock, HBGV block
• Axles and Gear Box — ZF MS-E/MT-E 3060 and 3070, Kessler LT/D 71, differentials
• Steering — Servostat, steering valve, steering cylinder, four-wheel steering, joystick steering
• Oscillating Axle Stabilizer — support cylinder, automatic control
• Brake System — operating pressures, hydraulic brake system, compact brake block
• Special Attachments and Accessory Kits — AHS, AS1, LIKUFIX, quick-change adapters, pipe layer, dozer blade, generator drive
• Cab Heater and Air Conditioning — auxiliary heater, inspection and repair instructions, test menu
• Undercarriage, Uppercarriage and Attachments — conservation guidelines
• Central Lubrication System — semi-automatic and fully automatic systems

This Liebherr A 900 C – A 924 C Litronic EDC service manual is the complete workshop reference for maintaining and repairing these wheeled excavators. Across 3181 pages, it gives technicians the procedures, specifications and diagrams needed to service every major system — from the D 934 diesel engine and its electronic injection system, through the LSC load-sensing hydraulics and electrical control architecture, to the axles, steering, brakes and specialised attachments.

The manual covers multiple machine types within the range: A 900 C (type 1002), A 904 C (types 1003, 1004, 1005 and 1071), A 914 C (types 1044 and 1045) and A 924 C (types 1047, 1048, 1049, 1050 and 1051). Because these machines share many systems but differ in detail, the manual presents variant-specific data where it matters — hydraulic schematics, axle types, engine ratings and attachment configurations are all broken out by model.

Adjustment protocols and checking tasks are a major part of the content. These include detailed pressure settings for the hydraulic pumps, slewing gear, travel motors and brake system, along with step-by-step procedures for using the on-board monitoring display to read error codes, set parameters and run diagnostics. The electrical section includes a full error code list with causes and remedies, covering everything from sensor faults to CAN bus communication issues.

Repair and overhaul information is provided for major components: hydraulic pumps and motors, control valve blocks, slewing gear and brake, steering axles, rigid axles, differentials, steering cylinders, hydraulic cylinders and the compact brake block. Exploded views, sectional drawings and tightening torques accompany the procedures. Special tools are listed with ID numbers where required.

The manual also covers the air-conditioning and heating system, including the auxiliary heater, with test menus, error codes, wiring schematics and maintenance schedules. Central lubrication systems — both semi-automatic and fully automatic — are documented with their components and service intervals.

This is not a generic excavator manual. It is the specific service documentation for the Litronic EDC generation of Liebherr wheeled excavators, written for the technicians who maintain and repair them. Every procedure, specification and diagnostic step is tied to the actual machine — the engine data for the D 934 S/L A6, the pump settings for the DPVO 165 and DPVP 108, the axle types fitted across the range, and the error codes that the machine’s own control system generates.

Having the correct service manual changes what a technician can do on the job. Instead of guessing at pressures, torques or adjustment values, you work from the manufacturer’s specifications. Instead of replacing parts on suspicion, you follow diagnostic procedures that point to the actual fault. Instead of improvising a repair, you use the documented sequence that avoids damaging components or creating new problems.

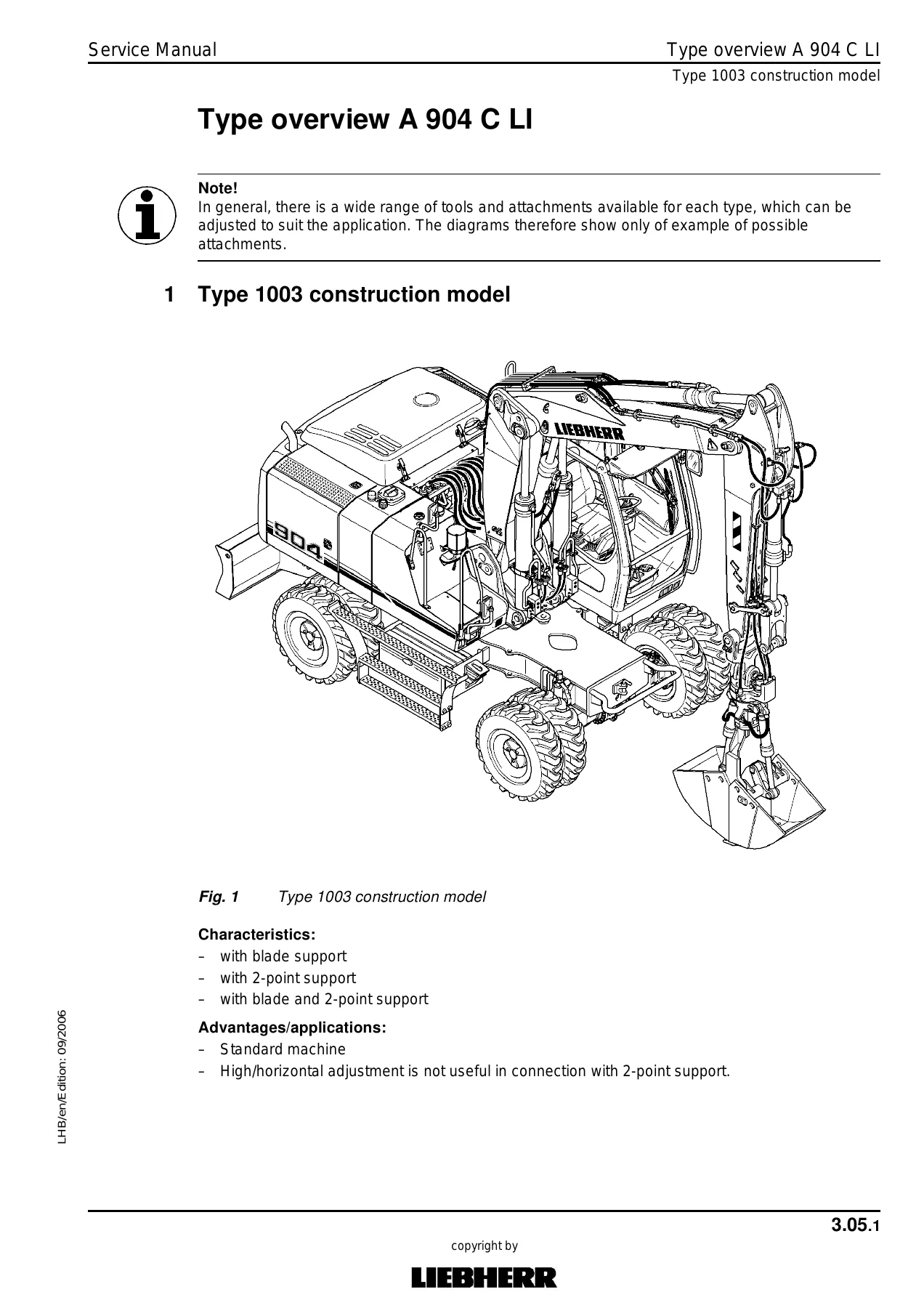

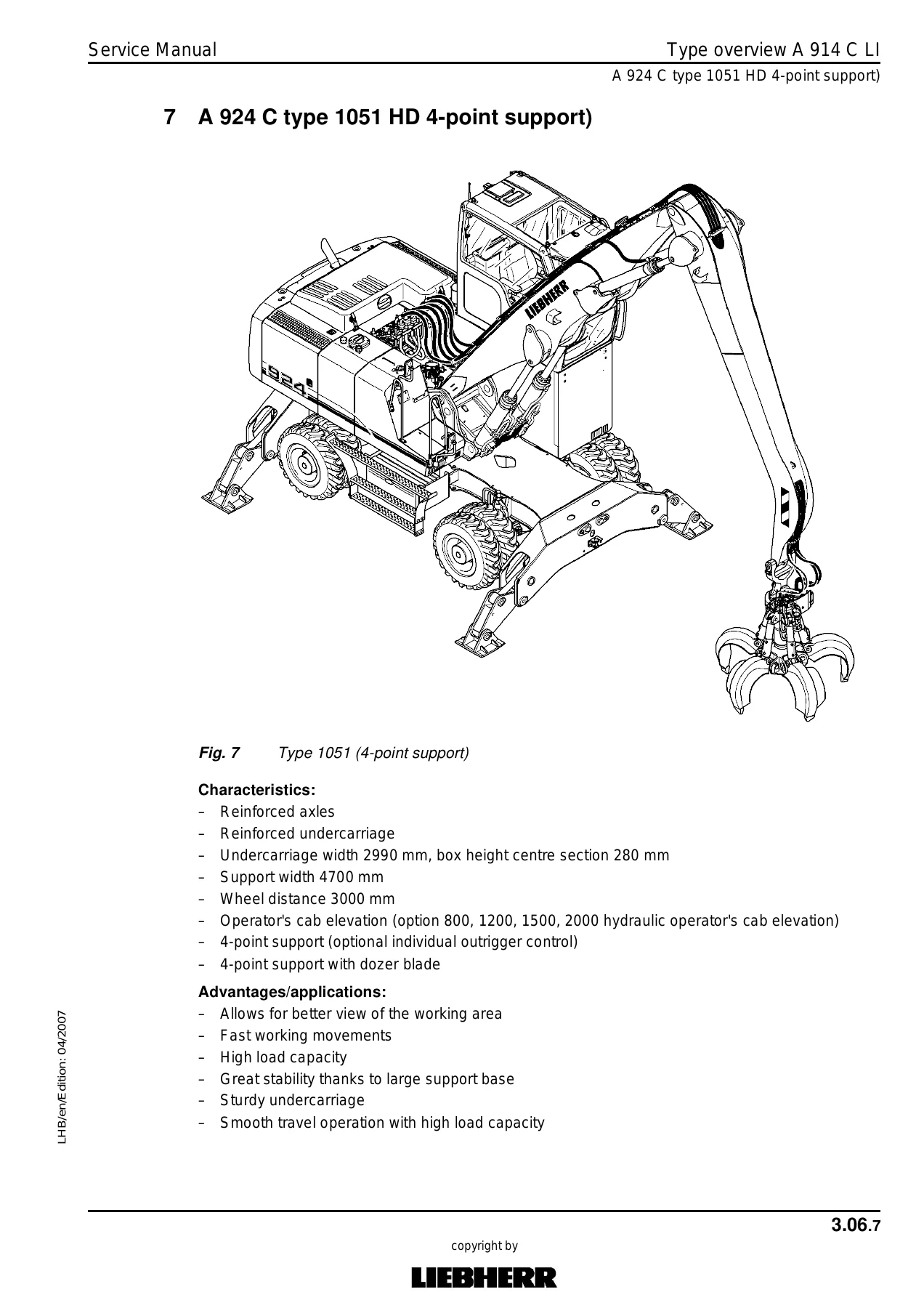

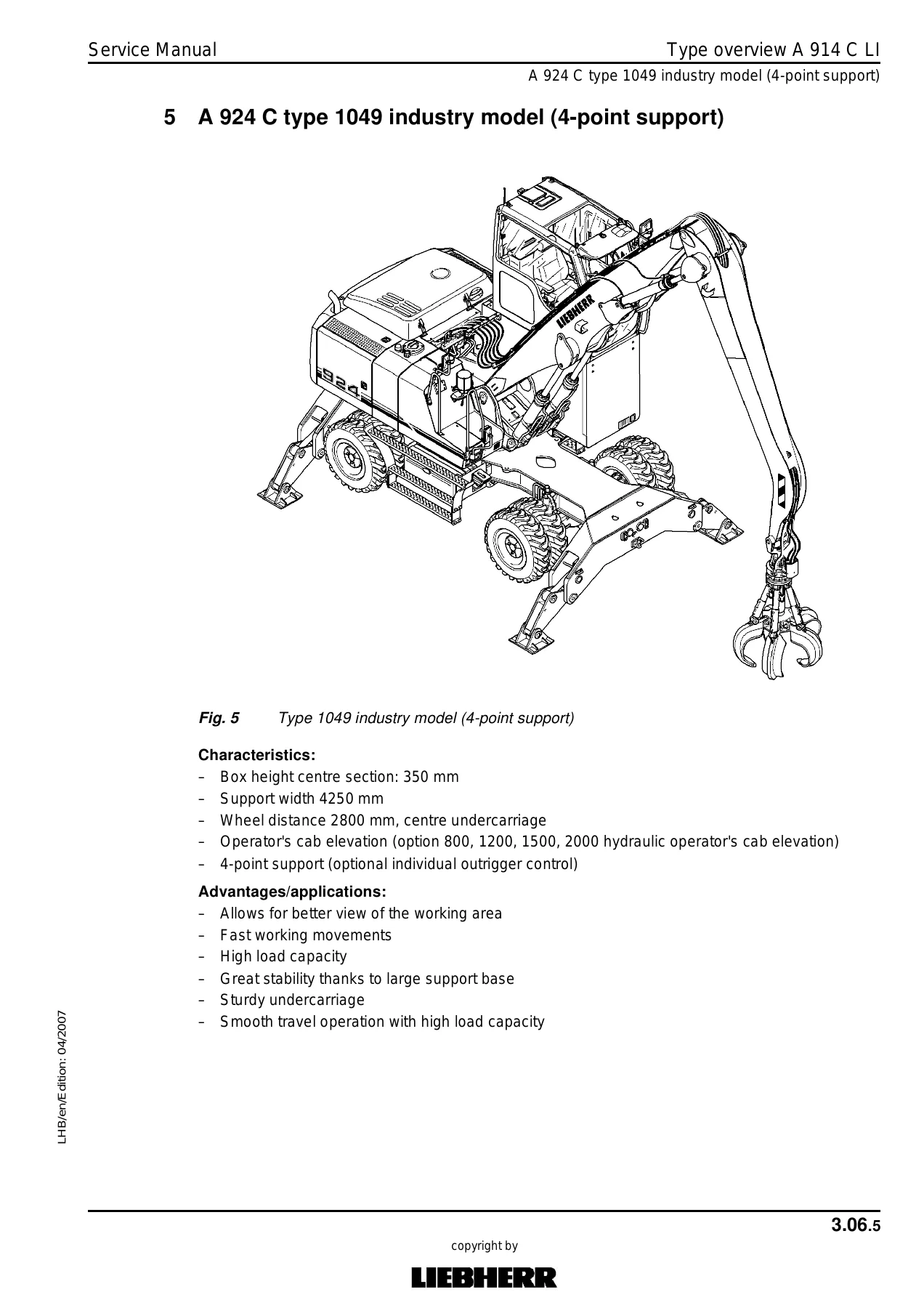

IMAGES PREVIEW

This manual is delivered as an instant PDF download. No shipping, no waiting. You can view it on any device — laptop, tablet or phone — and print the pages you need for the workshop. Whether you are servicing the engine, troubleshooting the hydraulic system, rebuilding an axle or setting up an attachment, the relevant procedure and data are in the document.
