Kobelco SK210LC-10 Excavator Shop Manual S5YN0049E02 – 2016 Full Service Repair PDF

Description

The Kobelco SK210LC-10 Excavator Shop Manual (document S5YN0049E02, published 2016)

is the complete technical service reference for this hydraulic excavator, running 1,886 pages across 18 chapters. It covers specifications, scheduled maintenance, hydraulic and electrical systems, full component disassembly, troubleshooting, and the HINO J05E-UM engine. This is the document a technician reaches for when an SK210LC-10 needs more than a routine service — from a hydraulic pump overhaul to an EGR valve replacement or a DPF regeneration fault.

File Details

• Manual type: Shop Manual (Service, Repair & Maintenance)
• Brand: Kobelco
• Model: SK210LC-10
• Engine: HINO J05E-UM (water-cooled, 4-cycle, 4-cylinder, direct injection, turbocharged with intercooler)
• Language: English
• Page count: 1,886 pages
• File format: PDF
• Document number: S5YN0049E02
• Publication date: 2016
• Publisher: Kobelco Construction Machinery Co., Ltd.

Chapters Covered

• Outline — Copyright, general precautions for repairs, international unit system

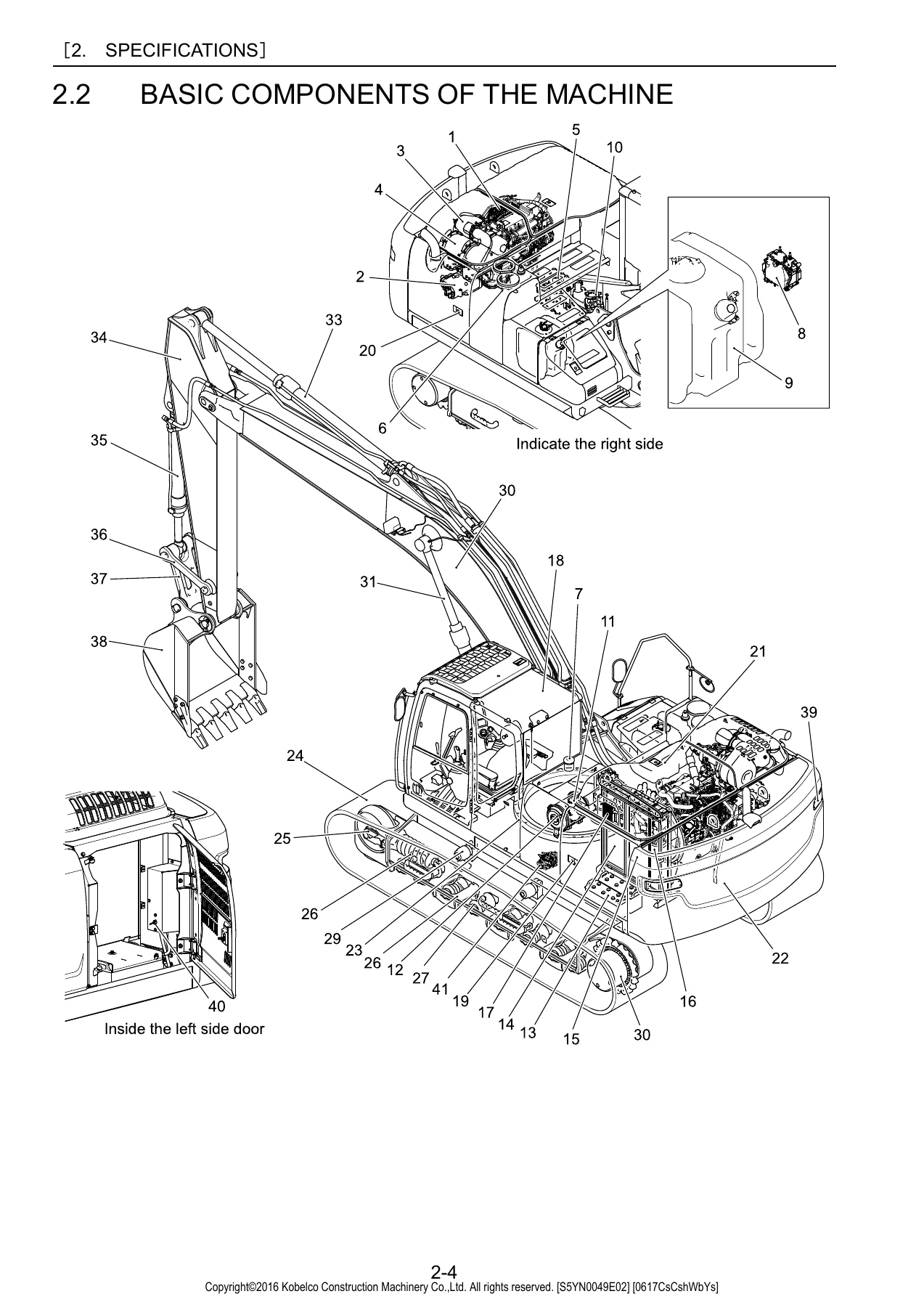

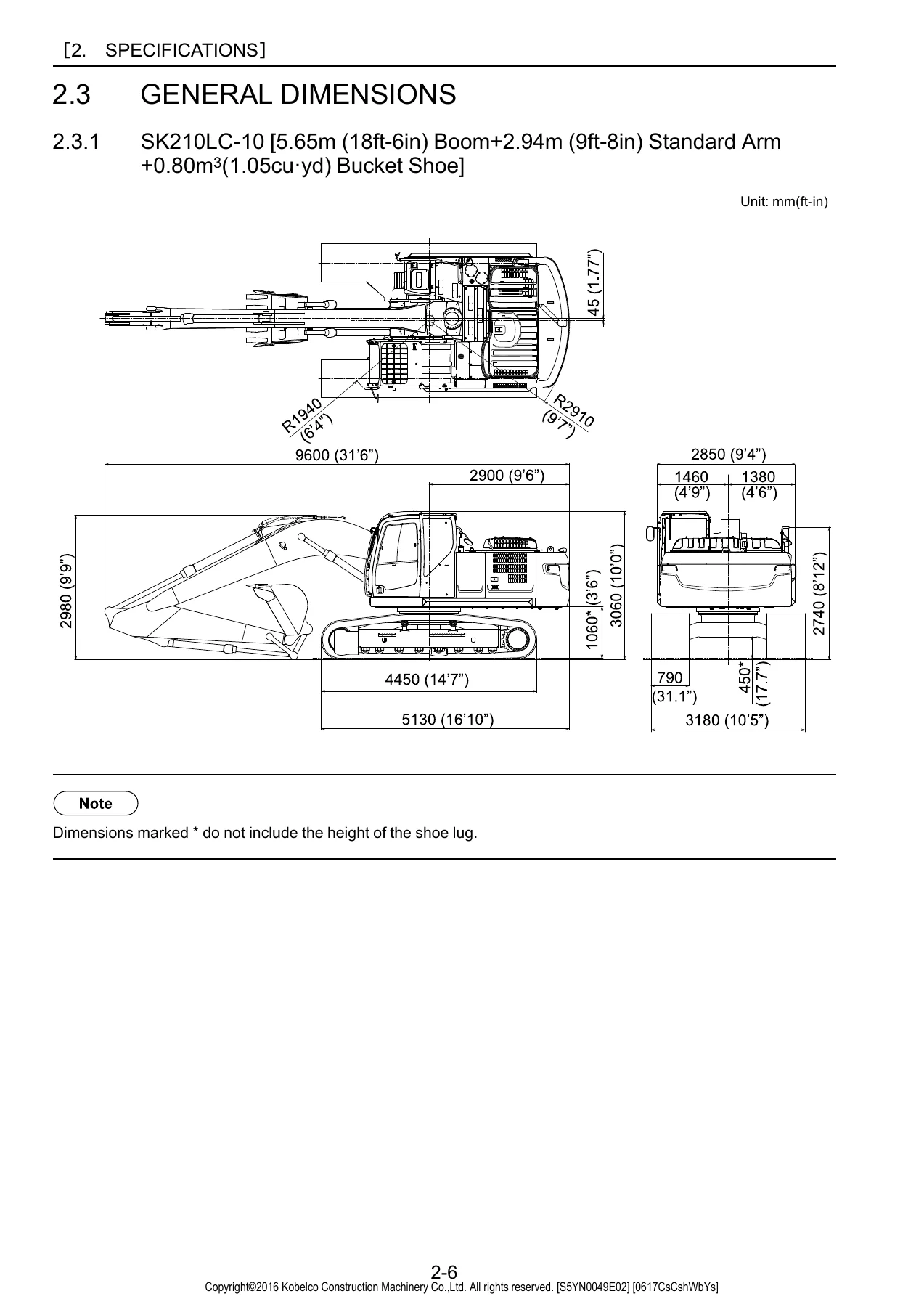

• Specifications — Basic components of the machine, general dimensions, weight of components, transportation specifications, general specifications, engine specification

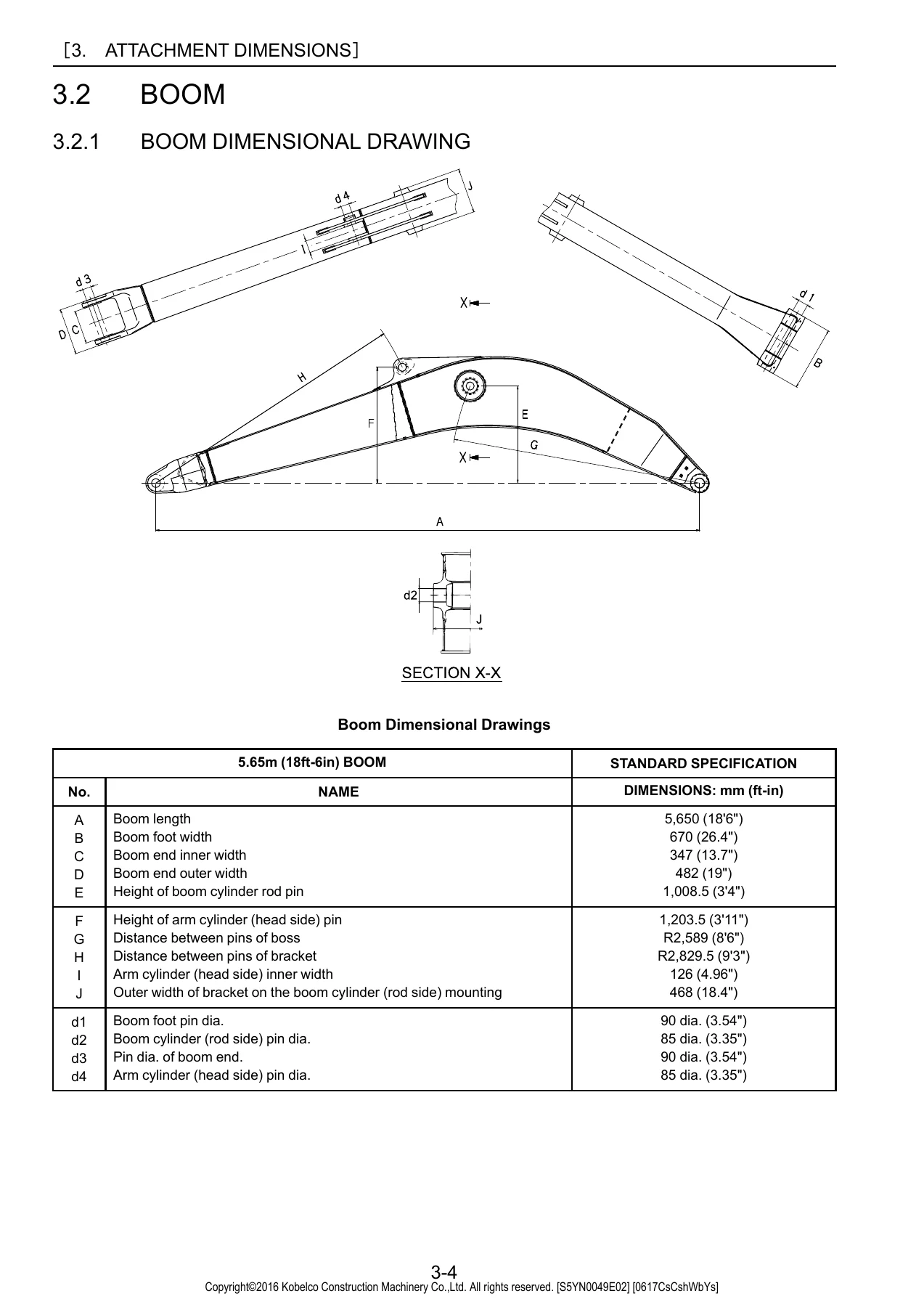

• Attachment Dimensions — Boom, arm, and bucket dimensional drawings with maintenance standards for pin/bushing clearances
• Tools — Tightening torques for capscrews, nuts, hoses and fittings, plus special jigs (suction stopper, counterweight lifting jig, engine mounting pedestal, muffler lifting jig, DEF tank band whirl-stop jig, track spring set jig)
• Standard Maintenance Time Schedule — Attachment, cab & guard, swing frame, travel system, and electrical equipment
• Maintenance Standard and Test Procedure — Performance inspection standards, engine speed measurement, hydraulic pressure measurement, travel/swing/attachment performance, swing bearing measurement, Mechatron controller adjustment, DPF and SCR system
• Mechatro Controller — Mechatron control system in general, unload valve control, positive and P-Q control, boom-up conflux, arm-in recirculation and conflux, swing priority, travel straight, pressure release, multi-display, self-diagnosis, service diagnosis, trouble history, and user/service adjustment functions
• Hydraulic System — Hydraulic circuits and components, neutral circuit, travel circuit, bucket circuit, boom circuit, swing circuit, arm circuit, combined circuits, and pressure draining
• Electric System — Electrical equipment list, electrical diagram, harness routing and connections
• Components System — Hydraulic pump and regulator, control valve, pilot valves, swing motor, travel motor, swivel joint, multi control valve, holding valves, gear pump, cylinders
• Air-Conditioner System — Basic HVAC system, components and construction, piping, disassembly and assembly, refrigerant charging, electrical circuit, troubleshooting
• Disassembling and Assembling — Explaining chapter of whole disassembly & assembly
• Attachment — Bucket, arm, boom removal and installation, cylinder disassembly
• Upper Structure — Operator’s seat, cab, battery, guards, under cover, fuel tank, hydraulic oil tank, DEF/AdBlue tank, hydraulic pump, air cleaner, muffler, counterweight, radiator and oil cooler, engine, console cover, multi-control valve, control valve, pilot valve, swing motor, swivel joint, upper frame
• Travel System — Crawler removal and installation, upper/lower rollers, front idler, sprocket, travel motor, swing bearing
• Troubleshooting (By Error Codes) — Error code list with individual diagnostic procedures for each code
• Troubleshooting (By Trouble) — Hydraulic system and electric system symptom-based diagnostics
• Engine — General, standard values, fuel system, emission control, electrical, intake, engine mechanical, exhaust (including AdBlue/DEF SCR and DPR), cooling, lubrication, starting and charging, turbocharger, failure diagnosis by status, and full engine diagnosis code tables

IMAGES PREVIEW

The 18 chapters build on each other in a practical way. Specifications and attachment dimensions set the baseline for what the machine should measure; maintenance standards and the time schedule drive the planned-service side; system chapters explain how the hydraulics, electrics, and Mechatron controller actually work; disassembly chapters walk through taking major assemblies apart and putting them back together; troubleshooting chapters convert symptoms and error codes into repair actions; and the engine chapter covers the HINO J05E-UM down to individual sub-assemblies, including the emission controls that make this a Tier 4 Final machine.

Engine, Emissions & SCR Coverage

The engine chapter of this SK210LC-10 shop manual is unusually thorough. It documents the HINO J05E-UM with valve clearance specs, compression pressures, injector and supply pump service, common rail and pressure limiter inspections, EGR valve and cooler replacement, intake throttle valve, cylinder head and cylinder block overhaul, crankshaft and main moving parts, camshaft and timing gears, valve system adjustment, cooling, lubrication, starter and alternator, and turbocharger assembly. It also covers the DPR (Kobelco’s naming for DPF) and the AdBlue/DEF SCR system in depth — soot deposition meter readings, manual and automatic regeneration procedures, DEF/AdBlue dosing module and supply module service, NOx sensor replacement, temperature sensors, differential pressure sensor, coolant cut-off valve, DCU, and the diagnostic trouble-code tables used to troubleshoot each of these systems.

Why This Manual Matters for SK210LC-10 Owners and Technicians

An SK210LC-10 is a Tier 4 Final machine with an emissions package that punishes guesswork. Regeneration faults, DEF quality warnings, and NOx sensor codes cannot be resolved by swapping parts — they need the diagnostic procedures and code tables that only the shop manual provides. The same applies to the hydraulic side: pilot pressures, relief valve settings, spool stroke limiter function, arm recirculation, and travel straight control are all interdependent, and the manual gives the exact test conditions, tooling, and acceptance values. The disassembly chapters also carry the component weights (boom, arm, bucket, counterweight, swing motor, hydraulic pump) so a shop can plan lifting and rigging correctly before work begins.

Get the Complete Kobelco SK210LC-10 Shop Manual

This Kobelco SK210LC-10 Excavator Shop Manual gives you the full factory service and repair information for the SK210LC-10 — every procedure, specification, and diagnostic value the dealer technician uses, in a single 1,886-page document. It supports hydraulic pump and control valve overhauls, engine and emissions repairs, wiring and harness diagnostics, undercarriage and swing bearing work, air-conditioner service, and systematic troubleshooting by both error code and symptom. The PDF downloads instantly after checkout, carries no shipping cost, and can be stored on a laptop or tablet in the shop, printed for the workbench, or kept as a permanent reference for the life of the machine.
