Liebherr D934 D936 Diesel Engine Service Manual PDF Download

Description

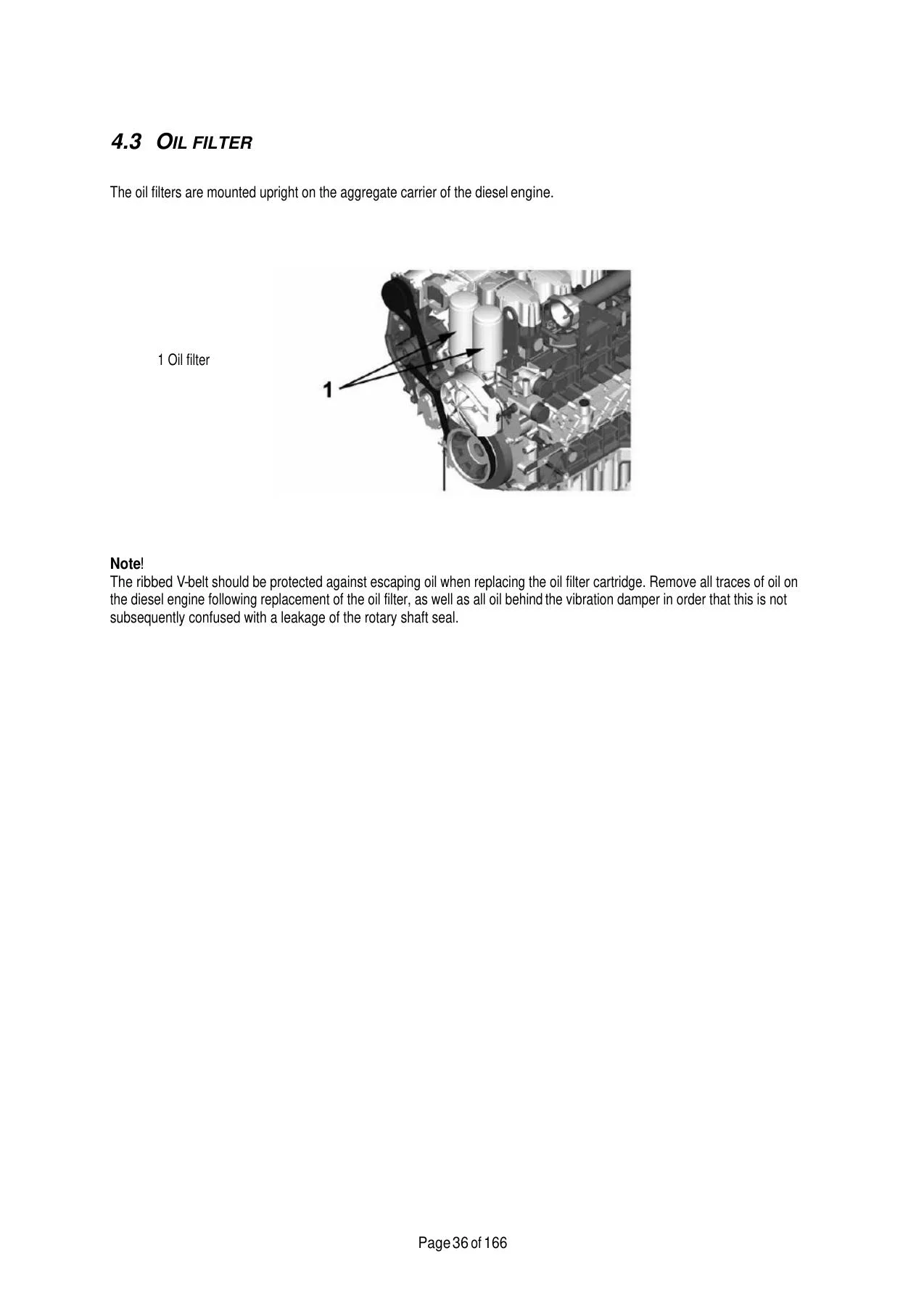

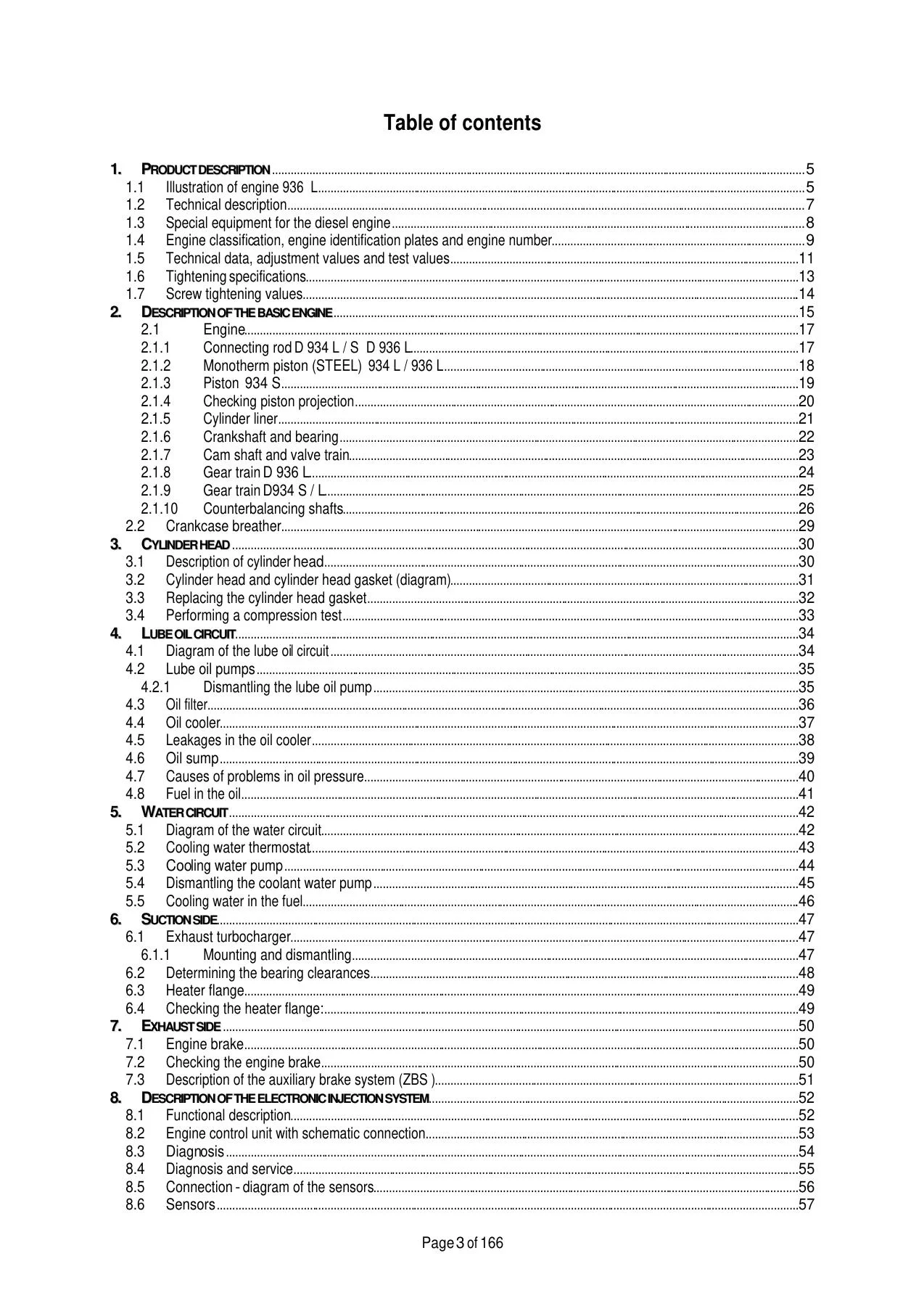

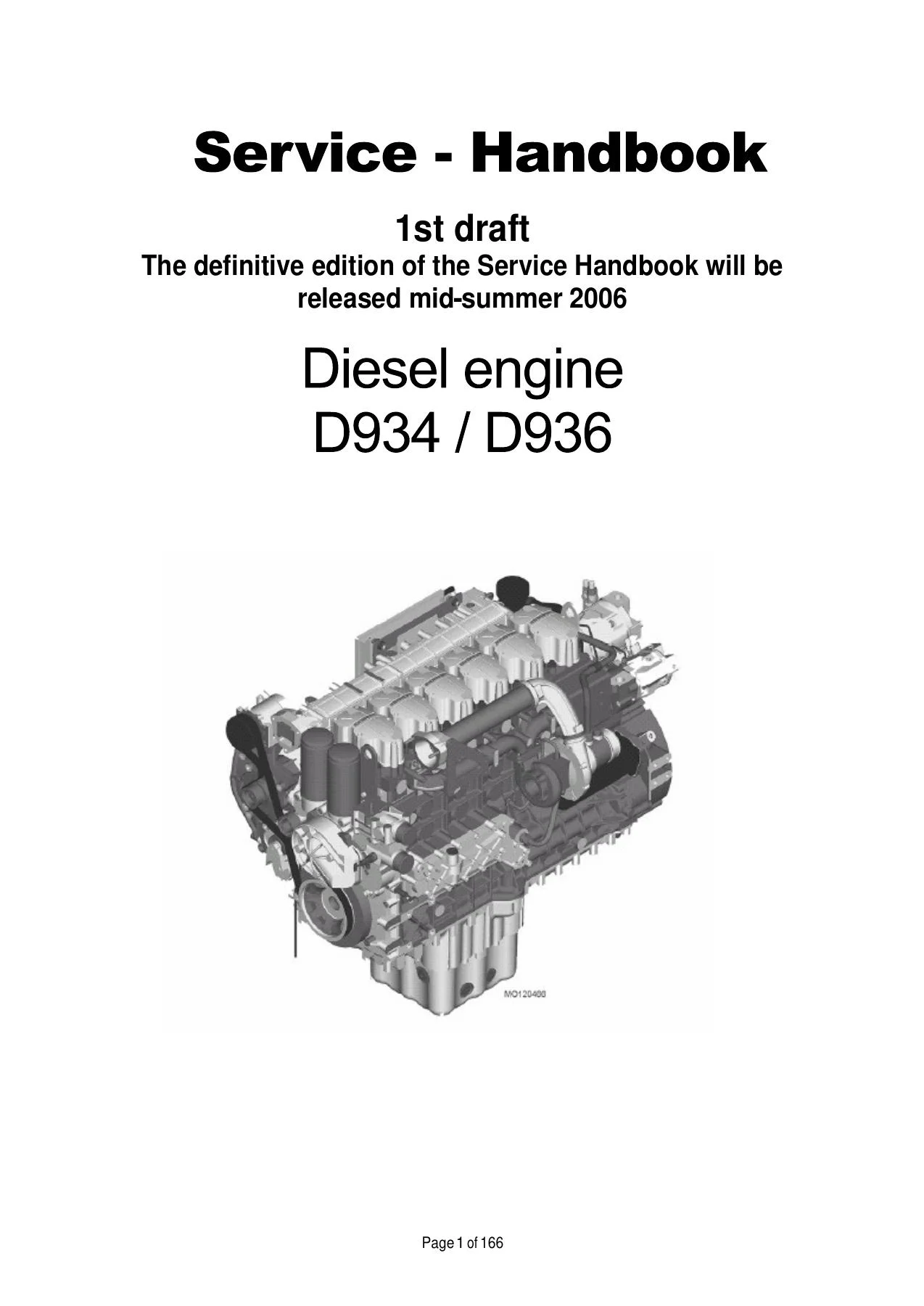

Liebherr D934 & D936 Diesel Engine Service HandbookThis comprehensive 166-page service handbook provides detailed repair, overhaul, adjustment, and diagnostic procedures for Liebherr D934 and D936 in-line diesel engines. It delivers critical factory technical data, screw tightening specifications, and functional descriptions for both 4-cylinder and 6-cylinder variants equipped with PLD electronic injection systems.Engine Models & Variants CoveredLiebherr D934 S (4-Cylinder Short-Stroke 136mm, 6.4L)Liebherr D934 L (4-Cylinder Long-Stroke 150mm, 7.0L with counterbalancing shafts)Liebherr D936 L (6-Cylinder Long-Stroke 150mm, 10.5L)Engine Series Identifiers: Series 03 (D934 S/L) and Series 04 (D936 L)Main Systems & Technical Subjects IncludedGeneral Engine Specifications: Cylinder classifications, firing sequences, compression ratios, dimensions, and screw tightening values.Basic Engine Components: Monotherm steel pistons, aluminum pistons, cracked connecting rods, cylinder liners, crankshafts, camshafts, and balance shafts.Cylinder Head & Valve Train: Individual cylinder head removal, 4-valve arrangement, valve timing, compression testing, and cylinder head gasket replacement.Lube Oil & Water Circuits: Gear-type oil pumps, oil coolers, thermostats, centrifugal coolant pumps, and maintenance schedules.Intake, Exhaust & Auxiliary Braking: Exhaust turbochargers (K 27.2 / K29), cold-start heater flanges, engine brake flap, and Auxiliary Brake System (ZBS).Fuel & Electronic Injection (PLD / EDC): Pump-line-nozzle system, UP 20 pump elements, fuel delivery pump ZP 18.5, low-pressure circuit, and fuel system bleeding.Electrical System & Diagnostics: Engine control unit (EDC / DcDesk 2000), sensors, starters, alternators, and comprehensive electrical error code lists.Repair, Diagnostic & Maintenance CoverageThe document equips technicians with exact step-by-step guidance, including checking piston projection, measuring cylinder liner protrusion, setting valve clearances, adjusting ZBS brake clearances, and configuring replacement UP 20 pump elements in the control unit software. In addition to mechanical guides, it features complete diagnostic fault tables detailing 3000-series error parameter codes, causes, automatic ECU reactions, and corrective actions for both mechanical and electrical issues.Why This Manual Is EssentialDesigned for specialist service personnel, this handbook eliminates guesswork when servicing heavy-duty Liebherr engines. Having instant access to exact torque sequences, component clearances, and sensor diagnostic values protects engine integrity during overhauls and drastically reduces equipment downtime.Instant PDF DownloadGet immediate access to your file right after payment completes. This PDF technical manual is fully printable and compatible with all computers, tablets, and smartphones.
