Liebherr R 942 Litronic Crawler Excavator Operation and Maintenance Manual 1997

Description

Liebherr R 942 Litronic Crawler Excavator Operation and Maintenance Manual

This Liebherr R 942 Litronic Operation and Maintenance Manual is the complete guide for operators and maintenance crews working with this 32.4 to 36.1 tonne hydraulic crawler excavator. Published in 1997 under document ID 8503773, it covers machines from serial numbers HD-SL574/4001, HD-S573/4001, HD-W493/4001, and EW616/4001 onward. The manual delivers the accident prevention guidelines, operating instructions, and maintenance procedures needed to keep the R 942 Litronic running safely and efficiently.

File Details

• Manual Type: Operation and Maintenance Manual
• Brand: Liebherr
• Model: R 942 Litronic
• Language: English
• Page Count: 121 pages
• File Format: PDF
• Document ID: 8503773
• Date: 101/97 (1997)
• Manufacturer: LIEBHERR FRANCE S.A., 2 Avenue Joseph Rey, F-68005 COLMAR, France

Chapters Covered

• 1/ Machine Description, Technical Data

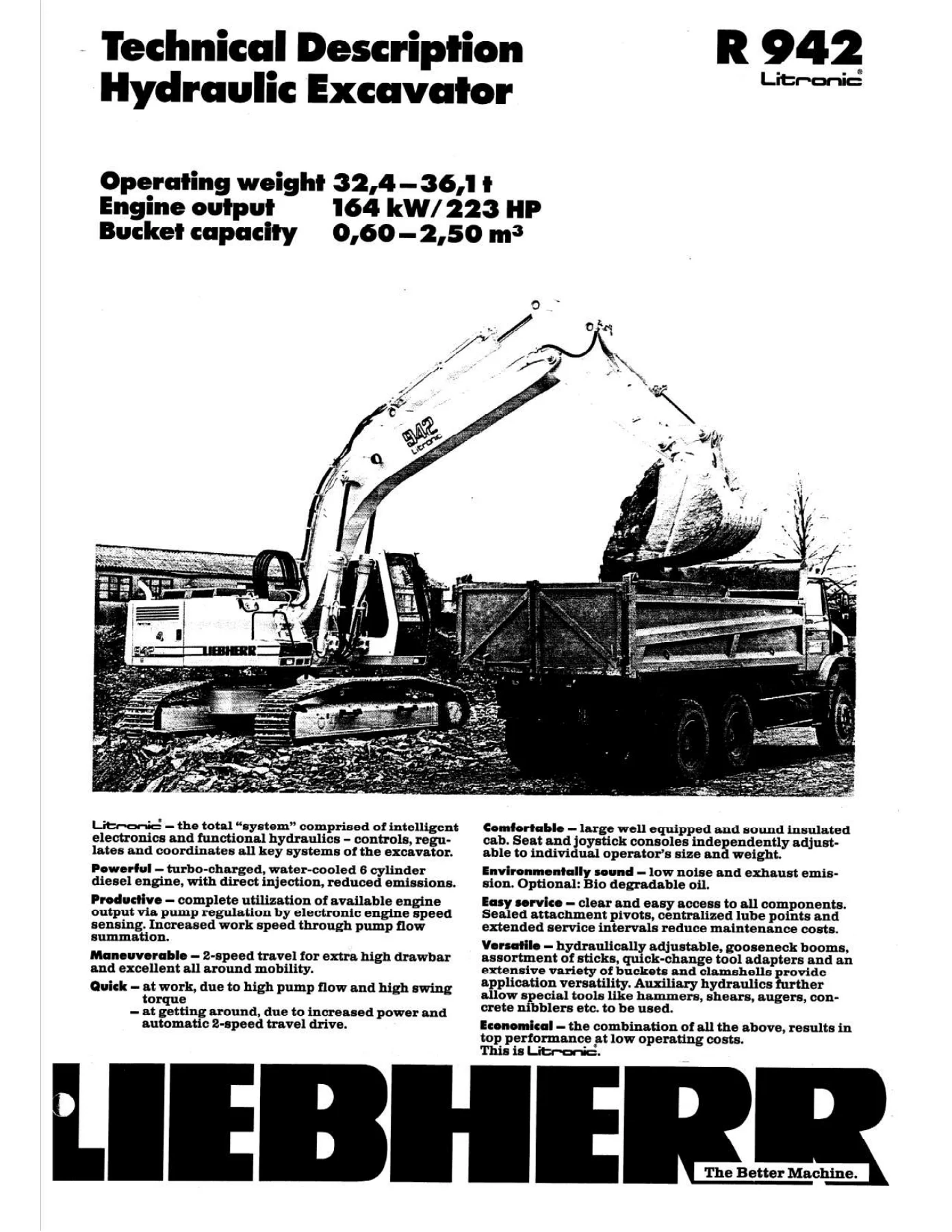

  • Machine description, technical data
  • Digging envelope for backhoe attachment
  • Lift capacities

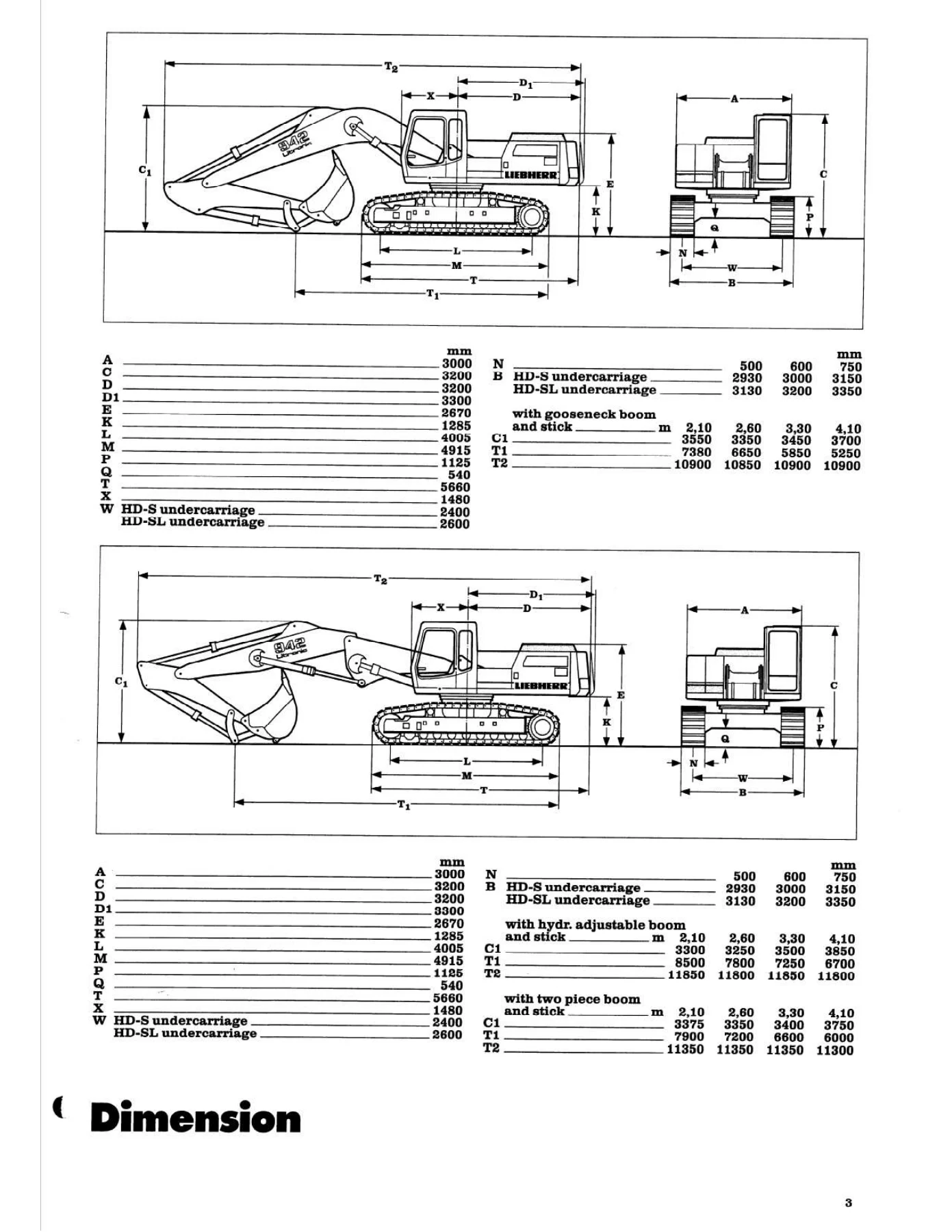

  • Dimensions, operating weights
• 2/ Safety Information
  • Destined use
  • General safety information
  • Crushing and burn prevention
  • Fire and explosion prevention
  • Machine start up safety
  • Engine start up and operating safety
  • Machine operating safety
  • Machine parking safety
  • Machine transporting safety
  • Machine towing safety
  • Machine maintenance safety
• 3/ Controls and Instrumentation
  • The operator’s seat
  • Controls and instrumentation in the cab

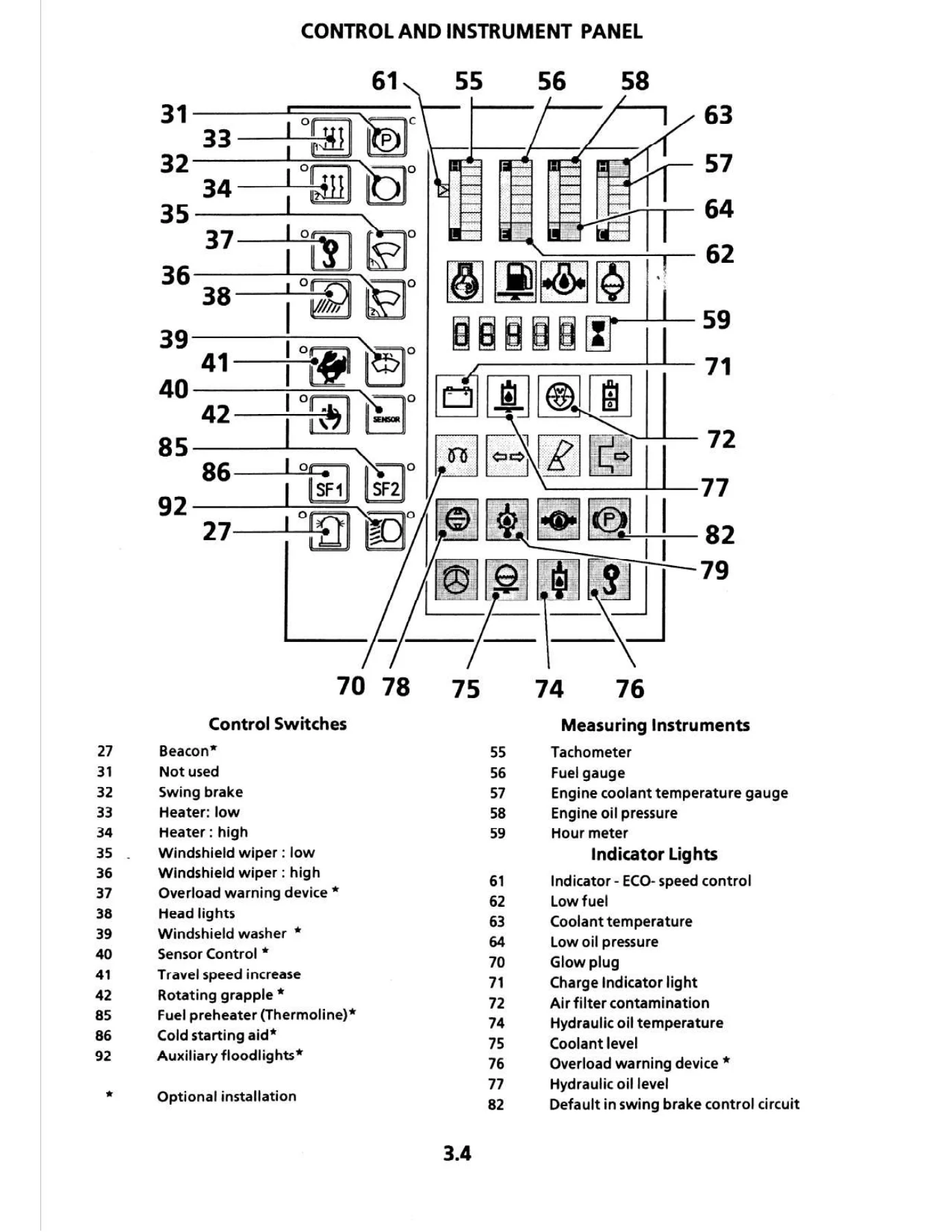

  • Control and instrument panel
• 4/ Operating Procedures
  • Pre-starting inspection
  • Machine start up safety
  • Diesel engine operation
  • Stopping the engine
  • Machine operating safety
  • Travel functions
  • Location of the two joysticks
  • Control of the swing
  • Attachment control
  • The heater
  • The heater and air conditioner
  • Transporting the excavator on flatbed trailers or railway cars
  • Towing the excavator
  • Removal and installation of attachments
  • Guidelines for hydraulic excavators when they are used for lifting loads
  • The overload warning device
  • Changing the width of the undercarriage on machines with adjustable track gauge
• 5/ Lubrication
  • General safety information
  • Lubricant and fuel chart
  • Lubricant and fuel specifications
  • Lubrication chart
  • Diesel engine
  • Changing the oil in the splitterbox
  • Changing the oil in the travel gear
  • Changing the oil in the swing gear
  • Oil in the hydraulic system
  • Swing ring lubrication
  • Lubrication of attachment bearing points
  • Centralized lubricating system (Optional equipment)
• 6/ Maintenance
  • Machine maintenance safety
  • The fuel system
  • The diesel engine
  • The track components
  • The hydraulic system
  • The swing and travel brakes
  • Checking mounting screws for tightness
  • The air filter
  • The electrical system
  • Replacing the bucket teeth
  • Replacing wear and tear items
  • Welding
  • Maintenance schedule
• 8/ Optional Attachment
  • Air cushioned driver’s seat

The manual opens with the machine’s technical identity — operating weight, engine output, bucket capacity, and the Litronic system that integrates intelligent electronics with functional hydraulics for pump regulation, engine speed sensing, and ECO-control. From there it walks through every system an operator touches daily: the control and instrument panel, joystick functions for boom, bucket, stick, and swing, the heater and optional air conditioner, travel functions with two-speed drive, and the swing brake with its semiautomatic operating modes. Safety receives its own full chapter covering everything from high-voltage line contact procedures to parking and towing precautions. The lubrication section provides a complete lubricant and fuel chart with viscosity and specification tables, plus step-by-step oil change procedures for the engine, splitterbox, travel gear, swing gear, and hydraulic system. The maintenance chapter covers the fuel system, track tension adjustment, hydraulic filters, air filter service, electrical system, and bucket tooth replacement. For anyone responsible for the R 942 Litronic, this manual delivers the factory procedures and specifications needed to perform work correctly the first time.

What This Manual Enables You to Do

With the Liebherr R 942 Litronic Operation and Maintenance Manual on hand, you can confidently handle routine servicing, diagnose operational issues, and perform maintenance tasks to the exact specifications Liebherr intended. The document supports:

• Pre-start inspections and daily checks on engine oil, coolant, fuel system, and hydraulic oil
• Correct engine starting procedures in ambient temperatures down to -18°C using the flame glow plug or optional cold start system
• Safe machine operation including travel, swing, attachment control, and lifting operations with the overload warning device
• Complete lubrication schedules with the correct lubricants and intervals for every component
• Maintenance procedures from fuel filter replacement and track tension adjustment to hydraulic filter service and bucket tooth replacement
• Loading, transporting, and towing the excavator safely
• Changing undercarriage track gauge on machines with adjustable track

Following the procedures and specifications in this manual keeps your R 942 Litronic operating at peak performance, reduces repair costs, and extends machine service life. The maintenance schedule alone — with intervals at daily, 50, 500, 1000, 2000, and 4000 hour marks — helps you plan service work and avoid costly breakdowns.
