Liebherr R 954 C Litronic Excavator Operation and Maintenance Manual

Description

Liebherr R 954 C Litronic Excavator Operation and Maintenance Manual

This Liebherr R 954 C Litronic Operation and Maintenance Manual is the manufacturer’s guide for owners, operators, and maintenance crews running this large hydraulic excavator. Covering the machine from serial number 14968 (HD undercarriage) and serial number 16155 for the EW, HDW, SHD and VH-HD undercarriage versions, this 187-page manual walks through every stage of daily use, from pre-start inspection through routine servicing.

• Manual Type: Operation and Maintenance Manual
• Machine: Liebherr R 954 C Litronic hydraulic excavator
• Edition: 11/05, Ident-Nr. 10101988 A
• Language: English
• Page Count: 187 pages
• Format: PDF
• Manufacturer: Liebherr France S.A.S., Colmar, France

Chapters Covered

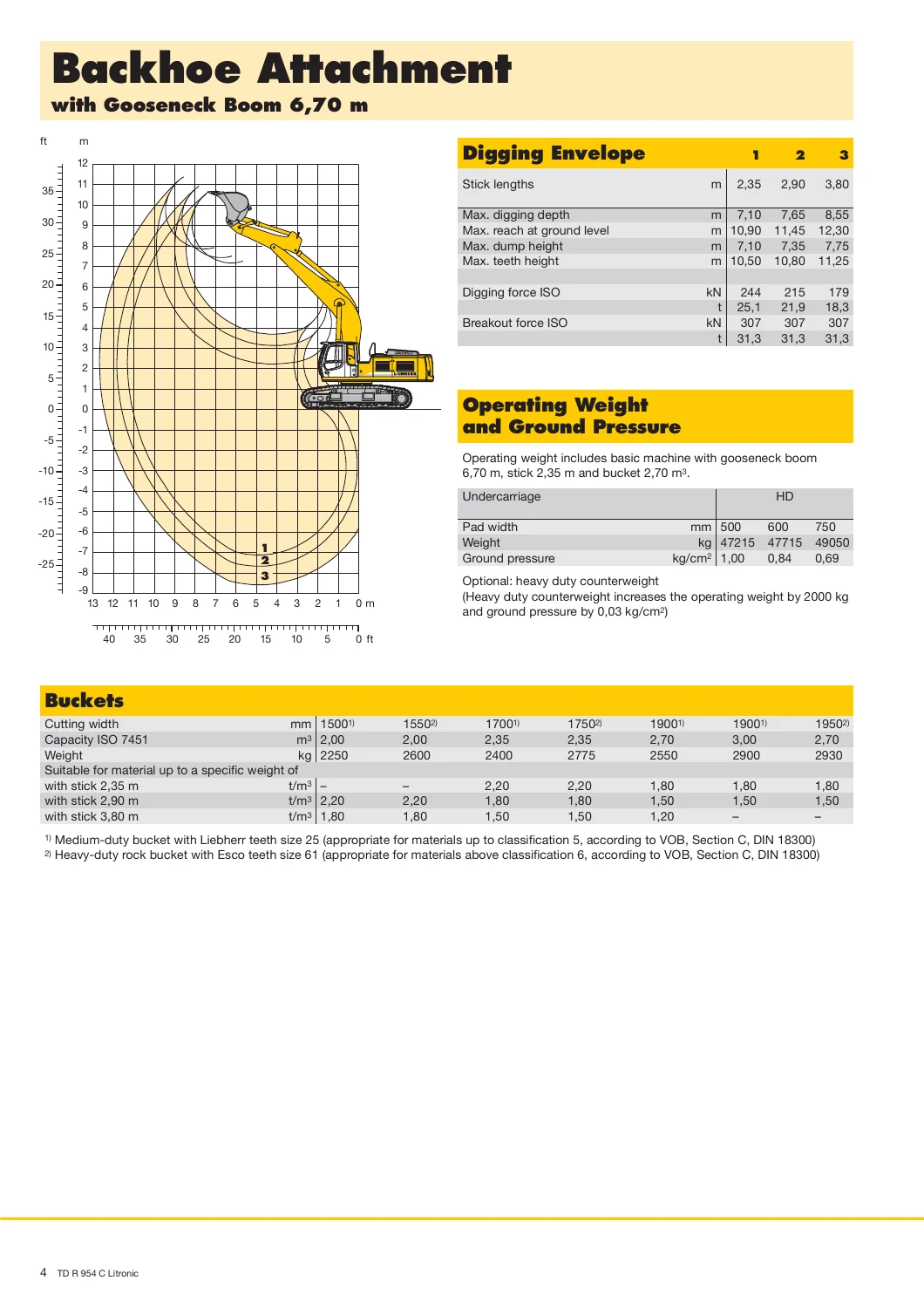

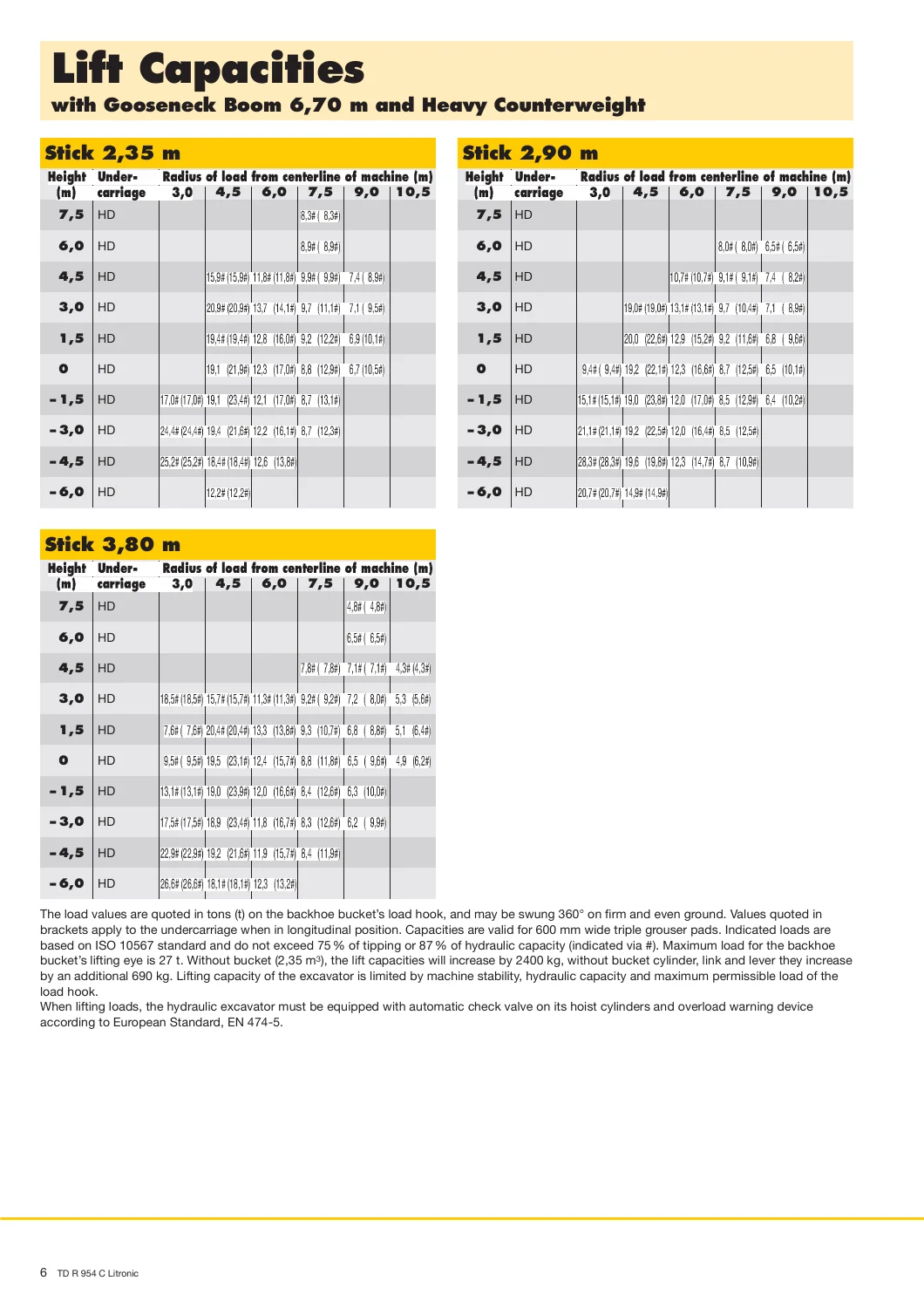

• Machine Description, Technical Data — machine description and technical data, digging envelope for backhoe attachment, lift capacities, digging envelope for shovel attachment
• Safety Information — destined use, general safety, crushing and burn prevention, fire and explosion prevention, machine start up safety, engine start up and operating safety, machine operating safety, machine parking safety, machine transporting safety, machine towing safety, machine maintenance safety, hydraulic lines and hoses, protection against vibration, signs on the hydraulic excavator

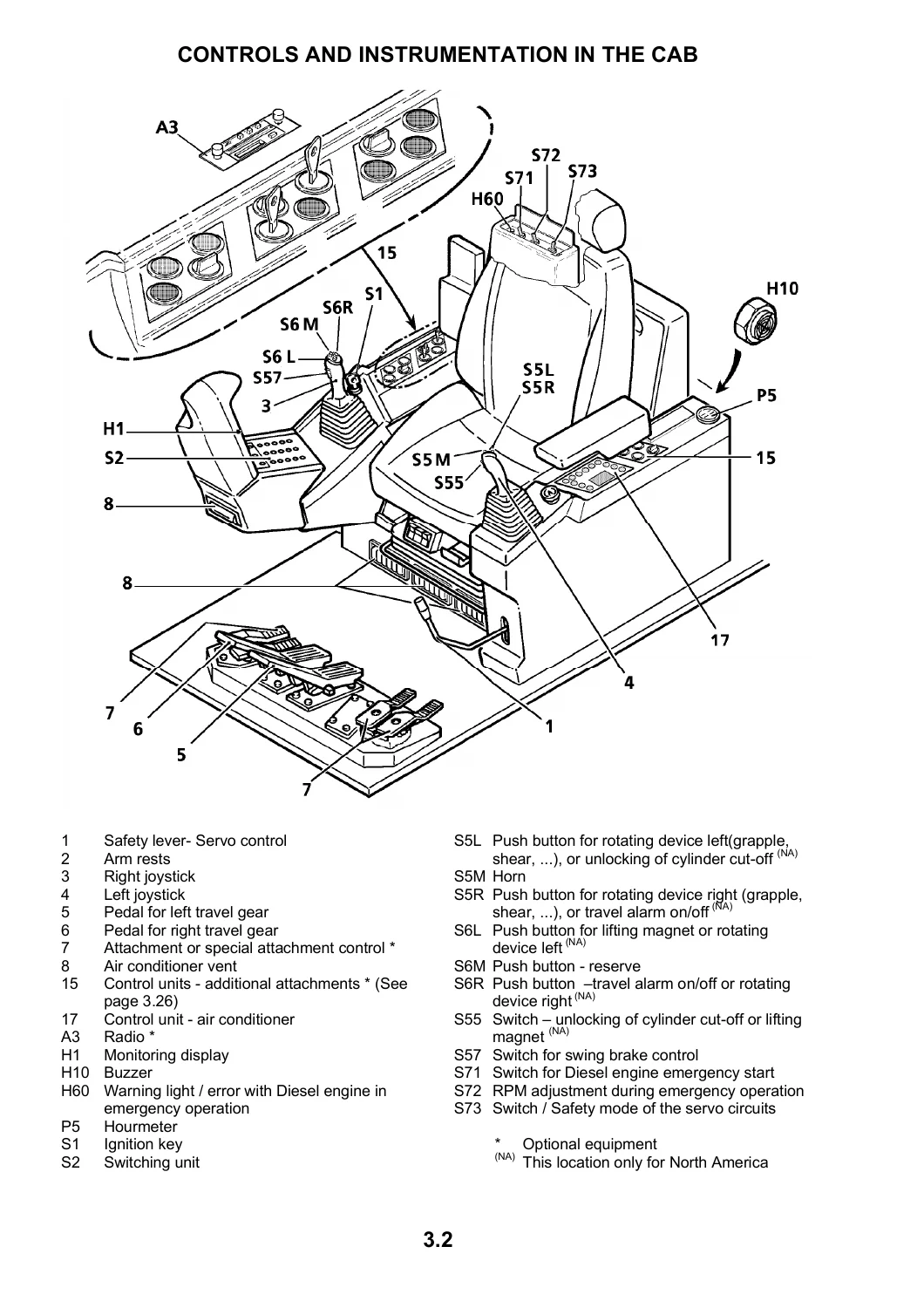

• Controls and Instrumentation — the operator’s seat, controls and instrumentation in the cab, control unit, monitoring display, LCD screen menu information, controls for optional equipment, heater and air conditioner, outfit of driver’s cab, operation in safety mode
• Operating Procedures — pre starting inspection, machine start up safety, diesel engine operation, stopping the engine, external starting procedure, hydraulic pumps safety operation, travel functions, location of the joysticks, control of the swing, working position, attachment control, transporting on flatbed trailers or railway cars, towing the excavator, removal and installation of attachments
• Lubrication — general safety information, lubricant and fuel chart, lubricant and fuel specifications, lubrication charts, diesel engine, changing oil in the splitterbox/travel gear/swing gear, oil in the hydraulic system, windshield washer reservoir, centralized lubricating system, grapple lubrication
• Maintenance — machine maintenance safety, the fuel system, the diesel engine, track components, the hydraulic system, swing and travel brakes, checking mounting screws, the air filter, the electrical system, heater and air conditioner, replacing bucket teeth, replacing wear and tear items, welding, maintenance schedule
• Lifting Operation — controls on joystick handles for US version, guidelines for hydraulic excavators used for lifting loads, the overload warning device
• Optional Attachment — adjustable cab, hydraulic quick change adapter, mechanical quick change coupler, hydraulic removable counterweight, mechanic and hydraulic track gauge adjustment, bypass oil filter, environmentally friendly hydraulic fluids, refueling pump, vacuum pump on hydraulic tank

Together these chapters give a technician everything needed to bring the R 954 C Litronic online safely, keep it running through its daily duty cycle, and stay on top of its lubrication and maintenance schedule without guesswork.

Technical Data at a Glance

• Engine: Liebherr D 936 L, 6-cylinder in-line, turbocharged and after-cooled, rated 240 kW / 326 HP at 1800 RPM per ISO 9249
• Bore/Stroke: 122/150 mm, Displacement: 10.5 l
• Operating Weight with Backhoe Attachment: 47.3 – 54.0 t
• Bucket Capacity: 1.30 – 3.00 m³
• Fuel Tank: 750 l, Hydraulic Tank: 440 l, Hydraulic System: 790 l
• Swing Speed: 0 – 6.6 RPM stepless, Swing Torque: 165 kNm
• Travel Speed: low range up to 3.4 km/h, high range up to 5.0 km/h

The maintenance chapter lays out inspection and service intervals for the diesel engine, hydraulic system, and electrical system, distinguishing tasks the operator can perform from those reserved for authorized trained personnel — exactly the structure a shop needs to plan its own PM schedule around this Litronic excavator.

IMAGES PREVIEW

Why This R 954 C Litronic Manual Matters

With this manual a crew can carry out correct daily walk-around inspections, start-up and shutdown procedures, attachment installation and removal, towing and transport preparation, and the full lubrication and maintenance schedule specified for the R 954 C Litronic — all using the fluid types, capacities, and intervals Liebherr specifies rather than guesswork. Following the documented procedures helps avoid the downtime and repair costs that come from improper operation or missed servicing.

This Liebherr R 954 C Litronic Operation and Maintenance Manual downloads instantly as a PDF after purchase — no shipping wait, no physical copy to misplace. Read it on a phone, tablet, laptop, or shop computer, or print the pages you need at the machine.
