Linde E12 E14 E15 E16 E18 E20 Forklift Spare Parts List – 386 801 01 01 PDF

Description

Linde E12 E14 E15 E16 E18 E20 Forklift Spare Parts List – Document 386 801 01 01

This is the full Linde spare parts list for the E12, E14, E15, E16, E18 and E20 (-02 series) electric counterbalance forklift trucks. Document number 386 801 01 01, dated 30.10.2014, English language, 459 pages delivered as a PDF. Every exploded assembly drawing in the file is paired with a numbered part table so you can identify a component, cross-reference its part number, and order or quote it without pulling the truck apart first.

File Details

• Manual type: Spare parts list / spare parts catalog
• Brand: Linde
• Models covered: E12, E14, E15, E16, E18, E20 (-02 series)
• Document number: 386 801 01 01
• Edition/date: 30.10.2014
• Language: English
• Page count: 459
• File format: PDF

Chapters Covered

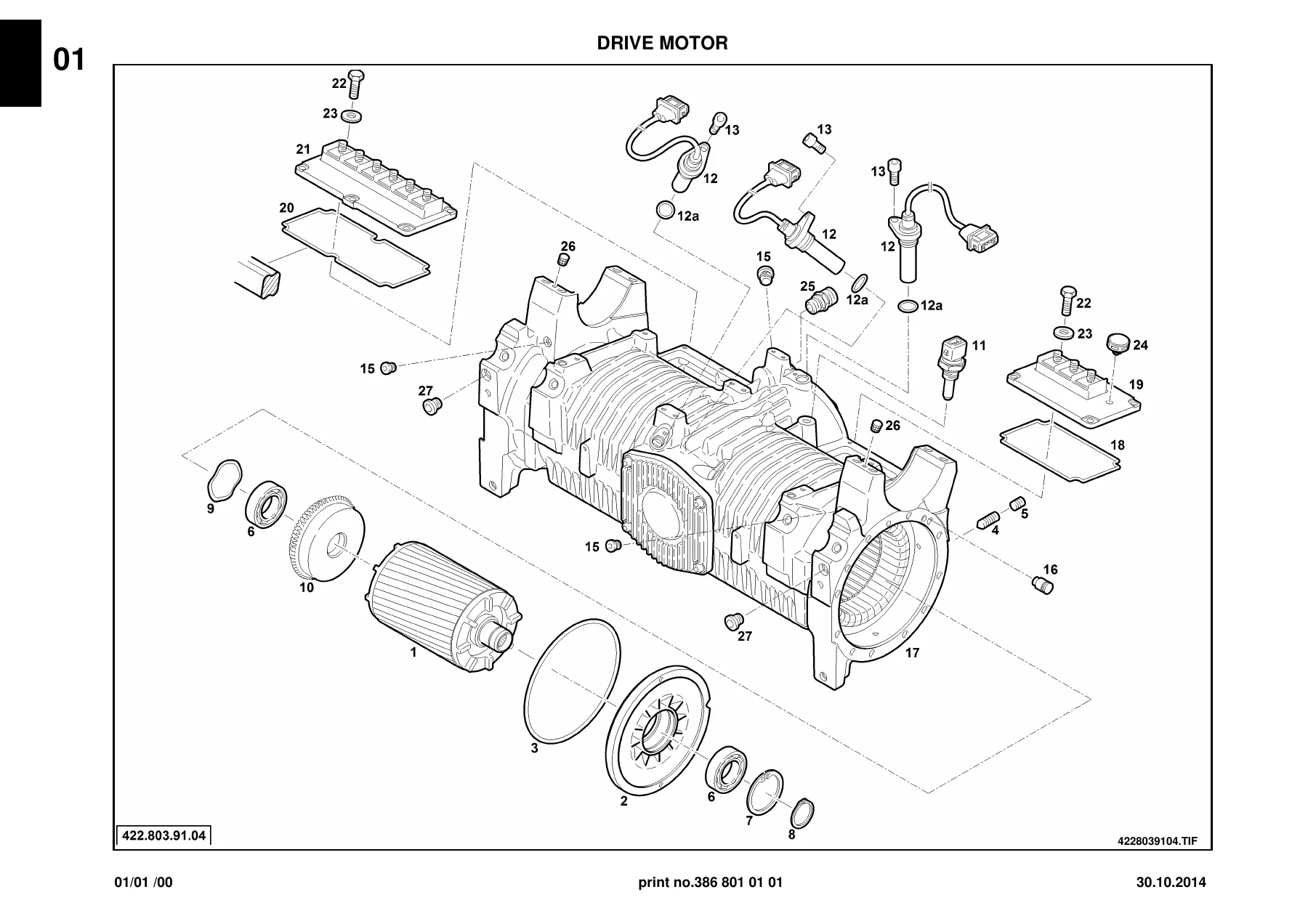

• 01 Drive Motor / 02 Pump Motor
• Register 02 – Drive: Transmission (axle assembly AK20E-01, axle driven gear)

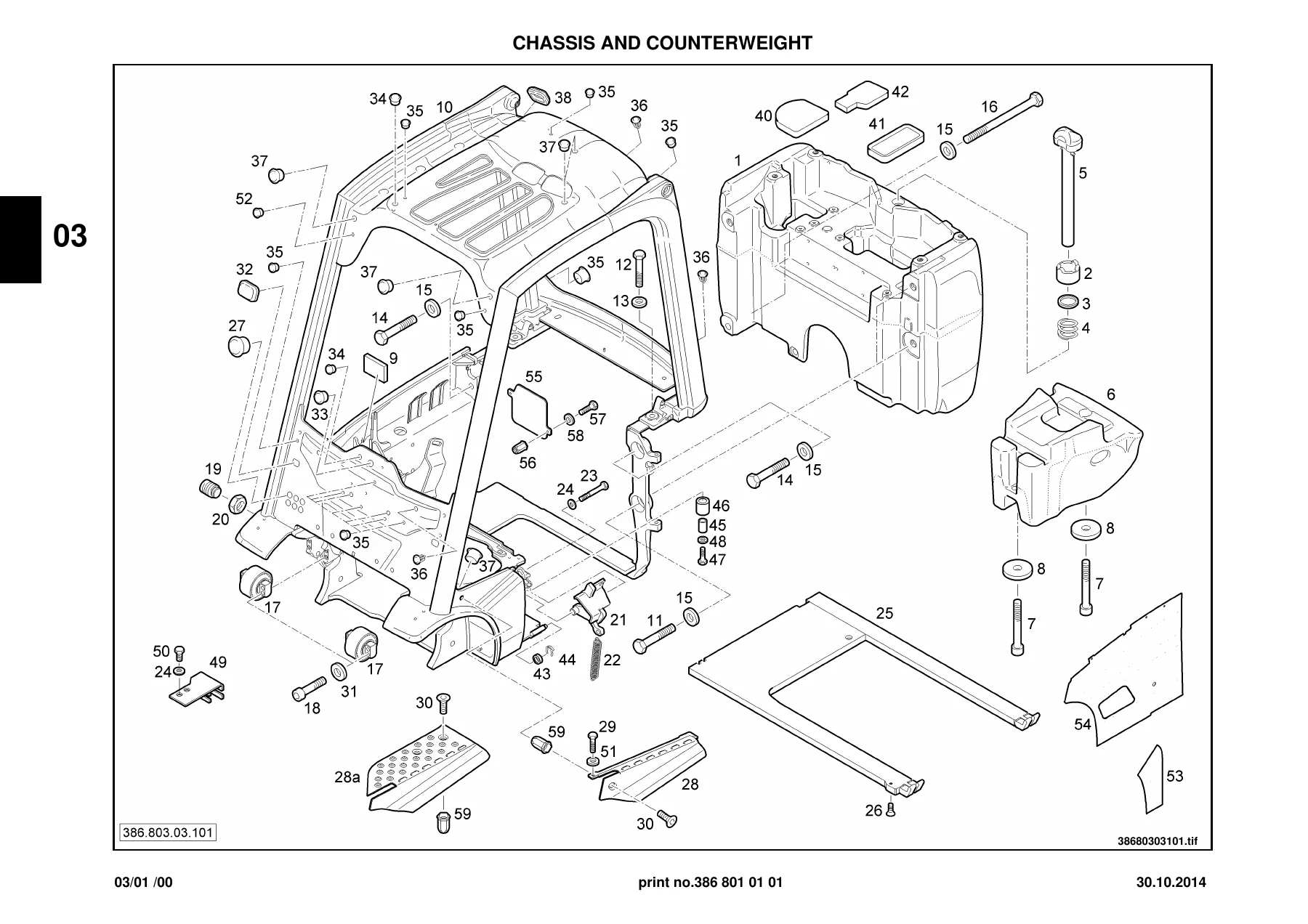

• Register 03 – Chassis Unit (chassis and counterweight, battery door, battery cover, cowlings and covers, front console, cooling system, driver seat, driver seat air-suspended, rotating seat mechanism, windscreen, roof pane, rear window, washer system, rear-view mirror, doors, sliding window, safety door, plastic doors, heater, radio)

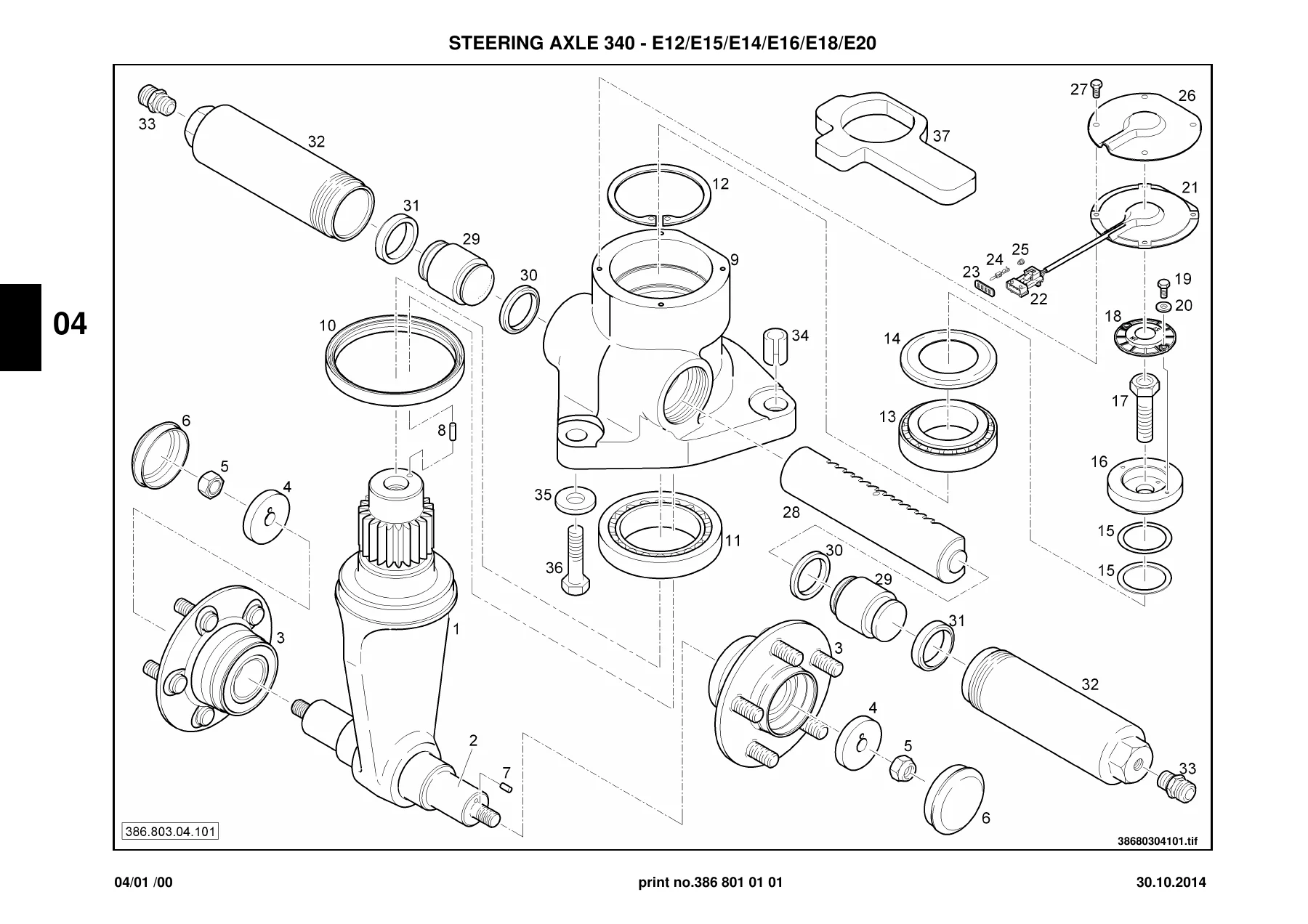

• Register 04 – Steering and Wheels (steering axle 340, steering axle 306, steering axle 1610, hydrostatic steering with lines, cushion tyres, pneumatic tyres, mudguard)
• Register 05 – Pedal Operation, Parking Brake, Actuator of Pilot Valve, Armrest Harness, Tilt Angle Sensor
• Register 06 – Electric Equipment (electric armatures, battery accessories, battery plug rear, traction/lift electronic, main harness parts 1 and 2, various cable looms parts 1-3, spot light, wiring harnesses working lamp, truck lighting and warning blinker system, wiring harnesses for lighting, flash light / warning lights / danger signal / blue spot, wiring harnesses for warning functions, windscreen wiper, heater, voltage converter for special equipment, LFM, LFM Online, cable harnesses LFM, 12V socket, charger battery, lift mast positioning, camera system, wiring harnesses for camera, height indicators, Linde Safety Pilot LSP, wiring harnesses LSP)
• Register 07 – Hydraulic Unit (control valve and lines, control block VW10-M3, control block VW10-M4, hydraulic pump / oil tank / filter and lines, oil filter for hydraulic travel system, tilt jack, accumulator, auxiliary hydraulic services for standard / duplex / triplex mast type 181, guide pipe duplex, guide pipe triplex)
• Register 08 – Lift Mast (fork carriage and fork arms, standard mast type 181, duplex mast type 181, triplex mast type 181, lift cylinder, middle cylinder, external cylinder, sideshift, fork adjusting device)
• Register 09 – Special Equipment (highway equipment, load backrest, tilt cylinder protection, overhead guard grille, terminal board, sun blinds, battery carrier and battery removal tool, hydraulic battery reach parts 1 and 2)
• Register 10 – Miscellaneous (plates, plates for joystick single and cross lever, operating material, bag for technical documentation)

Every register above is broken down to component level. The lift mast section, for example, is not a single diagram – it separates the standard, duplex and triplex masts, then splits the lift cylinder, middle cylinder, external cylinder, sideshift and fork adjusting device into their own illustrated assemblies. The same depth runs through the chassis, electrics and hydraulic registers, so the part you need is normally two or three pages away from the section index rather than buried inside a generic drawing.

How the Part Number Index Works

The front of the file carries a part-number key covering the full E12/14/15/16/18/20 -02 range. Each entry lists the part number against the page and illustration number where it appears. Look up a part number you already have and you land directly on the drawing and position; look up a drawing position and you get the number back. The illustrations themselves use callout numbers keyed to a table underneath, giving position, part number, designation, quantity and any replacement note.

Five availability codes are used throughout the tables: 1 for packaged quantities, 2 for restricted availability, 3 for parts being phased out, 4 for parts not available individually due to assembly reasons, and 5 for items listed separately. Knowing which code applies to a line before you order saves a wasted enquiry on a component that has already been superseded.

What This Spare Parts List Enables

With this catalog on screen you can build an accurate parts order for a Linde E12, E14, E15, E16, E18 or E20 without relying on a dealer counter to interpret your description. Common jobs it directly supports include rebuilding the drive motor assembly AK20E-01, replacing axle driven gears, resealing steering axles 340 / 306 / 1610, working through the traction and lift electronic modules, tracing a fault through the main harness or the various cable looms, and identifying mast rollers, chains, cylinders and sideshift components on type 181 masts.

Because the exploded views show how each assembly goes together, the same file doubles as a teardown reference when you are dismantling a component for inspection. Correct part numbers also mean correct fits – a bearing, seal, hose or chain specified for a standard mast is not interchangeable with the duplex or triplex equivalent, and the tables make that distinction explicit.

IMAGES PREVIEW

Instant PDF Delivery

The Linde E12 E14 E15 E16 E18 E20 forklift spare parts list is delivered as an instant PDF download – no shipping, no waiting on a disc. Open it on a workshop laptop, tablet or phone, search it on screen while you work, or print the pages for the assembly you are stripping and take them to the truck. Once downloaded the file is yours to keep and reference for every future service on the machine.
