Nissan 1F2UP Platinum II Forklift Parts Catalog CF690-UBOOK 2013 – PDF

Description

Nissan 1F2UP Platinum II Forklift Parts Catalog – CF690-UBOOK

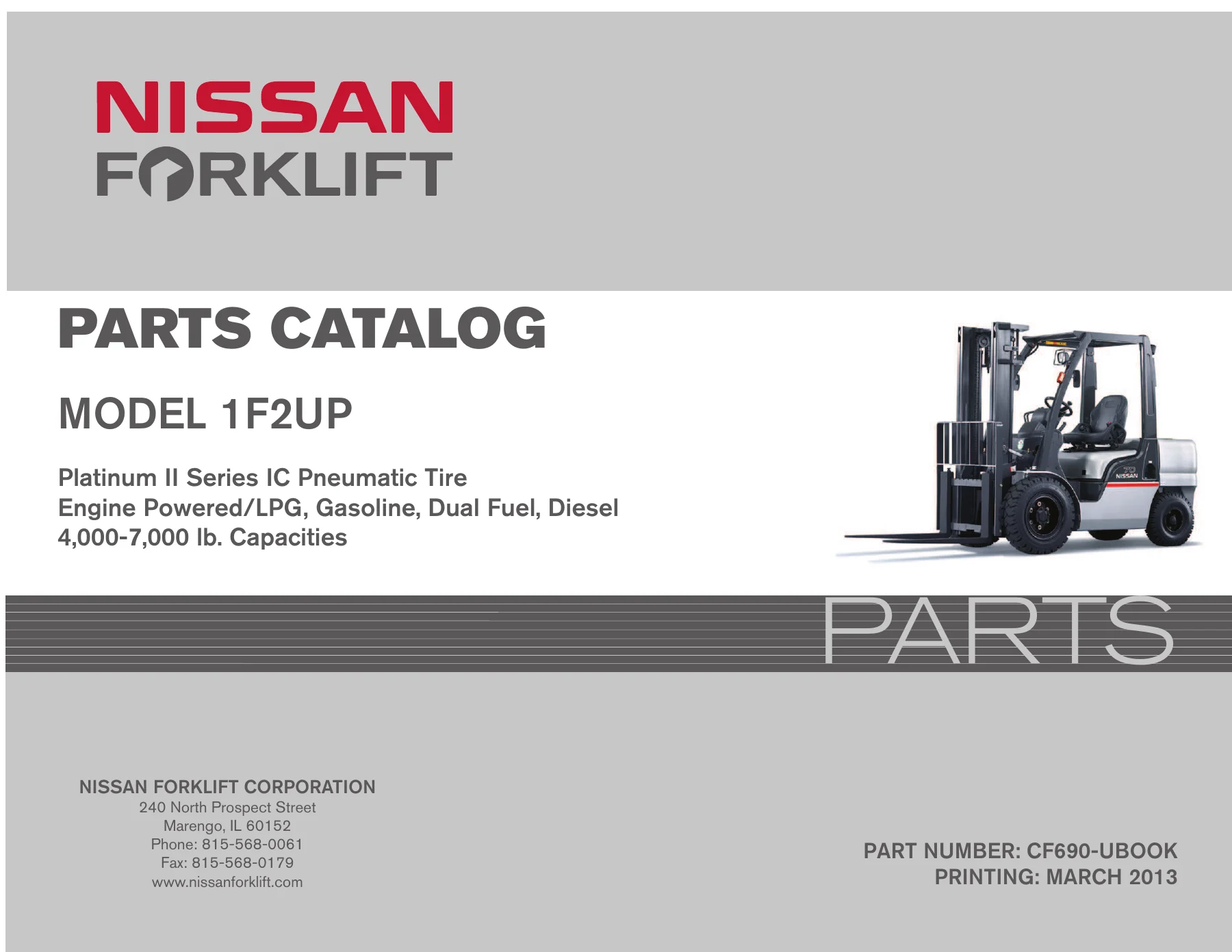

The Nissan 1F2UP Platinum II Series Parts Catalog covers the complete IC pneumatic tire forklift line rated from 4,000 to 7,000 lb capacity running gasoline, LPG, dual fuel and diesel. Published under part number CF690-UBOOK with a March 2013 printing date, this catalog supplies parts personnel, fleet mechanics and rebuild shops with the factory exploded views, key numbers and original Nissan part numbers needed to order the right component the first time.

Every illustration is keyed by number, and each key number maps directly to a parts table listing the part name, specification, applied date range and former part number. That structure is what makes a Nissan 1F2UP parts catalog genuinely usable at the counter: you identify the assembly, read the key number off the diagram, and pull the exact part number without guesswork.

File Details

• Manual type: Illustrated parts catalog
• Brand: Nissan Forklift
• Model series: 1F2UP – Platinum II Series
• Publication number: CF690-UBOOK
• Printing date: March 2013
• Publisher: Nissan Forklift Corporation, Marengo, Illinois
• Language: English (section headings also shown in Spanish, German and French)
• File format: PDF
• Page count: 627 pages

Chapters Covered

The catalog is organised into numbered section groups, each with its own illustration and part number table:

• Introduction and user guide – group symbols and abbreviations, car number and engine number location, table of chassis numbers, section index

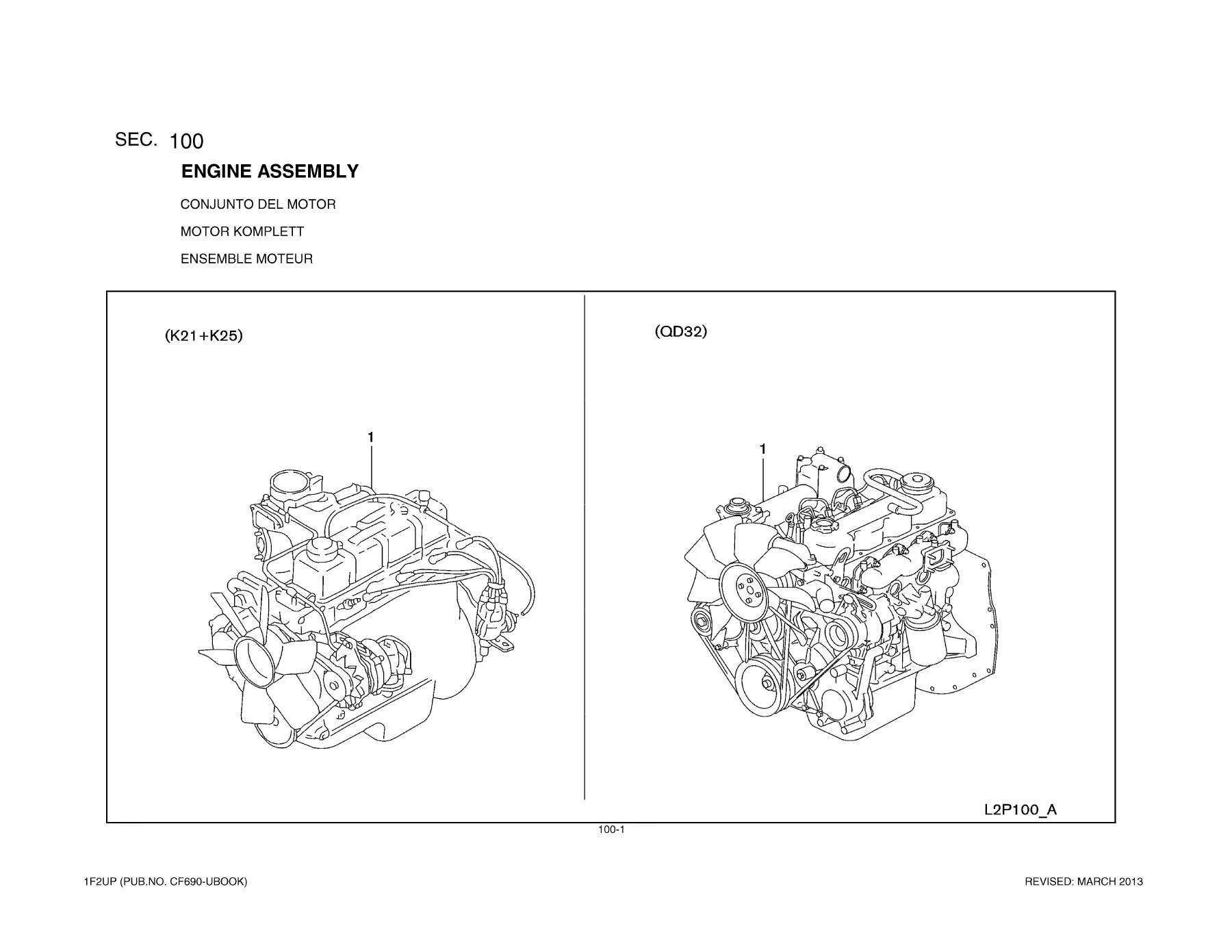

• Engine Mechanical – Engine Assembly (100), Engine Gasket Kit K21/K25 (102A), Engine Gasket Kit QD32 (102B), Cylinder Block & Oil Pan K21/K25 (110A), Cylinder Block & Oil Pan QD32 (110B), Cylinder Head & Rocker Cover K21/K25 (111A), Cylinder Head & Rocker Cover QD32 (111B), Engine & Mounting (112), Fan/Compressor/Power Steering Belt QD32 (117B), Crank Case Ventilation K21/K25 (118A) and QD32 (118B), Piston/Crankshaft & Flywheel K21/K25 (120A) and QD32 (120B), Camshaft & Valve Mechanism K21/K25 (130A) and QD32 (130B), Front Cover & Fitting K21/K25 (135A), QD32 up to Sept. 2008 (135B) and QD32 from Sept. 2008 (135C), Manifold K21/K25 (140A) and QD32 (140B), Lubricating System K21/K25 (150A) and QD32 (150B)

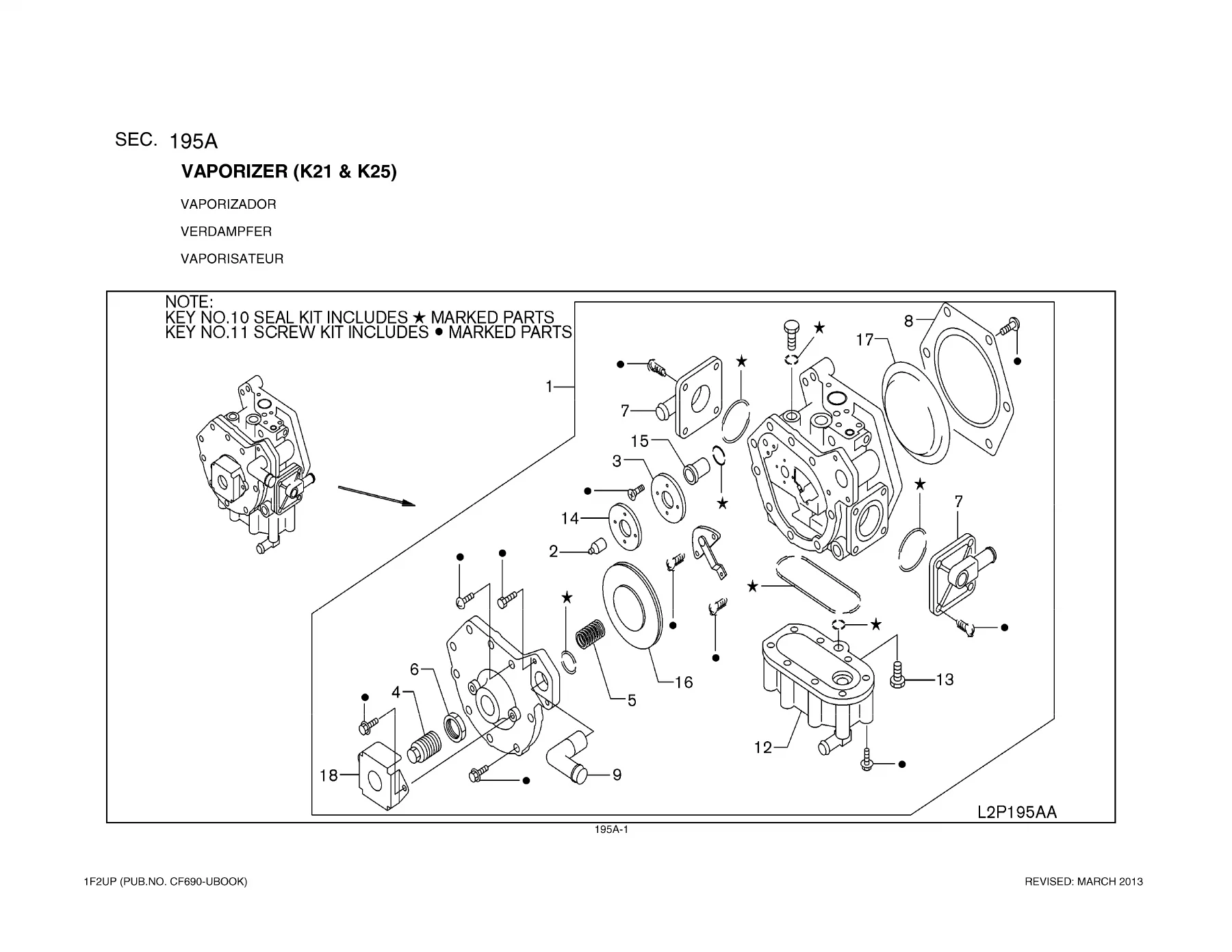

• Fuel & Engine Control – Carburetor (160A), Fuel Strainer & Fuel Hose K21/K25 (164A) and QD32 (164B), Air Cleaner (165), Fuel Piping K21/K25 (173A) and QD32 (173B), Accelerator Linkage (180), Fuel Supply System QD32 (185B), Fuel Injection Pump QD32 (186B), Vaporizer K21/K25 (195A), LPG Filter & Piping (196), LPG Bombe (199A), LPG Bombe – Fixed (199B), LPG Bombe – Swing Down (199C), Controller VCM (296)
• Exhaust & Cooling – Exhaust Tube & Muffler (200A), QD32 (200B), QD32 Overhead up to Nov. 2008 (200C), QD32 Overhead from Nov. 2008 (200D), Water Pump/Cooling Fan & Thermostat K21/K25 (210A) and QD32 (210B), Oil Cooler QD32 (213B), Radiator/Shroud & Fitting (214), Torque Converter Oil Cooler & Piping up to Aug. 2011 (216A) and from Aug. 2011 (216B)
• Engine Electrical – Ignition System K21/K25 (220A), Distributor K21/K25 (221A), Vacuum Piping K21/K25 (223A), Engine Control Module K21/K25 (226A), Starter Motor K21/K25 (233A) and QD32 (233B)
• Body Electrical – Wiring Engine Room & Instrument (240), Wiring Body K21/K25 Part 1 (241A1) and Part 2 (241A2), Wiring Body QD32 Part 1 (241B1) and Part 2 (241B2), Battery & Battery Mounting (244), Instrument Meter & Gauge (248), Switch (251), Electrical Unit (253), Head Lamp (260), Front Combination Lamp (261), Rear Combination Lamp (265), Lamps Others (267)
• Caution Plate & Label (993) – decals and safety plates
• Part Number Index – alphabetical lookup to locate the section for any part number

Read as a whole, this 1F2UP Platinum II parts catalog is a lookup tool rather than a repair text. It gives you the assembly breakdown of every major system on the truck – engine, fuel and LPG equipment, cooling, electrical, powertrain, brakes, steering and body panels – and then hands you the correct Nissan part number for each individual component. Applied date columns matter here, because several sections split part way through production: the QD32 front cover changes from September 2008, the overhead exhaust changes from November 2008, and the torque converter oil cooler piping changes from August 2011. Ordering against the wrong side of those dates is the most common source of wrong-part returns on this truck.

Model Coverage and Applications

The catalog’s classification table lists 29 build variations across the 1F2UP range. Capacity codes run from 20 through 35, which correspond to the 4,000 lb, 5,000 lb, 5,500 lb, 6,000 lb and 7,000 lb trucks. Wheelbase and transmission codes distinguish standard, intermediate and long wheelbase chassis, all fitted with automatic transmission. Destination is listed as North America throughout.

Specific model codes covered include 1F2A20, 1F2A25, 1F2A28, 1F2A30 and 1F2A35, in gasoline (JVPF), LPG (LVPF), dual fuel (DVPF) and LPG-LPS (LSPF) configurations, plus diesel (VPF) variants. Because the parts tables carry applied date and applied model columns, the catalog lets you confirm a part fits your exact chassis rather than relying on a broad model match.

Engines Covered

• K21 – gasoline, LPG and dual fuel four-cylinder engine
• K25 – gasoline, LPG and dual fuel four-cylinder engine used on the larger capacity trucks
• QD32 – diesel engine

Engine-specific sections are separated throughout, so K21 and K25 share one illustration group while QD32 has its own. That split applies to gasket kits, cylinder blocks, cylinder heads, pistons and crankshafts, camshafts, front covers, manifolds, lubrication, fuel strainers, fuel piping, exhaust routing, cooling and starter motors. Getting this right matters: the QD32 diesel and the K21/K25 gasoline engines share almost no internal parts.

Warranty and Emission Coverage Reference

The opening pages reproduce the warranty coverage table for US and CARB emission regulated units: Basic 12 months / 2,000 hours, Powertrain 24 months / 4,000 hours, Emission Control Warranty LSI 36 months or 2,500 hours on general parts and 36 months or 4,000 hours on powertrain parts, Long-Term Emission Control LSI 60 months or 3,500 hours general and 60 months or 4,000 hours powertrain, and Emission Related Warranty CI 60 months or 3,000 hours on general parts. LSI applies to large spark ignited engines above 25 HP (gas, LPG, LNG) and CI to compression ignited diesel. Tires, battery, optional equipment and hang-on attachments are covered separately by their component manufacturers.

How to Identify Your Truck Before Ordering

The catalog explains where the identification plates sit on the machine: the engine number is stamped on the wall of the cylinder block, the type plate carrying the car number is on the right-hand side of the instrument panel, and the chassis number is on the right-hand side of the frame. Because the tables are indexed by applied model and applied date, matching your chassis number to the table of chassis numbers lets you confirm which production window your truck falls into before you commit to a part number.

Why This Parts Catalog Earns Its Place in the Workshop

Ordering forklift parts from memory or from a generic aftermarket listing is how you end up with a gasket that does not match the front cover revision, or an exhaust section built for the wrong production year. This Nissan 1F2UP Platinum II parts catalog removes that risk. It enables you to break any assembly down to its individual components, identify each by key number, read the specification and applied date, cross-reference the former part number when a supersession has occurred, and hand your supplier an exact Nissan number.

That capability covers the jobs that actually come through the door: engine teardown and rebuild on K21, K25 and QD32 units, LPG system work including vaporizer, filter, piping and bombe mounting, cooling system replacement across radiator, water pump, thermostat and oil cooler, torque converter oil cooler piping on both sides of the August 2011 change, complete electrical fault-finding using the engine room and body wiring sections, starter motor overhaul, instrument and lamp replacement, and body panel and seat components. For a fleet running several 1F2UP trucks of mixed age and fuel type, the applied date columns alone justify keeping this catalog on hand.
