Linde E20 E25 E30-02 Forklift Parts Catalogue PDF – 3368049301 Spare Parts Manual Download

Description

Linde E20 E25 E30-02 Forklift Parts Catalogue – Complete 3368049301 Spare Parts Manual

This is the complete Linde E20 E25 E30-02 parts catalogue, issued under document number 336 804 93 01 and dated 07.05 (print date 29.07.2005). It covers the full spare-parts breakdown for the Linde E20, E25 and E30-02 electric counterbalance forklift series, including the Panorama variant and the high-capacity E20-600 / E30-600 configurations. Every exploded assembly, every part number, every fastener, seal, bearing, hose and electrical connector used on these trucks is catalogued here in one searchable reference.

File Details

• Manual type: Parts Catalogue
• Brand: Linde
• Model coverage: E20, E25, E30-02
• Document number: 336 804 93 01
• Date: 07.05 / 29.07.2005
• Language: English
• File format: PDF
• Page count: 455 pages

Chapters Covered

• 01 Drive Motor
• 02 Drive Transmission
• 03 Chassis, Bodywork and Fittings
• 04 Steering Axle and Steering Components
• 05 Controls
• 06 Electric Equipment
• 07 Hydraulic Unit
• 08 Mast Assembly and Auxiliary Hydraulic Se
• 09 Special Equipments
• 10 Miscellaneous

01 Drive Motor and 02 Drive Transmission

The traction motor section lists left-hand and right-hand drive motors for the E20 and E25/E30 variants, including exchange units. Internal components are broken out in full detail: rotor, brush holder assemblies with temperature sensor, brush springs, carbon brushes, end plates, bearing labels, pipe plugs, clamping nuts and insulated bushes. The drive transmission register covers the complete 2-SX transmission assembly — transmission housing, annular gear, wheel shaft, planet gear carriers, sun wheels, planet wheels, cylinder roller bearings, seal rings, retaining rings, tapered roller bearings, ventilation ducts and the 24V cooling fan, all with individual part numbers and quantities.

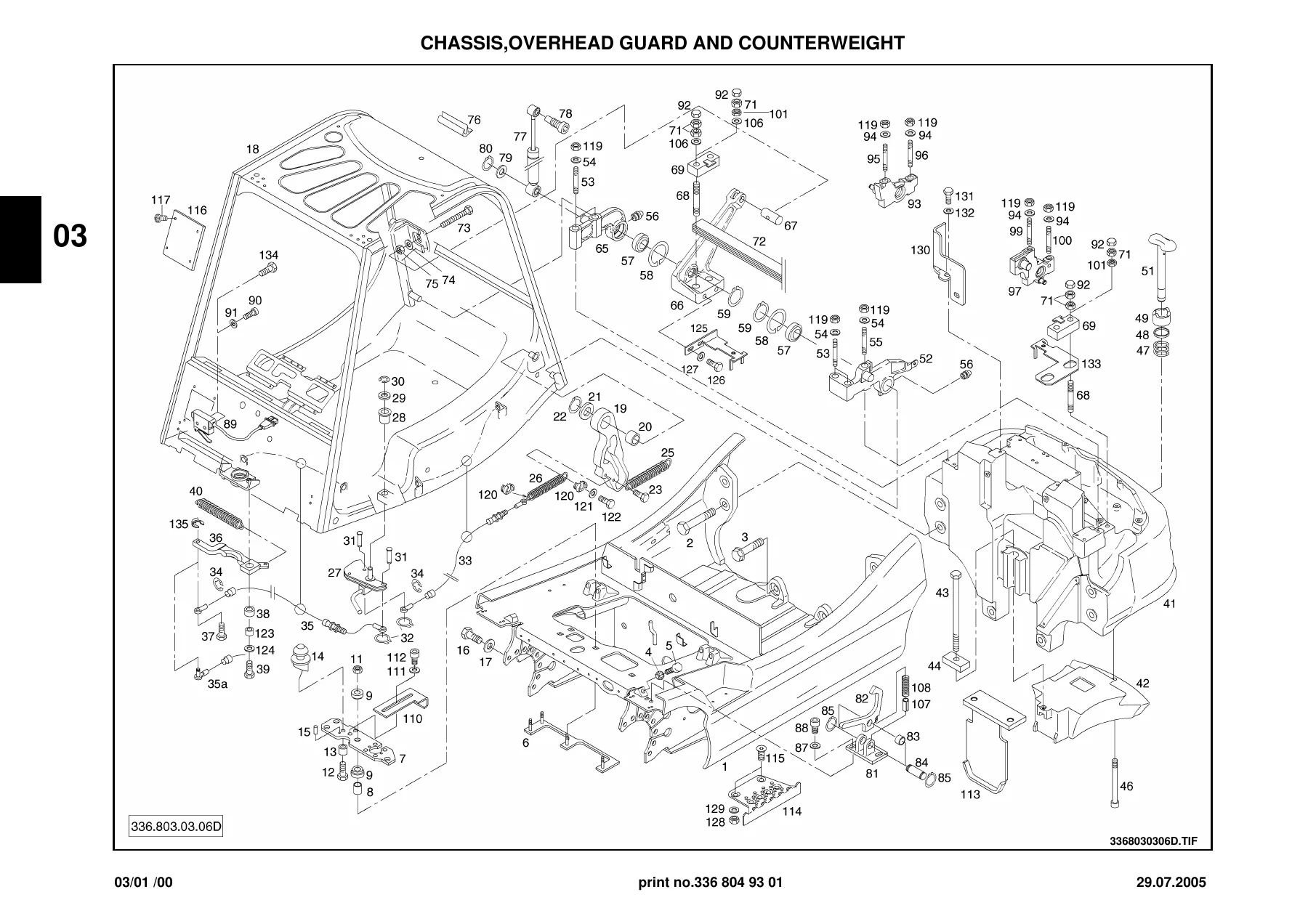

03 Chassis, Bodywork and Fittings

This is the largest section of the catalogue, split across standard and Panorama configurations. It covers the chassis assembly for E20-low, E20-600, E25/30-03 flat and high variants; the overhead guard; counterweights for every lift-height and battery-capacity combination; rubber mountings; bumpers; steps and handrails; floor mats; hood panels and coverings; the driver’s seat in PVC, fabric and super-deluxe versions, including seat guides, shock absorber, rocker arm, adjusting spindle, seat belt, seat heater and seat switch; the cabin with doors, sliding windows, gas springs, hinges, locks and handles; and the complete heater unit with blower, thermostat, heating spiral, relays, resistors and control switches.

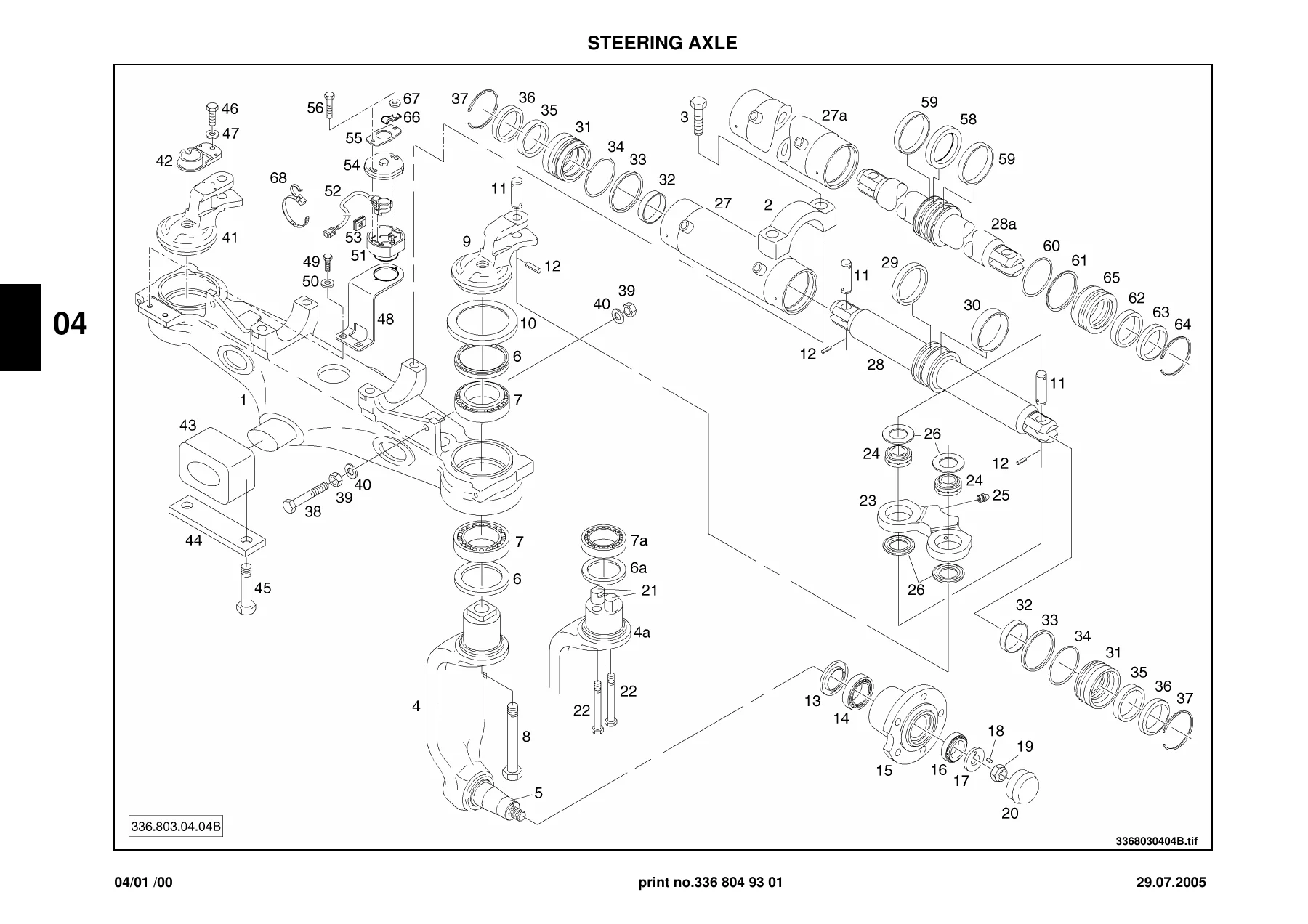

04 Steering Axle and Steering Components

Steering axle assemblies are listed for E20 and E25/E30, together with king-pin repair kits, tapered roller bearings, seal wipers, steering arms, rubber bumpers, shackle assemblies and the potentiometer used for steering-angle sensing. The hydrostatic steering register covers the steering control valve, steering column, steering wheel, signal button, hose lines, pipe assemblies, banjo unions and O-rings. Wheels and tyres are fully catalogued — pneumatic, solid and non-marking tyres, rims, rim bands, inner tubes, valves, wheel bolts, wheel nuts and mudguards for every track width.

05 Controls

Travel actuating and braking components are covered for both standard and Panorama layouts, including brake shoes, linings, bushes, shackles, levers, clevis forks, threaded rods, spring pins and pedal assemblies with their needle bearings, tension springs, pedal coverings and limit switches. The actuator-of-pilot-valve register details the joystick levers (central, cross, single, double and gated), bellows, armrests, console covers, plates and the switches used on single-pedal and dual-pedal trucks.

06 Electric Equipment

This register runs from the battery plug and main cables through to the traction and lift electronic control units. It covers electric armatures, battery cables, insulating hoses, cable assemblies between contactors and controllers, the Linde Forklift Data Management (LFM) system, traction and lift electronics for E20 and E25/E30 by serial range, main harnesses for each model, lighting and flasher units, spot lights, cable trees, cable looms for the Japan lighting version, and the LFM harness. Indicators, keyswitches, horns, fuses, relays, contactors, resistors, voltage converters and every connector, pin, bush and seal are listed with part numbers.

07 Hydraulic Unit

The hydraulic section covers control valves in 3-way and 4-way configurations for E20, E25 and E30, including the Panorama variants and the various serial-range changes. Brake valves, valve cartridges, magnets, coils, pipe unions, adaptors and hose lines are itemised. The oil tank, air-vent filter, suction filter, filter insert, hydraulic pump, clutch, tilt cylinder, piston, seals, wipers, O-rings, eye bolts and spherical bearings are all catalogued with quantities and part numbers.

08 Mast Assembly and Auxiliary Hydraulics

Mast coverage is extensive and split by mast type. Type 183 (E20/E25) and Type 186 (E25/E30) are both catalogued in standard, duplex and triplex configurations, with outer, inner and central mast assemblies listed by lift height. Fork carriages, fork arms, lift cylinders, chain assemblies (leaf chain and pin chain), chain anchors, chain pulleys, rollers, guides, wear strips and pipe-break safety valves are all detailed. Auxiliary hydraulics are broken out for standard, duplex and triplex masts, and integrated sideshift units are covered for both slide-guide and roller-guide versions, including the 50 mm piston sideshifter for Type 186.

09 Special Equipments and 10 Miscellaneous

Highway equipment — including the protective cover, warning triangle, wheel chock, mirrors, number-plate light and bulb — is listed for road-legal configurations. Loadguards for mast types 183 and 186 are catalogued with their support brackets and fasteners. The miscellaneous register covers nameplates, warning decals, capacity labels, operating-symbol decals for the joystick and lever controls, and operating materials such as spray paint, chain spray and lithium-based grease.

Why This Linde E20 E25 E30-02 Parts Catalogue Matters

Ordering the wrong part on a forklift is expensive — wrong fastener, wrong seal, wrong bearing, and the truck is off the floor. This Linde E20 E25 E30-02 spare parts manual removes that risk. Every assembly is exploded and every item numbered, so you can trace from the illustration directly to the exact part number, quantity and description. Variants are separated by model (E20, E25, E30), by battery capacity (440/550 Ah, 560/700 Ah), by lift height, by mast type and by serial-number break, so the part you order is the part that fits your truck. The part-number index at the front lets you reverse-look-up any number to the page where it appears, and the page-position tags (for example 03/01/04) tell you exactly where on the diagram the item sits.

This catalogue supports the full range of work these trucks need — transmission rebuilds, hydraulic valve replacement, mast roller and chain servicing, brake shoe and lining replacement, steering axle overhaul, seat and cabin repairs, electrical fault-finding and complete harness replacement. It is the reference used by workshops and parts departments to keep Linde E20, E25 and E30-02 forklifts running.

IMAGES PREVIEW

Delivered as an instant PDF download — no shipping, no waiting. Open it on any device, search the part-number index, print the pages you need for the workshop, and keep the rest on file. One purchase, permanent access to the complete Linde E20 E25 E30-02 parts catalogue 3368049301.
