Description

Linde P30C P50C Spare Parts Catalogue – Document 1190-00

This complete Linde P30C/P50C spare parts catalogue delivers the full illustrated parts breakdown for the P30C and P50C series forklifts, published under document number 1190 804 90 12 (catalogue reference 1190-00). The 207-page PDF is dated 21.12.2022 and carries every part number, quantity, description and assembly illustration exactly as released for these trucks. Whether you are ordering a replacement reducer, tracing a brake component, or rebuilding a steering unit, the part references in this Linde P30C/P50C parts book match the original listings for the platform.

File Details

• Manual Type: Spare Parts Catalogue (Ersatzteilkatalog / Spare Parts List)
• Brand: Linde
• Model: P30C / P50C Series
• Document Number: 1190-00 / 1190 804 90 12
• Date: 21.12.2022
• Language: English, German, French, Italian, Spanish, Chinese
• File Format: PDF
• Page Count: 207

Chapters Covered

• Power Unit: Engine/Motor
• Drive: Transmission
• Chassis Unit
• Steering, Braking and Wheels
• Electric Equipment
• Special Equipment
• Miscellaneous

Power Unit: Engine/Motor

The power unit section of this Linde P30C/P50C spare parts catalogue covers the traction motor and its mounting hardware. You will find part numbers and quantities for motor supports, socket head screws, washers and locking hardware used to secure the drive assembly. The electrical magnet brake is listed separately under the electric equipment heading, with its rotor, flange, hub and socket housing itemised with part numbers.

Drive: Transmission

The drive and transmission chapter is among the most detailed in this P30C/P50C spare parts list. It opens with the reducer and drive unit assembly tables, then breaks the reducer down into its shim rings, support washers, socket head screws, hexagon head screws, spring lock washers, parallel pins, threaded pins and screw plugs. The catalogue covers shim ring sizes from 37×47 through 60×75 in multiple thicknesses, sealing rings, and the fasteners needed to reassemble the drive unit. The gear and support assemblies are also itemised, including the slew gear, support brackets, lock washers and the steel bar cushions for both standard and polyurethane drive wheels.

Chassis Unit

The chassis unit section covers the main chassis assembly for the P30C/P50C series in several battery configurations — 3PZS SV, 4PZS SV, 3PZS SL, 4PZS SL and the 3PZS Li-Ion variant. Each configuration has its own part numbers for the chassis assembly, cowling, front plate, protective caps, pushers, compression springs and serrated lock washers. The battery hood assemblies, brackets, left and right supports, cutting screws, edge protection and spring pins are also listed with their quantities, so you can identify the exact cover hardware for your truck’s battery compartment layout.

Steering, Braking and Wheels

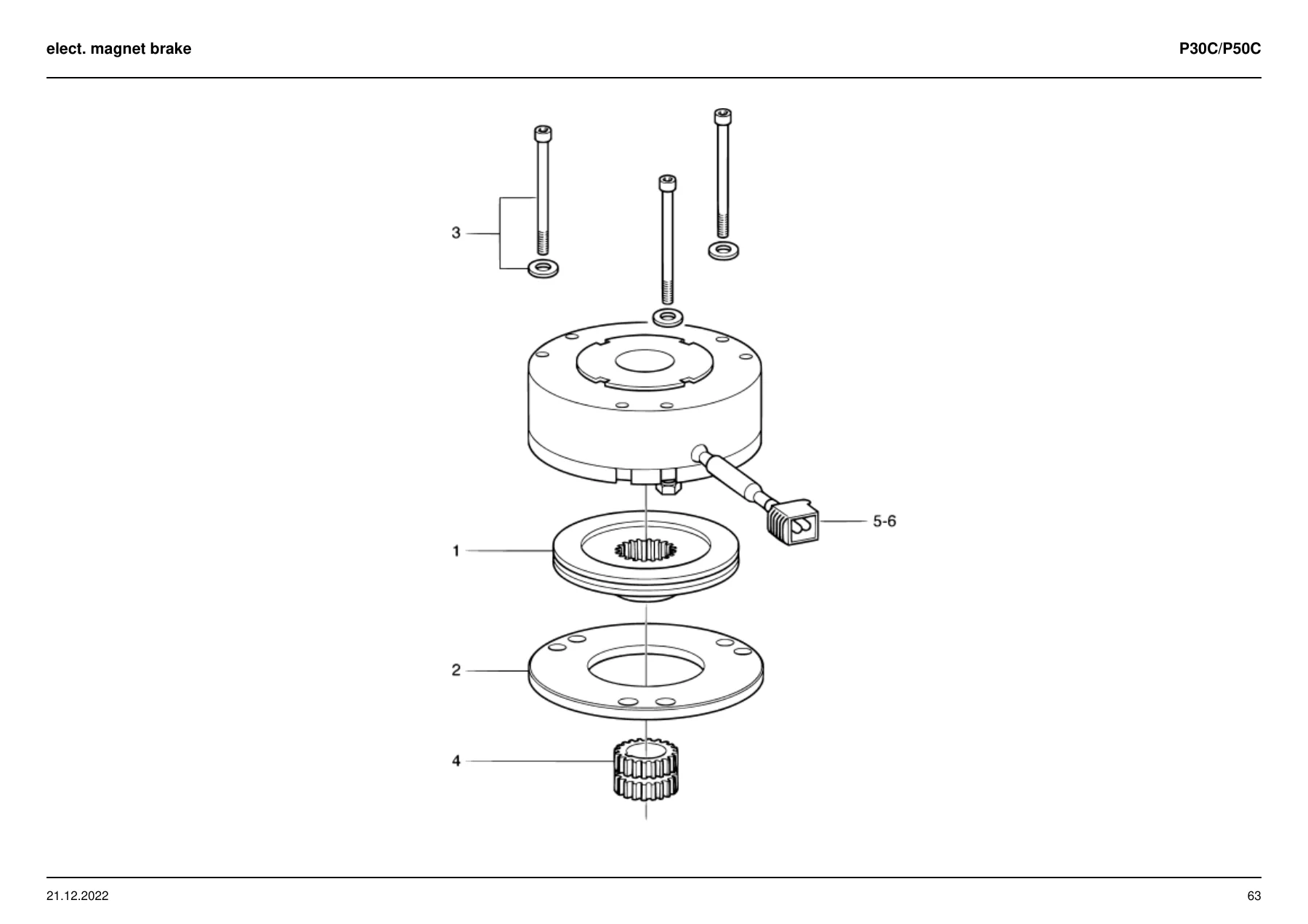

The steering and braking chapter contains the steering unit assembly, threaded bolts, washers and tensioning plate. The electromagnetic brake is covered in its own detailed table with rotor, flange, screw set, hub and socket housing, along with the 2-pole socket housing and socket contacts for the brake wiring. The wheels section lists the load wheel and drive wheel assemblies — rubber 250×80, 250×80-25 CA and no-marking variants — together with the wheel hub and mounting nuts. The reducer and gear unit illustrations in this section show how the wheel assemblies attach to the drive unit.

Electric Equipment

The electric equipment chapter is extensive, covering the contactors, fuse links, relays, horn, fan and steering controller assemblies used across the P30C/P50C range. You will find part numbers for 24V contactors, fuse links rated 80A and 250A, the insulation piece, protective cover and the support assemblies that carry the electrical components. The main harness, wiring harnesses for lighting and platform functions, and the various connectors and cable ties are all itemised. The display unit options, ignition switch, emergency stop knob and clamping holders for the dashboard are also covered, along with the electronic control unit assemblies for PIN and RFID access with LES and Bluetooth variants. Antennas, data storage devices and the associated wiring are listed with their part numbers.

Special Equipment and Miscellaneous

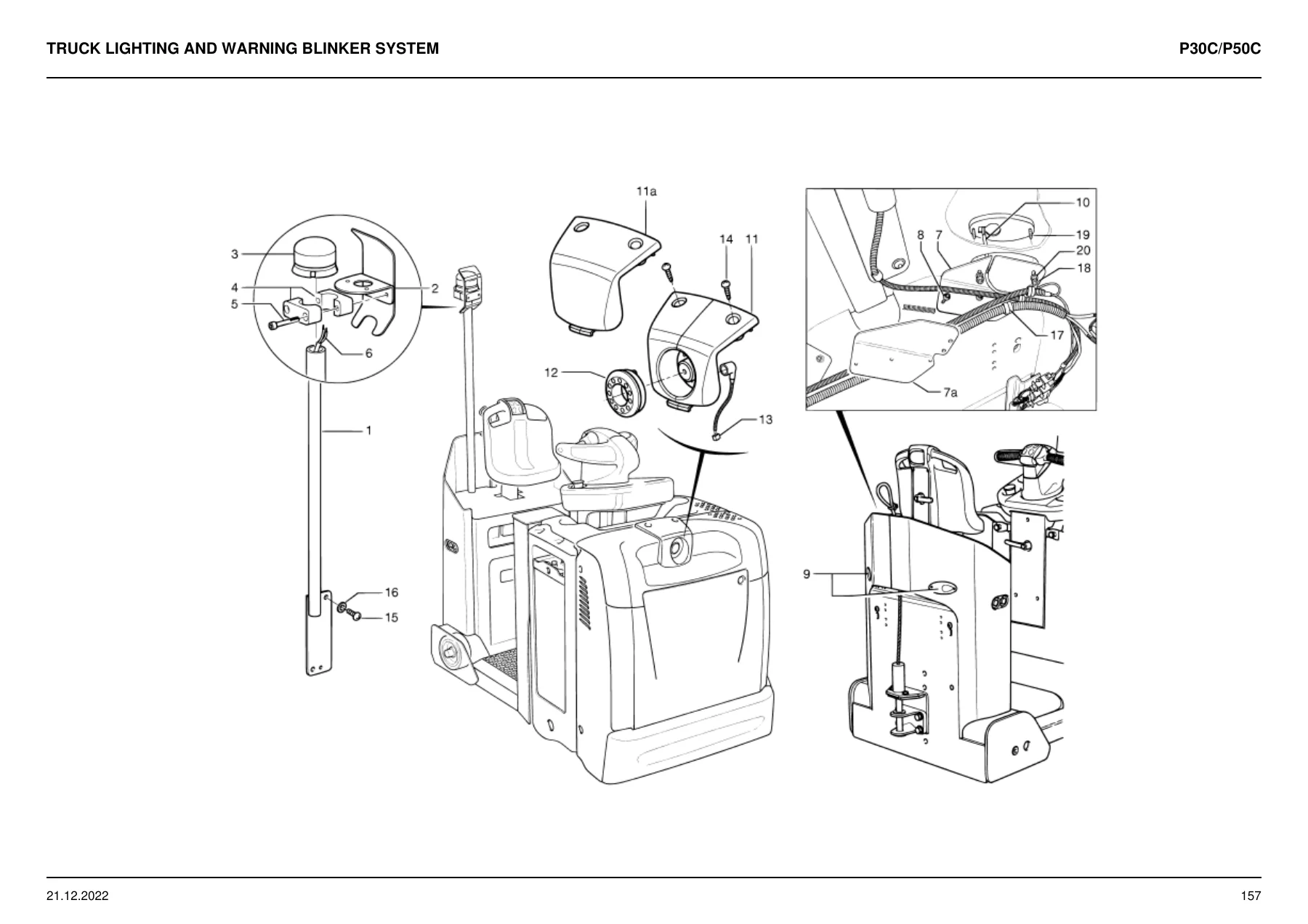

The special equipment chapter covers optional and accessory components such as the signal light, flashing beacon wiring harness, side light, tail light supports, cowlings and the pipe assembly with beam support. The miscellaneous section collects the labels, nameplates and decals used across the P30C/P50C series, including Fenwick and Linde branding, warning labels, Made in France markings, cold store labels, Li-Ion identification and the P30 ion / P50 ion model labels. Lifting sling labels and capacity plates are also included.

Illustrated Parts Diagrams

Every parts table in this Linde P30C/P50C catalogue is accompanied by an exploded illustration with numbered callouts that link directly to the part numbers in the table. The diagrams cover the drive unit and reducer, steering and brake assemblies, chassis and battery hood components, platform and seat support, dashboard and controls, electrical panels and harness routing, and the external lighting and label placements. The wiring diagrams in the electrical section show connector pinouts and harness routing for the lighting, platform and main circuits.

Part Number Index

The final section of the catalogue is a complete part number index that lists every part number used in the document alongside the page numbers where it appears. This makes it possible to start with a part number from a machine and locate its assembly diagram, or to look up the part number for a component you have identified on the truck. The index covers all sections — fasteners, seals, bearings, electrical components, covers and labels.

Why This Linde P30C/P50C Parts Catalogue Matters

Ordering the wrong part for a forklift is expensive in both time and money. This catalogue removes the guesswork by giving you the exact part numbers, quantities and assembly relationships for the P30C and P50C series. With illustrated breakdowns for the drive, brake, steering, chassis and electrical systems, you can confirm the correct component before placing an order — whether you are maintaining a single truck or running a fleet. The multilingual headers and English parts descriptions make the catalogue usable across workshops and procurement teams.

IMAGES PREVIEW

Delivered as an instant PDF download, this Linde P30C/P50C spare parts catalogue is ready to use on any device. Zoom in on the diagrams and print the pages you need for the job. No shipping, no waiting — the complete 207-page parts book is available immediately after purchase.
