LiuGong CLG614 CLG6114 CLG616 Roller Service Manual

This LiuGong CLG614 CLG6114 CLG616 Roller Service Manual is the complete workshop reference for the CLG614, CLG6114 and CLG616 single-drum fully-hydraulic vibratory rollers. Document number 201503001, dated 2015-3-1, it covers the diesel engine system, drive and brake system, hydraulic system, electrical system, frame, vibratory drum, cab and instrument panel in full service detail. Every procedure a technician needs to maintain, diagnose, disassemble, repair and reassemble these LiuGong rollers is included, from standard torque values and running-in schedules to complete engine teardown and vibratory drum bearing replacement.

File Details

• Manual Type: Service Manual
• Document Number: 201503001
• Publication Date: 2015-3-1
• Brand: LiuGong
• Models Covered: CLG614, CLG6114, CLG616
• Language: English
• Page Count: 302
• File Format: PDF

Chapters Covered

• Overview

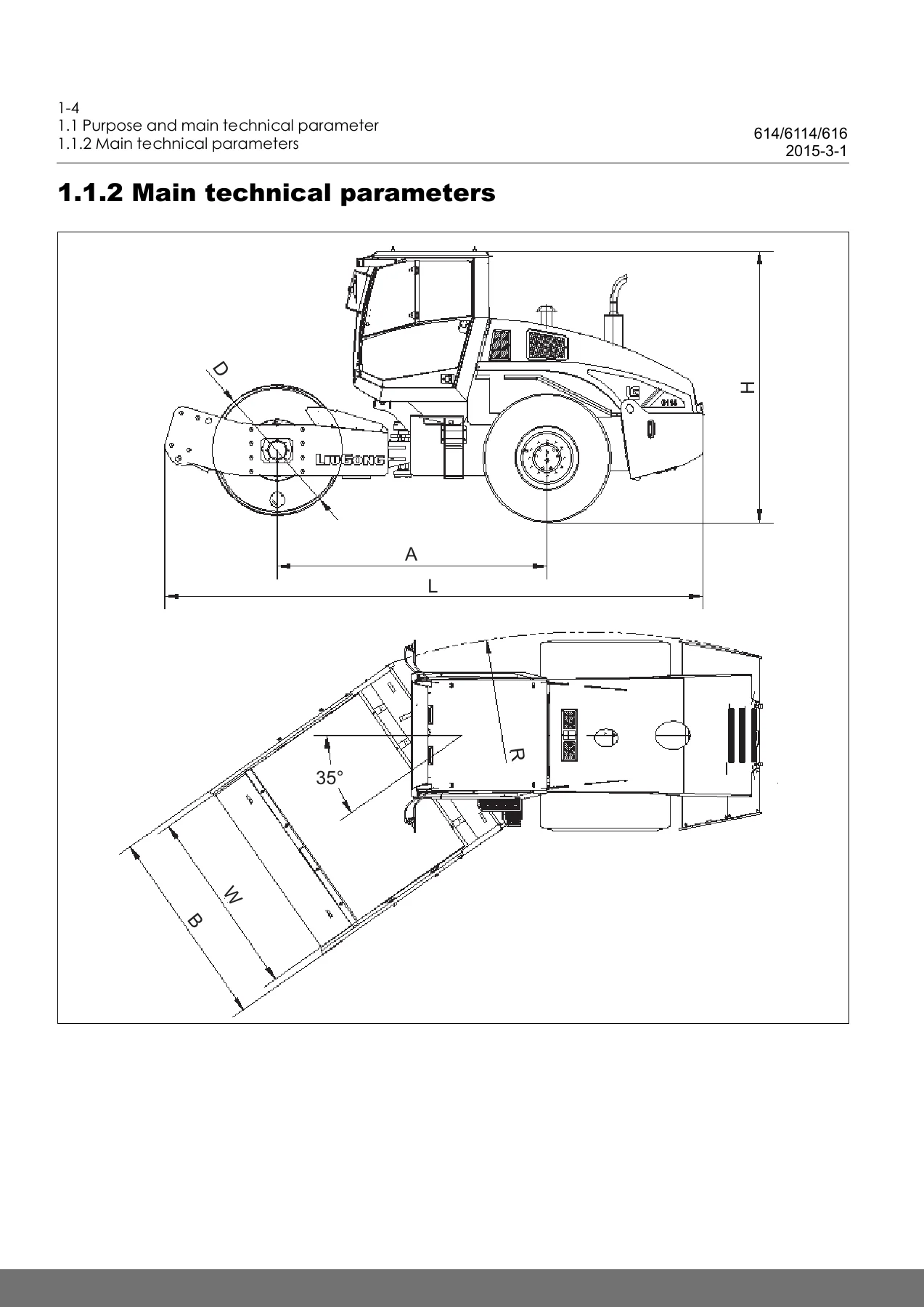

  • Purpose and Main Technical Parameters
  • Usage and Working Environment Requirements
  • Schematic Diagram of Each Part of Complete Machine
  • Standard Recommended Torque (Metric and British Thread)
• Safety
  • Safety Marks and Pasted Position
  • General Safety Notices (Compressed Air, High-Pressure Solution, Battery, Tire, Fire and Explosion)
  • Matters for Operational Safety (Getting On/Off, Engine Start, Machine Operation, Shutdown)
  • Machine Transport and Lifting
• Maintenance
  • New Vehicle Running-In
  • Regular Maintenance Schedules (10, 50, 250, 500, 1000, 2000 Working Hours)
  • Tire Air Inflation
  • Pressure Release
  • Technical Specifications for Lubricant
  • Key Maintenance Procedures (Cooling System, Engine Air Filter, Fuel System, Engine Oil, Hydraulic System, Drive Shaft, Clutch, A/C, Steering Hinge Lubrication)
• Diesel Engine System
  • Engine System Overview
  • Installation of Diesel Engine External Components
  • Two Mechanisms and Five Systems of the Engine
  • Engine Assembly and Disassembly (Oil Pump, Camshaft, Crankshaft, Piston Linkage, Cylinder Head, Valve Clearance)
  • Troubleshooting of Frequent Diesel Engine Faults
• Drive and Brake System

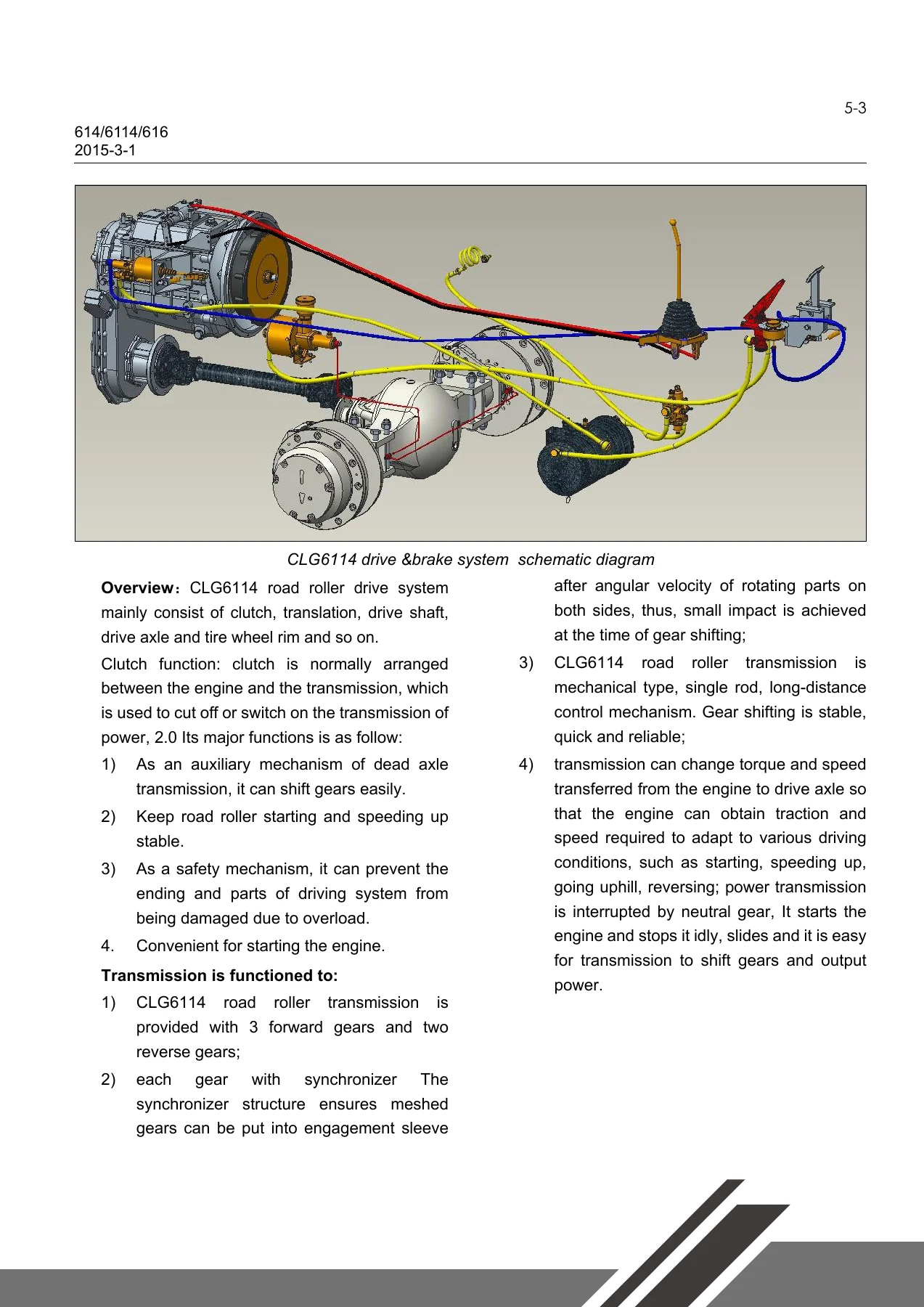

  • Clutch System (Pressure Plate, Transmission Sleeve, Boosting System, Air Draining, Clearance Adjustment)
  • Brake System (Stop Brake, Handbrake, Service Brake, Brake Part Air Drain)
  • Synchronous Shift Transmission (Introduction, Installation, Disassembly, Part Cleaning, Part Check)
  • Drive Shaft and Drive Axle
  • Tire Installation and Disassembly
• Hydraulic System
  • Schematic of CLG6114 Hydraulic System
  • Vibrating Hydraulic System (Vibration Pump, Vibration Motor, Vibration Solenoid Valve)
  • Steering Hydraulic System (Steering Pump, Steering Gear, Steering Oil Cylinder, Fault Diagnosis)
• Electrical System
  • Overview of Electrical System (Vibration, Lighting, Turn Signal, Instruments, Indicators, Sensors)
  • Measuring Methods for Electrical System Failure
  • Check and Troubleshooting for A/C Electrical Faults
• Frame System
  • Introduction of CLG6114 Roller Frame
  • Front and Rear Frame Disassembly
  • Hydraulic Oil Tank and Fuel Tank Replacement
  • Front Rear Frame Connection (Knuckle Bearing, Spider Installation)
• Vibratory Drum Introduction
  • Vibratory Drum Overview
  • Vibration Main Structures and Operation Principles
  • Vibratory Drum Disassembly and Installation
  • Vibration Housing Disassembly, Part Replacement and Installation
  • Replacement of Travelling Bearing and Oil Seal
  • Removal and Installation of Vibratory Drum Bumping Shell
• Cab and Instrument Panel
  • Disassembling the Cab
  • Disassembling Cab Instrument Panel and Replacement
  • Installation and Disassembling of the Hood

What This LiuGong Roller Service Manual Enables

This is a full workshop-level service manual, not a condensed owner’s guide. It gives you the exact procedures, torque values and specifications required to service the CLG614, CLG6114 and CLG616 rollers across every major system. The diesel engine chapter walks through the two mechanisms and five systems of the SC5D130G2B1 engine and its installation, including rotor-type oil pump installation, camshaft bushing pressing, crankshaft assembly, piston linkage installation, cylinder head assembly and valve clearance adjustment. The fuel system, lubrication system, cooling system, intake and exhaust system and start system are each covered with their flow routes and component functions.

The drive and brake chapter details the EQ4150G single-plate dry clutch, the CAGF5-90 three-forward two-reverse synchronous transmission, the air-over-hydraulic service brake and the internal expanding parking brake. Transmission disassembly is documented step by step: rear case removal, clutch release mechanism, top cover, upper cover, first shaft, reverse idler, output shaft and intermediate shaft assemblies, with part cleaning and part check procedures including bearing, gear, spline and thrust washer inspection criteria.

The hydraulic system chapter provides the full CLG6114 hydraulic schematic and covers the vibrating hydraulic circuit (vibration pump, motor and 4/3-way solenoid valve with balance valves) and the steering hydraulic circuit (steering pump, steering gear, steering cylinder and relief valve adjustment). The electrical chapter covers the vibration circuit, lighting, turn signals, instruments, indicators, sensors and air conditioning fault inspection, with multimeter measurement methods for DC voltage, ohm and buzzing positions.

The frame and vibratory drum chapters include front and rear frame disassembly, hydraulic oil tank and fuel tank removal, knuckle bearing and spider installation with clearance adjustment, vibratory drum removal, vibration housing disassembly and reassembly, eccentric shaft and bearing replacement, oil seal renewal, and bumping shell removal and installation. Cab and instrument panel disassembly, hood removal and adjustment are also documented.

Why This Manual Matters

Working on a vibratory roller without the correct torque values, clearances and assembly sequences risks damaging the drum bearings, the transmission synchronizers, the hydraulic pumps and motors, or the engine itself. This manual gives the technician the correct specifications: main bearing cover pre-tightening torque of 60 N·m plus 90±5°, connecting rod bolts at 40, 80 and 130 N·m in three stages, crankshaft rotational torque below 100 N·m with cylinder head removed, valve clearance of 0.30 mm intake and 0.60 mm exhaust, vibratory bearing and travelling bearing heating times, drive axle oil drain and refill torque of 60 N·m, wheel rim bolt torque of 810±70 N·m, and shock absorber compression of 2-3 mm.

It also gives the fault diagnosis logic for the diesel engine (won’t start, raised oil sump level, high oil consumption, abnormal oil pressure, high coolant temperature, insufficient power, abnormal exhaust color, abnormal noise), the transmission (gear engagement, synchronizer function), the hydraulic vibration system (abnormal frequency, abnormal vibration, slow vibration stop), the steering system (heavy steering when cold, hot, at idle or full speed) and the A/C (poor refrigeration, no air flow, compressor faults). That diagnostic reasoning turns a difficult repair into a guided troubleshooting process.
