Lockwood 600 S-Series Air Cup Planter Parts Manual – 604S 606S 608S Dual Air Cup

Description

This Lockwood 600 S-Series Air Cup Planter Parts Manual (document number 101056-00) is the complete illustrated parts catalog for the 604S, 606S, and 608S Dual Air Cup planters, along with the 608 34″ Frame Dual Air Cup configuration. It is the document you reach for when you need to identify, order, or replace any component on these planters — from a single cotter pin in a closing disk assembly to a complete seed tank weldment. Each assembly is shown in exploded view with item numbers that map directly to the part number, description, and quantity tables on the facing page.

File Details

• Manual type: Illustrated parts manual
• Brand: Lockwood
• Models covered: 604S, 606S, 608S Dual Air Cup; 608 34″ Frame Dual Air Cup
• Document number: 101056-00
• Language: English
• Page count: 246
• File format: PDF
• Manufacturer: Lockwood / Crary Industries, West Fargo, ND

Chapters Covered

The 600 S-Series Air Cup Planter parts manual is divided into standard groups and an options section. The standard groups cover the core planter assemblies:

• Planter Frame (34″–38″)

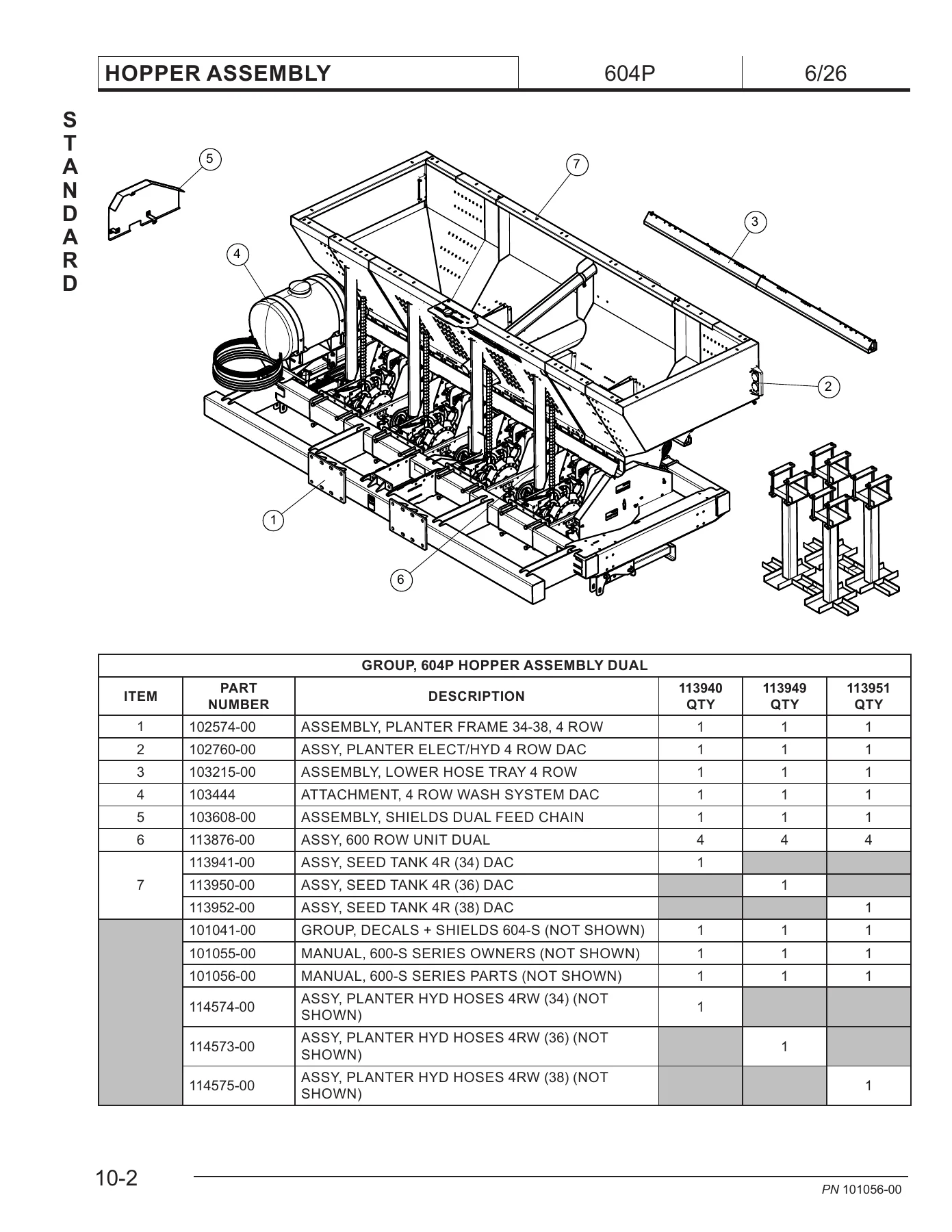

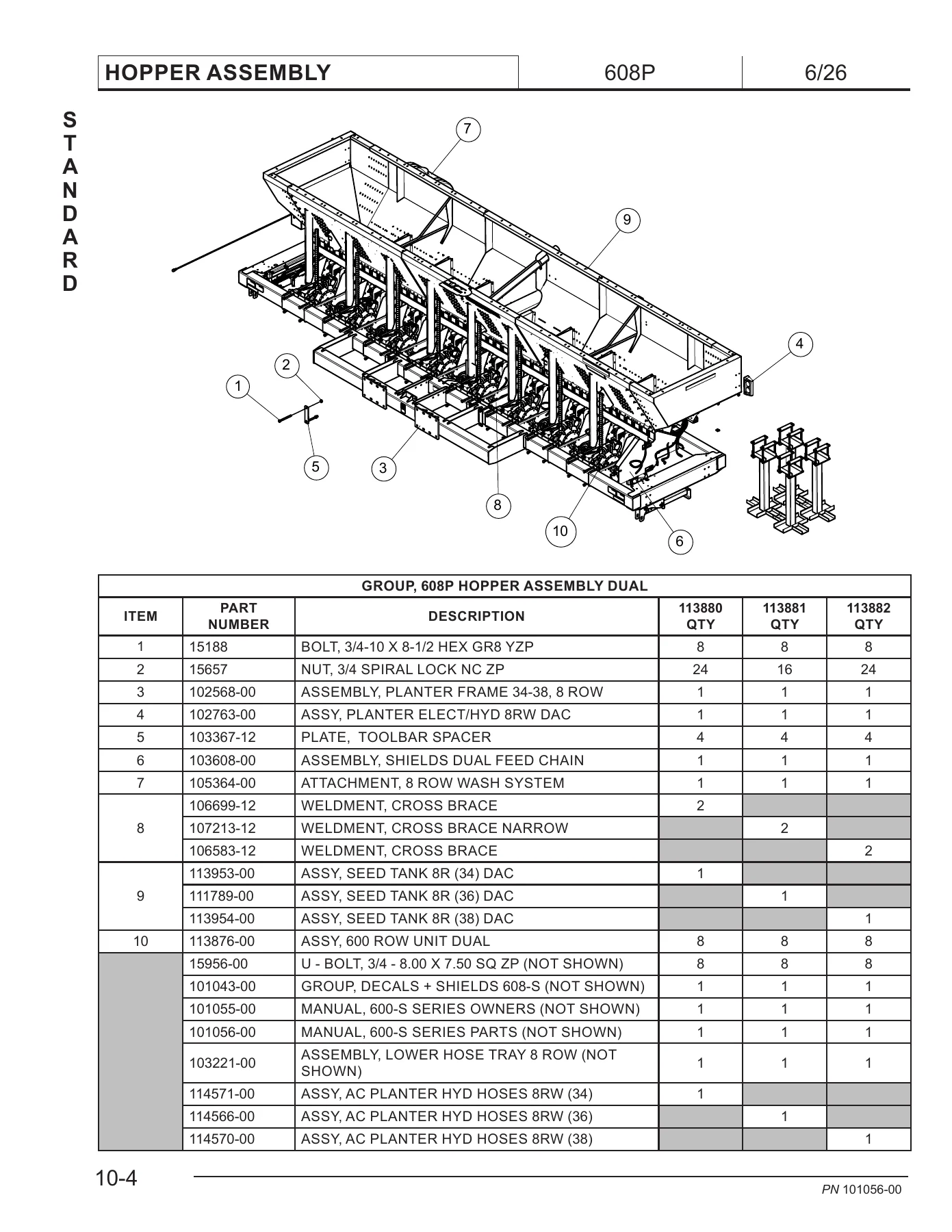

• Hopper Assembly — 604P, 606P, 608P
• Hopper Assembly 608P 34″ Narrow
• Planter Frame 6R Dry Fertilizer Air
• Planter Frame 34″ 8-Row
• Electric/Hydraulic Assembly (4, 6, 8 row)
• Shields Dual Feed Chain
• Lower Hose Tray
• 4 Row Wash System
• 6 Row Wash System
• 8 Row Wash System
• Seed Tank — 4 Row, 6 Row, 8 Row (34″, 36″, 38″)
• Seed Tank 8 Row Narrow
• Seed Tank 6R (36″) Reinforced
• Front Hydraulic/Electric Tray
• Planter (4 row with dry fertilizer)
• Planter Dry Fertilizer 6 Row
• Dry Fertilizer Opener (standard and center)
• Spray Bracket Attachment
• Fertilizer Slide
• Fertilizer Mesh Tank Cover
• Fertilizer Hopper Extension
• Fertilizer Meter Box
• Single Sprag Sprocket
• Stationary Valve Cast RH
• Seed Meter Wheel
• Closing Disc Dual
• 5 Bolt Planter Hub
• Dual Bowl Assembly

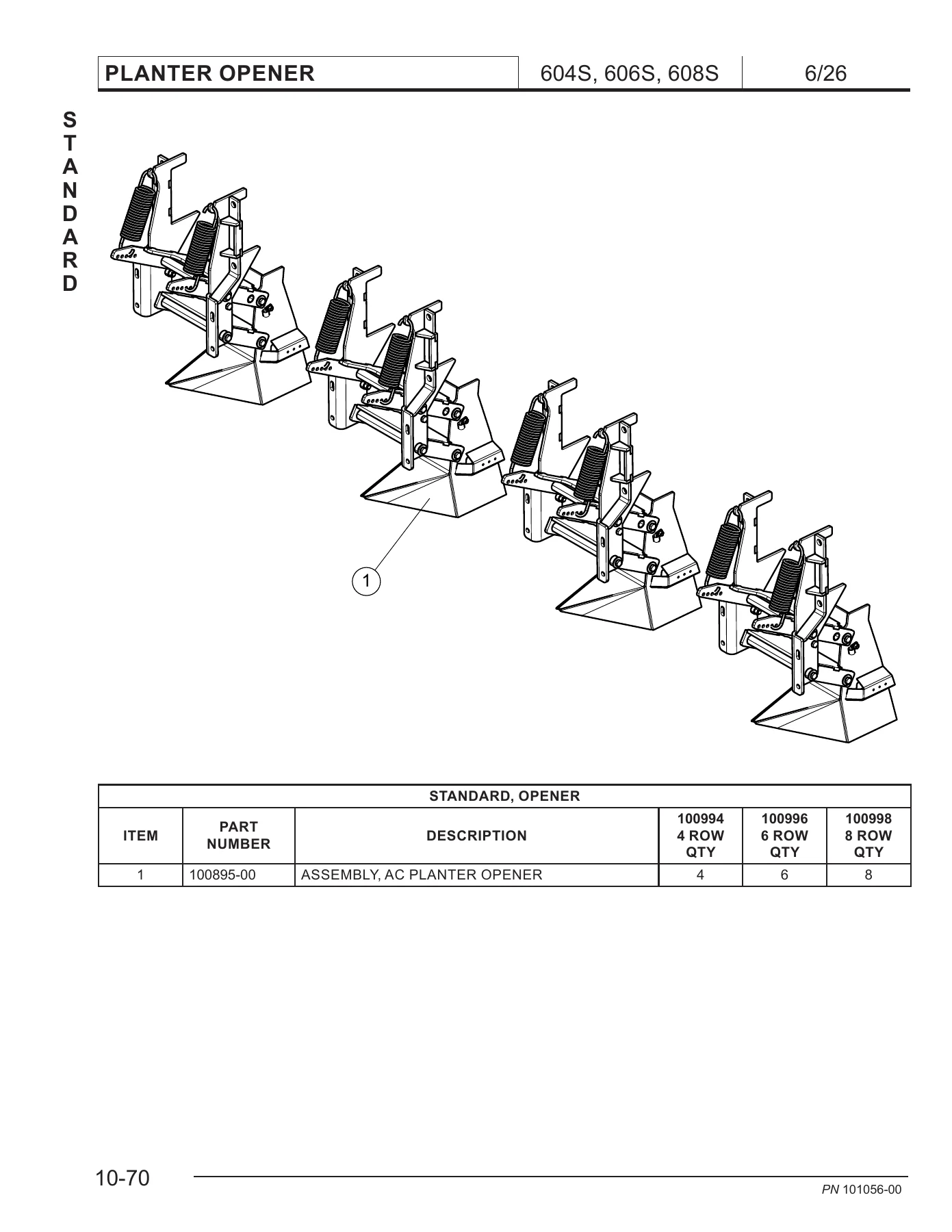

• Planter Opener (standard and with fertilizer)
• Electrical Box
• 8 Row Tank Filler 34″

The Options section covers rear steer systems (1-row, 2-row, and 4-row, both mechanical and hydraulic), ball joint rear steer, 10-bolt rear steer, caster wheel options, gage wheel attachments, centralized grease kits, planter control and touch display, rear tool bars, dry fertilizer rear tool bar, rear ripper attach, DAC turkey roost, seed monitor, 20″ covering discs, coil shanks (1″ and 1.25″), DAC feed chains, JD cab mount, Aircup modifications, hopper extension, GPS mount extension, rear frame height, liquid tank supports, narrow fertilizer mount, AC hydraulic bank cover, vacuum gauges, section control, tank baffles, PTO drivelines, flow meters, hydraulic test kit, tire options, and decals.

Taken together, this parts catalog gives you the complete bill of materials for the 600 S-Series Air Cup Planter platform. The exploded illustrations make it possible to see exactly how each assembly goes together — not just what the part is called, but where it sits in the stack, what fasteners hold it, and how many of each you need. The parts list tables give you the exact Lockwood part number to order, which eliminates the guesswork and the back-and-forth with a dealer trying to identify a component from a description alone.

What This Parts Manual Covers in Practice

Because the 600 S-Series Air Cup Planter is a large, modular machine, this manual’s value is in the breakdown. Every major system is split into its constituent assemblies. For the seed delivery system alone, you get the Air Cup bowl, seed meter wheel, picker arm assemblies (RH and LH tube and cup), the rotating valve, scrapers, and the full hopper assembly with its weldments and mounting hardware. For the closing system, the dual closing disc assembly is broken down to springs, bushings, hubs, scrapers, and adjustment plates. For the dry fertilizer option, the manual covers the fertilizer hopper extension, slide, meter box, opener (both standard and center), and the drive components including sprockets, chain, and shields.

The options section is unusually deep. If your planter is equipped with a rear steer system — whether 1-row mechanical, 2-row hydraulic, or 4-row ball joint — you will find the cylinder, hose, spindle, tie rod, hub, and bearing part numbers for that specific configuration. The same is true for caster options, gage wheel setups, hydraulic and mechanical fan drives, sprayer kits, and section control.

Why This Manual Matters

Ordering the wrong part on a planter is expensive and slow. The 600 S-Series uses different part numbers across row configurations (4, 6, and 8 row), frame widths (34″, 36″, 38″), and option packages (dry fertilizer, rear steer, caster, etc.). This 600 S-Series Air Cup Planter parts manual keeps those distinctions visible. The item-number-to-part-number mapping means you can pull a part off the machine, match it to the illustration, and order with confidence. The quantity columns tell you how many you need for a full replacement — useful when a fastener or bushing is used across multiple assemblies.

Get the Right Part the First Time

IMAGES PREVIEW

This Lockwood 600 S-Series Air Cup Planter Parts Manual gives you the complete factory parts breakdown for the 604S, 606S, and 608S Dual Air Cup planters. Whether you are doing routine maintenance, a full rebuild of the seed meter, or adding an option like rear steer or a sprayer system, the exploded views and parts lists in this PDF let you identify exactly what you need and order it correctly. The manual is delivered as an instant PDF download — no shipping, no waiting, and it works on any device. Print the pages you need for the shop, or keep the whole catalog on your phone or tablet for quick reference in the field. Stop guessing at part numbers. Get the manual that gives you the answer.
