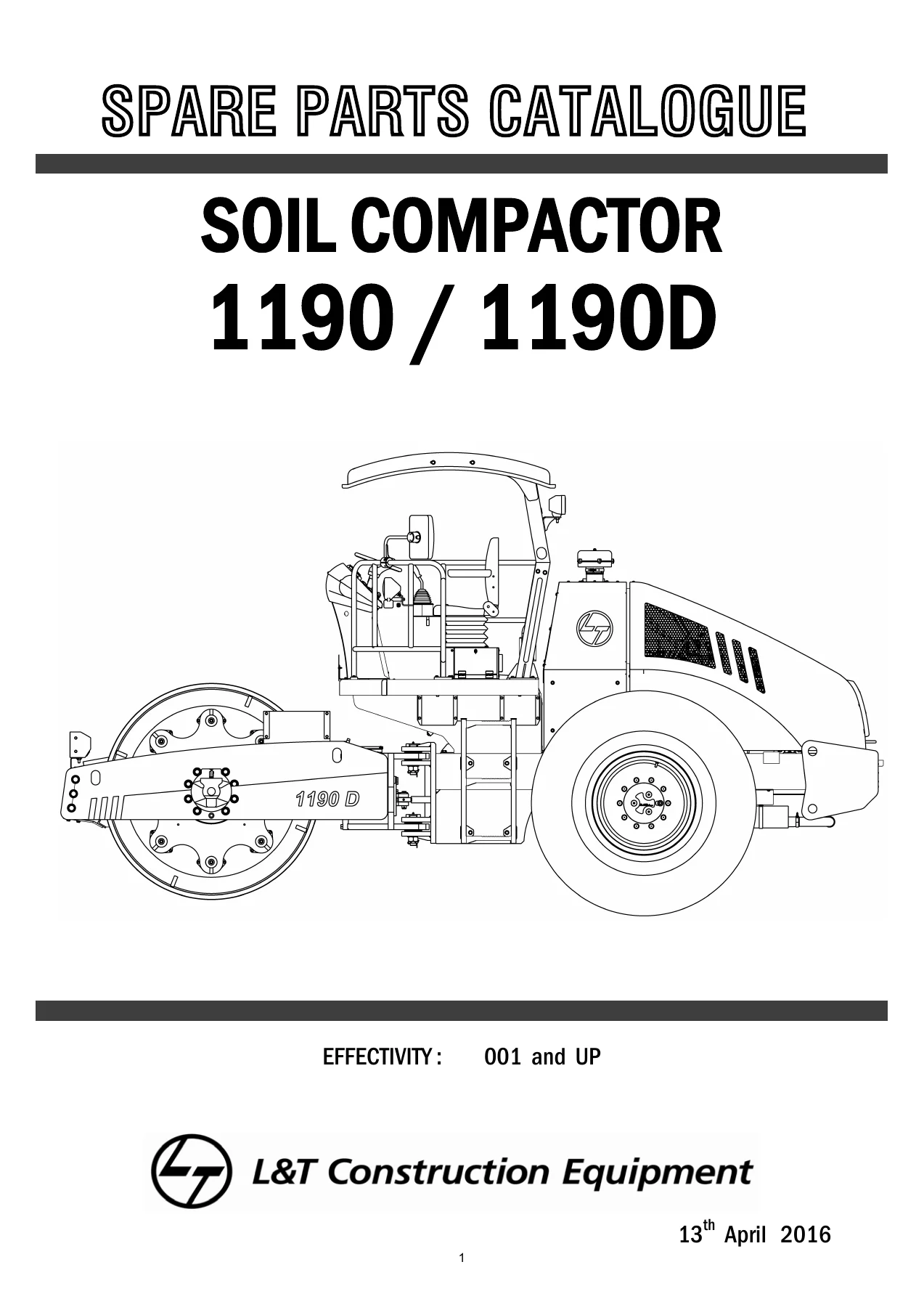

L&T Soil Compactor 1190 / 1190D Spare Parts Catalogue

This L&T Soil Compactor 1190 / 1190D Spare Parts Catalogue is the complete parts reference for maintaining and repairing the L&T 1190 and 1190D soil compactors. Published by L&T Construction Equipment on 13th April 2016, this PDF catalogue covers machine serial numbers 001 and up, providing exploded illustrations, part numbers, descriptions, and quantities for every major assembly on the machine.

File Details

• Manual Type: Spare Parts Catalogue
• Brand: L&T (Larsen & Toubro) Construction Equipment
• Model: Soil Compactor 1190 / 1190D
• Language: English
• Page Count: 110
• File Format: PDF
• Effectivity: 001 and UP
• Date: 13th April 2016

Chapters Covered

• 100 Engine & Drive Line Elements
• 200 Hydraulic Circuits
• 300 Hydraulic Components
• 400 Electrical System
• 500 Structures
• 600 Cabin
• 700 Labels
• 800 Service Kit
• 900 Tool Kit
• 1000 Numerical Index

100 Engine & Drive Line Elements

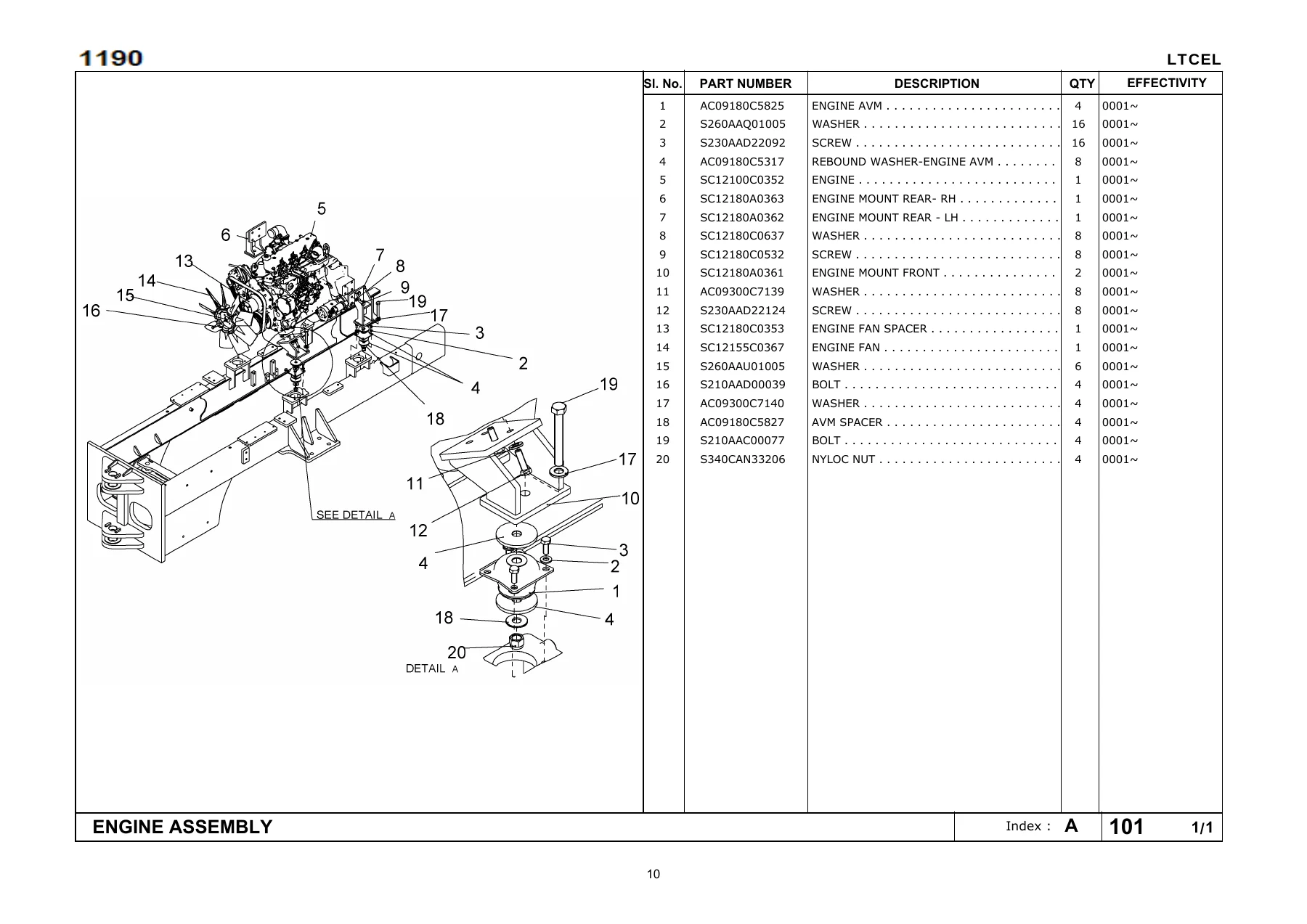

This chapter covers the engine assembly and its mounting system, air intake, exhaust, cooler assembly, cooler package, and fuel system. The engine assembly section provides exploded views of the engine mounts, vibration isolators (AVM), fan, fan spacer, and all associated hardware with part numbers and quantities. The fuel system section details the fuel filter mount, fuel hoses, strainer, lift pump connections, banjo bolts, and the fuel-mud strainer assembly.

200 Hydraulic Circuits

The hydraulic circuits chapter is one of the most comprehensive in this catalogue, covering the complete hydraulic schematics for both the 1190 and 1190D models. Separate circuit diagrams are provided for the travel circuit, leak circuit, brake circuit, speed selector circuit (1190D), steering circuit, and vibration circuit. Each circuit includes hose part numbers, adapters, O-rings, retaining rings, and connection details. The clamp assembly sections (209 and 210) provide the hydraulic hose routing clamps and mounting hardware.

300 Hydraulic Components

This section breaks down the individual hydraulic components with detailed exploded views and part numbers. Covered components include the axle motor, steering unit, steering cylinder, tandem pump, vibration motor, control valve (brake and speed selector), travel bearing housing, and travel motor (1190D). Each component is presented with its internal parts including rotary groups, housings, port plates, seals, bearings, locking screws, and adjustment shims. The travel bearing housing and travel motor sections include complete assembly lists with seal kits and individual part numbers.

400 Electrical System

The electrical system chapter covers front electrical assembly, cabin electrical assembly, rear electrical assembly, battery and disconnector assembly, dashboard assembly, and rear lamp assembly. Both standard 1190 and 1190D variants are addressed where applicable. The dashboard section provides a detailed view of gauges, warning indicators, rocker switches, ignition key switch, emergency stop, horn button, and hour meter. Wiring harness part numbers and mounting clips are included for the front, cabin, and rear harnesses.

500 Structures

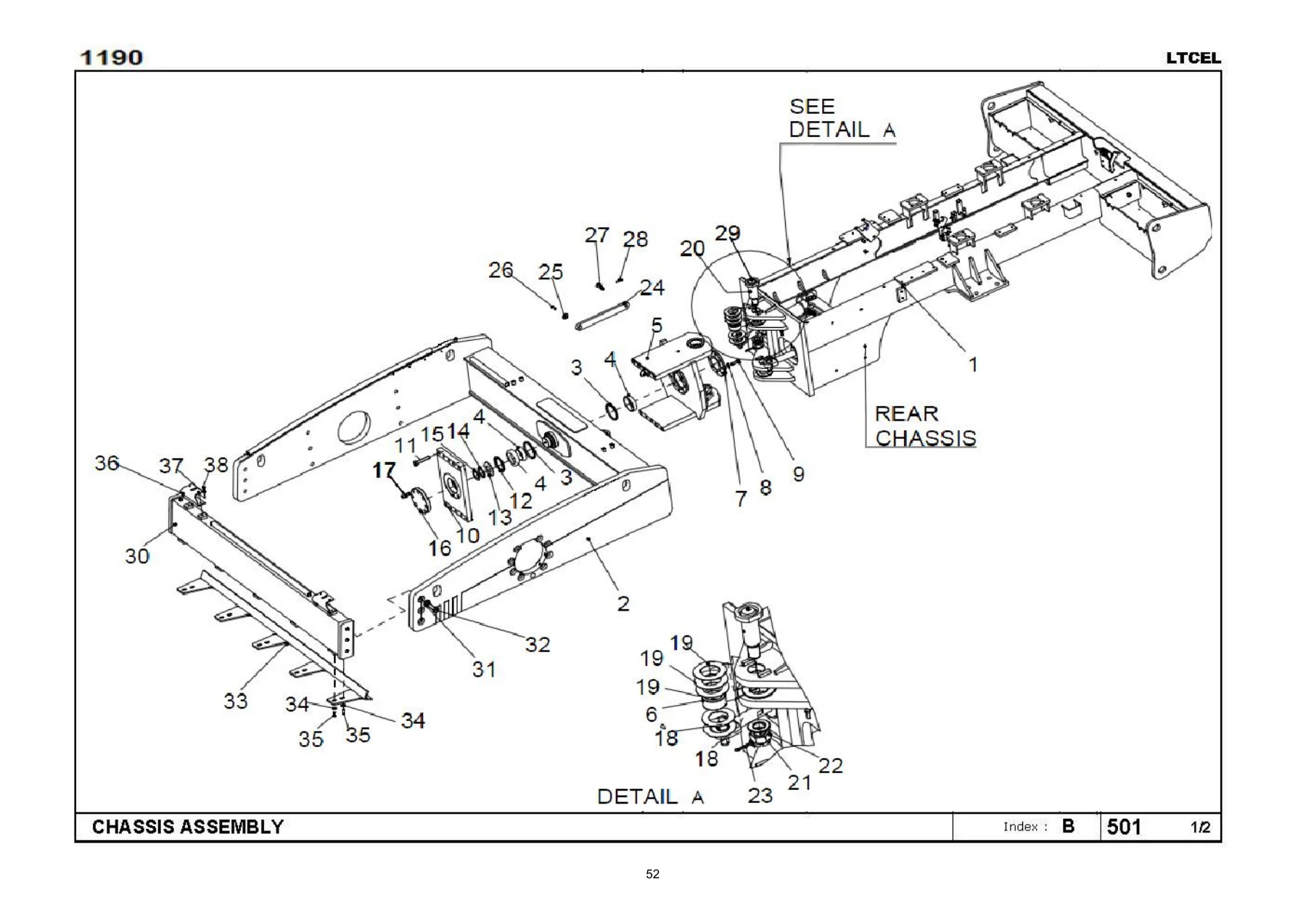

Structures covers the chassis assembly, axle and tyre assembly, fuel tank, hood assembly, and roller assembly. The chassis assembly includes the rear chassis, roller frame, articulation joint, oscillation bearings, steering lock, and scraper assembly. The fuel tank section details the tank fabrication, filler pipe, fuel sensor, suction pipe, manhole cover, and fuel strainer. The hood assembly covers the radiator cover, hood structure, gas spring pillars, hood lock actuator, and heat shield plates. The roller assembly provides the complete breakdown of the vibratory roller, including the drum, isolators, exciter shaft, floating mass, bearing housings, and vibration motor mounting.

600 Cabin

The cabin chapter covers the floor plate assembly, operator seat assembly, MDC lever, throttle lever, and panel box assembly. The operator seat section includes the seat, steering column, steering wheel, dashboard components, and mounting hardware. The MDC lever and throttle lever sections provide cable assemblies, mounting brackets, and control connections for both standard and 1190D variants.

700 Labels

This chapter provides the complete set of machine labels and decals for both 1190 and 1190D models. Labels include machine pin plate, reflective tapes, reflectors, maintenance chart, battery box, tools box, ignition key, mobile charger, tyre pressure, fuel fill and drain, hydraulic oil fill and drain, grease lubrication points, tie-down points, lift points, safety measures, operator instructions, and model designation decals.

800 Service Kit

The service kit chapter covers the hydraulic filter, fuel and mud filter, lube oil filter, and air filter. Each filter assembly is broken down into its component parts including filter elements, O-rings, seals, and indicators, with part numbers for ordering replacement service items.

900 Tool Kit

The tool kit section lists the onboard tool kit supplied with the machine, including double-ended open jaw spanners, Allen keys, box spanners, screwdrivers, combination pliers, adjustable wrench, T-rod, and extension rod.

Order the Right Parts Every Time

Whether you are rebuilding an axle motor, replacing a failed hydraulic hose, sourcing a new dashboard switch, or ordering routine filter service kits, having the correct L&T 1190 / 1190D parts catalogue on hand eliminates guesswork. Every assembly in this manual is exploded and identified with reference numbers that correspond directly to the part numbers listed against your machine’s serial number, so you can order with confidence and avoid costly delays from incorrect components.
