DESCRIPTION:

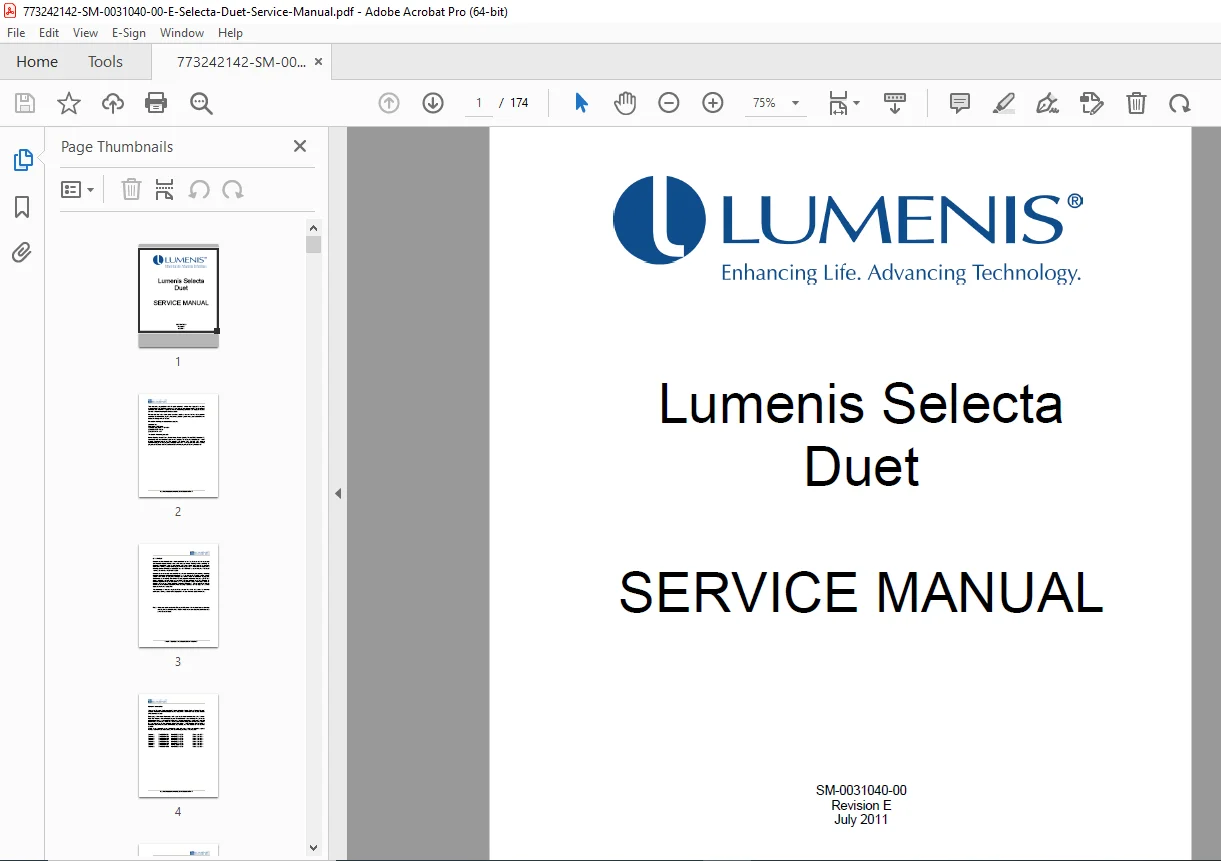

Official Lumenis Selecta Duet Service Manual – Complete Technical Documentation for Ophthalmic Laser Systems

This is the official Lumenis Selecta Duet Service Manual PDF (Document SM-0031040-00, Revision E, July 2011) published by Lumenis, Inc., providing comprehensive technical service documentation for the Selecta Duet dual-wavelength ophthalmic laser system. This essential service manual is designed for Lumenis Customer Engineers, authorized service representatives, and Lumenis-trained certified technicians servicing this advanced Class IIIb/IV medical laser platform used in ophthalmology practices worldwide.

📋 COMPLETE MANUAL CONTENTS – DETAILED SECTION BREAKDOWN:

SECTION 1: GENERAL INFORMATION (Pages 1-1 to 1-8)

• Use of This Manual: Guidelines for authorized service personnel only
• Conventions Used in Manual: Logic signal notation and schematic reading standards
• Serial Number Format: System identification and tracking
• Certification of Compliance and Approvals: CE mark certification for European Community
• Service Information and FDA Compliance: Complete regulatory compliance documentation
• Safety Precautions (Comprehensive):
  • System Safety Measures (10 critical safety features)
  • Optical Safety protocols for laser radiation
  • Eye Protection requirements for 532nm and 1064nm wavelengths
  • Fire Hazards prevention and flammable material warnings
  • Treatment Room safety requirements and remote interlock
  • Electrical and Mechanical Safety (high voltage warnings, grounding requirements)
• System Specifications:
  • SLT Mode (532nm): Frequency-doubled Q-switched Nd:YAG, 0.3-2mJ energy, 3ns pulse duration, 400µm spot size
  • PD/YAG Mode (1064nm): Q-switched Nd:YAG, 0.3-10mJ energy, single/double/triple pulse modes, <8µm spot size
  • Posterior offset adjustment: 0 to +350µm
  • Maximum repetition rate: 3.0 Hz
  • CDRH Classification: Class IIIb/IV

SECTION 2: INSTALLATION INFORMATION (Pages 2-1 to 2-10)

• Introduction: Installation prerequisites and qualified personnel requirements
• Site Preparation and Inspection:
  • Environmental requirements (temperature, humidity)
  • Electrical power specifications and grounding
  • Space requirements for slit lamp and table assembly
• Unpacking the System: Step-by-step unpacking procedures with inspection checklists
• Unpacking the Trio: Additional components for Trio configuration
• Lumenis Selecta Duet/Trio Installation and Verification:
  • Table assembly installation procedures
  • Slit lamp mounting and connection
  • Remote control setup and configuration
  • System interconnection diagrams
  • Power-up sequence and initial verification
  • Remote interlock switch installation procedure
• Content of Packing Slip: Complete inventory checklist of included components
• Operation, Safety Check and Periodic Maintenance:
  • Initial operational verification procedures
  • Safety interlock testing protocols
  • Scheduled maintenance intervals and requirements
  • Preventive maintenance checklists

SECTION 3: ALIGNMENT, ADJUSTMENT AND CALIBRATION (Pages 3-1 to 3-26)

• Overview: Critical alignment procedures affecting laser performance
• Procedure List: Complete index of alignment and calibration protocols
• TEST EQUIPMENT REQUIRED:
  • Coherent FieldMaster or Ophir LaserStar power meters
  • LM-2 or LM-30A detector heads with 1000:1 attenuator
  • Calibration targets and optical alignment tools
  • Required test fixtures and specialized equipment
• Dipswitch Mode Operation: Factory mode access and configuration
• Software Revision Verification: Firmware version checking procedures
• Remote Navigation for Calibration and Diagnostic Mode: Menu navigation and access codes
• Power Meter Setup: Proper configuration and zeroing procedures
• System Calibration: Complete system calibration protocol with acceptance criteria
• Table Calibration: Motorized table height calibration and verification
• Restoring Calibration Data: Backup and restore procedures
• No Slit Walk and Crosshair Alignment: Optical axis alignment for both wavelengths
• Final Objective Focusing: Parfocal adjustment and focus verification
• Setting Beam Expander Offset: Posterior capsulotomy offset adjustment (0-350µm)
• PD Aiming Beam Focus: 1064nm aiming diode alignment and focus
• SLT Alignment: Complete 532nm optical path alignment including:
  • KTP crystal positioning and temperature optimization
  • Primary light feedback (LFB) calibration
  • SLT carriage positioning and shutter timing
  • Energy monitor calibration and verification
• PD (YAG) Alignment: Complete 1064nm optical path alignment including:
  • Q-switch timing optimization
  • Fold mirror alignment
  • Energy delivery verification
  • Single, double, triple pulse mode calibration
• Attenuator Wave Plate Adjustment: Power attenuation calibration and linearity check
• Trio S-Link and Dual Prism Alignment: Optional scanning laser ophthalmoscope integration

SECTION 4: THEORY OF OPERATION (Pages 4-1 to 4-25)

• Introduction: System architecture overview
• Operation Overview: Block diagram and signal flow
• Functional Overview: Major subsystem interactions
• Slit Lamp Components:
  • ZTC (Tower Control) Board: Main laser control electronics, flashlamp drivers, Q-switch timing
  • KTP Heater Board: Temperature control for frequency doubling crystal (532nm generation)
  • Laser Cavity: Nd:YAG rod, flashlamp assembly, resonator optics, Q-switch operation
  • Primary Light Feedback (LFB): Real-time energy monitoring and closed-loop control
  • Attenuator: Variable power control via motorized wave plate rotation
  • PD Aiming Diode: Red laser diode for 1064nm targeting
  • SLT Carriage: Mechanical assembly for 532nm beam delivery and shutter control
• Table Assembly, Control Tray and Remote:
  • ZCS Board: Central control system, user interface processor, safety interlocks
  • High Voltage Power Supply: Flashlamp charging circuit (up to 1200V), fault detection
  • Table Height Controller Board: Motorized elevation control with position feedback
  • Footswitch: Dual-pedal laser firing control with safety interlocks
  • Remote Control: Backlit LCD display, parameter selection, mode switching

SECTION 5: TROUBLESHOOTING (Pages 5-1 to 5-50)

• Overview: Systematic diagnostic approach and fault isolation methodology
• Error Codes and Fault Isolation: Complete error code reference with descriptions:
  • System initialization errors
  • Calibration failure codes
  • Energy delivery errors
  • Hardware fault indicators
  • Safety interlock violations
  • Communication errors between boards
• Test Point Arrangement: Voltage and signal measurement locations on all circuit boards:
  • ZCS Board: 28 labeled test points with expected values
  • ZTC Board: Power supply rails, control signals, sensor inputs
  • SLT/1064 Attenuator Board: Stepper motor control, position feedback
  • SLT Shutter Interface Board: Shutter timing and status signals
  • Primary Energy Monitor Board: Photodiode amplifier, peak detection
  • PD Energy Monitor: 1064nm energy measurement circuit
  • SLT Energy Monitor: 532nm energy measurement circuit
  • High Voltage Power Supply: Charge voltage monitoring, fault detection
• Troubleshooting Procedures (Detailed Step-by-Step):
  • System Test: Power-on self-test interpretation and diagnostic mode access
  • Aiming Beam Failure: Red diode testing, driver circuit verification
  • Table Failure: Motor control diagnostics, position sensor testing
  • PD Secondary Gains Check: Energy calibration verification for YAG mode
  • SLT Secondary Gains Check: Energy calibration verification for green mode
  • ZTC Invalid: Tower control board communication and initialization failures
  • Meter Error: Power meter calibration and sensor diagnostics
  • Energy Match Error: Primary vs. secondary energy monitor correlation
  • PC Mode: Computer interface troubleshooting and configuration
  • Threshold Failure: Minimum energy detection and safety limit errors
• Removing and Replacing Parts (Complete Procedures with Photos/Diagrams):
  • ZCS Board: Table control system removal and installation
  • 24V Power Supply: Low voltage supply replacement
  • Table Height Controller Board: Elevation control electronics
  • Table Legs: Mechanical assembly and motorized actuator replacement
  • ZTC Board: Main laser controller removal from slit lamp tower
  • SLT Carriage: Complete green laser optical assembly
  • SLT Shutter Assembly: Mechanical shutter replacement and timing adjustment
  • SLT Aiming Diode: Green aiming beam laser diode
  • PD Aiming Diode: Red aiming beam laser diode
  • YAG/Fold Mirror: 1064nm beam steering optics
  • Objective Lens: Final focusing optics replacement
  • Beam Expander: Posterior offset adjustment assembly
  • Attenuator: Wave plate and motor assembly
  • Primary LFB: Light feedback sensor and amplifier
  • Laser Cavity: Complete Nd:YAG laser head assembly
  • Laser Link Sensor: Slit lamp attachment detection
• 28 Pin Connector Diagram: Complete pinout for main harness
• 18 Pin Connector Diagram: Control cable connector details

SECTION 6: SELECTED PART NUMBERS (Pages 6-1 to 6-25)

• Service Tools: Specialized tools, test equipment, alignment fixtures (with part numbers)
• Operator Replaceable Components: User-serviceable parts list
• System Circuit Boards: All PCB assemblies with part numbers and revision levels

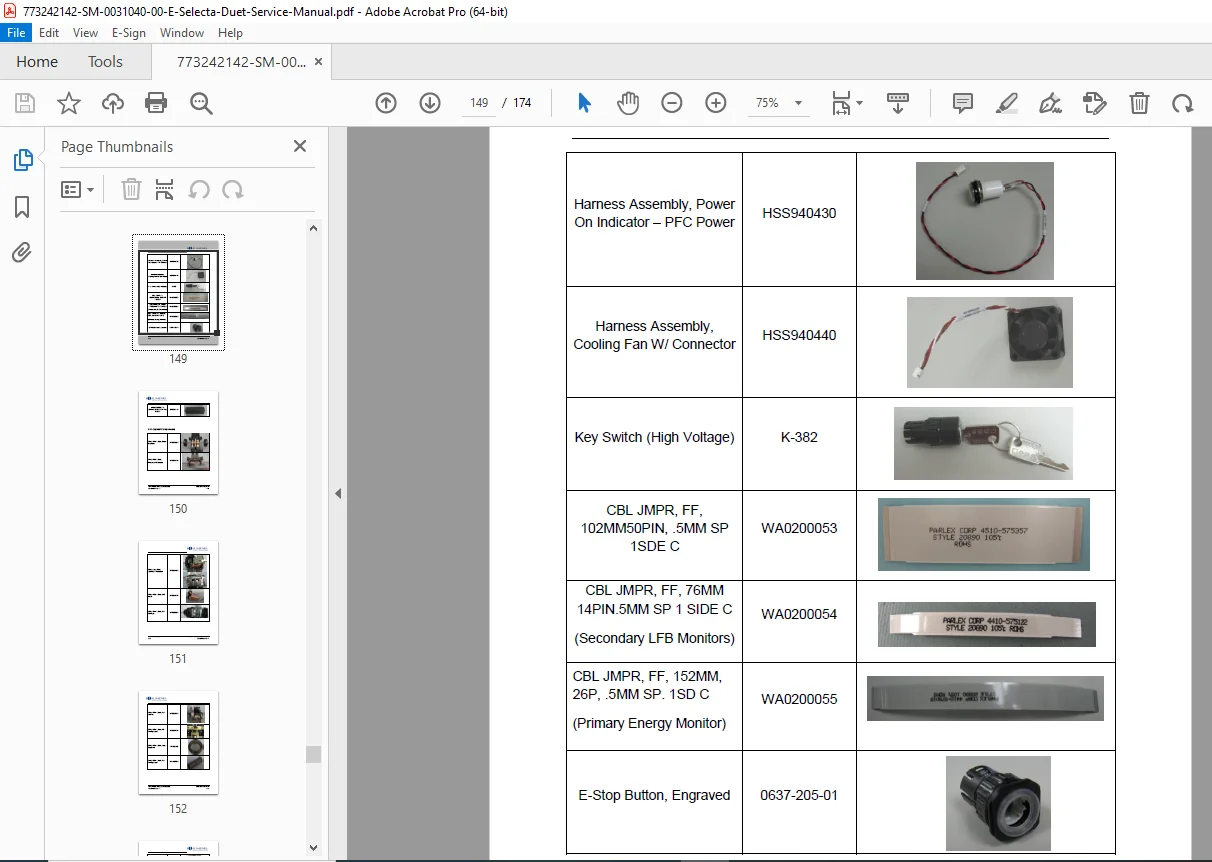

• Electrical Harnesses: Complete cable assembly part numbers and connection diagrams
• Optical Components: Lenses, mirrors, filters, beam splitters, photodiodes
• Covers & Skins and Table Parts: Cosmetic panels and structural components
• Miscellaneous: Fasteners, connectors, mechanical hardware
• Lamp Parts: Flashlamp assemblies, reflectors, mounting hardware
• Lamp Accessories: Cooling fans, triggers, igniters

SECTION 7: FIELD SERVICE BULLETINS AND TECHNICAL NOTES (Pages 7-1+)

• Introduction: How to obtain and implement FSBs
• Index of FSB and TN: Chronological listing of all service bulletins and technical notes
• Updates for known issues, design improvements, and retrofit procedures

SECTION 8: DRAWINGS AND SCHEMATICS (Extensive Technical Diagrams)

• Aiming Beam Diode/Capacitor: Circuit schematic (1 page)
• 1064 Energy Monitor: Complete electronics schematics (5 pages)
• Primary Energy Monitor: Light feedback circuit diagrams (5 pages)
• Attenuator: Stepper motor control schematics (4 pages)
• SLT Energy Monitor: 532nm measurement electronics (5 pages)
• SLT Shutter Interface: Shutter driver circuits (3 pages)
• Control System (ZCS): Main control board schematics (20 pages)
• Tower Control (ZTC): Laser head controller schematics (10 pages)
• HV Power Supply: Flashlamp charging circuit (5 pages)
• KTP Heater Load: Crystal temperature controller (1 page)
• Remote Display Controller: User interface electronics (9 pages)
• Illumination Tower Pivot Sense: Position detection (1 page)
• Laser Link Sense: Attachment interlock (1 page)
• Lamp Trigger: Flashlamp ignition circuit (1 page)
• PC Interface: Computer communication port (1 page)
• Room Interlock: External safety switch circuit (1 page)
• ZCS Interconnect: System wiring diagram (1 page)
• Optical Schematic Selecta Ophthalmic Laser Family: Complete optical path diagrams (2 pages)
• Selecta Harness Block Diagram: Cable routing and connections (2 pages)
• Selecta Block Diagram: System architecture overview (2 pages)

📄 FILE DETAILS:

Manual Name: Lumenis Selecta Duet Service Manual
Document Number: SM-0031040-00
Revision: Revision E
Publication Date: July 2011
Models Covered: Lumenis Selecta Duet (532nm SLT + 1064nm YAG dual-wavelength configuration), Lumenis Selecta Trio (with scanning laser ophthalmoscope)
Laser Type: Q-switched Nd:YAG with frequency-doubled 532nm green laser
Applications: Selective Laser Trabeculoplasty (SLT) for glaucoma treatment, YAG laser photodisruption for posterior capsulotomy and iridotomy
Manual Quality: High-quality professional PDF with detailed circuit schematics, optical diagrams, clear technical illustrations
Total Pages: 174 pages
Language: English
Publisher: Lumenis, Inc., Salt Lake City, Utah, USA
File Size: Approximately 8.6 MB
Authorization: Intended for Lumenis Customer Engineers, authorized service representatives, and Lumenis-certified technicians only

🔧 WHO NEEDS THIS MANUAL:

This Lumenis Selecta Duet service manual is essential for:

• Biomedical equipment technicians (BMET) specializing in ophthalmic devices
• Certified laser service engineers and technicians
• Hospital and clinic biomedical engineering departments
• Ophthalmic equipment maintenance contractors
• Medical device repair facilities authorized for laser systems
• Lumenis-trained service representatives
• Technical training instructors for medical laser systems
• Ophthalmology practice managers overseeing equipment maintenance
• Anyone responsible for maintaining Lumenis ophthalmic laser platforms

⚡ KEY TECHNICAL INFORMATION INCLUDED:

✓ Complete optical alignment procedures for dual-wavelength laser system
✓ Calibration protocols for both SLT (532nm) and YAG (1064nm) modes
✓ Circuit schematics for all electronic subsystems (80+ pages)
✓ Error code diagnostics with fault isolation procedures
✓ KTP crystal temperature optimization for frequency doubling
✓ Q-switch timing adjustment for nanosecond pulse generation
✓ Energy monitoring and closed-loop feedback calibration
✓ High voltage flashlamp power supply troubleshooting (1200V)
✓ Beam expander posterior offset adjustment (0-350µm)
✓ Attenuator wave plate calibration for power control
✓ Complete harness pinout diagrams and connector specifications
✓ Component-level replacement procedures with exploded views
✓ Safety interlock testing and verification protocols
✓ Power meter setup with Coherent/Ophir equipment

💎 SPECIAL FEATURES:

Dual-Wavelength Technology: Comprehensive coverage of both 532nm frequency-doubled green laser (SLT mode) and 1064nm fundamental Nd:YAG infrared laser (photodisruption mode) in a single integrated platform.

FDA Compliance Documentation: Complete regulatory compliance information including Class IIIb/IV laser safety requirements, protective housing specifications, and radiation exposure warnings.

Extensive Schematics: Over 80 pages of detailed circuit diagrams covering all electronic subsystems from power supplies to energy monitors to control boards.

Step-by-Step Troubleshooting: Systematic diagnostic procedures with voltage measurements, signal flow analysis, and component-level fault isolation.

Safety Emphasis: Critical laser safety warnings throughout the manual including optical radiation hazards, high voltage electrical safety, and proper eye protection requirements for invisible 1064nm wavelength.

Field Service Bulletins: Section dedicated to updates and retrofits with chronological index of all technical notes and service improvements.

Optical Path Diagrams: Complete 2-page optical schematic showing beam paths, mirrors, lenses, and delivery optics for both wavelengths.

⚠️ IMPORTANT NOTES:

Certification Required: This manual is intended solely for use by Lumenis-trained and certified service personnel. Servicing by uncertified persons will void the manufacturer’s warranty.

Class IIIb/IV Laser System: This equipment produces hazardous laser radiation. Service personnel must be trained in laser safety and use appropriate protective eyewear (OD 5+ at 532nm and 1064nm).

High Voltage Warning: System contains high voltage circuits up to 1200V for flashlamp operation. Only qualified personnel should service internal electronics.

Medical Device: Federal law restricts this device to sale by or on order of a physician or licensed practitioner.

⚡ INSTANT DOWNLOAD – ESSENTIAL FOR CERTIFIED LASER SERVICE PERSONNEL! Get immediate access to this comprehensive Lumenis Selecta Duet service manual and ensure proper maintenance, calibration, and repair of this advanced dual-wavelength ophthalmic laser system. Download now and keep your laser equipment operating at peak performance with factory-authorized procedures used by Lumenis Customer Engineers worldwide!
