Description

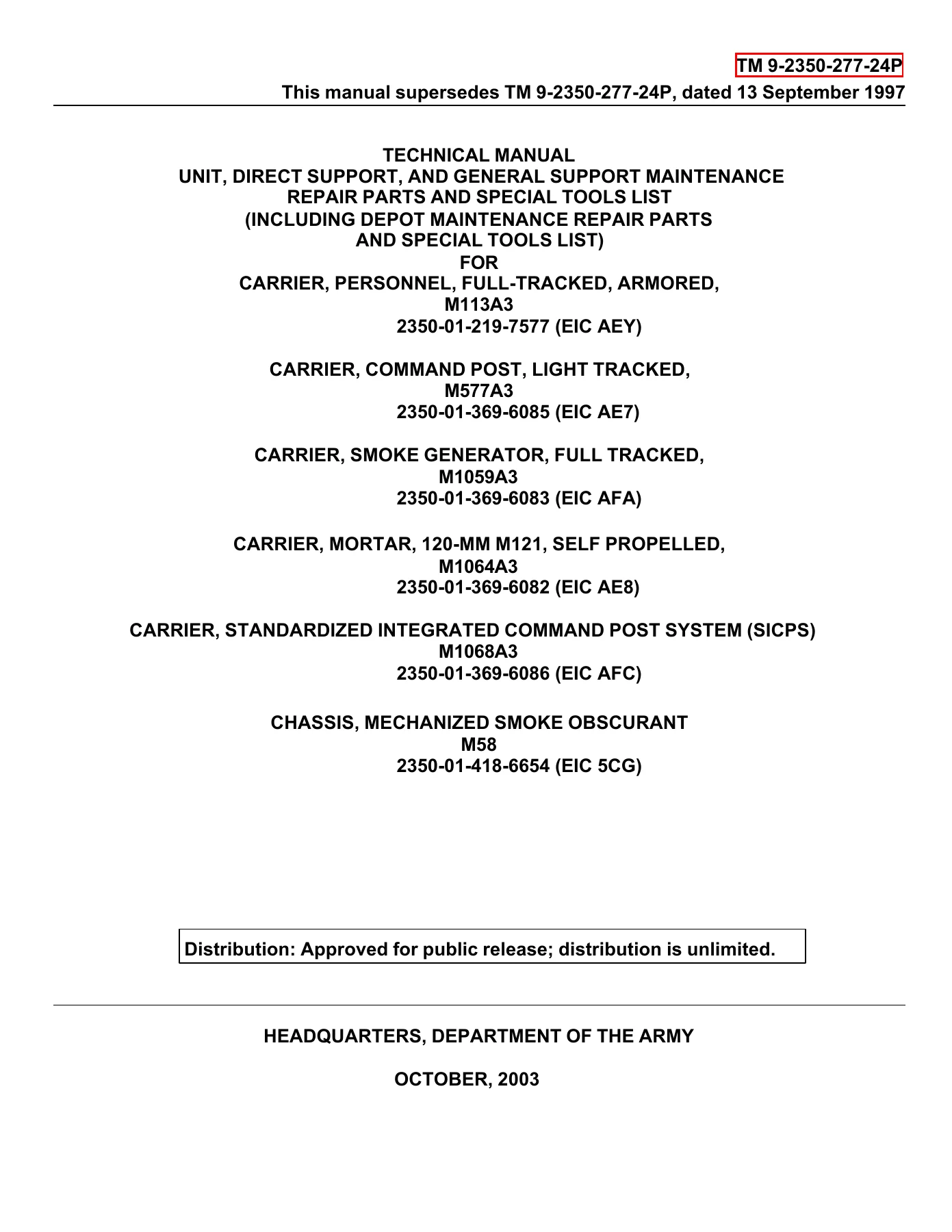

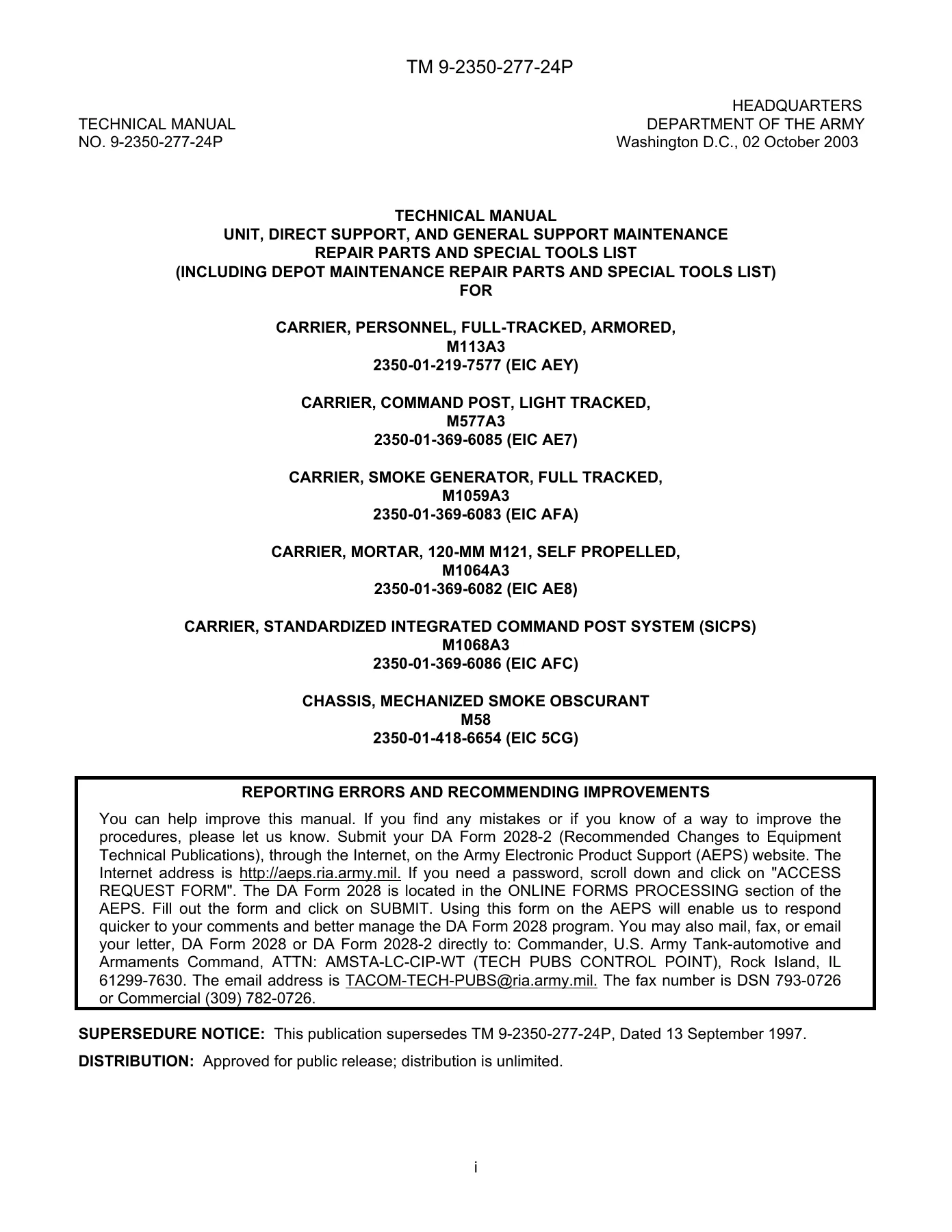

Complete OEM Repair Parts and Special Tools List (RPSTL) for the M113A3 Armored Personnel Carrier Family
This is the official U.S. Army Technical Manual TM 9-2350-277-24P, the comprehensive Repair Parts and Special Tools List for the M113A3 Family of Vehicles (FOV). As the primary source for authorized spares, repair parts, and special tools, this manual is essential for performing Unit, Direct Support, General Support, and Depot-level maintenance on all variants in the M113A3 family.
This RPSTL covers the complete range of M113A3-based vehicles, including the M577A3 Command Post Carrier, the M1059A3 Smoke Generator Carrier, the M1064A3 120mm Mortar Carrier, the M1068A3 Standardized Integrated Command Post System (SICPS), and the M58 Mechanized Smoke Obscurant Chassis. It is the definitive guide for logistics, maintenance planning, and parts requisition for these platforms.
File Details
- Manual Type: Technical Manual – Repair Parts and Special Tools List (RPSTL)
- Document Number: TM 9-2350-277-24P
- Edition/Revision: Change 1, dated 31 December 2003
- Brand/Issuing Authority: U.S. Army – Headquarters, Department of the Army
- Language: English
- Page Count: 449 Figures, 1190+ Pages (combined PDF content)
- File Format: PDF (digital download)
Chapters Covered
This manual is meticulously organized into detailed sections for efficient parts identification and logistics. The primary functional groups covered include:
- Group 01 – Engine: Complete engine assembly, cylinder block, heads, lubrication system, oil cooler, filter, exhaust manifold, and all related components.
- Group 03 – Fuel System: Fuel pumps, lines, tanks, air cleaner, turbocharger, fuel controls, and air box heater systems.
- Group 06 – Electrical System: 200 AMP generator, regulator, starter, master switch panel, instrument panel, wiring harnesses, batteries, and all lighting.
- Group 07 – Transmission: Transmission assembly, oil drain, mounting parts, electrical controller, tow start controls, fill tube, and cooler hoses.
- Group 08 – Transfer, Final Drive, Planetary and Drop Gear Assemblies: Final drive assemblies and filler tubes.
- Group 09 – Propeller and Propeller Shaft: Driveshafts and universal joints.
- Group 12 – Brakes: Complete brake installation, master cylinder, and mechanical brake system.
- Group 13 – Wheels and Tracks: Torsion bars, suspension arms, track tension adjusters, sprockets, track assemblies (T130 & T150), road wheels, and idler wheels.
- Group 14 – Steering: Steering linkage, housing, bearing, and steering lock.
- Group 15 – Towing Attachments: Pintle assembly and towing eyes.
- Group 16 – Springs and Shock Absorbers: Complete suspension damping components.
- Group 18 – Body, Cab, Hood and Hull: Extensive coverage of hull, access covers, engine doors, hatches, cupola, spall liners, ramp assemblies, and armor provisions.
- Group 22 – Body, Chassis or Hull and Accessory Items: Blackout curtains, tent covers, bilge pumps, and personnel heating units.
- Group 24 – Hydraulic and Fluid Systems: Hydraulic pump, lines, ramp actuator, control valve, and hydraulic tank.
- Group 26 – Tools and Test Equipment: Special tools (Sling, Stand assembly), organizational, direct support, and general support tool kits.
- Group 29 – Auxiliary Generator and Engine and Controls: 4.2KW and 5.0KW auxiliary power units and generators.
- Group 33 – Special Purpose Kits: Engine coolant heaters, personnel heater kits, litter kits, armor kits (57K0467, 57K0429), mine armor kit, NBC kits, and smoke generator kits.
- Group 42 – Electrical Equipment: Power control enclosures, patch panels, inverter housings, data boxes, and power distribution systems.
- Group 47 – Gages (Non-Electrical): Speedometer and tachometer installation.
- Group 67 – Precision Instruments: Driver’s Vision Enhancer (DVE) and STE-ICE installations.
- Group 68 – Warning, Scanning, and Signaling Devices: Communication installations.
- Group 76 – Fire Fighting Equipment Components: Fire extinguisher systems for crew and engine compartments.
- Group 91 – Chemical, Biological, and Radiological (CBR) Equipment: NBC installations, shock mounts, and chemical agent auto alarm kits.
- Section III – Special Tools List: Comprehensive listing of all specialized tools required for maintenance.
- Section IV – Cross Reference Indexes: National Stock Number (NSN) and Part Number indexes for rapid parts lookup.
Comprehensive Support for U.S. Army Tracked Vehicles
This M113A3 Technical Manual PDF is not just a parts list; it is a critical logistical tool that covers every nut, bolt, and assembly on the vehicle. It provides detailed SMR (Source, Maintenance, Recoverability) codes for each part, dictating how to requisition, maintain, and dispose of components. For maintenance personnel, this means having the exact information needed to order the correct part for the job, ensuring mission readiness.
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “M113A3 M1064A3 M1068A3 M577A3 M1059A3 M58 Technical Manual RPSTL PDF” are as follows:
