M44A1 M44A2 Series 2-1/2-Ton 6×6 Unit Maintenance Repair Parts & Special Tools Manual TM 9-2320-361-20P

Description

M44A1 M44A2 Series 2-1/2-Ton 6×6 Unit Maintenance Repair Parts & Special Tools Manual TM 9-2320-361-20P

This 1188-page M44A1 M44A2 Series 2-1/2-Ton 6×6 Unit Maintenance Repair Parts & Special Tools Manual TM 9-2320-361-20P is the unit-maintenance Repair Parts and Special Tools List (RPSTL) for the M44A1 and M44A2 series multifuel vehicles. Dated 25 October 1993 and current as of 29 January 1993, it provides an extensive illustrated reference for identifying authorized spares and repair parts, determining vehicle applicability, interpreting supply and maintenance codes, and locating special tools and support equipment.

The coverage extends well beyond a single cargo configuration. The manual identifies the listed cargo, XLWB cargo, dropside cargo, dump, tractor, fuel-servicing tanker, water tanker, pipeline construction, earth-maintenance, boring-machine and pole-setter, shop-van, and repair-van configurations. Individual model applicability is handled throughout the parts listings with Usable On Codes, including distinctions between vehicles with and without winches where applicable.

File Details

• Manual type: Unit Maintenance Repair Parts and Special Tools List (RPSTL)
• Series: M44A1 and M44A2 Series, 2-1/2-ton, 6×6, multifuel
• Document number: Army TM 9-2320-361-20P / Air Force TO 36A12-1B-1114
• Date: 25 October 1993
• Current as of: 29 January 1993
• Language: English
• Pages: 1188
• File format: PDF

Models and Vehicle Configurations Covered

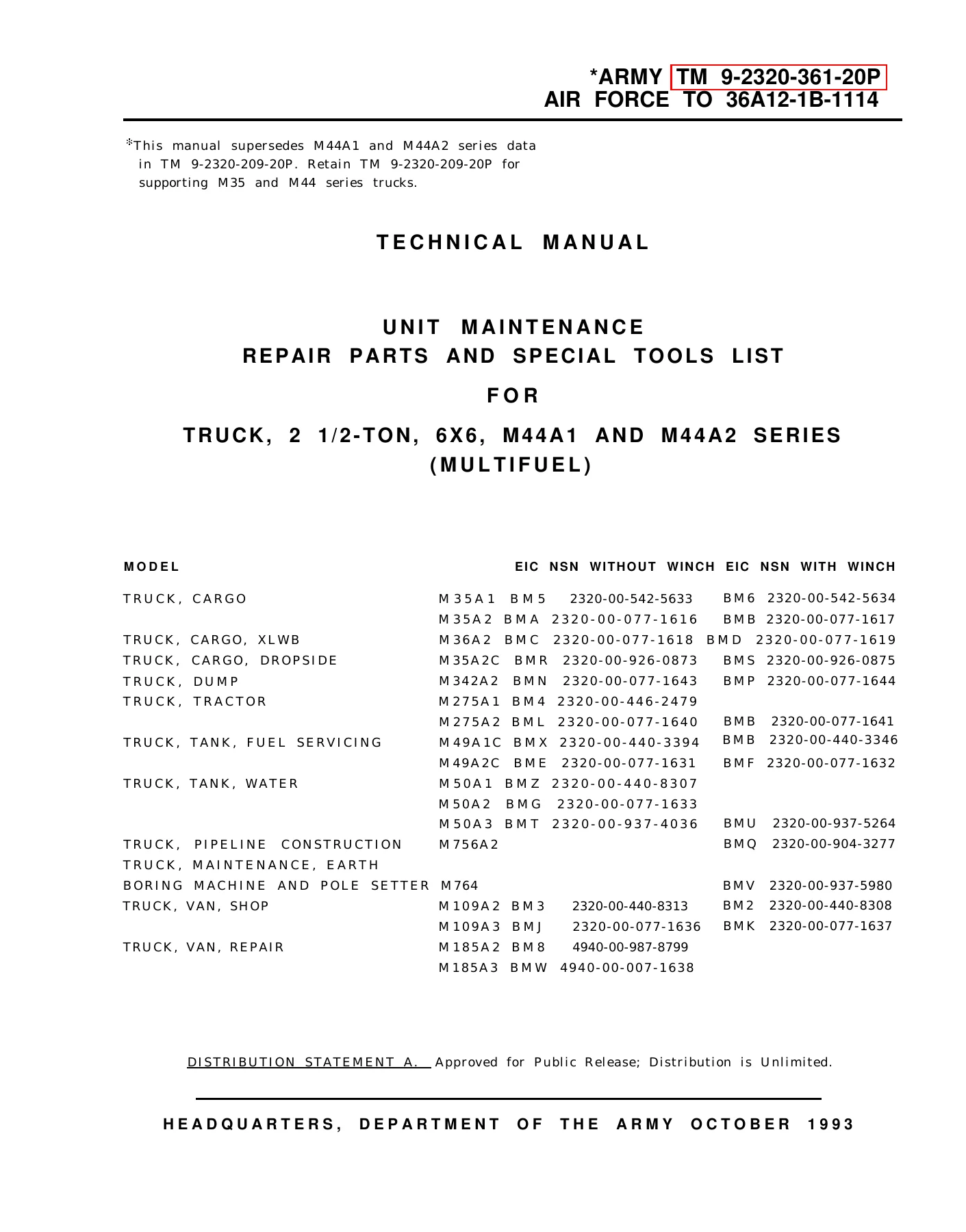

The M44A1 M44A2 parts and special tools manual identifies the following models in its opening model schedule:

• M35A1 cargo truck
• M35A2 cargo truck
• M36A2 cargo, XLWB
• M35A2C cargo, dropside
• M342A2 dump truck
• M275A1 tractor
• M275A2 tractor
• M49A1C fuel-servicing tank truck
• M49A2C fuel-servicing tank truck
• M50A1 water tank truck
• M50A2 water tank truck
• M50A3 water tank truck
• M756A2 pipeline construction truck
• M764 earth-maintenance boring machine and pole setter
• M109A2 shop van
• M109A3 shop van
• M185A2 repair van
• M185A3 repair van

The manual’s Usable On Code system is particularly useful when the same assembly has different parts for individual models or winch configurations. Uncoded items are identified by the manual as applicable to all models, while coded entries allow the user to match an individual listed component to the appropriate vehicle configuration.

Illustrated Parts Identification and Supply Data

TM 9-2320-361-20P is organized around numbered figures and corresponding parts lists. Exploded and assembly illustrations show component locations and numbered callouts, while the accompanying entries provide the item number, five-position Source, Maintenance, and Recoverability code, CAGEC, part number, description and Usable On Code, and quantity. This makes the manual useful when a component can be recognized visually but its stock number or part number is not yet known.

The introduction explains how to work in both directions. If the NSN or part number is unknown, the user can locate the relevant assembly group in the contents, find its figure, identify the item in the illustration, and then use the figure and item-number references. When an NSN or part number is already known, the cross-reference indexes lead back to the applicable illustration and item entry. The manual also explains SMR source, maintenance, and recoverability positions so the coded entries can be interpreted correctly.

Chapters Covered

• Section I – Introduction
  • Scope and organization of the RPSTL
  • Explanation of item, SMR, CAGEC, part-number, description/UOC, and quantity columns
  • Special information, Usable On Codes, fabrication and assembly references
  • How to locate repair parts
• Section II – Repair Parts List

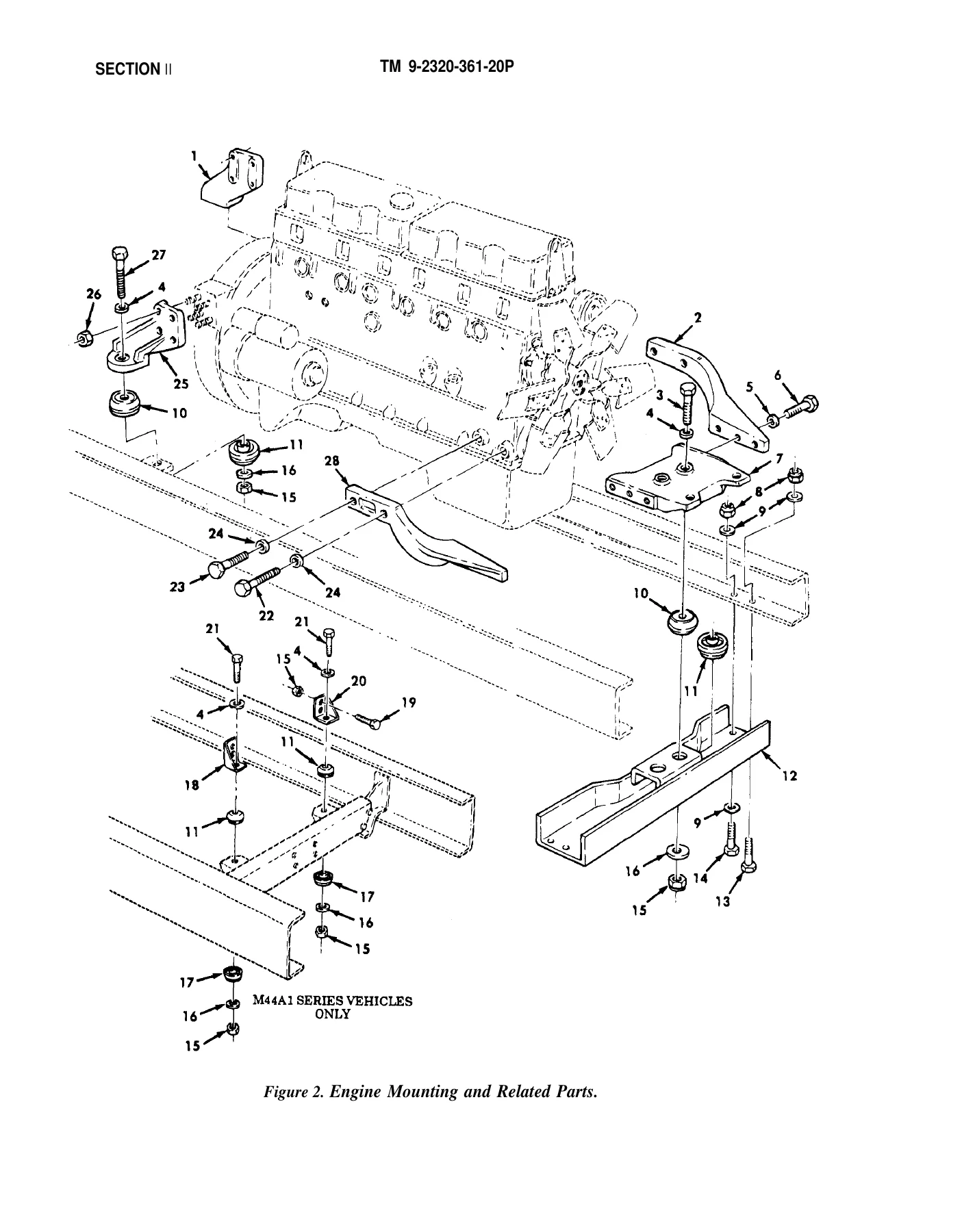

  • Group 01 – Engine: engine mounting, rocker arm covers, oil pan and pump, oil filters, crankcase breather and oil-level components
  • Group 02 – Clutch: clutch release mechanism and pedal
  • Group 03 – Fuel System: fuel injector and lines, fuel pump, air cleaner, turbocharger, fuel tanks and mounting, fuel lines, filters, flame heater, accelerator and engine-stop controls
  • Group 04 – Exhaust System: exhaust pipes, stack exhaust systems, water-tanker exhaust, multifuel stack mounting, bypass valve
  • Group 05 – Cooling System: radiator, water manifold, thermostat and housing, water pump, fan and belt assembly

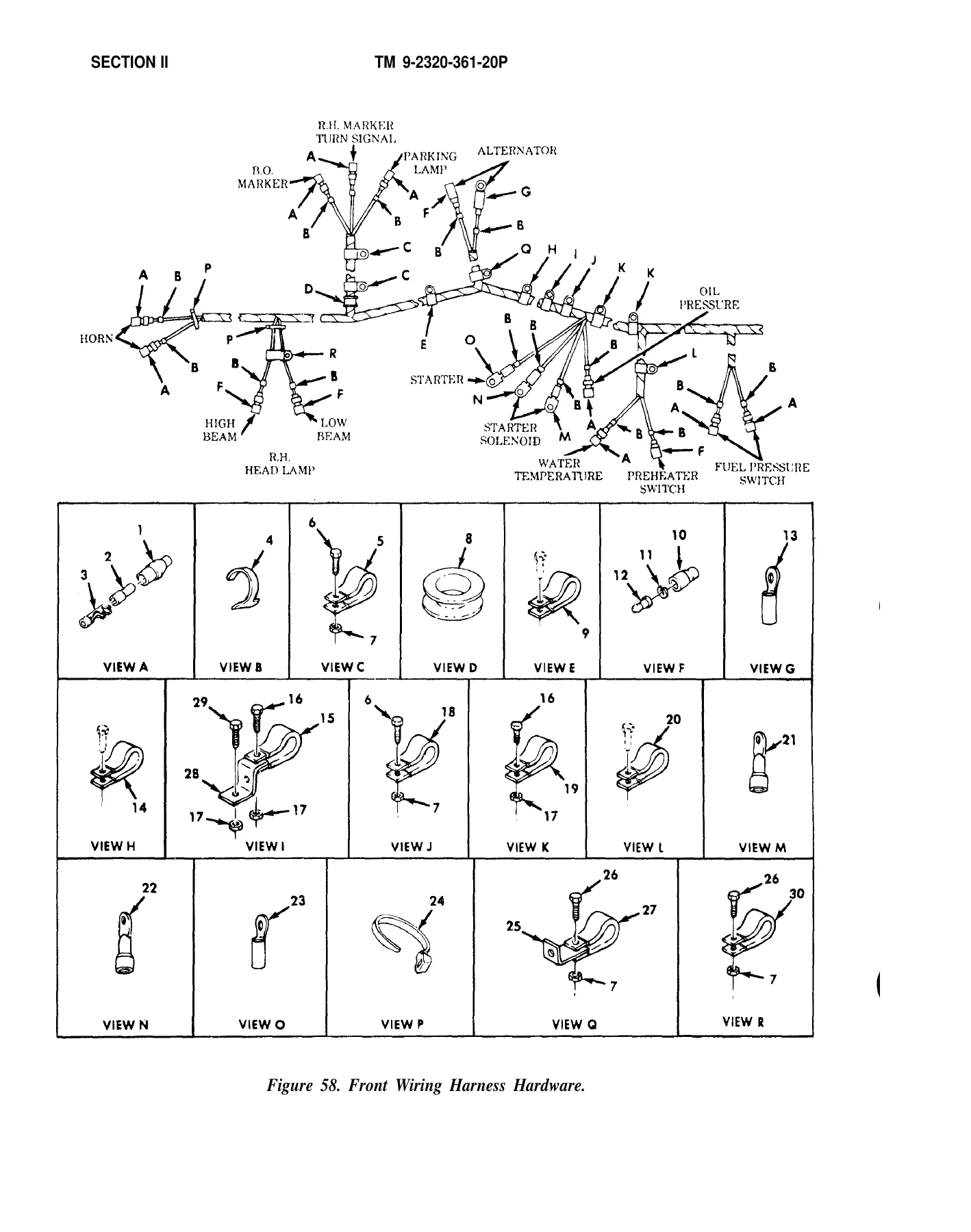

  • Group 06 – Electrical System: 60-ampere alternator, starter, instrument panel, switches, lighting, sending units, horn, batteries and battery box, front and rear wiring-harness hardware
  • Group 07 – Transmission: transmission plugs, breather and gaskets, transmission top cover and controls
  • Group 08 – Transfer Assembly: power transfer, mounting hardware, hand controls and transfer controls
  • Group 09 – Propeller and Propeller Shafts: front-axle-to-transfer, transmission-to-transfer, transfer-to-center-bearing and intermediate shaft assemblies
  • Group 10 – Front Axle: axle and housing, differential, carrier, differential shafts and gears, spindle, universal shaft and knuckle components
  • Group 11 – Rear Axle: forward-rear and rear-rear axle assemblies, tandem suspension spring seat, differential carrier, differential shafts and gears
  • Group 12 – Brakes: parking brake, service brake, master and wheel cylinders, air-hydraulic unit, front and rear hydraulics, brake pedal, air reservoirs, compressor and governor, trailer brake controls and air connections
  • Group 13 – Wheels: wheel and disc assemblies, front and rear hubs and drums, tire and tube assembly
  • Group 14 – Steering: drag link, tie rod, steering gear and steering wheel components
  • Group 15 – Frame and Towing Attachments: frame, shackles, pintle hook, spare-wheel carrier and fifth-wheel equipment
  • Group 16 – Springs and Shock Absorbers: front and rear leaf springs, shock absorbers and torque rods
  • Group 18 – Body, Cab and Hood: doors, windows, cab, hood, fenders, windshield, seats, cargo and dump bodies, tanker equipment, van bodies, earth-boring equipment and pipeline-body equipment
  • Group 20 – Hoist, Winch, Capstan, Windlass, Power Control Unit and Power Takeoff: front and rear winches, controls and drive components, dump-hoist equipment, hydraulic hoist components and PTO controls
  • Group 21 – Bumpers, Guards and Marine Fenders: stone and brush guard
  • Group 22 – Body and Chassis Accessory Items: soft-top and tarp equipment, troop-seat kit, wiper and washer, mirrors, reflectors, personnel heater and vehicle data plates
  • Group 33 – Special Purpose Kits: winterization and heater equipment, arctic enclosure, deep-water fording, A-frame, seatbelt, hard-top, slave-receptacle, alternator and generator conversions, mounting and warning kits, air-brake and air-horn kits, cab and body modification kits
  • Group 47 – Gages (Non-Electrical): speedometer, tachometer and meter
  • Group 94 – Kits: service kits
  • Group 95 – General Use Standardized Parts: bulk materials
• Section III – Special Tools List
  • Group 26 – Special tools and test equipment for unit maintenance
  • Direct-support special tools and test equipment
  • General-support special tools
• Section IV – Cross-Reference Indexes
  • National Stock Number Index
  • Part Number Index
  • Figure and Item Number Index

Across these groups, the manual brings together hundreds of numbered parts figures covering the truck chassis as well as configuration-specific equipment. Examples range from engine mounting, fuel injection and cooling components to wiring harnesses, axles, braking equipment, tanker hardware, van bodies, pipeline equipment, earth-boring machinery, winches and special-purpose conversion kits. Section III adds authorized special tools and special Test, Measurement, and Diagnostic Equipment, with Basis of Issue information where applicable.

Important Manual Scope

This document is specifically a Repair Parts and Special Tools List. Its strength is detailed component identification, illustrated parts breakdowns, supply information, model applicability and cross-referencing. It is not the separate step-by-step unit-maintenance procedure manual. For example, the RPSTL itself directs users to TM 9-2320-361-20 for detailed fabrication and assembly instructions. Buyers looking primarily for disassembly procedures, repair sequences, adjustments or complete maintenance instructions should distinguish this parts-and-tools publication from that separate maintenance manual.

For parts work, however, the M44A1 M44A2 Series 2-1/2-Ton 6×6 Unit Maintenance Repair Parts & Special Tools Manual TM 9-2320-361-20P provides unusually broad coverage. The combination of exploded figures, item callouts, part numbers, CAGEC identifiers, SMR codes, Usable On Codes, quantities, special-tool listings and three major cross-reference indexes makes it possible to move from an assembly or pictured component to the corresponding parts information with much less uncertainty.

Get the M44A1 M44A2 Parts and Special Tools Manual Instantly

Use this M44A1 M44A2 Series 2-1/2-Ton 6×6 Unit Maintenance Repair Parts & Special Tools Manual TM 9-2320-361-20P when identifying replacement components, checking which listed part applies to a particular covered model, tracing an NSN or part number, studying an exploded assembly, identifying special tools, or working through vehicle-specific body and accessory equipment. Correct figure references, part numbers, SMR information and applicability codes help prevent confusion between similar components and configurations.

After payment, the manual is supplied as an instant PDF download. There is no shipping and no waiting for a printed book. Open it on a computer, tablet or phone, keep it available in the workshop, and print the pages or illustrated parts sections you need for the job.
