M939 M939A1 M939A2 5-Ton 6x6 Truck Repair Parts Manual TM 9-2320-272-24P-2
M939 M939A1 M939A2 5-Ton 6x6 Truck Repair Parts Manual TM 9-2320-272-24P-2 - Image 2
M939 M939A1 M939A2 5-Ton 6x6 Truck Repair Parts Manual TM 9-2320-272-24P-2 - Image 3

M939 M939A1 M939A2 5-Ton 6×6 Truck Repair Parts Manual TM 9-2320-272-24P-2

Original price was: $34.95.Current price is: $21.95.

Complete 1,137-page repair parts and special tools list for the M939, M939A1 and M939A2 series 5-ton 6×6 diesel trucks – NSN and part number indexes, exploded views, and every component group from fuel and brakes to the wrecker crane and van body.

SKU: TM-2320-272-24P-2-HD Category: Tags: , , , Vendor: ManualMechanic
⚡
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

File Details

  • Manual type: Unit, Direct Support and General Support Maintenance Repair Parts and Special Tools List (RPSTL)
  • Coverage: Truck, 5-Ton, 6×6, M939, M939A1 and M939A2 Series Trucks (Diesel)
  • Language: English
  • Page count: 1,137 pages
  • File format: PDF
  • Army technical manual number: TM 9-2320-272-24P-2
  • Air Force technical order number: TO 36A12-1C-1155-4-2
  • Published: February 1999

Chapters Covered

  • Group 03 Fuel System – injector supply tubes (M939A2), AFC and VS fuel pump assemblies, governor and tachometer drive, damper, gear pump and mounting hardware, injector pump plunger and control rack, transfer pump, air cleaner indicator, air intake systems, turbocharger and hoses, crossover/drain/bypass tubing, fuel tank mounting (single LH, single RH and dual), tank vent and supply/return lines, selector valve, fuel filters and water separators, ether start cylinder and atomizer nozzle, accelerator controls and linkage
  • Group 04 Exhaust System – muffler, exhaust pipes and related parts
  • Group 05 Cooling System – radiator hoses, upper and lower mounting hardware, radiator assembly, surge tank and lines, fan shroud, thermostat and housing, water manifold, air compressor coolant lines, water pump, fan clutch, fan drive clutch, belt tensioner pulley, engine aftercooler
  • Group 06 Electrical System – alternator and mounting (M939/M939A1 and M939A2), starting motor and starter assembly, shutdown valve, throttle control solenoid, control panel, light switch, fuel tank selector switch, instrument cluster, warning switches, lamp holder, circuit breakers, control unit, directional flasher, protective control box, CTIS electrical harness, taillight, front composite light, blackout lamp, side marker lights, fuel pressure transducer, low air warning switch, temperature transmitter, horn and mounting, batteries and cables, slave receptacle, ground straps, front/rear/cargo/wrecker/dump/tractor/van/chassis wiring harnesses, crane wiring and instrument cluster harness
  • Group 07 Transmission – transmission assembly, mounting hardware, fluid dipstick and tube, shift quadrant control cable and neutral safety switch, shift control cable, modulator and cable assembly, torque converter and lockup clutch, adapter housing and low planetary carrier, main shaft and carrier, housing, oil filter, oil pan, rear cover, first/second/third/fourth clutch assemblies, low clutch, control valve assembly, modulated lockup valve, low shift signal and trimmer valves, oil pump and front support, oil cooler, oil hoses and filter
  • Group 08 Transfer Case Assembly – transfer case and shipping container, mounting hardware, housing, output shaft and cover, input and intermediate drive shafts, clutch and synchronizer assembly, transfer controls, air control lines, air-actuated controls and interlock valve, manifold fittings, shift mechanisms, oil pump
  • Group 09 Propeller Shafts and Universal Joints – front axle to transfer shaft (Dana and Rockwell), transfer to front axle shaft (Dana, Rockwell and M939A2), transmission to transfer (M939/M939A1 and M939A2), transfer to forward rear axle for LWB, SWB and XLWB, forward rear axle to rear rear axle (Dana and Rockwell)
  • Group 10 Front Axle – axle and housing assembly, differential assembly, differential carrier and access covers, through shaft, gears and flanges, helical drive pinion, spindle shaft, universal shaft and knuckle assembly
  • Group 11 Rear Axle – forward rear and rear rear axle assemblies, differential assembly and mounting hardware, carrier assembly, through shaft, gears and flanges, helical drive pinion
  • Group 12 Brakes – parking brake lever, cable and mounting, parking brake shoe, drum, dust shield, front and rear axle brake and spider, service brake mounting plate (M939A2), treadle valve, air chambers, fail-safe brake chamber, half couplings, double-check valves, relay valves, air compressor, air supply lines, reservoirs and drain valves, alcohol evaporator, brake lock valve, trailer brake control valve, tractor protection valve and trailer air lines
  • Group 13 Wheels – wheel assembly, front and rear wheel hub and drum assemblies (M939/M939A1 and M939A2), wheel valve installation and assembly (M939A2), tire and tube assembly
  • Group 14 Steering – steering column, wheel and propeller shaft, stone shield and pitman arm, tie rod assemblies, steering gear assembly and mounting, sector shaft and housing, worm and valve (M939/M939A1 and Sheppard), power steering pump and pulley, hydraulic lines and fittings, oil cooler (M939A2), steering cylinder assembly and booster shield
  • Group 15 Frame – frame assembly for standard cargo, dropside cargo, dump, wrecker, van, tractor, LWB cargo and chassis, front bumper and lifting shackle, hood latch, rear bumperette and shackle, field clock anchors, pintle hook and towing pintle mounting brackets, spare wheel carriers (dump, cargo, van, tractor), lifting device and davit assemblies, fifth wheel assembly and mounting plates
  • Group 16 Springs and Shocks – front leaf spring, rear leaf spring mounting hardware, rear leaf spring and seat assemblies, shock absorber and mounting, torque rod and mounting
  • Group 18 Body, Cab and Hood – front guard assembly, radiator baffle, hood and related parts, hood support and stop cables, splash guard and splash panel extension, cab assembly mounting, cab body and engine cover, door assemblies and cab door windows, fender and splash panels, running board and step, transmission access door and spring brake plate, operator’s seat, companion seat, cab insulation, toolbox and step, map compartment, fuel can bracket, pioneer tool frame, van cable reel, cargo body (standard and LWB), dump body and hoist, wrecker crane and body, van body assemblies
  • Group 20 Hoist, Winch and Power Takeoff – front winch controls, P.T.O. and winch controls (M939A2), front winch pump, filter and reservoir, hydraulic tubing, propeller driveshaft, winch motor, brackets, wire rope, drum, gear case, sheave assembly, tensioner, tackle block, wrecker rear winch vertical and horizontal rollers, wrecker hydraulic oil tank and fluid filter, wrecker hydraulic tubing, hoist hydraulic motor, crane gearcase, boom elevating cylinder, operator guard, boom assembly, crane hoist winch, boom hoist winch housing, inner boom extension, gondola assembly and control valve, turntable, hydraulic swivel, rear winch tensioner chamber, rear winch assembly, rear winch sheave swivel and trolley, rear winch cable tensioner, dump hydraulic hoist, dump hoist safety latch, dump control pump, valve and propeller driveshaft, dump controls, van hydraulic liftgate, liftgate platform, frame, controls, hydraulic tubing, oil tank and pump motor, liftgate pump, flow control valve, cylinder and closing cylinders, pump drive shafts, power takeoff controls, transfer power takeoff assembly and main shaft, transmission power takeoff shift controls, transmission P.T.O. assembly (M939A2)
  • Group 22 Body and Chassis Accessory Items – wrecker gondola canopy and seat, cargo bow and stake assembly, soft top and post assembly, tarpaulin extension kit, splash guards, safety strap, windshield wiper air lines and control, wiper arm, blade and motor, washer bottle and jet, rearview mirrors, cargo/dump/wrecker/tractor/van reflectors, hot water heater, air ducts, data plates
  • Section III Special Tools – peculiar end item special tools and special tools (Group 26)
  • Section IV Cross Reference Indexes – National Stock Number Index and Part Number Index

IMAGES PREVIEW

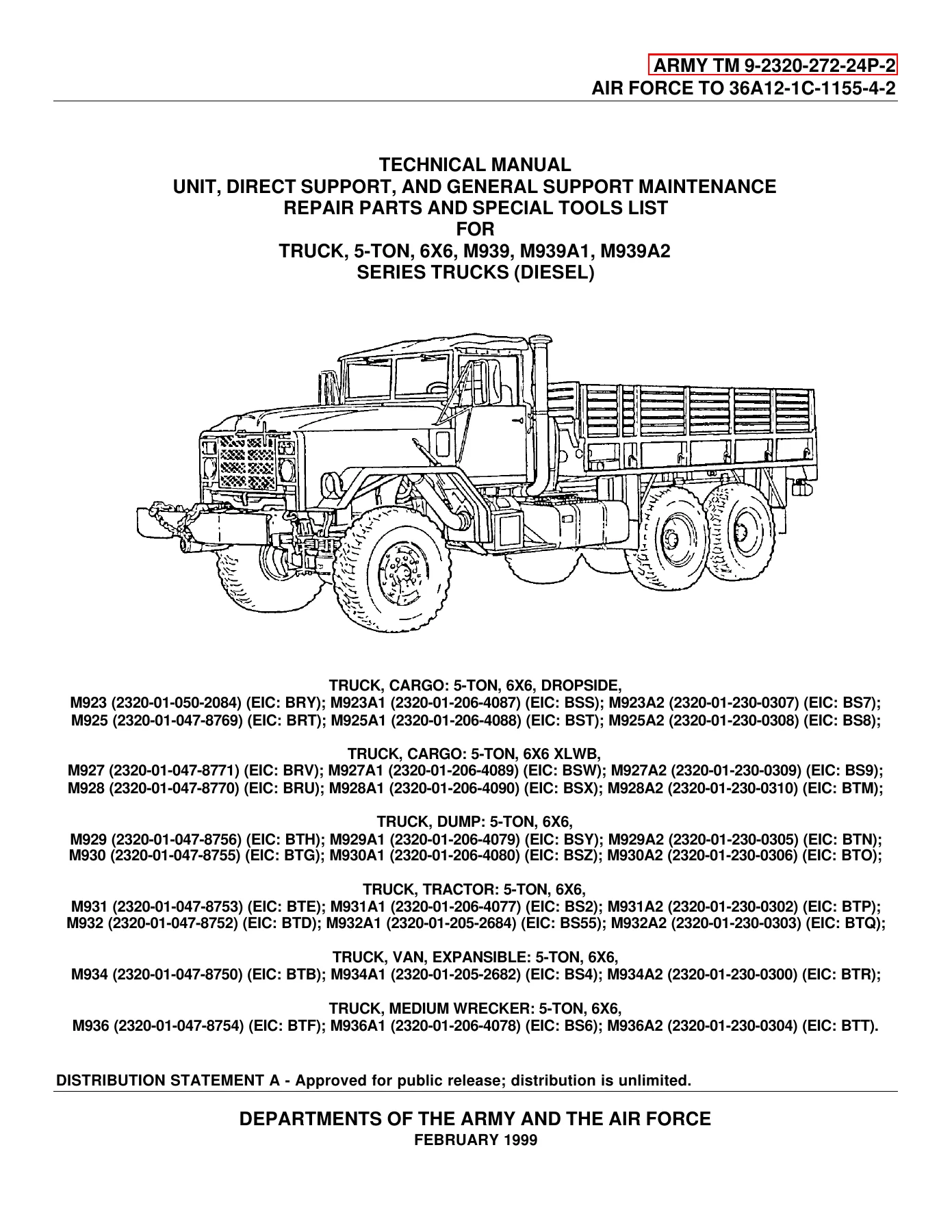

M939 M939A1 M939A2 5-Ton 6x6 Truck Repair Parts Manual TM 9-2320-272-24P-2 — PDF page 1 preview
M939 M939A1 M939A2 5-Ton 6x6 Truck Repair Parts Manual TM 9-2320-272-24P-2 — PDF page 18 preview
M939 M939A1 M939A2 5-Ton 6x6 Truck Repair Parts Manual TM 9-2320-272-24P-2 — PDF page 58 preview

Altogether this is the complete organizational-level parts catalog for the M939 family, letting a shop or motor pool identify a component by figure number, item number, NSN, part number, SMR code and required quantity, then cross-reference it in the back-of-book NSN and part number indexes. The Figure listings run alongside exploded isometric drawings so every fastener, gasket, bracket and sub-assembly can be seen in relation to the parts around it, and the cross-reference indexes at the end let you work backwards from a stock number or manufacturer part number to the correct figure and item callout.

What This Parts Manual Solves

The M939, M939A1 and M939A2 series were built across five body styles (cargo dropside, XLWB cargo, dump, tractor, van expansible and medium wrecker) and three drivetrain generations, so parts interchange between them is anything but obvious. TM 9-2320-272-24P-2 handles that problem directly by separating M939A2-only callouts from the M939 and M939A1 callouts inside each figure, and by grouping items by UOC (usable on code) so you know at a glance whether a component fits a specific truck. It is the correct reference when you need to order, requisition, or verify a replacement assembly rather than work through a troubleshooting procedure – the diagnostics and overhaul procedures live in the companion -20 and -24 maintenance manuals.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “M939 M939A1 M939A2 5-Ton 6×6 Truck Repair Parts Manual TM 9-2320-272-24P-2” are as follows:

TOCp. 3
GROUPS
GROUP 18p. 19
GROUP 1801p. 19
GROUP 1802p. 45
GROUP 1805p. 57
GROUP 1806p. 59
GROUP 1808p. 68
GROUP 1810p. 81
GROUP 1812p. 113
GROUP 20p. 254
GROUP 2001p. 254
GROUP 2004p. 441
GROUP 22p. 459
GROUP 2201p. 459
GROUP 2202p. 475
GROUP 2207p. 497
GROUP 2210p. 504
GROUP 26p. 771
GROUP 2604p. 771
GROUP 33p. 551
GROUP 3301p. 551
GROUP 3303p. 557
GROUP 3305p. 626
GROUP 3307p. 645
GROUP 43p. 713
GROUP 4316p. 713
GROUP 4317p. 720
GROUP 47p. 728
GROUP 4701p. 728
GROUP 4702p. 736
GROUP 95p. 768
GROUP 9501p. 768
SECTIONS
SECTION IIp. 19
SECTION IIIp. 770
SECTION IVp. 776
FIGURES

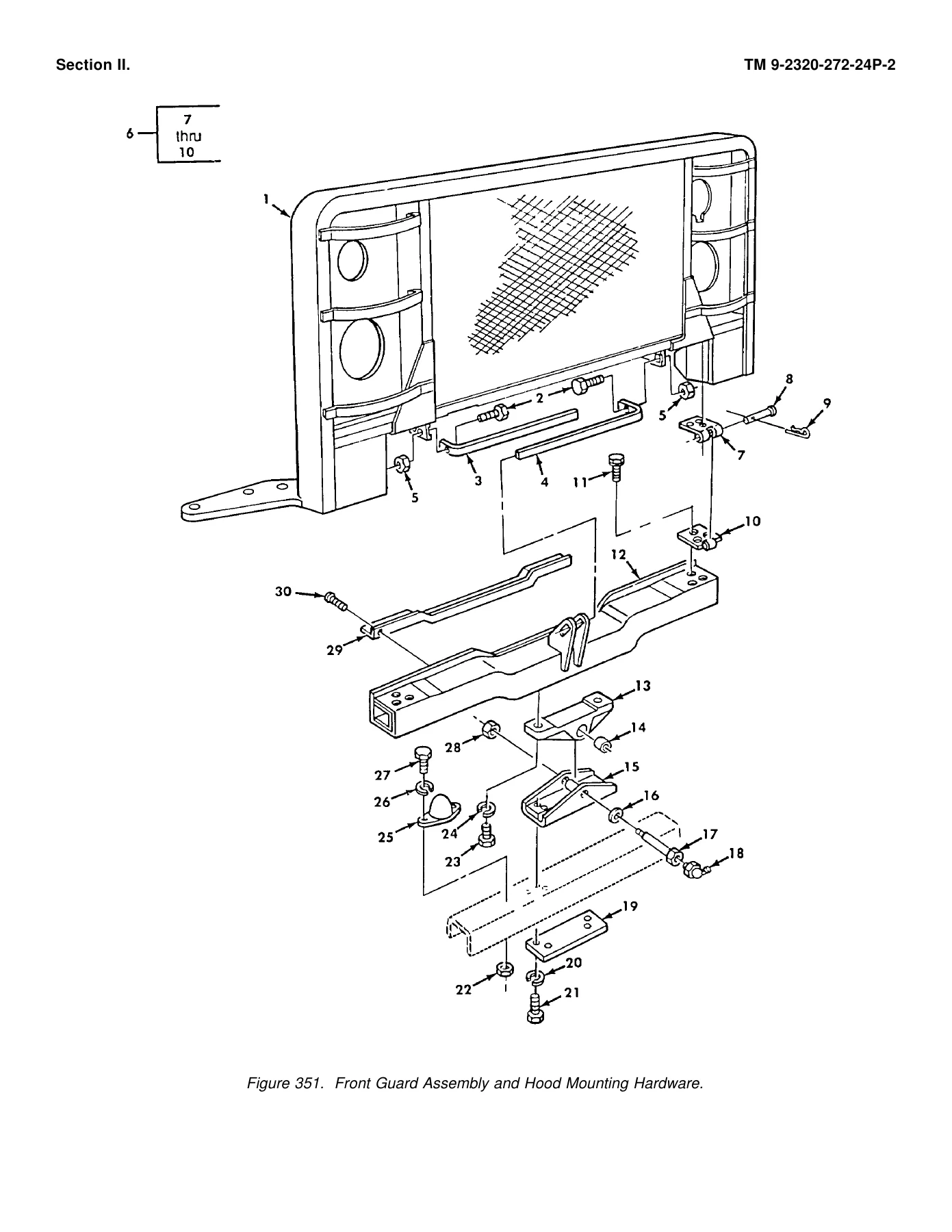

FIGURE 351p. 18
FIGURE 352p. 20
FIGURE 353p. 22
FIGURE 354p. 24
FIGURE 355p. 26
FIGURE 356p. 28
FIGURE 357p. 30
FIGURE 358p. 32
FIGURE 359p. 34
FIGURE 360p. 36
FIGURE 361p. 38
FIGURE 362p. 40
FIGURE 363p. 42
FIGURE 364p. 44
FIGURE 365p. 46
FIGURE 366p. 48
FIGURE 367p. 50
FIGURE 368p. 53
FIGURE 369p. 56

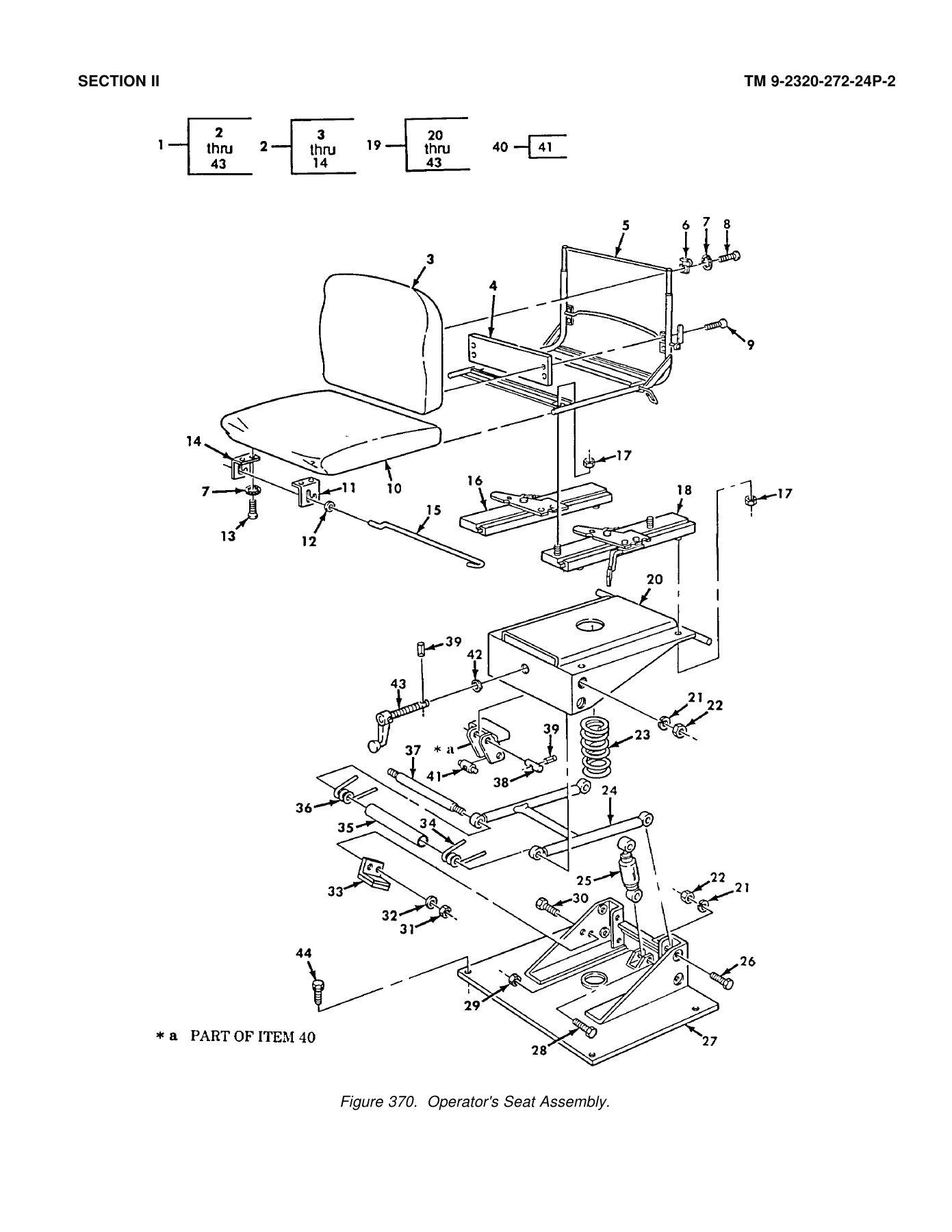

FIGURE 370p. 58
