Manitou 160 ATJ & 180 ATJ Access Platform Operator’s Manual 547370 EN – PDF Download

Description

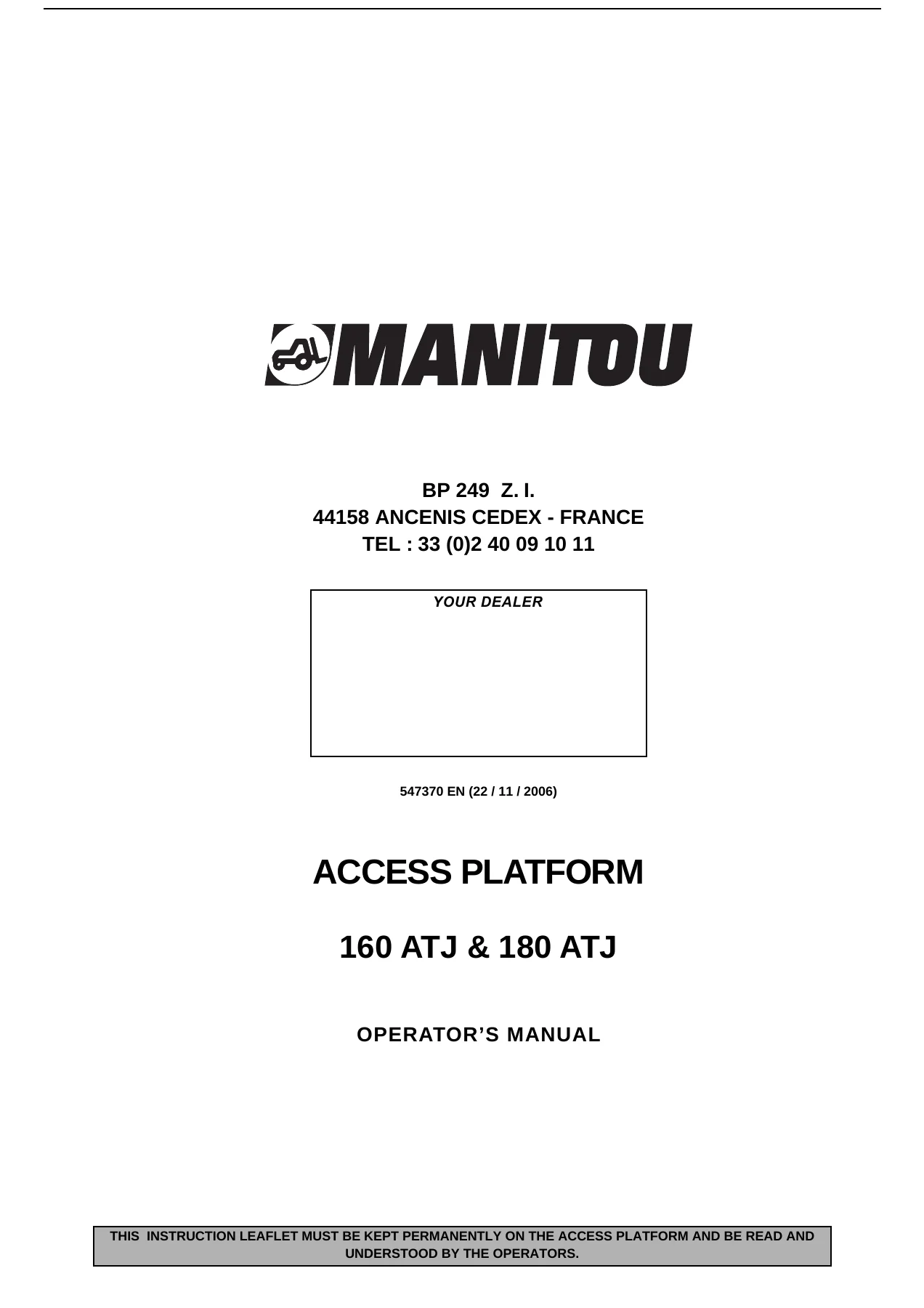

This is the complete operator’s manual for the Manitou 160 ATJ and Manitou 180 ATJ access platforms, issued under document number 547370 EN and dated 22 November 2006. It is the manual that ships with these articulated boom lifts and covers everything the operator and maintenance team needs for safe, correct day-to-day use — from pre-start checks and control functions to the full periodic maintenance schedule and emergency lowering procedures. The PDF runs 131 pages and is written in English.

File Details

• Manual Type: Operator’s Manual
• Brand: Manitou
• Models: 160 ATJ, 180 ATJ
• Document Number: 547370 EN
• Edition Date: 22/11/2006
• Language: English
• Page Count: 131
• File Format: PDF

Chapters Covered

• 1 – Operating and Safety Instructions
• 2 – Description
• 3 – Maintenance
• 4 – Electricity
• 5 – Optional Accessories for the Range
• 6 – Maintenance Handbook

1 – Operating and Safety Instructions

This opening chapter sets out the rules that govern safe use of the 160 ATJ and 180 ATJ. It begins with the manufacturer’s position on genuine spare parts and the legal and technical risks of using non-original components, then moves into detailed instructions for the company manager and the operator. The operator section covers authorisation requirements, environmental limits (including the 45 km/h maximum wind speed and the 40 kg lateral force limit), clothing and PPE, correct behaviour in and around the basket, and the daily maintenance the operator is expected to carry out. There is also guidance on what to do before starting a platform for the first time — lubrication checks, air filter inspection, cooling system, hydraulic system, fuel system, electrical circuit, and wheel nut torque — plus a section on preparing the machine for extended periods out of service and bringing it back into operation. Identification plates for the platform, IC engine, hydrostatic pump, and axle assemblies are shown with their locations so the correct serial and part numbers can be recorded.

2 – Description

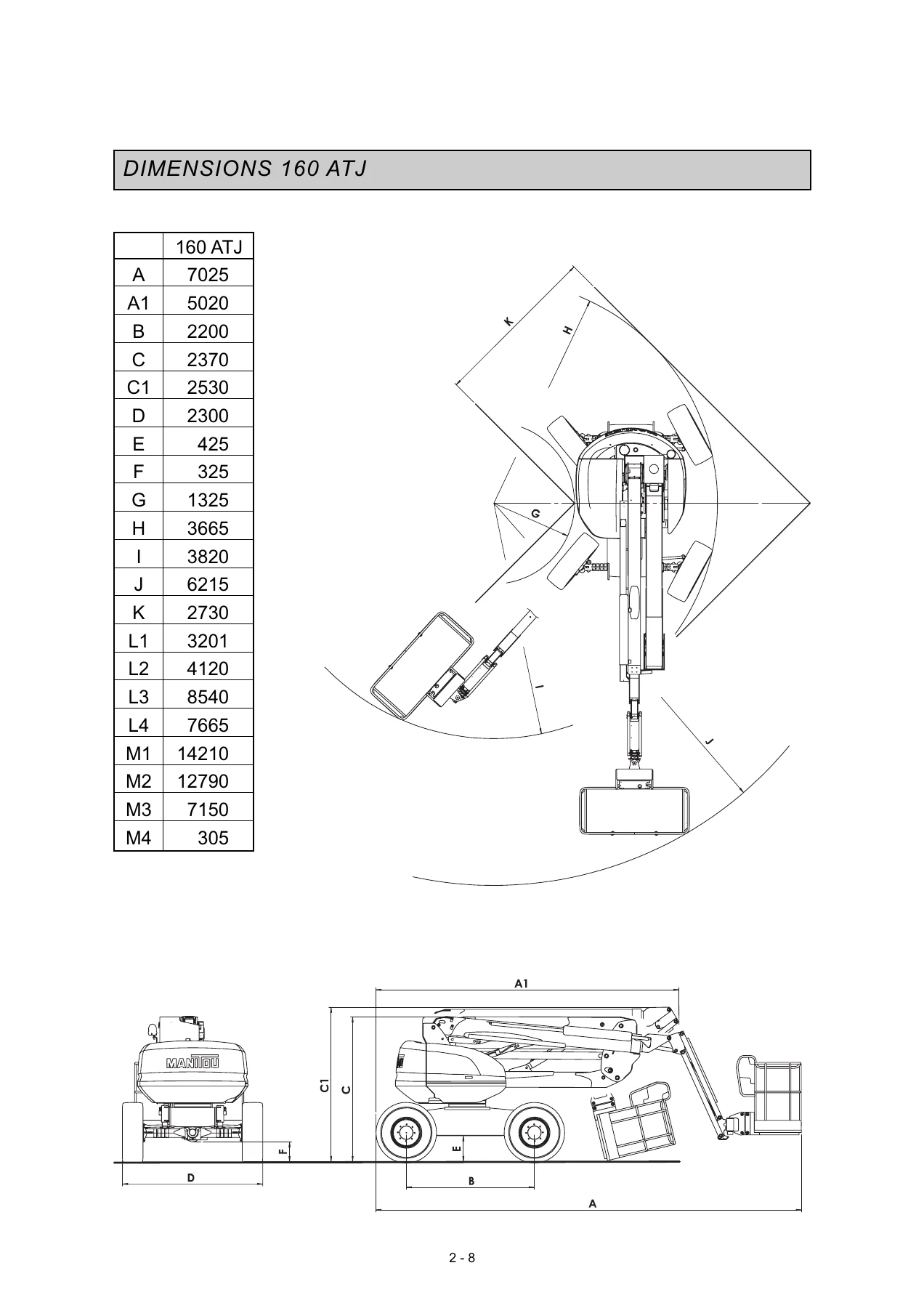

The description chapter covers the machine’s technical characteristics in detail. You get engine data (4-cylinder in-line, direct injection, 2216 cc, 84 mm bore, 100 mm stroke, 23.3:1 compression, 34.1 kW output, 143 Nm maximum torque), cooling circuit, electrical circuit, hydrostatic transmission, auxiliary hydraulic circuit, and fuse ratings. Full specifications are given for both the 160 ATJ (16 210 mm working height, 7450 kg empty) and the 180 ATJ (17 635 mm working height, 8090 kg empty), including capacities, travel speeds, traversable slope, ground clearance, wind and tilt limits, tyre data, and vibration levels. Dimension drawings and working-range diagrams are included for each model, alongside a full walkthrough of the instrument and control layout for both the ground control station and the basket console. The chapter closes with the recommended procedure for using the access platform and the rescue procedure to follow in an emergency.

3 – Maintenance

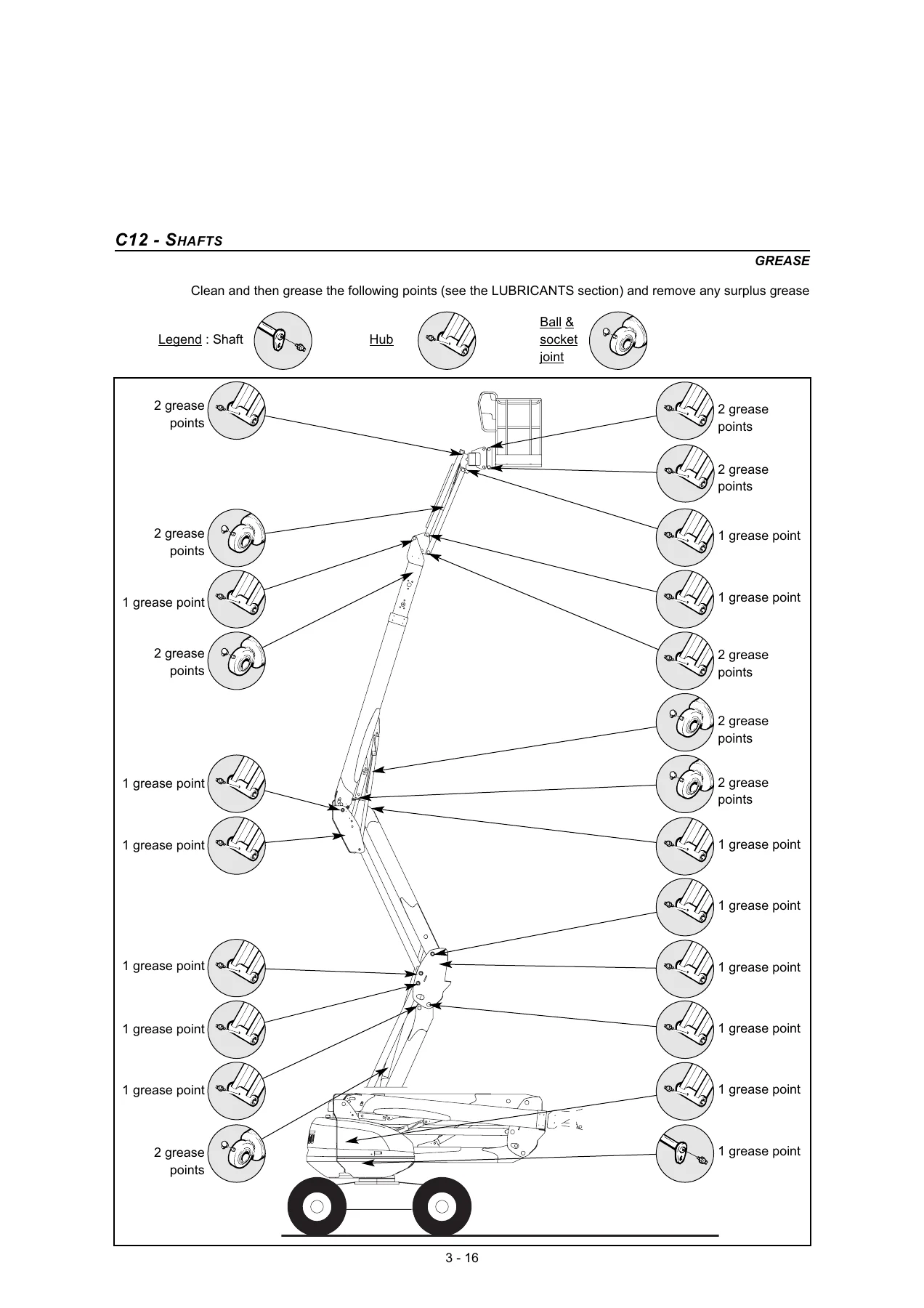

The maintenance chapter is the working reference for keeping these machines serviceable. It opens with the filter cartridges and belts table (IC engine oil filter 702577, dry air filter cartridge 227959, safety cartridge 227960, hydrostatic transmission oil filter 518250, auxiliary hydraulic oil filter 518251, fuel filter 109401, fan belt 702738, hydraulic reservoir suction strainer 19910, and filling sieve 599523) with their replacement intervals, followed by the lubricants section. The bulk of the chapter is the maintenance schedule, broken into intervals: every day or 10 hours (A), every 50 hours (B), every 250 hours (C), every 500 hours (D), every 1000 hours (E), every 3000 hours (F), and occasional maintenance (G). Each task is described with its check, clean, adjust, replace, or grease action, and many procedures are illustrated with photographs showing the exact plug, gauge, filter, or grease point. Safety components — arm position sensors, slope sensor, overload sensor, and machine stickers — are checked at the 250-hour interval.

4 – Electricity

This short chapter documents the fuse layout in the connection box mounted on the turret inside the base control box. It lists each fuse with its rating — F1 emergency pump supply at 7.5 A, F2 and F3 base unit supply at 20 A, F4 basket unit supply at 20 A, F5 plus supply after contact at 5 A, F6 BRC box power supply at 30 A, F7 preheating power supply at 60 A, and F8 backup pump supply at 250 A — and explains how to access and replace them.

5 – Optional Accessories for the Range

Optional equipment covered in this chapter includes the generator option, with precautions for users of platforms fitted with it, and the 20″ wheel option combined with the wide basket option on the 180 ATJ. For the 20″ wheel and wide basket configuration, revised specifications are given — operating height 17 670 mm, floor height 15 670 mm, empty weight 8465 kg, loaded weight 8695 kg — along with the modified dimension drawing showing the larger wheels and 2.10 m wide basket.

6 – Maintenance Handbook

The final chapter is a record-keeping section for the machine’s maintenance history, with service interval tables for the 50, 100, 150, and 200 hour marks and beyond, each providing space for the date, actual hours, mechanic’s signature, dealer’s stamp, and comments. It is a practical reminder that documented maintenance supports the machine’s long-term reliability and resale value.

Why This Manual Matters for 160 ATJ and 180 ATJ Owners

An articulated boom lift is only as safe and productive as the procedures behind it. This manual gives you the manufacturer’s own operating limits, inspection intervals, and maintenance routines in a single PDF — no guessing at torque figures, no working from memory on pre-start checks, and no risk of following an outdated procedure for a different machine. Whether you are carrying out the daily 10-hour service, preparing the platform for a long standstill, or working through the 250-hour safety component checks, the relevant instruction is here.

For technicians and fleet managers, the maintenance schedule alone is worth the download. It tells you exactly which filters and cartridges to order by part number, which grease points to hit, which oil levels to verify, and which safety sensors to test — and it flags the intervals at which each job is due. For operators, the safety and operating chapters cover the rules that keep the platform on its wheels and the basket in safe working order, from wind and tilt limits to basket load restrictions and the correct way to enter and exit.

IMAGES PREVIEW

Supplied as an instant PDF download, this Manitou 160 ATJ and 180 ATJ operator’s manual can be stored on a phone, tablet, or laptop and printed for the workshop or the machine’s document holder. No shipping, no waiting — you have the full manual in front of you within moments of purchase.
