Haulotte Optimum 8 & Optimum 1931 E Operator Manual — 4000415480

This is the complete operator’s manual for the Haulotte Optimum 8 and Haulotte Optimum 1931 E electric scissor lifts, issued under document number 4000415480, edition E 01.18, for the USA and GB markets. It is the same manual supplied with the machine, covering operation, daily inspection, safety systems, emergency procedures, transport and battery care for these compact electric scissor lifts.

Whether you are running a single unit on a fit-out job or managing a rental fleet, this manual gives you the manufacturer’s own procedures for safe operation and pre-use checks across both model designations.

File Details

• Manual type: Operator’s Manual
• Brand: Haulotte
• Models covered: OPTIMUM 8, OPTIMUM 1931 E
• Document number: 4000415480
• Edition: E 01.18
• Region: USA / GB
• Language: English (original instructions also published in French)
• Page count: 124
• File format: PDF

Chapters Covered

• User responsibility
• Safety
• Safety inquiries, incident notification, compliance
• Familiarization
• Pre-operation inspection
• Operation instructions
• Transportation
• Hydraulic oil
• Battery care and maintenance
• General specifications
• Options
• Maintenance
• Other information

User Responsibility and Safety

The manual opens with the responsibility framework that applies to owners, employers, trainers and operators — who is allowed to operate the machine, what the owner must provide, and how training must be conducted. The safety chapter that follows breaks hazards into categories: misuse, falling, overturning and tip-over, electrocution, explosion and fire, crushing and collision, and uncontrolled movement. Each hazard is paired with the specific precautions the operator must take, including the Beaufort wind scale table and minimum safe approach distances from power lines.

Familiarization

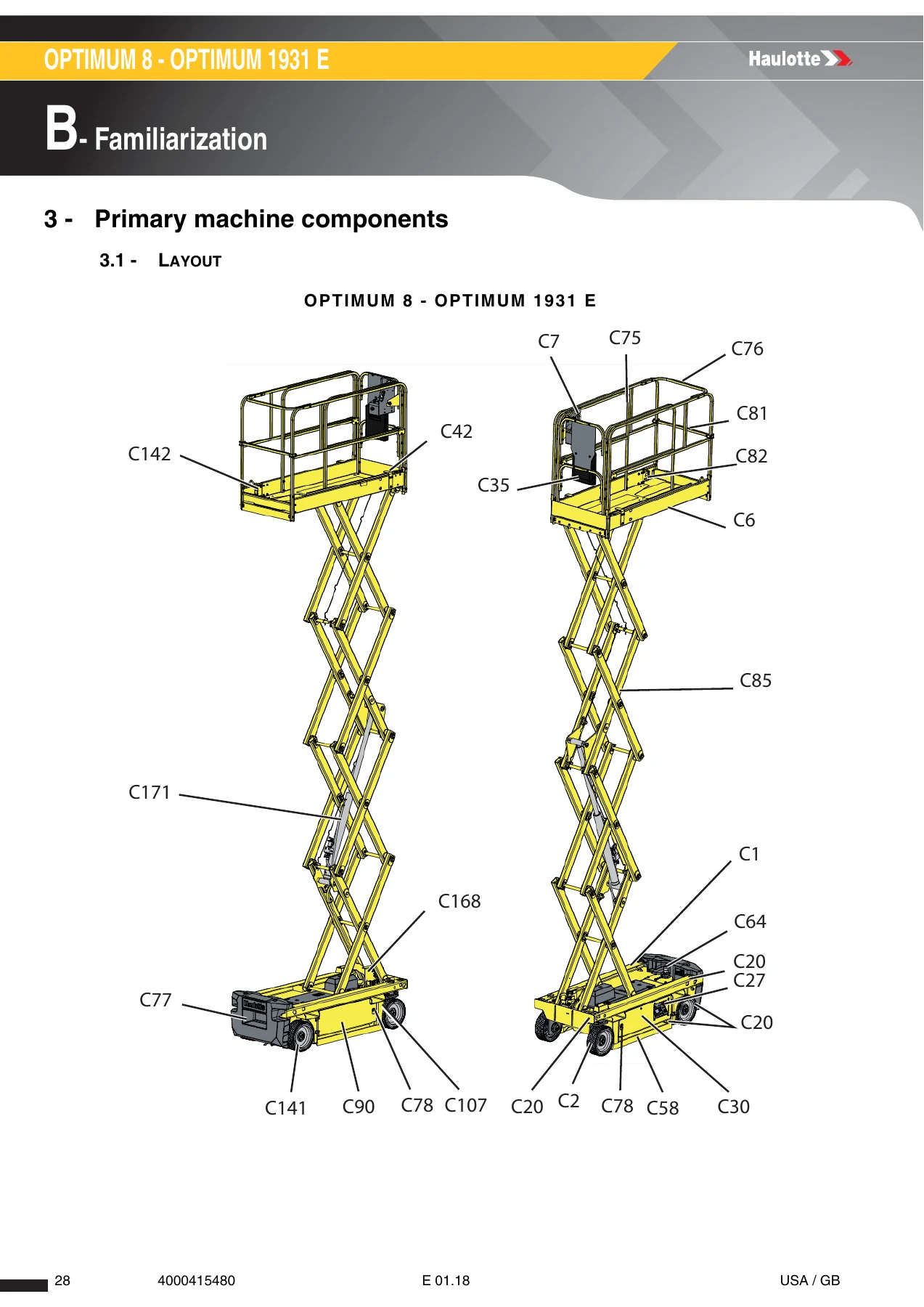

This section introduces the machine itself: intended use, decal content and colour codes, the symbols legend used throughout the manual, model descriptions across the CE, AS, EAC, ANSI and CSA standards, and the primary machine components with a labelled layout diagram. The ground control box, HAULOTTE Activ’Screen and platform control box are each covered in detail, including the LCD screen messages for tilt, overload, low battery and fault codes. Performance specifications and the working area / range of motion diagram are included here.

Pre-Operation Inspection

Daily inspection and functional testing are laid out as a structured routine: working area assessment, visual inspection, safety functional checks, E-stop button checks, activation of controls, fault detector and buzzer tests, overload sensing, slope warning device, travel speed limitation, electronic variable speed drive, operating temperature, machine braking, wheel motor brake release, pothole protection, on-board charger and the anti-crush system.

Operation Instructions

Step-by-step operating procedures from both the ground control box and the platform control box. Covers starting and stopping, movement control, drive and steer control, raising and lowering, emergency procedures for power loss and rescuing an operator in the platform.

Transportation

Putting the machine into transport position, machine layout, unloading, towing, free wheel mode, storage, loading and unloading by ramp, lifting operations and forklift loading and unloading. Includes the tie-down points and lifting eye locations.

Hydraulic Oil and Battery Care

Recommended hydraulic oil viscosity grades by ambient temperature, plus the full battery charging and maintenance routine: charge levels, charge times, charger status indicators and battery autonomy advice.

General Specifications and Options

Machine dimensions in stowed and transport position, major component masses, acoustics and vibration data, wheel and tire specifications and replacement procedure. Optional equipment is covered with its own safety precautions, pre-operation inspection and operation procedures — plumber’s kit, folding guardrails, panel carrier and swing gate.

Maintenance and Other Information

Maintenance schedule, inspection programme (daily, periodic, reinforced and major), repairs and adjustments, warranty disclosure and subsidiary contact information including the California Proposition 65 battery warning.

Why This Manual Matters

Electric scissor lifts like the Haulotte Optimum 8 and Optimum 1931 E are simple to operate — until something goes wrong. A tilt alarm on a slope, an overload indication, a fault code on the Activ’Screen, or a platform that will not lower because the enable switch has not been cycled correctly: this manual tells you what the machine is doing and what to do next. It also carries the manufacturer’s daily inspection checklist, so you can catch a worn tire, a leaking cylinder or a damaged pothole mechanism before it becomes a worksite incident.

The safety systems on these machines are not optional extras — they are the reason an operator can work at height from a compact electric platform. Understanding what each system does, how to test it, and what its limits are is the difference between a machine that runs reliably and one that gets tagged out of service.

IMAGES PREVIEW

Delivery is instant. This Haulotte Optimum 8 / Optimum 1931 E operator manual is supplied as a PDF download — no shipping, no waiting. Open it on a laptop, tablet or phone, print the pages you need for the workshop or the site office, and keep the full manual on file for every operator and supervisor who needs it.
