Manitou MRT 1742 M Series Telescopic Handler User Handbook – 648095 PDF

Description

Manitou MRT 1742 M Series Telescopic Handler User Handbook – 648095 PDF

The Manitou MRT 1742 M Series is a 400-degree rotating telescopic handler designed for lifting, positioning and material handling in construction, agriculture, industrial yards and infrastructure projects. This is the full user handbook published by Manitou under reference 648095 and dated September 2002, supplied as a trilingual document in French, English and Spanish so that operators, mechanics and safety officers can work from the same source. Every chapter needed to run the machine day to day, load it safely, service it on schedule and troubleshoot its electrical and hydraulic circuits is contained in this single PDF.

File Details

• Manual type: User’s Handbook (Notice d’instructions / Manual de uso y mantenimiento)
• Manufacturer reference: 648095
• Publication date: 09/2002
• Brand / manufacturer: Manitou BF (Costruzioni Industriali), Castelfranco Emilia, Modena
• Model: MRT 1742 M Series (400°)
• Languages: French, English, Spanish
• File format: PDF
• Page count: Approx. 336 pages

Chapters Covered

The handbook is organised into clearly numbered parts, each with its own list of sub-sections:

• 1 – Instructions
  • Original replacement parts and attachments
  • Driver’s operating instructions
  • Warnings
  • General instructions
  • Operating instructions
  • Handling instructions
  • Load handling
  • Maintenance instructions of the lift truck
  • Before starting up a new lift truck
• 2 – Description
  • Characteristics

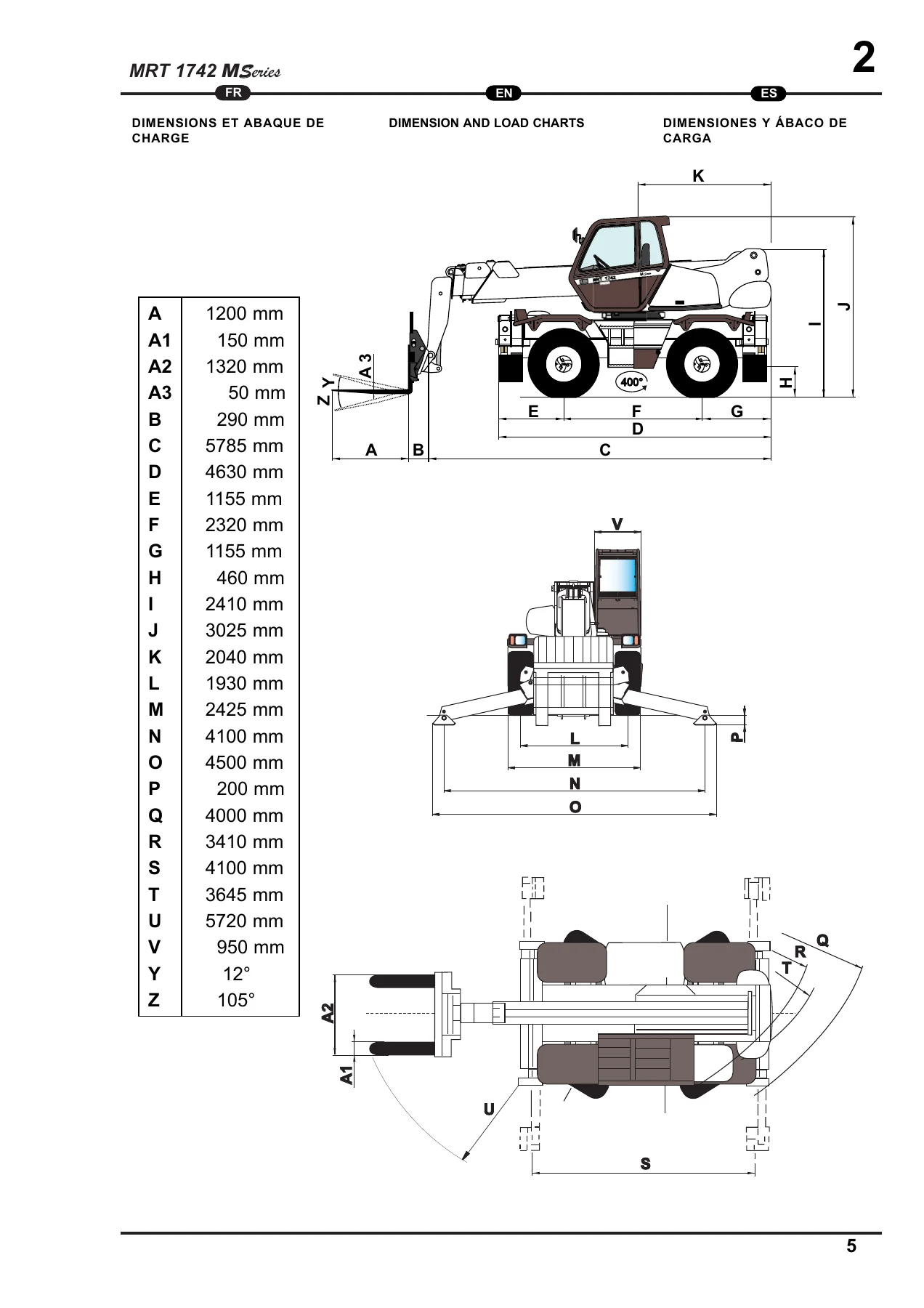

  • Dimensions and load charts
  • Instruments and controls
• 3 – Maintenance
  • Filters cartridges and belts
  • Lubricants
  • Servicing schedule (daily / 50 h / 250 h / 500 h / 1000 h / 2000 h / 5000 h / occasional)
• 4 – Systems (Electrical and Hydraulic)
  • Electrical system and key to the electrical system
  • Electrical system tables

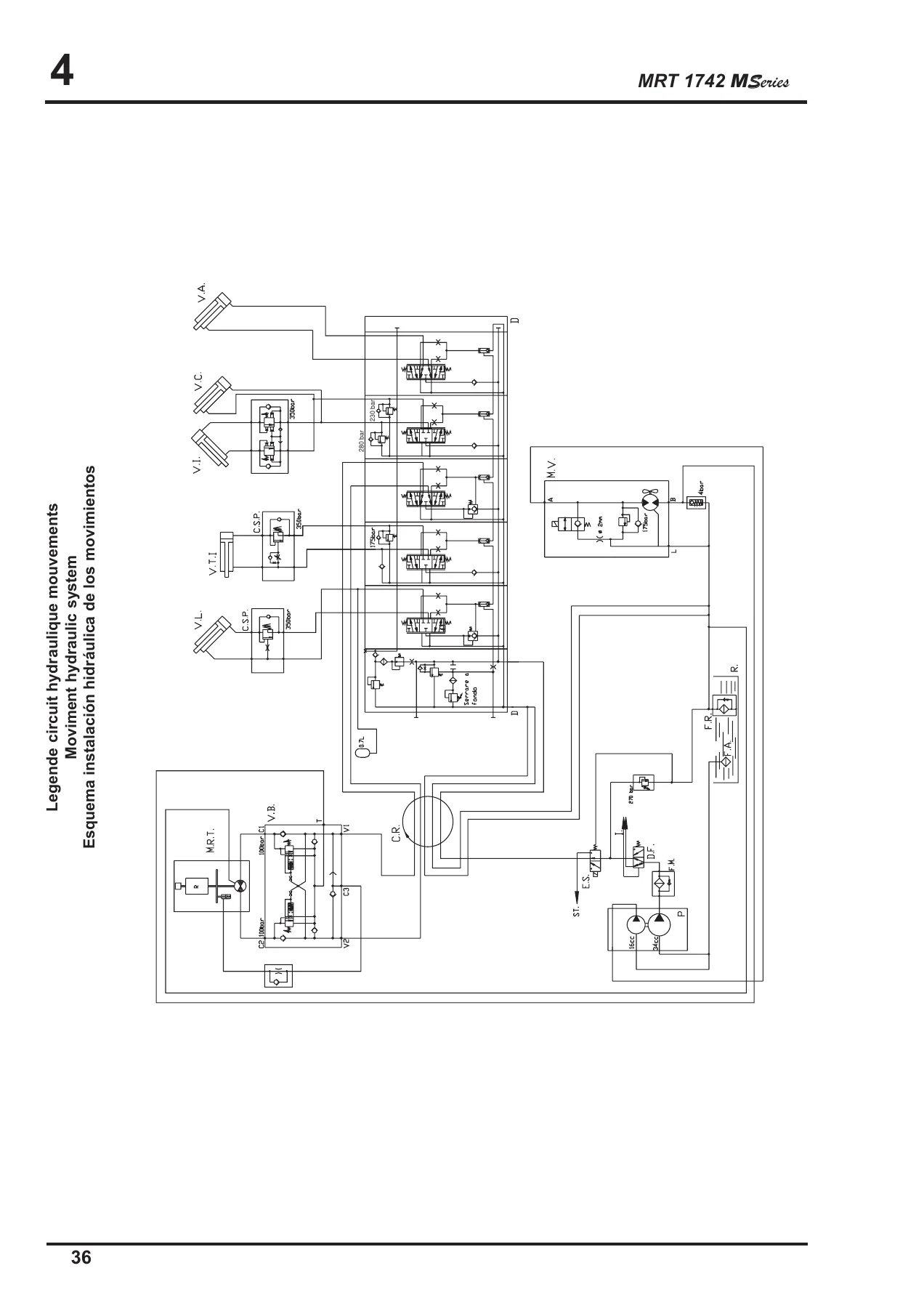

  • Hydraulic circuit of movements
  • Hydraulic circuit of steering and brakes
  • Hydrostatic transmission circuit
• 5 – Optional Accessories Range
  • Introduction and general recommendations
  • Mounting with manual lock
  • Mounting with hydraulic lock (option)
  • Technical specifications and load charts for attachments

Read together, these five parts give a technician or operator a complete working picture of the MRT 1742 M Series: how the machine is put into service, how every control on the dashboard and armrests is used, how loads within the load chart are picked up, transported and set down across different ground conditions, what to do if the load status indicator raises an alarm, and which filter cartridges, belts, oils and greases are required at each service interval. Nothing in the document is generic boilerplate — it is all built specifically around the MRT 1742 M Series, its Perkins four-cylinder engine, its four scissor outriggers, and its 400-degree hydraulic rotation.

Operating, Handling and Safety Instructions

The first part sets out the operating rules in detail before you ever move the machine. It explains the checks required before start-up — engine oil, hydraulic reservoir, transmission oil, coolant, brake fluid — how to inspect tyres and check wheel nut torque, and how to familiarise yourself with the control layout before putting the truck into service. Starting procedure, warm-up, running speed limits (28 km/h unloaded, 10 km/h loaded), correct transport position with the boom retracted and forks roughly 300 mm off the ground, and the specific rules for travelling on longitudinal slopes are all covered. Handling instructions walk through picking up a load at ground level, picking up a high load on tyres, placing a high load, and handling non-palletised loads.

Safety content is thorough and specific. The handbook explains why the operator must remain seated with the seat belt fastened, why nobody should be permitted to walk or stand under a raised load, why the parking brake must be applied when depositing a difficult load, and why the truck must never be left parked with a load raised. There is dedicated guidance for the 400-degree rotating turret: the automatic rear axle locking device activates after more than a 15° turn, the slewing lock pin must not be engaged during rotation, and the turret must be aligned before long road travel. It also covers the four scissor outriggers, including the rule that the machine must never be operated on one, two or three outriggers and that levelling must be done using the bubble level on the dashboard before the boom is raised.

Maintenance and Servicing Schedule

The servicing schedule is one of the strongest technical sections for anyone who owns or maintains the machine. Each interval is broken down operation by operation — daily or every 10 hours, every 50 hours, every 250 hours, every 500 hours (or annually), every 1000 hours, every 2000 hours and every 5000 hours — with a lubricant and fluid specification table listing the exact products and capacities required for the engine, hydraulic and transmission tank, differentials, wheel reducers, slewing gear, transfer box, pivots and chains. Filter cartridges and belts are listed with their reference numbers and replacement intervals, and the occasional maintenance section covers fuel system bleeding (fuel filter, heater plug, injection pump and injectors), wheel replacement, towing procedure with the negative brake deactivation, slinging the truck for lifting, and headlamp adjustment.

Electrical and Hydraulic Systems

Part 4 is where the machine’s systems are documented in full. It contains the fuse and relay layout for both the box under the instrument panel and the box under the cab, with the function and amperage of every fuse identified, plus a description of the alternator and battery maintenance requirements, including charging, cable polarisation and safety precautions during welding. The hydraulic chapter documents the movement circuit (with 27+27 cm³ gear pump, 115 l/min flow at 2300 rpm and 270 bar pressure), the steering circuit (load-sensing, 175 bar), the brake circuit (servo-assisted by the hydrostatic transmission, 40 bar), and the hydrostatic transmission itself. Schematics, component keys and exploded views accompany each system.

Optional Attachments Covered in This Handbook

The final section deals with the accessory range available for the MRT 1742 M Series and how each one is fitted. It covers manual-lock mounting, hydraulic-lock mounting (optional), and the necessary precautions — engine off, circuit pressure relieved, quick couplings clean and protected — before any attachment change. Technical specifications and load charts for winches, jibs, buckets, forks carriers and other attachments are included so the operator can match the attachment to the working conditions and stay within the machine’s rated capacity.

Why This Handbook Matters

Operators who understand the load chart and the anti-tipping safety system avoid the most common cause of telescopic handler incidents. Mechanics who work from the documented capacities, torques, pressures and service intervals avoid the guesswork that leads to premature wear on chains, pads, cylinders and the hydrostatic drive. This handbook is the single reference that keeps a Manitou MRT 1742 M Series running within its design limits — and the load chart, the safety system key, the fuse tables and the lubrication schedule are all documented here rather than being scattered across a dozen aftermarket notes.

Delivered instantly as a PDF after checkout — no shipping, no waiting. The file can be read on a laptop, tablet or phone in the cab, printed out section by section for the workshop, or kept on a USB stick in the machine’s document holder so it is available whenever it is needed. If you own, operate or service a Manitou MRT 1742 M Series, this user handbook gives you the full manufacturer’s reference in one file.
