Massey Ferguson 5465 SISU Tier3 Parts Catalog PDF Download – 3906306M5

Description

Published as document 3906306M5 (edition M5, dated 12/13), this is the illustrated parts catalog for the Massey Ferguson 5465 tractor fitted with the SISU Tier3 Common Rail engine. Across 793 pages it pairs exploded assembly drawings with tabulated part numbers, quantities and change notes for the whole machine. The catalog is multilingual: the contents header itself reads CONTENTS / SOMMAIRE / INHALT / CONTENUTO / SUMARIO, and every part list carries its designation in English, French, German, Italian and Spanish, so the same PDF serves a parts counter in any of those five markets.

This is the parts catalog, not the workshop manual. It tells you which part goes where, what it is called, and what its reference number is; service procedures, torque values and adjustment specs are not part of this document.

File Details

• Manual type: Illustrated tractor parts catalog
• Brand / model: Massey Ferguson 5465, SISU Tier3 Common Rail
• Document number: 3906306M5
• Edition: M5 (0)
• Publication date: 12/13
• Languages: English, French, German, Italian, Spanish
• Page count: 793
• File format: PDF

Chapters Covered

The catalog follows the standard AGCO group layout, with the top-level groups listed below in the order the book presents them.

• General Information, Symbols and Group Index
• Recommended Stocking Parts
• Marketing Key Parts Index
• Changes After Previous Publication Index
• Numerical Part Number Index
• Dealer Stocking List
• Engine & Equipment
• Clutch
• Transmission
• Rear Axle
• Linkage
• PTO Drive Mechanism
• Front Axle
• Hydraulic
• Electrical Equipment & Instrument Panel
• Electronic Equipment
• Body
• Cab
• Wheels
• Repair Kits

Front Matter, Stocking Lists and Indexes

The opening 100 pages set up how to use the catalog. General Information and Symbols explain how to read each illustration and list, including the convention that a quantity marked X means “as required”. Group Index Alpha and the multilingual contents page give you the section map. Recommended Stocking Parts and the Dealer Stocking List (the Handlerbestandsliste / Lista Stock Iniziale / Lista de Piezas para Concesionario page) name the o-rings, seals, bearings, fuses, relays, switches, thermostats, filters and sensors AGCO expects a dealer to hold, with the quantity used per assembly. The Changes After Previous Publication Index flags what moved since the last edition, the Marketing Key Parts Index highlights the parts the sales and parts teams will quote most often, and the Numerical Part Number Index lets you jump from a part number straight to the illustration where it belongs.

Engine & Equipment – Group 10

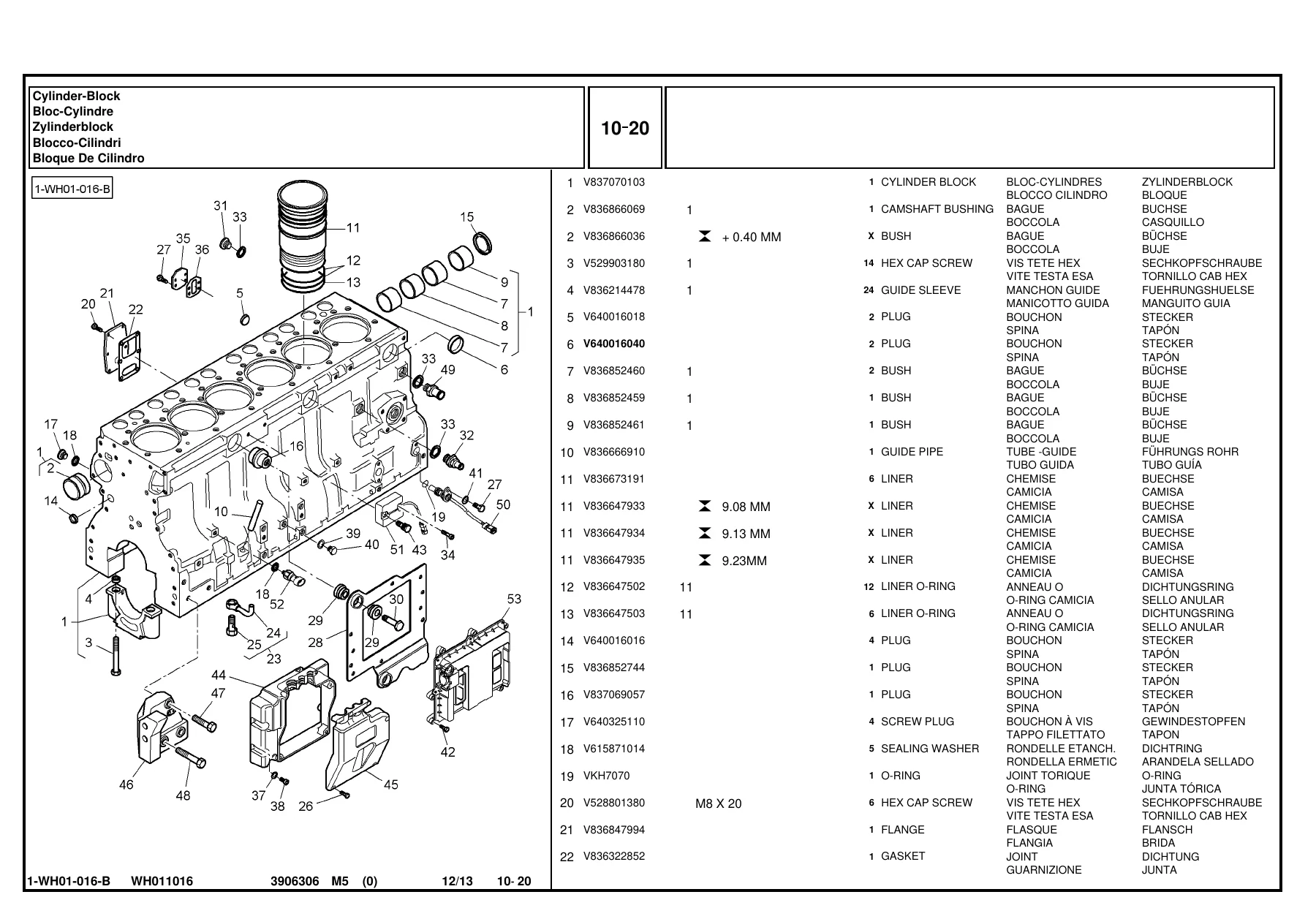

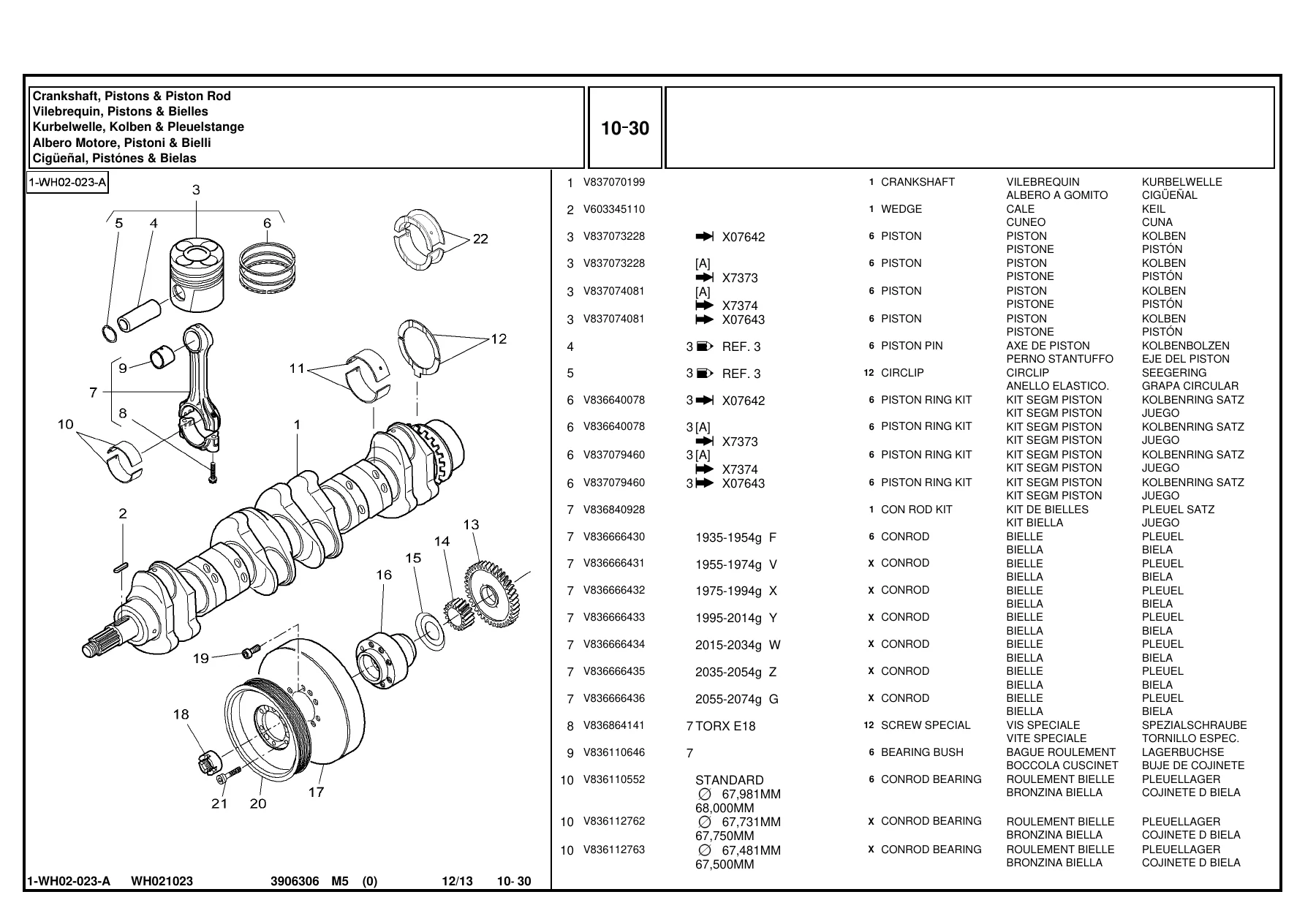

Roughly 60 illustrated pages cover the SISU Tier3 Common Rail engine and everything bolted to it. Exploded views with part numbers appear for the cylinder block, crankshaft, pistons and connecting rods, cylinder head, valve mechanism, timing gear housing, oil sump, oil cooler and filter, water pump, injection system, air compressor, low-pressure fuel system, air induction and exhaust, turbocharger, electronic engine management, gaskets, repair kits and the air preheater. You will not find torque figures or clearances here – those belong in the workshop manual – but you do get every part number and quantity needed to rebuild or reseal each subassembly.

Clutch and Transmission – Groups 20 and 25

The clutch section covers the wet clutch with power shuttle and the double clutch, together with the clutch pedal and linkage. Transmission is the biggest single group in the catalog. It breaks down the housing, module powershift, dual clutch, reverse gear, layshaft, output shaft, synchro, cover, creeper gear, super creeper gear and transmission control. Where an assembly has more than one build, the catalog inserts a note (for example load sensing up to or from a given tractor serial, or a specific powershift module variant) so you can match the part to the machine in front of you.

Rear Axle, Linkage and PTO – Groups 30, 40 and 50

The rear axle group covers the centre housing, hydromechanical differential lock, short rear axle housings, inner final drive gears and the 5″ differential on its own page. Linkage is one of the deepest sections in the catalog: lift cylinders, lift cylinder feeding, levelling box, top links with hook or ball end, top link lock, lower bars, tube stabilizers, automatic stabilizers, drawbar, swinging drawbar variants, pickup hitch, Dromone automatic hitch, and the front linkage 28000n and 40000n options. The PTO group covers the shaft, two-speed and four-speed drive mechanisms, IPTO clutch, cable and mechanical PTO controls, and the proportional PTO drive.

Front Axle – Group 60

Both two-wheel drive and four-wheel drive front axles are covered. For 4WD the catalog separates the fixed axle from the suspended axle, and within each variant it breaks down the bracket, guard and transmission shaft, clutch, differential, differential lock and final drive. Pivoting and rigid front mudguard sets get their own pages, including the wheel-hub fixing options, distance spacers for wide track settings and the steering cylinder.

Hydraulics, Steering and Brakes – Group 70

The hydraulic group is enormous. It covers the open-centre and load-sensing pumps, right and left covers in their different flow configurations (including the 100 l/min twin-flow open-centre version), lift valve, lift cover, auxiliary distributors in 2, 3 and 4 bank layouts, front linkage hydraulic lines, oil cooler, steering pump, steering hydraulic lines, oil filters, trailer brake valve and both pneumatic and mechanical trailer braking. Steering columns, wheels, brake pedals and trailer electric sockets feed out of this group too.

Electrical and Electronic Equipment – Groups 80 and 90

The electrical section covers batteries and cables, engine harness, instrument panel and instrument panel harness, sensors, roof harness (with United States and Europe-specific variants), field light harness, front and rear lighting harness, and the 7-pin trailer socket. Electronic equipment covers the main harness, electronic lift, console, control box, control box harness, cab controls, and the inductive, speed, pressure and position sensors used by the engine and lift management.

Body, Cab and Wheels – Groups 100, 110 and 130

The body group contains the grille, engine bonnet, side panels, tool box, steps and emblems. The cab group is effectively a catalog inside the catalog – cab mountings (flat-bottom and suspended variants), doors, glass, windows, windscreen wiper mechanisms, roof, roof hatch, high-visibility roof, rear window wiper, sun visors, canopy, heating, air conditioning, cab filter, heater control, radio installation, electrical plug, mirrors, seat, seat belt and secondary seat. Wheels cover front rims for 2WD and 4WD, rear rims (DW, DWW and TW profiles), wheel weights, wheel wedges and distance spacers for wide track settings.

Repair Kits – Group 145

Group 145 collects the repair and overhaul kits under one roof – centre housing, double clutch, gear box for power shuttle and input box – so you can buy a single kit number instead of chasing every gasket, o-ring and snap ring individually.

What This Catalog Lets You Do

With the 3906306M5 catalog open you can identify any part on the Massey Ferguson 5465 SISU Tier3 by illustration reference and pull its number in seconds, then order exactly the piece that belongs to the machine in front of you – not a similar-looking neighbour from a different serial range. That matters on a Tier3 Common Rail tractor, where the same casting can appear with two different internals depending on build, and where a wrong seal or a wrong powershift valve body turns a two-hour job into a two-week wait. The exploded views also give you a realistic picture of how deep a job goes before you start: what has to come off, what stays on, and which bolts, dowels and o-rings you will need before the spanners come out.

This is a digital PDF, delivered instantly after payment. There is no shipping, no waiting for a disc and no single-device limit – open it on a workshop laptop, on a phone beside the tractor, or on a tablet on the bench. Print the pages for the job you are on, mark them up, and recycle them when the machine is back together. Every illustrated group and every part index is in the same file, so you can jump from an exploded view to the numerical index and back without flicking between volumes.
