Massey Ferguson MF6180 Tractor Parts Catalog Manual 1637279M8 PDF

Description

The Massey Ferguson MF6180 Parts Catalog

A comprehensive illustrated parts reference covering the complete MF 6180 tractor. Document number 1637279M8, edition (1) dated 03/99, this catalog provides exploded-view diagrams and detailed part listings across every major assembly on the machine. Whether you are ordering replacement components, verifying part numbers before a rebuild, or identifying exactly which variant fits your serial number range, this PDF catalog gives you the visual and numerical reference to get it right the first time.

File Details

• Manual Type: Parts Catalog
• Brand: Massey Ferguson
• Model: MF 6180
• Document Number: 1637279M8
• Edition / Date: (1) 03/99
• Language: Multilingual (English, French, German, Italian, Spanish)
• File Format: PDF
• Page Count: 827 pages

Chapters Covered

The catalog is organized into major assembly groups, each with illustrated breakdowns and part number tables:

• Engine — Fan drive, cylinder block, crankshaft, pistons and connecting rods, cylinder head, rocker shaft, turbocharger, inlet and exhaust manifold, air induction and exhaust system, timing gear and camshaft, fuel injection equipment, lubricating oil filler and breather, lubricating oil sump, oil filter and integral cooler, water pump, thermostat and heat exchanger
• Fuel System — Low pressure fuel system, fuel tank and attachments, fuel flowmeter, pipes with thermostart, additional tank
• Cooling System — Radiator, air conditioned installation, Sanden compressor, system refrigeration
• Electrical Equipment — Alternator, starter, batteries and cables, instrument panel and instruments, lighting equipment front and rear, field lights, rotating light, working light, electrical wiring, harnesses, sensors, control box, electronic lift, aboard computer, printer, radar
• Clutch — Wet clutch, clutch pedal and linkage, master cylinder, clutch control
• Transmission — Housing, speedshift, dynashift, reverse gear, main shaft, countershaft, output shaft, 8-speed transmission, 16-speed transmission, transmission control, shift lever, fork, gear selection, electric reversing gear, creeper gear, heavy duty transmission, synchro heavy duty transmission, input shaft with synchromes, output shaft, differential lock mechanism
• Rear Axle — Centre housing, differential, hydromechanical lock, short rear axle housings, inner final drive gear, repair kits, rear axle differential, differential lock mechanism
• Front Axle — 2-wheel drive and 4-wheel drive, clutch, differential, final drive, differential lock mechanism, guard and transmission shaft, steering cylinders, housing, front axle 4wd, differential, final drive, mudguards and supports
• Hydraulics — Hydraulic lift cover, lift cylinders, linkage, top link, drawbar, swinging drawbar, automatic hitch, hydraulic lift valve, auxiliary hydraulic valve lines, distributor, hydraulic pump, hydraulic cover left and right, hydraulic lines, oil cooler, low pressure distribution valve
• Steering — Steering wheel and column, steering pump, steering hydraulic lines, steering cylinders
• Brakes — Handbrake, mechanism, master cylinder, brakes operating, trailer brakes, hydraulic brakes, brake valve, pedals
• Cab — Frame, doors, windows, side window mechanism, rear window mechanism, roof, heating hatchway, air hatchway, fenders, cladding, cab insulation, heater, air conditioner, heater hoses, windscreen washer, windscreen wiper, rear window wiper, sun shield, radio installation, watch, electrical plug, cigar lighter and ashtray, internal mirrors, external mirrors, seat, seat belt, secondary seat, cab mountings and step
• Platform — Platform with pillars, platform without pillars, instrument panel cladding, cladding, mountings and step, roof, mirror, decals
• Linkage — Lift cylinders, top link with ball end, top link with hook end, top link, drawbar, lower with ball, bottom bar with automatic hook, hitch bar with telescopic end, swinging drawbar, roller swinging drawbar, cramer hitch, lemoine, tube stabilizers, drawbar, automatic hitch, front linkage, lifting arms, hydraulic
• PTO — PTO shaft, independent power take off clutch, PTO-drive mechanism, two speed, four speed, gear selection, PTO-disconnectable drive mechanism, PTO-coupling drive mechanism, driving lever, PTO control, PTO-proportional drive mechanism, cable control, PTO-drive mechanism, PTO guard, reverse drive front PTO, drive, front PTO, housing, lines, harness
• Wheels and Weights — Weight frame and tow pin, belly weight, bracket, front axle, rims and wheels weights, mudguards and supports, rear wheels, wheel wedges
• Accessories — Tool box, weight frame and tow pin, grille, hood, cab mountings and step, emblems, decals, safety decals, speed charts

What This Parts Catalog Gives You

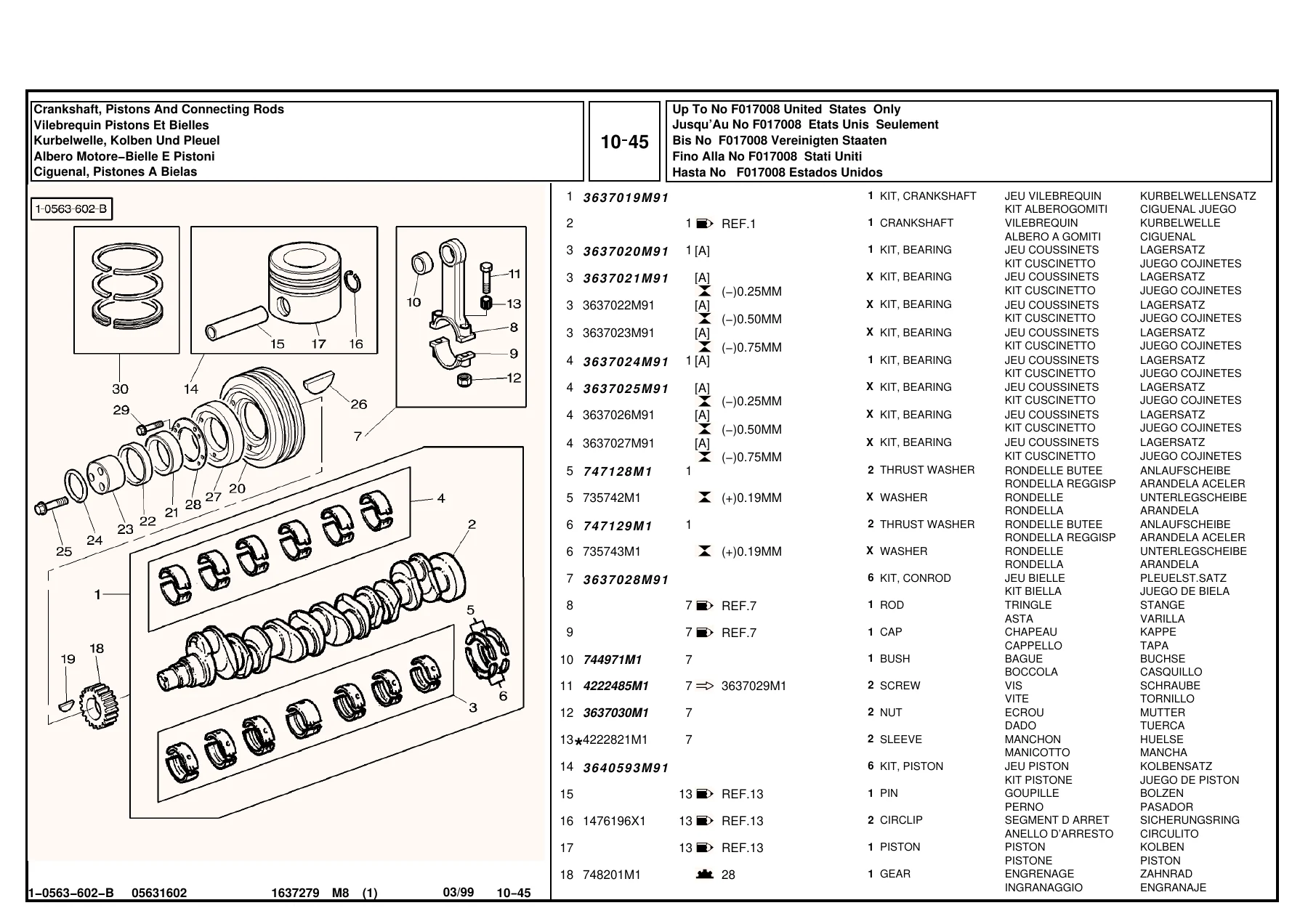

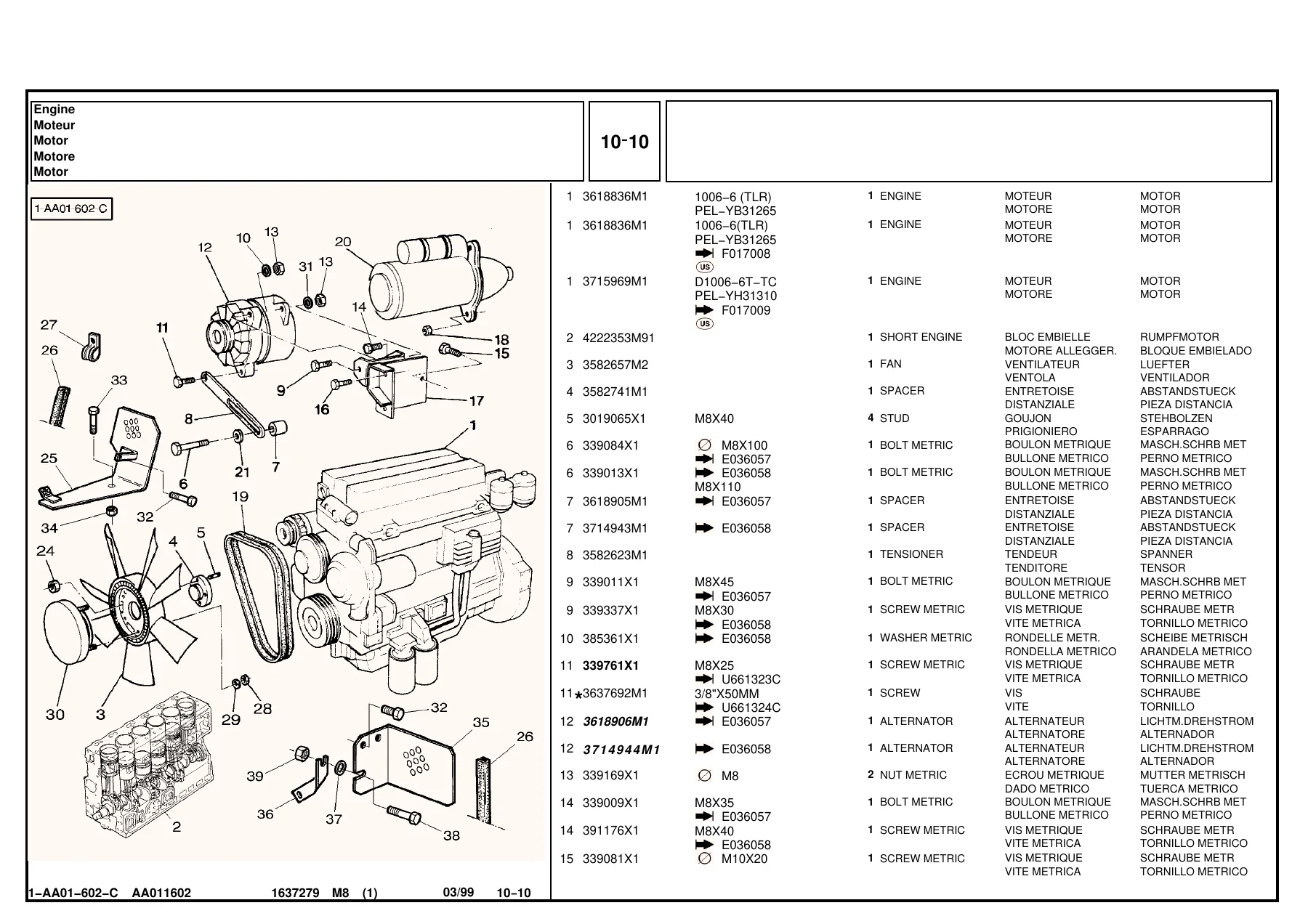

This is not a generic overview or a condensed aftermarket guide. It is the complete illustrated parts breakdown for the MF 6180, organized the way a parts counter or workshop actually uses it. Each assembly group opens with an exploded-view drawing showing every component in its correct position, followed by a part number table that ties each callout to its specific part number, description, and quantity. That structure lets you trace a component from the illustration directly to the number you need to order or cross-reference.

For anyone maintaining, repairing, or restoring an MF 6180, the value is in the specificity. Engine internals, hydraulic valve bodies, transmission gear trains, axle differentials, cab electrical harnesses, PTO clutch packs — each is broken down to the individual part level. You can identify exactly which seal, bearing, gear, shaft, or housing belongs to your machine without guessing or relying on generic parts diagrams that may not match your tractor’s build configuration.

IMAGES PREVIEW

Who This Manual Is For

This parts catalog suits:

• Tractor owners who need to order the correct replacement part the first time
• Workshops and mechanics who rebuild, service, or repair MF 6180 tractors
• Parts departments and dealers who need a reliable visual and numerical reference
• Restoration projects where identifying original component configurations matters
• Fleet maintenance operations managing multiple MF 6180 units

Why the Right Parts Reference Matters

Ordering the wrong part costs time, freight, and sometimes a second teardown. With this catalog, you match the illustration to your machine, confirm the part number, and order with confidence. The exploded views also help during reassembly, showing how components stack, seal, and fasten together — a practical advantage when a repair has been apart for days or weeks. For aging equipment, having the correct parts breakdown is often the difference between a quick fix and a prolonged search for discontinued or misidentified components.

Delivery

This Massey Ferguson MF6180 Parts Catalog is delivered as an instant PDF download after payment. No shipping, no waiting for a physical book. The file opens on any device — desktop, laptop, tablet, or smartphone — and can be printed if you prefer a paper copy in the workshop. The 827-page catalog is fully navigable, letting you jump to the section you need and work directly from the screen or a printed page.

Whether you are maintaining a single MF 6180 or servicing several, this illustrated parts catalog gives you the complete component reference for the machine — engine to cab, front axle to rear hitch, every major assembly documented with the part numbers and visual breakdowns you need to keep the tractor working.
