New Holland T9040 Parts Catalog — Complete 4WD Tractor Component Reference

This parts catalog covers the New Holland T9040 4WD tractor along with the T9030, T9050 and T9060 models, giving parts personnel, mechanics and owners a single reference for identifying and ordering components across the entire machine. Every illustrated section breaks assemblies down into individual part numbers, making it straightforward to trace a failed component back to its exact replacement. The catalog follows the 4WD tractor as built from August 2007 onward, including the serial number breakpoints that affect which parts apply to a given machine.

File Details

• Manual type: Parts Catalog
• Brand: New Holland
• Models covered: T9030, T9040, T9050, T9060
• Tractor configuration: 4WD, ASN (8/07- )
• Language: English
• Page count: 598
• File format: PDF

Chapters Covered

• Air Induction System — air cleaner assembly, prescreener, intake tubes, aspirator hoses, hood supports
• Engine Assembly — complete engine assemblies and overhaul kits
• Cylinder Block & Related Parts — block assembly, liners, plugs, dowels, seal rings
• Oil Sump & Related Parts — sump assembly, gaskets, spacers, mounting hardware

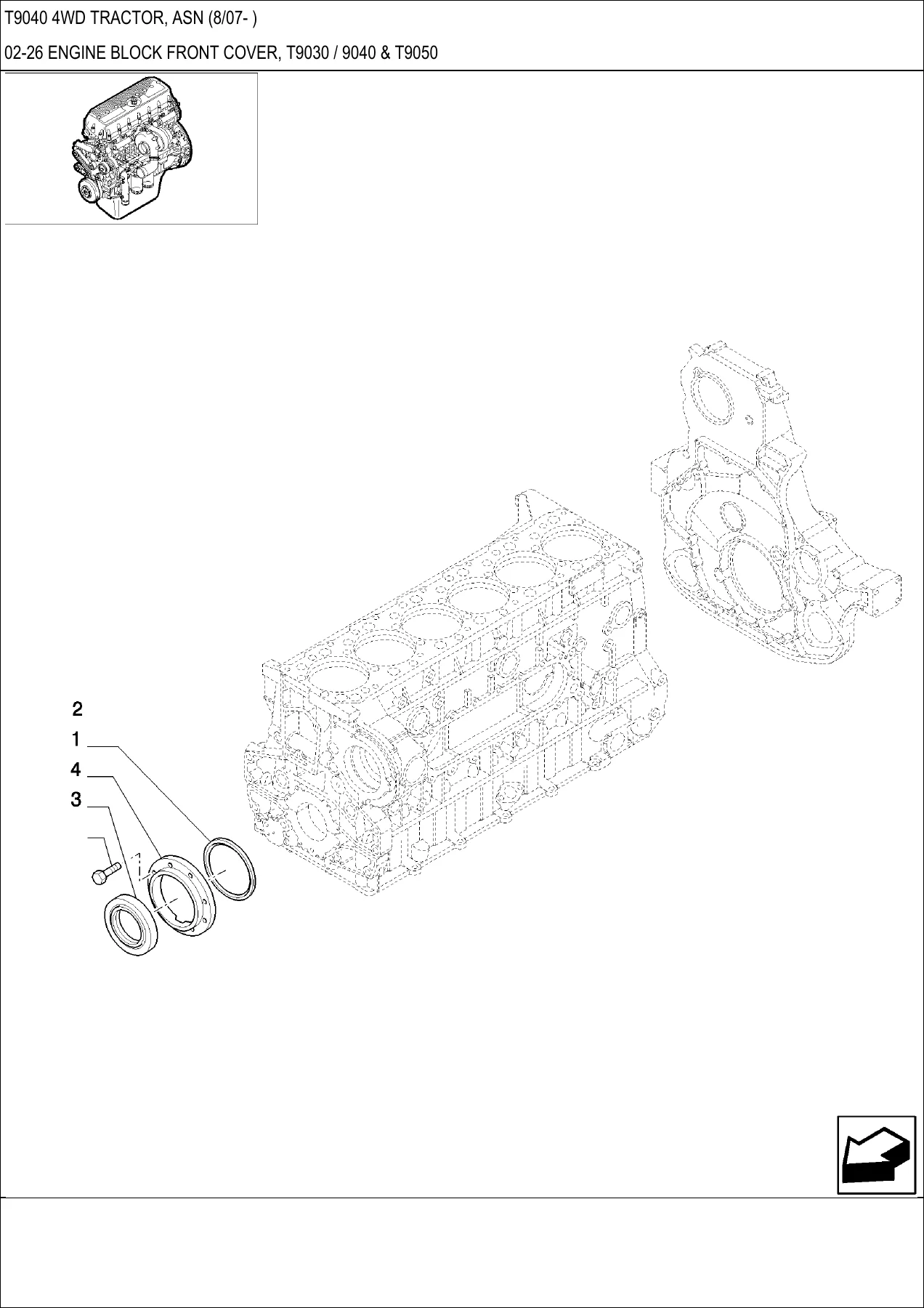

• Engine Block Front Cover — cover, seals, screws
• Engine Mounting — right and left mounts, supporting brackets
• Engine Breathers — cover, gaskets, filter element
• Cylinder Barrel Lubrication Nozzle — oil jet nozzle

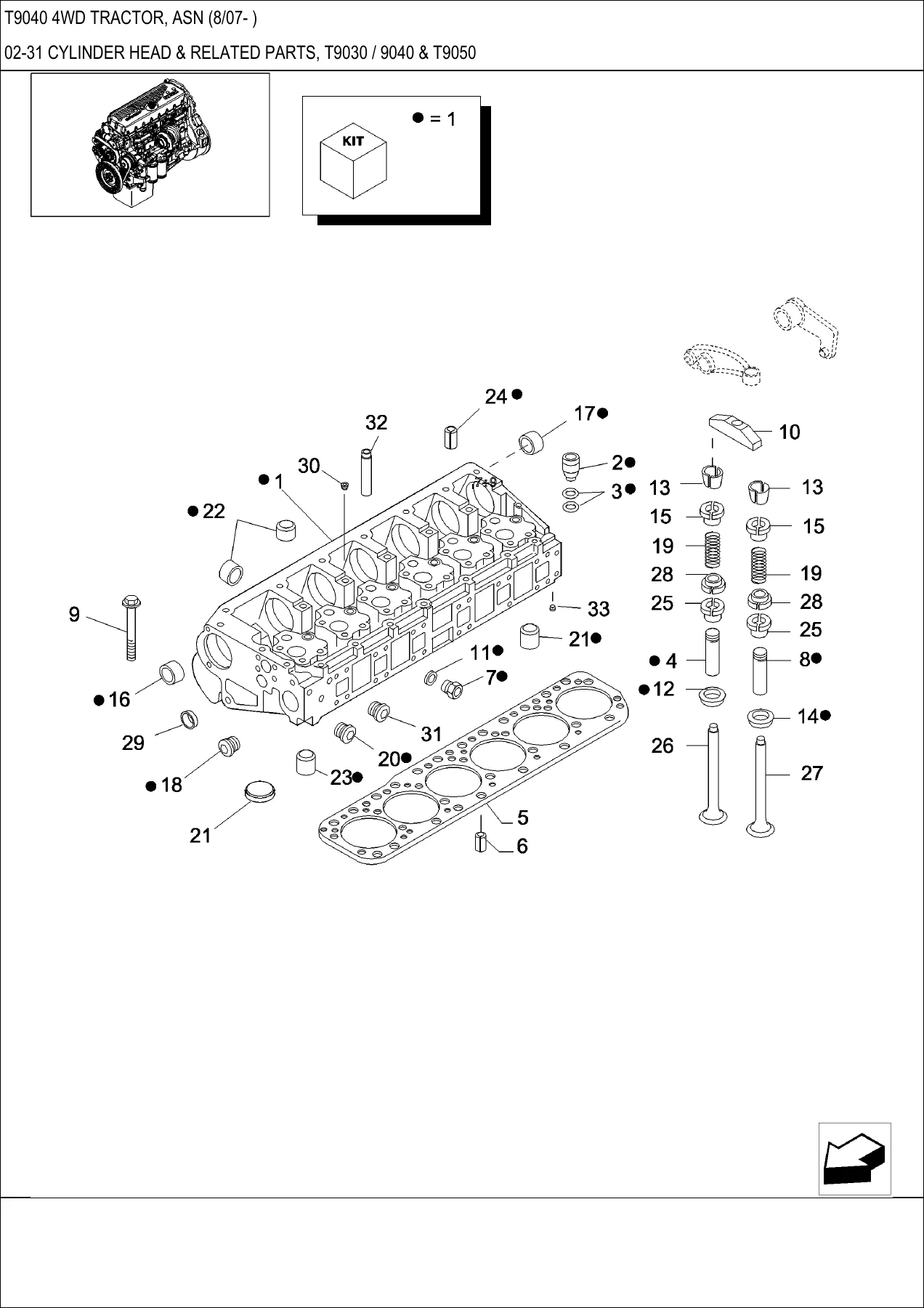

• Cylinder Head & Related Parts — head assembly, valves, guides, springs, rocker components
• Head Cover — cover and related hardware
• Shaft & Rocker Arms — rocker arm assemblies, shafts, screws, bridges
• Exhaust Manifold — manifolds, studs, gaskets, spacers
• Crankshaft & Related Parts — crankshaft assembly, gear, thrust washers, main and connecting rod bearing sets
• Connecting Rod — connecting rod assembly and bearings
• Piston — piston assemblies, pins, rings, liners
• Flywheel — flywheel assembly, ring gear, screws
• Belt Pulley Drive & Cover — tensioner, pulley, belt, idler, support
• Damper — damper, screws, spacer
• Intermediate Controls — idler gear, bushing, pin, bracket
• Intake Manifold — gaskets, elbow, grid heater, relay, bracket
• Turbocharger Mounting — turbocharger, gaskets, studs, nuts
• Turbocharger Pipes — tube, gaskets, fittings, clamps
• Engine Oil Pump & Related Parts — pump, safety valve, gasket, screws
• Auxiliary Pump, Engine Oil — auxiliary oil pump and related parts
• Filter Engine Oil — oil filter, connectors, head, gaskets, plugs
• Oil Pressure Regulation Valve — valve, gasket, screws
• Oil Pump Piping — strainer, tubes, seals, screws
• Heat Exchanger — oil cooler, heat exchanger, internal unit, o-rings, valves
• Water Pump & Related Parts — water pump, gasket, screws, belt
• Water Pump Pipes — pipe, gasket, screws
• Piping — Engine Cooling System — coolant piping components
• Temperature Control (Thermostat) — thermostat, plug, gasket, fitting, screws
• Starter Motor — starter motor, studs, nuts, cover, screws
• Engine Exhaust Brake — plug assembly, screws, o-ring, springs, spacers
• Hooks — Engine — load hooks, eye lifting, screws, bolts
• Engine Control Unit — electronic control unit, bracket, gasket, screws, isolators

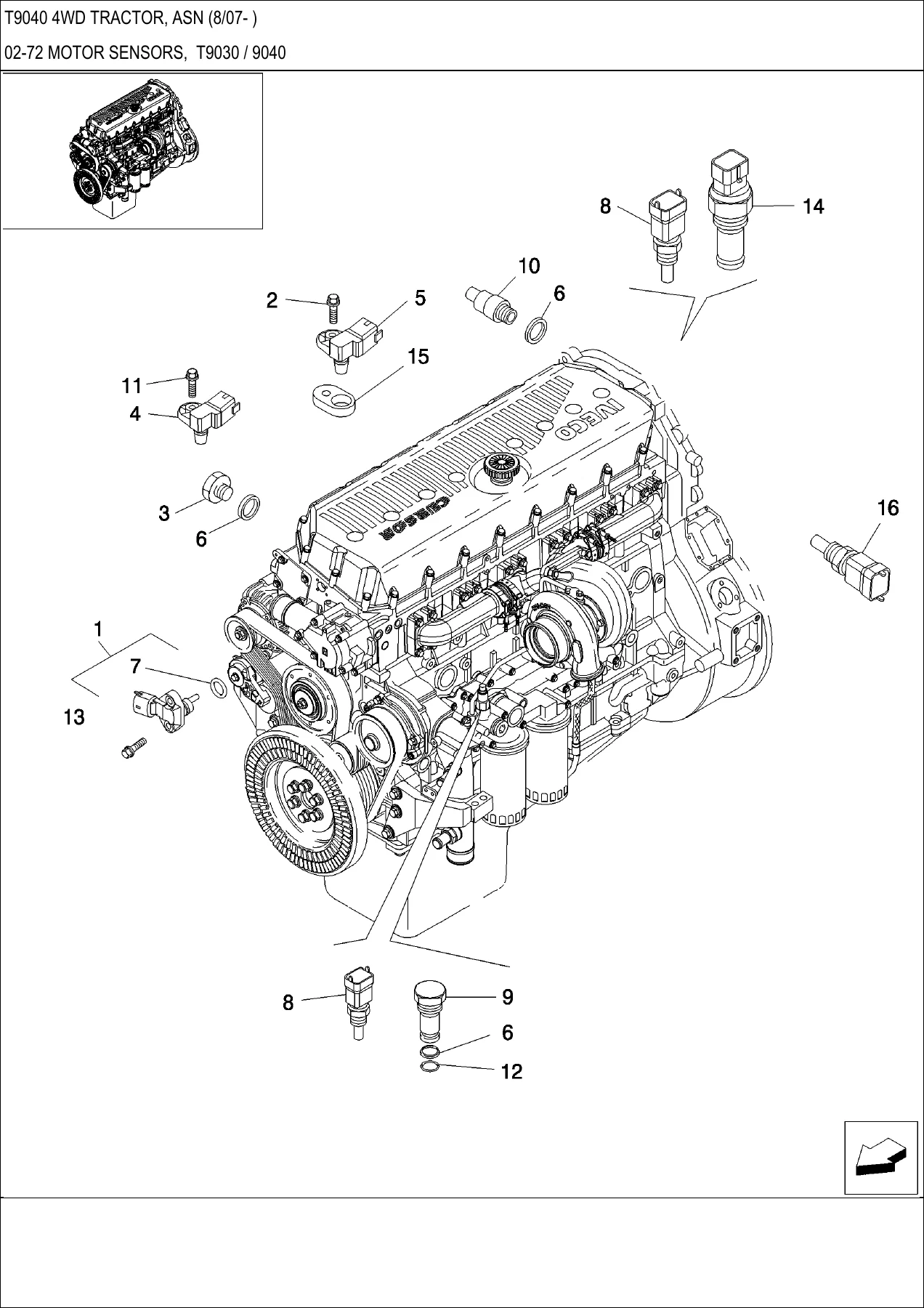

• Motor Sensors — oil pressure sensor, temperature sender, coolant sensor, crankshaft speed sensor, connectors
• Harness — Engine Electrical — engine harness, wire harness
• Throttle – Decelerator Control — rod, pedal, lever, spring, potentiometer, bracket, harness
• Fuel Lines — fuel pump, hoses, fittings, clamps, filter, valves, sight gauge
• Injector & Related Parts — injector assembly, washer, screws, bracket, repair kit
• Fuel Filter & Related Parts — head, plug, fitting, filter
• Fuel Pump & Related Parts — fuel pump, gasket, screws
• Transmission and Throttle Control — handle, decals, connectors, bracket
• Transmission Shift Controls — bellcrank, support, cranks, ball joints, rods, bushings
• Shifting Unit Assembly — panels, levers, linkages, springs, brackets
• Clutch Pedal — pedal, cable, spring, clevis, switch, bearing
• Wheels — rims, spacers, bolts, valve stems, hubs
• Hub Assembly Mounting — hub, bushing, bolts, pins, keys
• Drive Shaft Mounting — drive shafts, damper, bolts, bearings
• Drive Shaft — input shaft, front axle shaft, articulation shaft, rear axle shaft
• Power Takeoff — clutch lubrication, valve assembly, drive shaft mounting, transfer case, clutch assembly, input shaft, safety shields
• Transmission Mounting — plates, washers, bolts, mounts, nuts
• Transmission Lubrication — oil pump, hoses, tubes, connectors, brackets, sight gauge
• Manual Shift Transmission — valve assembly mounting, covers, yokes, rear housing, front housing, shafts, forks
• Power Shift Transmission — valve and pump mounting, covers, yokes, rear housing, housings and clutches, input shafts, second through fifth shaft assemblies, regulator valve, range selector valve
• Axle Mounting — bolts, washers, nuts, plates, spacers
• 450 Series Axle Assembly — front cover, rear cover, center and left-hand carrier, differential (with and without diff locks), brake and right-hand carrier, final drive
• 500 Series Axle Assembly — front cover, rear cover, center and left-hand carrier, differential (with and without diff locks), brake and right-hand carrier, final drive
• Axle Assembly — Jet Pump — lube pump, jet pump, o-rings, plugs
• Brake Control — pedal, support, switch, valve, clevis, rod
• Brake Valve Assembly — housing, seals, springs, spools, switches
• Axle Hydraulics — service brake circuit, park brake circuit (with and without differential locks), lubrication circuit, air and lubrication circuit, cooling circuit
• Valve Assembly — Differential Lock — cartridge, coil, o-rings
• Hydraulic Oil Cooler — cooler, hoses, connectors, o-rings, clamps
• Hydraulic Oil Cooler Mounting — angle, o-rings, washers, bolts
• Oil Filter — Axle and Transmission — sender, head, indicator, filter
• Oil Filter — Main Hydraulics — filter assembly, head, indicator, element
• Hydraulic Tank — tank, ladders, steps, filter, strainer, cap, breather, cover, fender
• Standard Hydraulics — pump lubrication circuit (manual and power shift), pump mounting, piston pump assembly
• High Output Hydraulics — pump lubrication (manual and power shift), pump mounting, piston pump assembly, gear pump assembly
• Hydraulic Remote Hoses — brackets, clamps, hoses, fittings
• Hydraulic Remote Control Valve — bolts, washers, clamps, elbows, plugs
• Manifold Valve Assembly — sections, o-rings, brackets, bolts, plugs, screens
• Remote Valve Assembly — Electronic Controlled — manifold, break-away coupling, main valve, auxiliary valves, hitch valve
• Coupler Valve Assembly — body, seals, screws, covers, couplings
• Main and Auxiliary Valve Assembly — Electronic Remote — bodies, spools, springs, solenoid valves, piston assemblies, load check valves
• Hitch Valve Assembly — Electronic Remote — housing, spool, coils, poppets, plugs, seals, kits
• Motor Return — body, cap, couplings, fittings, hoses
• Couplers — Power Beyond — bodies, caps, couplings, fittings
• Coupler Mounts — mounting parts, washers, bolts
• Three Point Hitch Hydraulics — cylinders, tees, elbows, hoses, tubes
• Cylinder Assembly — Three Point Hitch — barrel, piston, seals, rod, bushings
• Hydraulics — Mega Flow Circuitry — pump, tubes, hoses, flanges, brackets, filters
• Mega Flow Hydraulics — auxiliary remote mounting, manifold assembly, pump assembly, oil filter
• Trailer Brakes — Hydraulic — valve section, studs, hoses, tubes, couplings
• Hydraulics — Parallel Flow Circuitry — pump, tubes, hoses, flanges, brackets, filters
• Three Point Hitch — mounting parts, rockshaft, draft arms, pins, blocks, plates, cylinders
• Rockshaft — rockshaft, bushings, nipples, elbows, hoses
• Three Point Hitch — Upper Link (with and without PTO)
• Link Assembly — Upper and Lift
• Quick Hitch — coupling, hook, blocks, pins, latch, springs
• Drawbar — Heavy Duty (with and without Three Point Hitch), Reynolds
• Cab Mounting — nuts, mounts, washers, bolts
• Interior Trim — covers, consoles, brackets, mats, decals, fasteners
• Cab — Floormats and Doors — mats, carpets, frame, seals, doors, windows, latches, dampers
• Door Assembly — door, window, handle, latch, armrest, gas spring
• Cab — Skirts and Glass — brackets, skirts, covers, glass, insulation, foam
• Roof — lamps, brackets, roof, decals, mounts
• Cab — Headliner and Control Panel — panel, headliner, domelights, mirror, visors
• Console — Right-Hand Armrest (manual and electric)
• Front Console — vents, console, support, actuator, switches, foam, decals
• Mirrors — interior, manual arms, electric mirrors, switches
• Seat — Non-Instructional, Instructional, Operators, Cushion Assembly, Suspension Assembly, Semi Active Suspension
• Front Frame — frame assembly, bumpers, screens, covers, steps, fenders, shields
• Battery Door — cover, steps, hinges, plates
• Grille — door, frame, rod, bushings, seals, arm assembly, levers
• Hood and Support — hood assembly, insulation, arms, latches, screens, mounts
• Hood — Lift Arm — arm, brackets, clevis, springs, pins
• Center Link — link assembly, bearings, bushings, pins, covers
• Rear Frame — frame, fuel cap, fenders, bearings, flanges, spacers, shields, lamps
• Heater — Hoses — end fitting, o-rings, hoses, tubes, clamps
• Air Conditioning System — compressor, condenser, receiver-dryer, hoses, switches, clamps
• Air Conditioning — Ducts — housing, bracket, seal, gasket, hoses, filter, duct, insulation
• Air Conditioning — Air Filter Housing Assembly
• Air Conditioning — Blower Assembly
• Air Conditioning — Climate Control Unit with Auto Temp Control
• Compressor, Air Conditioning — compressor, screws, spacer, washer, bracket, belt
• Compressor Components — clutch, mounting hardware
• Monitor Mounting — mounting parts, brackets, U-bolts, tubes
• Storage Box — box, hinge, step, brackets, strips
• Weights — Front Frame, Rear Frame, Wheel
• Tow Cable — shackle, plate, links, cable assembly, hook, latch
• Fire Extinguisher — bracket, hardware
• Decals — Hood, Safety, Warning, Emblem, Fuse/Relay, Hydraulic Oil Level, Climate Control
• Dealer Stock — Mandatory and Recommended Stocking Lists

Altogether this parts catalog gives you the full component hierarchy of the T9040 and its siblings. Each section lists reference numbers, part numbers, quantities and descriptions, and the illustrated exploded views show how the pieces fit together. That combination is what makes a parts catalog genuinely useful in the shop — you can identify a part from the diagram, cross-check it against the listing, and order the right number the first time.

What This New Holland T9040 Parts Catalog Lets You Do

Whether you are rebuilding an engine, tracing a hydraulic leak, replacing a worn axle component or simply ordering a replacement filter, this catalog puts the part identification in your hands. The coverage spans from the cylinder head down to the wheel weights, so a single PDF handles the whole machine rather than sending you hunting through separate engine, transmission and chassis books.

Having the correct part numbers on hand matters because these tractors use specific hardware, seals and assemblies that are not interchangeable with other models. The exploded illustrations show assembly order and component relationships, which is especially useful for the complex hydraulic manifolds, transmission clutch packs and axle differentials covered here. The serial number breakpoints noted throughout the catalog help you confirm which revision applies to your particular T9030, T9040, T9050 or T9060.
