McCormick CX CX SWB MC MTX XTX TTX Operation and Maintenance Supplement Manual

Description

McCormick CX, CX SWB, MC, MTX and XTX-TTX Operation and Maintenance Supplement Manual

Issued by Argo Tractors S.p.A. and released in December 2009 under publication number 4210 026M1, this McCormick CX CX SWB MC MTX XTX TTX Operation and Maintenance Supplement Manual brings together the model-wide supplement and the operator’s manual chapters for the CX, CX SWB, MC, MTX and XTX-TTX tractor families. It is the document that lives in the cab storage pocket — the one an owner reaches for when a warning lamp appears, when a service interval falls due, or when a new operator needs walking through the controls before being trusted with a machine in the field.

Because the same file serves a compact CX90 utility tractor, an MTX150 row-crop machine and a TTX230 heavy draught tractor, the content is arranged so that model-specific figures sit inside a common structure. Where a value or procedure differs between the CX, MC, MTX and XTX-TTX ranges, the text says so; where it does not, one set of instructions covers the whole family. That structure is what makes this supplement genuinely useful rather than a generic tractor guide — it was written by the people who built the machines, for the people who run and service them.

File Details

• Manual type: Operation and maintenance supplement, issued with the operator’s manual
• Brand / publisher: McCormick — Argo Tractors S.p.A., Fabbrico (RE), Italy
• Models covered: CX, CX SWB, MC, MTX, XTX, TTX
• Language: English
• Page count: 338
• File format: PDF
• Publication number: 4210 026M1
• Release: 12/2009

Chapters Covered

• Introduction, tractor identification and warranty
• Safety notes and safety alert symbols
• Safety decals — positions and meanings
• Safety during use
• Safety during maintenance
• Maintenance MC110-115-130 and XTX-TTX
• Specifications
• Lubricants and capacities
• To the owner, product identification and serial numbers
• Important information for EEC member states
• Safety precautions — personal safety, transporting passengers, operation, PTO operation, highway and public road operation
• Neutral start system, operator presence system, leaving the tractor, implements, service
• Hazardous chemicals, fire or explosion prevention, battery safety
• Safety decal locations and Roll Over Protective Structure (ROPS)
• Operating controls — tractor access, operator’s seat, steering column adjustment
• XtraSpeed transmission controls and operator cab environment controls
• Rear view mirrors and additional cab features
• Instruments and programming — instrumentation, indicator lamps, clock settings, cluster contrast and brightness, universal data display
• Operation — before starting the engine, run-in procedure, starting procedure, cold temperature operation
• Stopping the engine and parking the tractor, master disconnect switch
• Operating the XtraSpeed transmission — mechanical, XtraSpeed-E and XtraSpeed-Eplus electronic, creeper operation
• How to transport the tractor, drawbars, height adjustable trailer hitches, Auto Hitch, implement and trailer drawbar dimensions
• Trailer brake couplings, auxiliary electrical power sockets, implement cable access
• Field operation — rear power takeoff, front power takeoff
• Rear three point hitch preparation and operation
• Operating in position control, load control and ride control
• Differential lock control, mechanical front drive (MFD) operation and independent front suspension
• Front hitch and remote hydraulic valves
• Tyres, wheels and ballasting — tyre inflation specifications, pressures, load capacities and service
• Setting the front wheel toe-in, axle steering stops, 2WD front axle tread adjustment
• MFD front wheel tread widths, front wheel bolt torques, front to rear tyre size combinations
• Front wheel fenders, rear wheel tread adjustment, rear wheel bolt torques
• Tractor ballast — front end weights, rear wheel weights, liquid ballast, weight distribution and wheel slip
• Routine maintenance — recommendations before you service, service access, tool box
• Lubricants and capacities, service hourmeter, service indicator lamps and gauges
• Interim service and regular service intervals — 10, 50, 100, 250, 500, 1000 and 2000 hour services
• General maintenance and putting the tractor into storage
• Electrical system — batteries and fuse location and identification
• Technical specifications — diesel engine, electrical system, general machine, travel speeds, approximate tractor dimensions, weights and noise levels

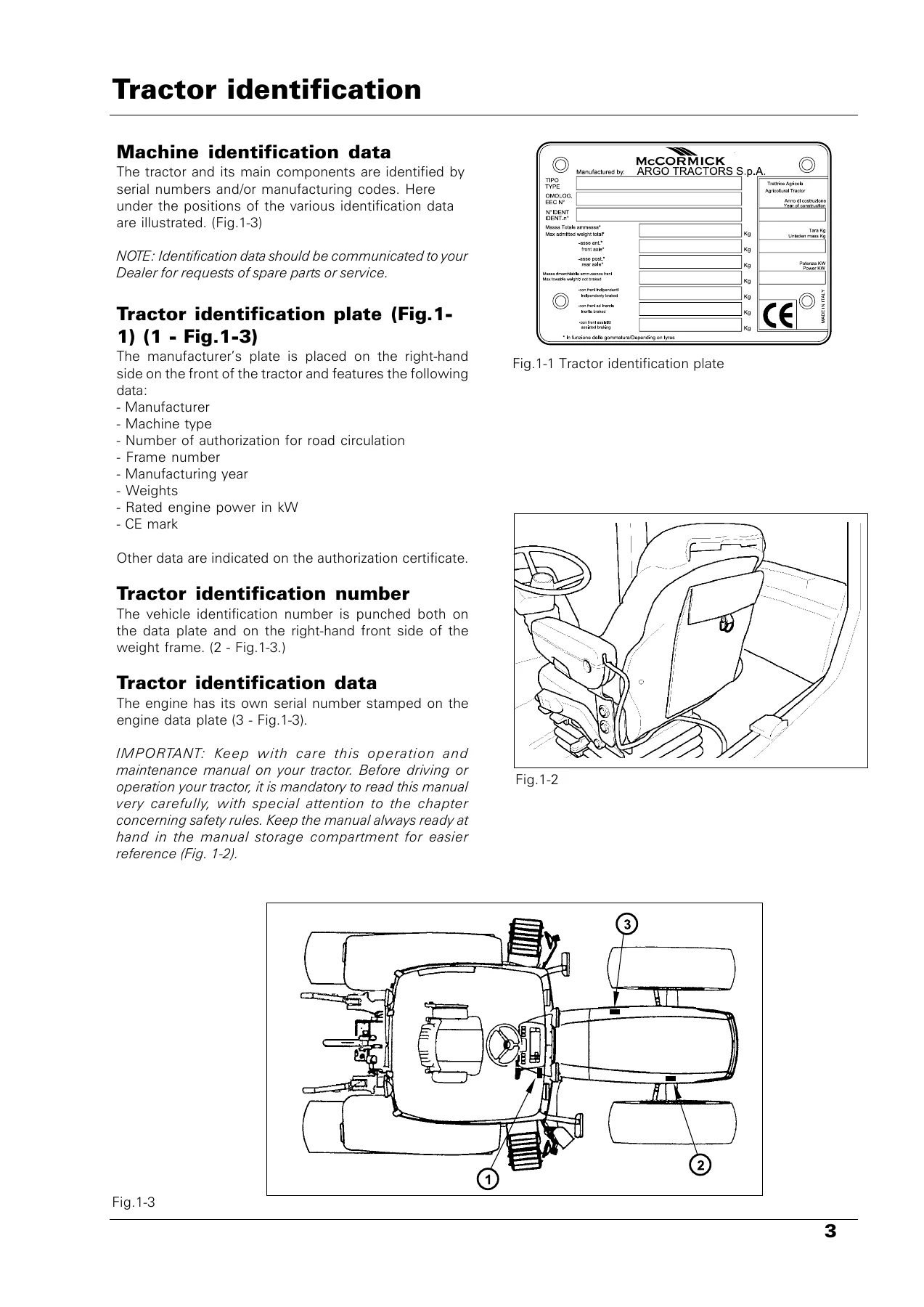

Read as a whole, the McCormick CX CX SWB MC MTX XTX TTX Operation and Maintenance Supplement Manual covers the complete ownership cycle of these tractors. It opens with the identification data — where the manufacturer’s plate sits, where the frame number is punched, where the engine data plate lives — then moves through the safety material that governs how the machine should and should not be used. From there it works into the cab: seat and steering column adjustment, the layout of the instrument panel, the XtraSpeed transmission controls, the heating, ventilation and air conditioning settings, and the way the digital instrument cluster is programmed and read. The operation chapters then cover everything from a cold start in sub-zero temperatures through to drawbar and hitch setup, PTO engagement at 540, 540E and 1000 rpm, three point hitch position and load control, differential lock, mechanical front drive, independent front suspension and remote hydraulic valve operation. The final third of the document is the part most owners keep coming back to: the routine maintenance schedule broken down by service hour, the lubricant and capacity tables, the electrical system fuse charts, and the technical specifications tables with travel speeds for every transmission range and tyre size combination.

Safety Material That Actually Matches the Machine

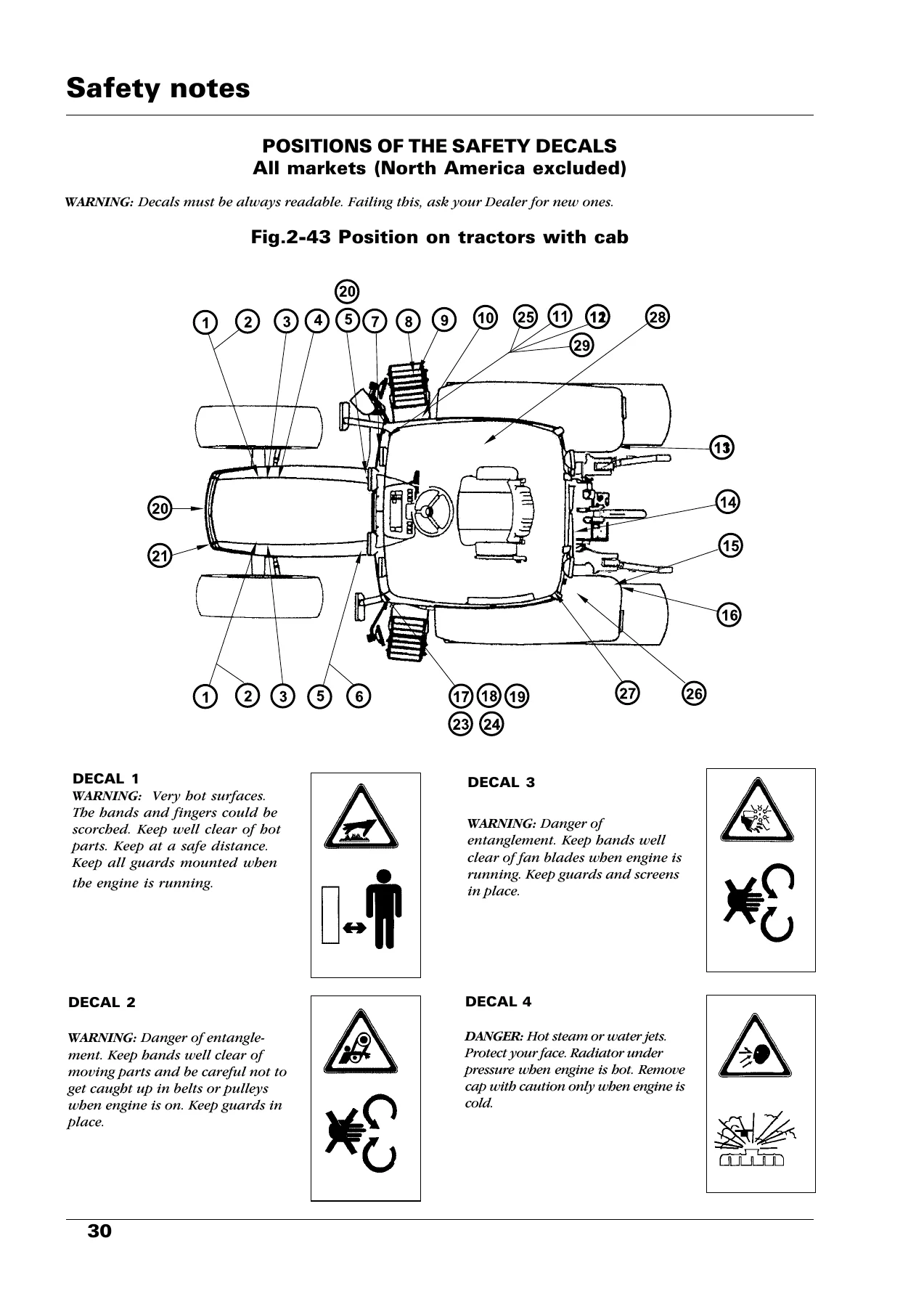

The safety section is not a generic list of warnings copied from a template. It is tied specifically to the CX, CX SWB, MC, MTX and XTX-TTX cab configurations, including the distinction between the De Luxe cab with FOPS protection against objects falling from above and the Low Profile cab, which offers no such protection. The decal position diagrams show exactly where every warning decal belongs on the tractor, so a machine that has lost or faded decals can be brought back to a compliant state. There is dedicated coverage of the operator presence sensor built into the seat cushion, the neutral start system in the forward/reverse shuttle circuit, the seat belt requirements for ROPS-equipped machines, and the restrictions on carrying passengers outside the designated passenger seat.

Maintenance and Service Intervals

The service schedule runs from a 10 hour or daily check through to the 2000 hour main service, with clear separation between what an owner can handle in the yard and what belongs with a dealer. Engine oil and filter changes, fuel filter and fuel/water separator servicing, air filter cleaning and replacement, transmission and hydraulic oil changes, axle and planetary oil levels, brake checks, belt tension checks, battery electrolyte levels and seat belt inspection are all laid out with the intervals at which they should be carried out. The lubricants and capacities chapter names the correct fluid for each system — engine oil, transmission and hydraulic oil, front axle and planetary gear oil, front PTO oil, coolant mix ratios and grease types — along with the fill quantities for the XTX145-165-185 and TTX190-210-230 variants.

Specifications and Reference Data

The technical specifications chapter covers the diesel engine, electrical system, brakes, differential lock, drawbar and hitch load limits, hydrostatic power steering, transmission options, front and rear hitch lift capacities, remote hydraulic pump output, front and rear PTO speeds, approximate tractor dimensions for 2WD and MFD machines, and unladen and maximum permitted operating weights. Travel speed tables are given for every transmission range and powershift gear across the common rear tyre sizes, so an owner can work out actual ground speed for a given gear and tyre fitment. Tyre pressure, load index and speed code tables are included, along with the correct front-to-rear tyre combinations for MFD and independent front suspension tractors.

Why This McCormick CX CX SWB MC MTX XTX TTX Operation and Maintenance Supplement Manual Belongs on Your Tractor

With this supplement on hand you can carry out the full routine service schedule yourself — oil and filter changes, fuel system priming, air filter servicing, transmission and hydraulic oil changes, axle and planetary oil checks, brake and belt adjustments — using the intervals and fluid specifications the manufacturer set for these machines. You can diagnose why a warning lamp has come on by working through the indicator lamp and fault code tables, check fuse assignments in the electrical system chapter, and set up a new implement correctly using the three point hitch, drawbar, PTO and hydraulic valve procedures. You can ballast the tractor properly for the work in front of it, set tyre pressures and tread widths to match the load, and know the travel speed you are actually running at in each gear.

That matters because the wrong fluid, the wrong torque, the wrong hitch height or an incorrectly ballasted tractor does not just cost money — on a working farm it costs a day of lost work and, in the worst cases, an injury. Having the procedures and the numbers in front of you removes the guesswork.

The file is delivered instantly as a PDF after checkout. There is no shipping, no waiting for a parcel, and no need to keep a paper copy in the workshop where it will get oil on it. Open it on a laptop in the yard, on a tablet in the cab, or on a phone at the back of the machine, and print the pages you need for the job in front of you. Keep the file on your device and you have the full McCormick CX CX SWB MC MTX XTX TTX Operation and Maintenance Supplement Manual available whenever the tractor needs attention.
