Moto Morini X-Cape 650 Workshop Service Repair Manual 04/2022

Description

The Moto Morini X-Cape 650 Workshop Service Repair Manual 04/2022 is a detailed technical reference for inspection, maintenance, diagnosis, disassembly, repair, adjustment and reassembly of the X-CAPE 650 motorcycle. Extending to 345 pages, it moves from routine service operations into EFI troubleshooting, engine and gearbox work, chassis systems, braking, suspension, steering, electrical diagnosis and vehicle fault codes. The manual is identified as Rev. 03, dated 04/2022, with document code X4544151.

File Details

• Manual type: Workshop Manual
• Brand: Moto Morini
• Model: X-CAPE 650
• Language: English
• Pages: 345
• File format: PDF
• Revision: Rev. 03
• Date: 04/2022
• Document code: X4544151

Workshop-Level Maintenance and Repair Coverage

This Moto Morini X-Cape 650 workshop manual begins with general disassembly and assembly precautions before progressing through the motorcycle system by system. Instructions are supported by photographs, component illustrations, exploded views, tightening information, inspection limits, test values and electrical diagrams. The foreword describes the manual as covering pre-delivery intervention as well as checks, maintenance, repair and replacement operations.

Routine servicing is covered in considerable detail. The maintenance chapter includes the regular maintenance program, regular inspections, throttle and idle checks, fuel-line inspection, cooling-system checks, valve-clearance inspection and adjustment, clutch checks, wheels and tyres, transmission-chain maintenance, braking-system checks, suspension and steering checks, electrical inspections and chassis lubrication. Replacement procedures include the air cleaner element, fuel line, coolant, engine oil, oil filter, brake hoses, brake fluid and spark plugs.

Service Specifications and Adjustment Data

The Moto Morini X-Cape 650 Workshop Service Repair Manual 04/2022 contains practical values used during servicing rather than only general descriptions. Examples include intake valve clearance of 0.08 to 0.13 mm and exhaust valve clearance of 0.22 to 0.28 mm, transmission-chain free play of 25 to 30 mm, CR8EI spark plugs, tyre sizes of 110/80R19 M/C(59H)TL at the front and 170/70 R17M/C(69V)TL at the rear, and detailed tyre-pressure information for rider and passenger conditions.

Fluid servicing is also documented. Cooling-system information includes a total coolant quantity of 1.6 L, coolant-flow diagrams, thermostat operation, radiator pressure testing and water-pump service. Engine-oil replacement data lists quantities of 2.0 L when the oil filter is not replaced, 2.2 L when the filter is replaced and 2.6 L when the engine is completely dry. The lubrication chapter also provides an oil-pressure test specification of 216 to 294 kPa at 4000 r/min with oil temperature at 90 degrees C.

EFI, Fuel Injection and Diagnostic Testing

A substantial section of the X-Cape 650 service manual is devoted to the electronic fuel-injection system. It includes an EFI system diagram, ECU pin information, individual sensor connectors, an EFI parameters table, maintenance tools and component-level testing. Fuel injection pressure is specified at 330 kPa, and procedures cover fuel-pressure measurement, fuel-pump flow testing, injector checks, throttle-position sensor testing, intake-air pressure and temperature sensing, water-temperature sensing, oxygen sensors, ignition coils and ECU power and earth checks.

The diagnostic procedures go beyond component removal. The manual explains voltage, resistance and continuity tests, connector and wiring checks and fault-isolation sequences. OBD operation is described together with the malfunction indicator system, and the later diagnostics chapter contains vehicle diagnostics and an error-code list. This makes the Moto Morini X-Cape 650 repair manual useful when a fault requires electrical measurement and circuit tracing rather than simple parts replacement.

Engine Removal, Disassembly and Internal Inspection

The engine chapter is one of the largest portions of the manual. It includes tightening data, engine parameters, special tools, removal of the complete engine from the motorcycle, intake-system work and extensive engine disassembly and reassembly procedures. Coverage progresses through the starter motor, flywheel, ignition coils, spark plugs, cylinder-head cover, timing components, camshafts, cylinder head, clutch, cylinder block, pistons, water pump, gearbox, oil pump, oil sump, crankcases, distribution chain, crankshaft and countershaft.

Internal inspection information includes camshaft measurements, cylinder-head flatness, valve and valve-guide clearances, valve-seat dimensions, valve-spring checks, cylinder bore, piston diameter, piston-ring clearances, connecting-rod and crankshaft measurements, bearing selection information, clutch plate and spring limits, gearbox inspection and water-pump overhaul. Procedures for engine reassembly include crankshaft and balance-shaft installation, crankcase assembly, lubrication-system components, gearbox installation, piston and cylinder assembly, clutch assembly, cylinder-head fitting, camshaft timing, flywheel installation and final engine installation in the motorcycle.

Chassis, Brakes, Suspension and Steering

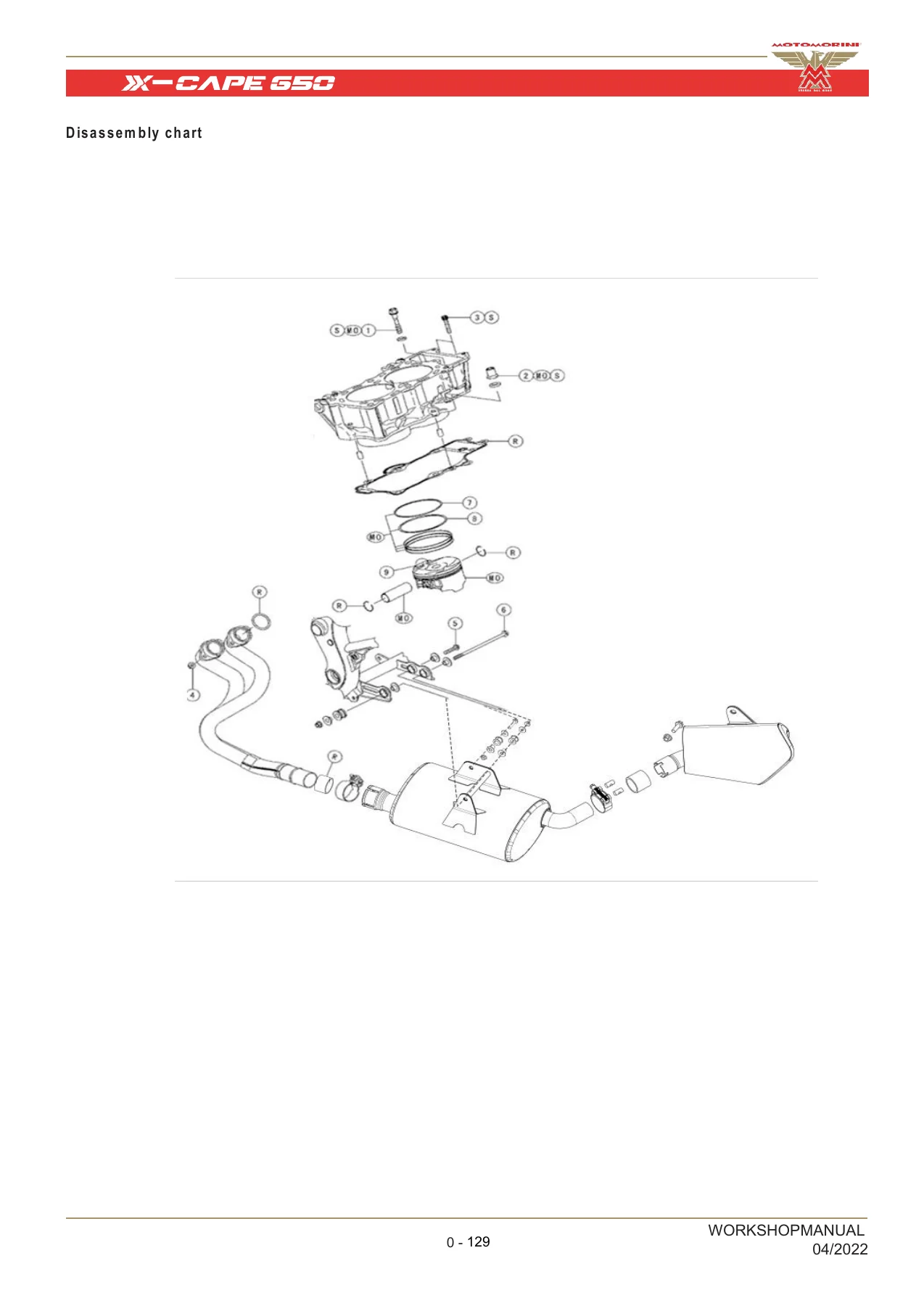

Bodywork and exhaust-system procedures show removal and installation of the windshield, fairings, fuel-tank covers, seats, fenders, headlight bracket, tail-light bracket, footrests, side stand and exhaust components. Component sequence diagrams help identify how the motorcycle is dismantled before deeper service work begins.

The wheels and tyres section covers front and rear wheel removal, wheel inspection, axle inspection, run-out limits, wheel balancing, tyre removal and installation, tyre pressures and tyre-pressure sensor coupling. Separate chapters address the front and rear sprockets and the braking system. Brake coverage includes front and rear assemblies, brake lever and pedal, calipers, pads, master cylinders, discs, brake fluid and system bleeding.

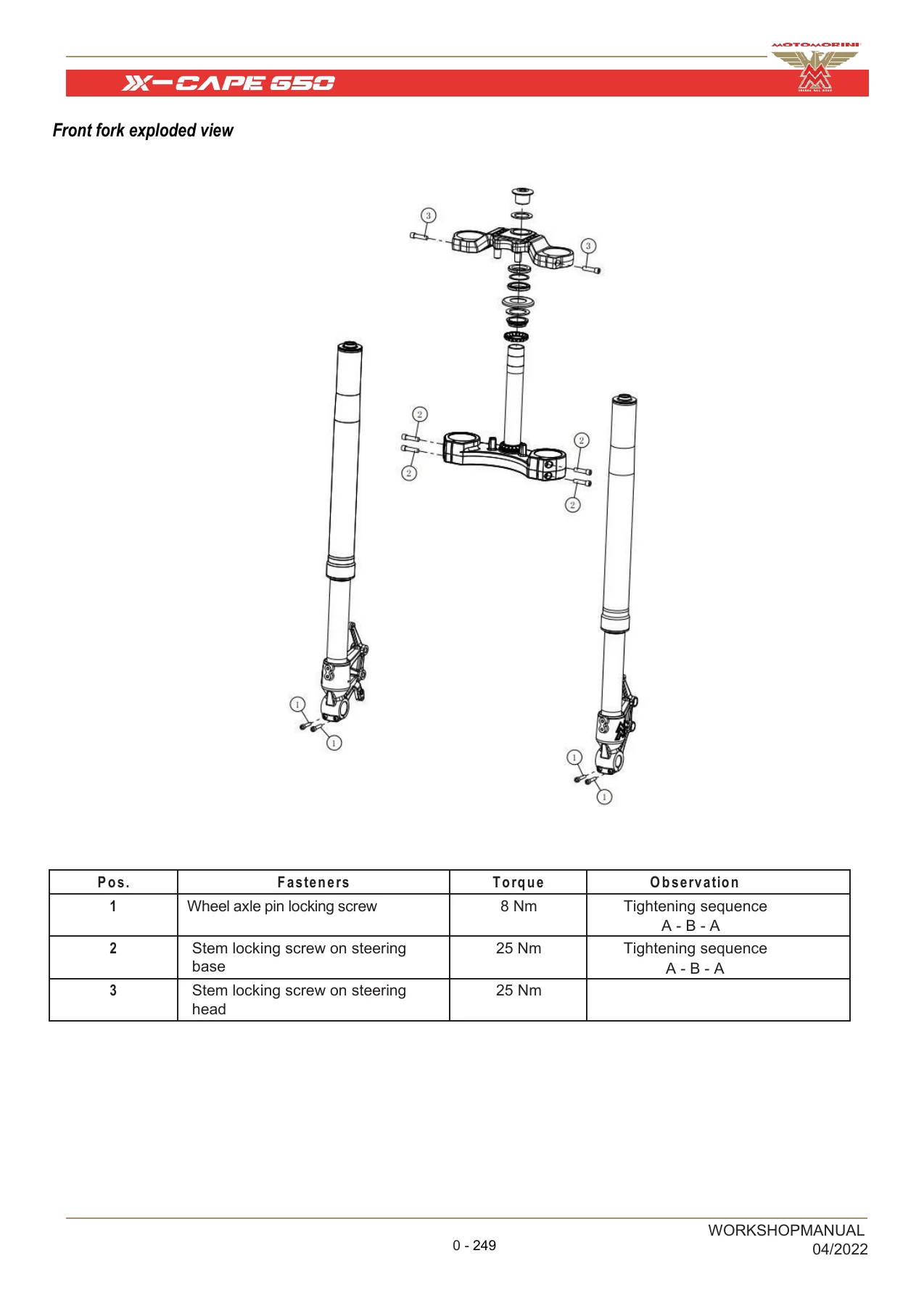

Suspension coverage includes exploded views of the front fork and rear suspension, front-fork service and rear swing-arm bearing work. The steering chapter covers steering components, bearing removal, steering-unit installation, handlebars and combination switches. These sections provide the procedures and tightening information needed when servicing chassis parts that affect handling, braking and wheel alignment.

Electrical Systems and Wiring

The electrical chapter covers the motorcycle electrical system from battery service through charging, ignition, starting, lighting, cooling-fan control, instrumentation, switches, sensors, relays and fuses. It contains electrical system diagrams, circuit diagrams and colour-coding information together with troubleshooting tables for the charging and ignition systems.

Charging-system checks include battery condition, regulator and circuit testing. Ignition coverage includes the phase sensor, ignition coils, relays and starter-system logic. Lighting sections include headlight and direction-indicator wiring, while the radiator-fan section provides its circuit connection. Instrument-cluster wiring, water-temperature sensors, speed sensors, relays and fuses are also documented. The final attachments section extends the electrical reference with additional diagrams and an electric diagram key.

Chapters Covered

• Chapter 1 – General information: disassembly and assembly precautions; symbols conversion table.
• Chapter 2 – Coverings/Exhaust system: service information; motorcycle identification; mirrors; windshield; bumpers; front, rear and under-body components; fenders; seats; headlight and tail-light brackets; side stand; footrests; exhaust muffler assembly.
• Chapter 3 – Maintenance: regular maintenance program; inspections; throttle; fuel line; cooling; cylinder head and valve clearance; clutch; wheels and tyres; transmission chain; brakes; suspension; steering; electrics; lubrication; replacement of air filter, fuel line, coolant, engine oil, oil filter, brake hoses, brake fluid and spark plugs.
• Chapter 4 – EFI system: EFI diagram; ECU and sensor information; wiring; connectors; EFI parameters; maintenance tools; EFI maintenance instructions; component repair and testing.
• Chapter 5 – Cooling system: tightening diagram; coolant-flow diagram; system operation; coolant; water pump; radiator; flexible hoses.
• Chapter 6 – Engine: disassembly diagrams; parameters; special tools; engine removal; intake system; engine disassembly and reassembly; gearbox shafts; lubrication system.
• Chapter 7 – Tyres and rims: front and rear wheels; wheel removal and assembly; wheel inspection; balancing; tyre pressure; tyre assembly; tyre-pressure sensor coupling.
• Chapter 8 – Front sprocket and rear sprocket: sprocket assembly components and special tool information.
• Chapter 9 – Front and rear braking system: brake components; specifications; special tools; brake controls; calipers; pads; master cylinders; discs; fluid and bleeding.
• Chapter 10 – Front and rear suspension: front-fork and rear-suspension exploded views; front fork; rear swing-arm bearings.
• Chapter 11 – Steering assembly: steering components; bearing removal; steering-unit installation; handlebar and combination switch.
• Chapter 12 – Electric systems: electrical diagrams; battery; charging system; voltage regulator; ignition and starter circuits; lighting; radiator fan; instruments; switches and sensors; relays and fuses.
• Chapter 13 – Diagnostics: vehicle diagnostics and error-code list.
• Chapter 14 – Attachments: electric diagrams and electric diagram key.

Taken together, the chapters provide a broad workshop reference for the X-CAPE 650, from routine inspection and consumable replacement through fuel-injection diagnosis, electrical troubleshooting and major mechanical disassembly. The combination of procedural instructions, specifications, inspection limits, tightening data, exploded illustrations and circuit diagrams allows a technician to follow the motorcycle from external body components to its internal engine, drivetrain and electrical systems.

Complete X-Cape 650 Workshop Reference in PDF Format

The Moto Morini X-Cape 650 Workshop Service Repair Manual 04/2022 is suited to owners and technicians carrying out scheduled servicing, fault diagnosis, component replacement, chassis work, brake and suspension repairs, EFI testing, electrical troubleshooting or engine and gearbox repair. Having the specified procedures, adjustment figures, inspection limits and tightening information available during the job helps reduce reliance on guesswork when dismantling, measuring, adjusting and reassembling the motorcycle.

IMAGES PREVIEW

Delivered as an instant PDF download after payment, there is no physical book and no shipping delay. Save the manual to a computer, phone or tablet for workshop access, and print individual pages or sections when a paper reference is more convenient beside the motorcycle.
