MTU 8V183 12V183 TE52 TE62 TE72 TE92 TE93 Marine Engine Operation Manual

Description

MTU 8V183 12V183 TE52 TE62 TE72 TE92 TE93 Marine Engine Operation Manual

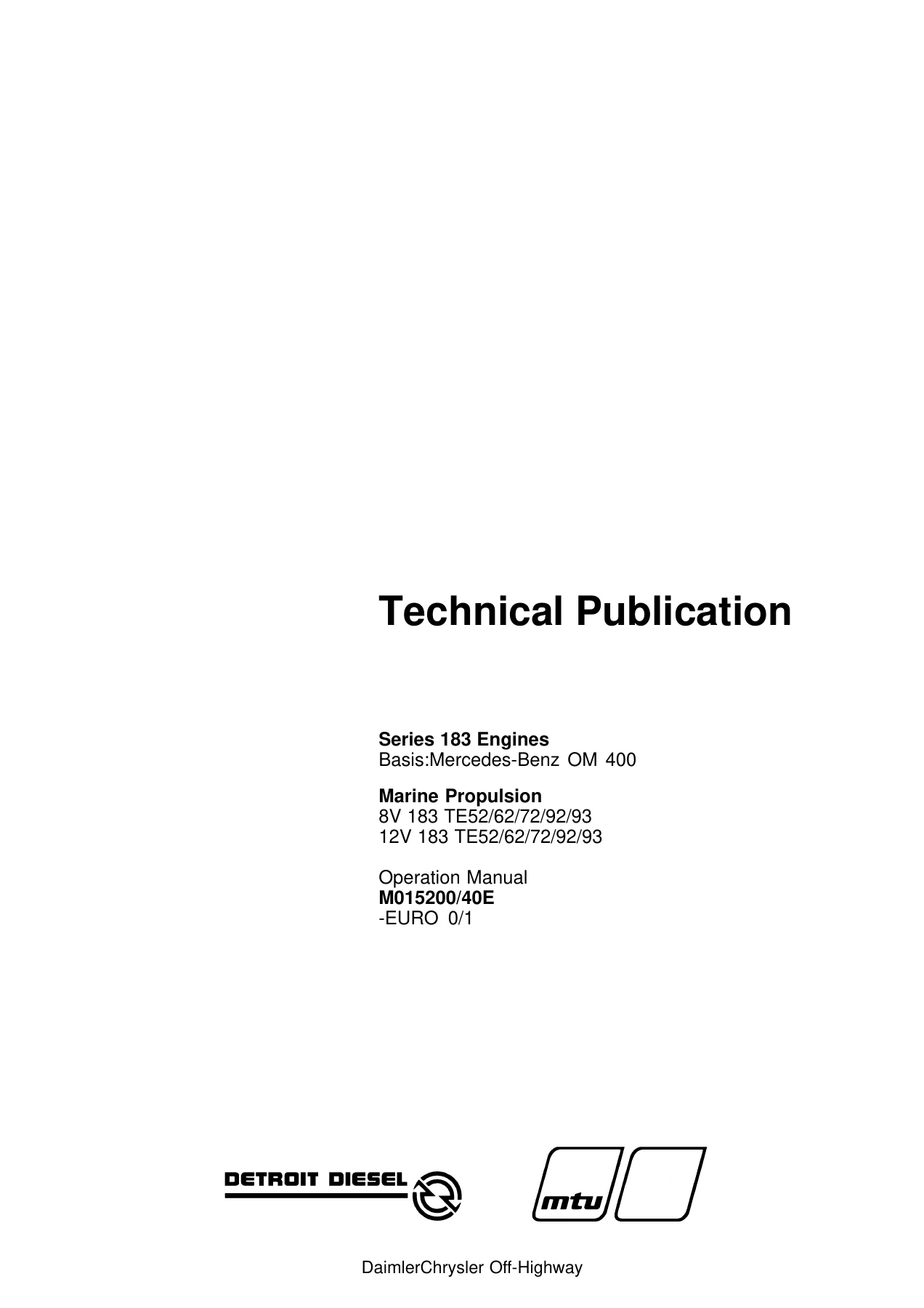

This is the complete MTU Operation Manual (publication M015200/40E, -EURO 0/1) covering the Series 183 marine propulsion diesel engines: 8V183 and 12V183 in the TE52, TE62, TE72, TE92 and TE93 variants, built on the Mercedes-Benz OM 400 base engine architecture. Whether you operate an 8V183 TE52 generator-drive engine or a 12V183 TE93 high-output propulsion engine, this MTU Marine Engine Operation Manual is the working reference for running, maintaining, and troubleshooting these units correctly across their entire service life.

File Details

• Manual type: Operation Manual
• Brand: MTU (Mercedes-Benz OM 400 basis)
• Models: 8V183 / 12V183 TE52, TE62, TE72, TE92, TE93
• Language: English
• Page count: 342 pages
• File format: PDF (instant digital download)
• Document number: M015200/40E -EURO 0/1

Chapters Covered

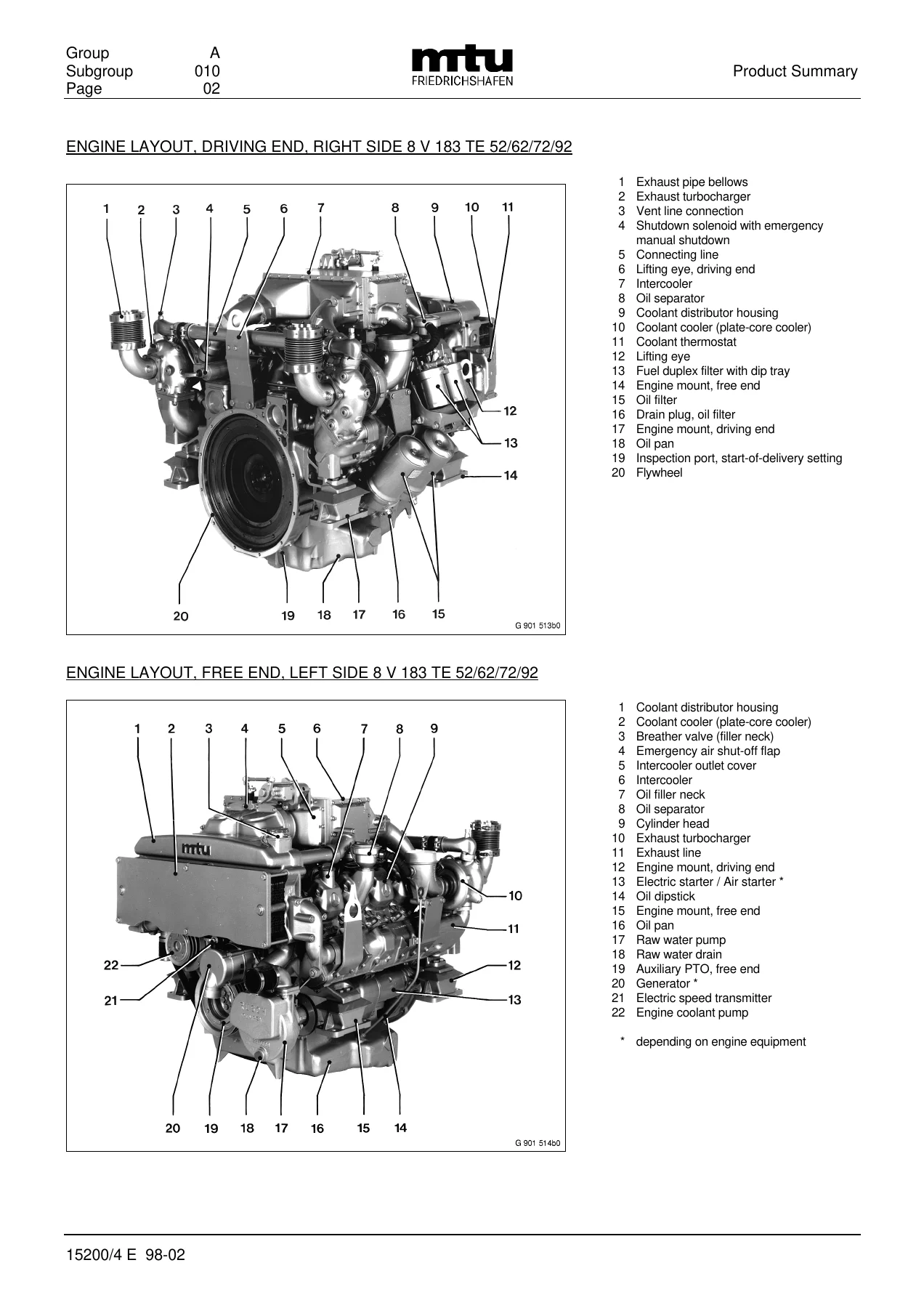

• Group A – Product Summary: engine layout and designations, engine power ratings by application group, general specifications, main dimensions, weight, coolant and oil capacity, operational pressures and temperatures
• Group B – Description
• Group C – Operating Instructions: before-operation services, engine startup, operational checks, engine shutdown, after-shutdown services, out-of-service periods, emergency measures, engine transportation
• Group D – Maintenance Schedule: MTU maintenance concept, application groups, maintenance frequency chart, maintenance task chart, echelons W1 through W6, out-of-service periods
• Group E – Troubleshooting: fault conditions, probable causes and remedies for over 20 specific malfunction codes
• Group F – Drawings: engine cross-section and longitudinal section drawings
• Group G – Task Descriptions: detailed step-by-step procedures referenced throughout the operating and maintenance sections
• Group K – Preservation: engine preservation, re-preservation, and before-operation services on a preserved engine
• Group Z – Appendix
• Alphabetical Index of key terms

Taken as a whole, this MTU 8V183 12V183 Operation Manual walks a marine engineer from correct startup sequencing for the TE-series engines through daily operational checks, the full W1-W6 maintenance echelon program, and structured fault diagnosis, closing with the long-term lay-up procedures needed to protect an engine during extended out-of-service periods.

Engine Coverage and Power Ratings

The TE52, TE62, TE72, TE92 and TE93 designations correspond to different application groups and power ratings within the same 8V183/12V183 architecture. The 8V183 TE52 and 12V183 TE52 are rated for onboard alternator drive at 300 kW / 455 kW continuous power at 1500 rpm, or 367 kW / 550 kW at 1800 rpm. On the ship-propulsion side, the TE62 delivers 365 kW (8V) / 550 kW (12V) fuel stop power at 2000 rpm, the TE72 delivers 405 kW / 610 kW at 2100 rpm, the TE92 delivers 490 kW / 735 kW at 2300 rpm, and the top-rated TE93 delivers 564 kW / 846 kW fuel stop power at 2400 rpm. This manual documents the reference conditions, general specifications, and firing order for each configuration, so the correct operating window is always at hand regardless of which TE variant is installed.

IMAGES PREVIEW

Technical Specifications Included

Beyond the power tables, the manual sets out the core engine data needed for both operation and maintenance planning: a 90-degree Vee cylinder arrangement, 128 mm bore, 142 mm stroke, 1.83 l displacement per cylinder (14.62 l total for the 8V, 21.93 l for the 12V), a 14.25:1 compression ratio, and the direction of rotation and firing order for both the 8V and 12V configurations. Valve clearance (cold engine), valve timing in degrees of crank angle, nozzle opening pressure, final compression pressure, and breakaway torque are all specified, along with main engine dimensions, dry weight, coolant capacity, oil capacity, and permissible operating inclinations for each engine size and oil pan configuration.

Operating Instructions and Daily Checks

The Operating Instructions group breaks before-operation services into three defined states – a short scheduled shutdown, an extended out-of-service period, and initial startup of a new or preserved engine – with the corresponding preparation tasks, five-digit task codes, and applicability tables for each. Engine operation, operational checks at Maintenance Echelon W1, engine shutdown, after-shutdown services, out-of-service handling, emergency measures for continuing to run through a short-term malfunction, and correct engine transportation procedures are all covered with the exact reference codes that tie back into Group G Task Descriptions.

Maintenance Schedule and Echelons

The Maintenance Schedule defines application groups 1A, 1B, 1DS, and 3A, each with its own maintenance frequency chart running from Echelon W1 (daily operational checks) through W2, W3, and W4 (periodic tasks not requiring disassembly), to W5 (partial disassembly) and W6 (complete overhaul), with operating-hour and calendar-year limits specific to each application group – for example, W6 major overhaul at 24,000 operating hours / 18 years for continuous-duty 3A engines versus 3,000 hours / 8 years for the high-load 1DS application. Every maintenance task, from fuel pre-filter cleaning and engine oil changes to turbocharger disassembly and coolant pump rebuilding, is listed against its task code and interval.

Troubleshooting Coverage

Group E Troubleshooting addresses over 20 specific fault conditions with their probable causes and remedies, including low engine coolant or oil level, abnormally high oil pressure, starting air pressure loss, an engine that turns but will not fire, erratic firing, failure to reach full-load speed, unsteady engine speed, excessive exhaust temperature, coolant temperature running high or low, oil pressure rising or falling out of range, shutdown via the emergency air shut-off flaps on overspeed, abnormal turbocharger noise, black, blue, or white exhaust smoke, fuel detected in the leak-off tank, oil or water discharge at relief bores, starter power supply faults, and low charge air pressure.

Preservation for Long-Term Storage

Group K covers full engine preservation and re-preservation procedures for engines taken out of service for more than three months, including fuel system preservation, starting system preservation, corrosion inhibitor application to the turbocharger compressor wheel, coolant system preservation, sealing the air and exhaust sides of the engine, and the corresponding depreservation steps before returning a preserved engine to service. Preservation is rated for up to 12 months under favourable storage conditions and 6 months under adverse conditions such as high humidity or a salt-laden atmosphere.

Why This Manual Matters

Operating an MTU 183-series marine engine outside its documented pressure, temperature, and maintenance limits is one of the fastest ways to shorten engine life or trigger an unplanned shutdown at sea. This Operation Manual gives the exact normal and limit values for oil pressure, coolant pressure, charge air pressure, and exhaust temperature for each TE variant, so operators and engineers can catch a developing problem before it becomes a failure. With the maintenance echelon schedule and the Group E troubleshooting tables in hand, a crew can plan servicing intervals correctly and work through a malfunction systematically instead of guessing.

What You Can Do With This Manual

Using this MTU 8V183 12V183 Marine Engine Operation Manual, you can carry out before-operation and after-shutdown services correctly, follow the proper startup sequence for a new, preserved, or freshly serviced engine, run the full W1 through W6 maintenance echelon program, diagnose more than 20 documented fault conditions using the Group E troubleshooting logic, and preserve an engine correctly for storage periods of up to 12 months. This manual downloads instantly as a PDF after purchase – no shipping, no waiting. Read it on a laptop, tablet, or phone, or print the pages you need for the engine room.
