Yanmar 6EY22LW 6EY22ALW Marine Auxiliary Engine Operation Manual

Description

Written for the engineers, superintendents and engine-room crews who run Yanmar’s six-cylinder 6EY22 series auxiliary diesels, the Yanmar 6EY22LW 6EY22ALW Marine Auxiliary Engine Operation Manual covers the full working life of the machine — pre-start checks and normal running procedures, scheduled inspection, fault diagnosis, and the disassembly and reassembly of every major component. Both the 6EY22LW and the 6EY22ALW variants are treated in full, each with its own technical data table, output ratings and operating speeds. Because this is the operation manual rather than a short owner’s booklet, the detail runs down to the hydraulic tightening pressures, valve head clearances and wear limits a workshop actually needs to keep the engine in service.

File Details

• Manual type: Operation Manual — operation, inspection and maintenance
• Brand: Yanmar
• Engine models: 6EY22LW and 6EY22ALW
• Engine configuration: Vertical, water-cooled, 4-cycle diesel, 6 cylinders, direct injection, exhaust gas turbine turbocharger with air cooler
• Language: English
• Page count: 508 pages
• File format: PDF

Chapters Covered

• Engine information — introduction, general warnings and cautions and related safety data, technical data, general data, schematic diagrams, preparation setting values, design data / tolerances check, scheduled inspection
• Engine operation — pre-operation procedure, normal operation procedures, post-operation procedure, emergency stop procedure, operation test, normal operation data sheet, general fault description
• Fuel oil, lubricating oil, and cooling water — fluids
• Cylinder block and cylinder liner — function description, inspection and maintenance, parts lists

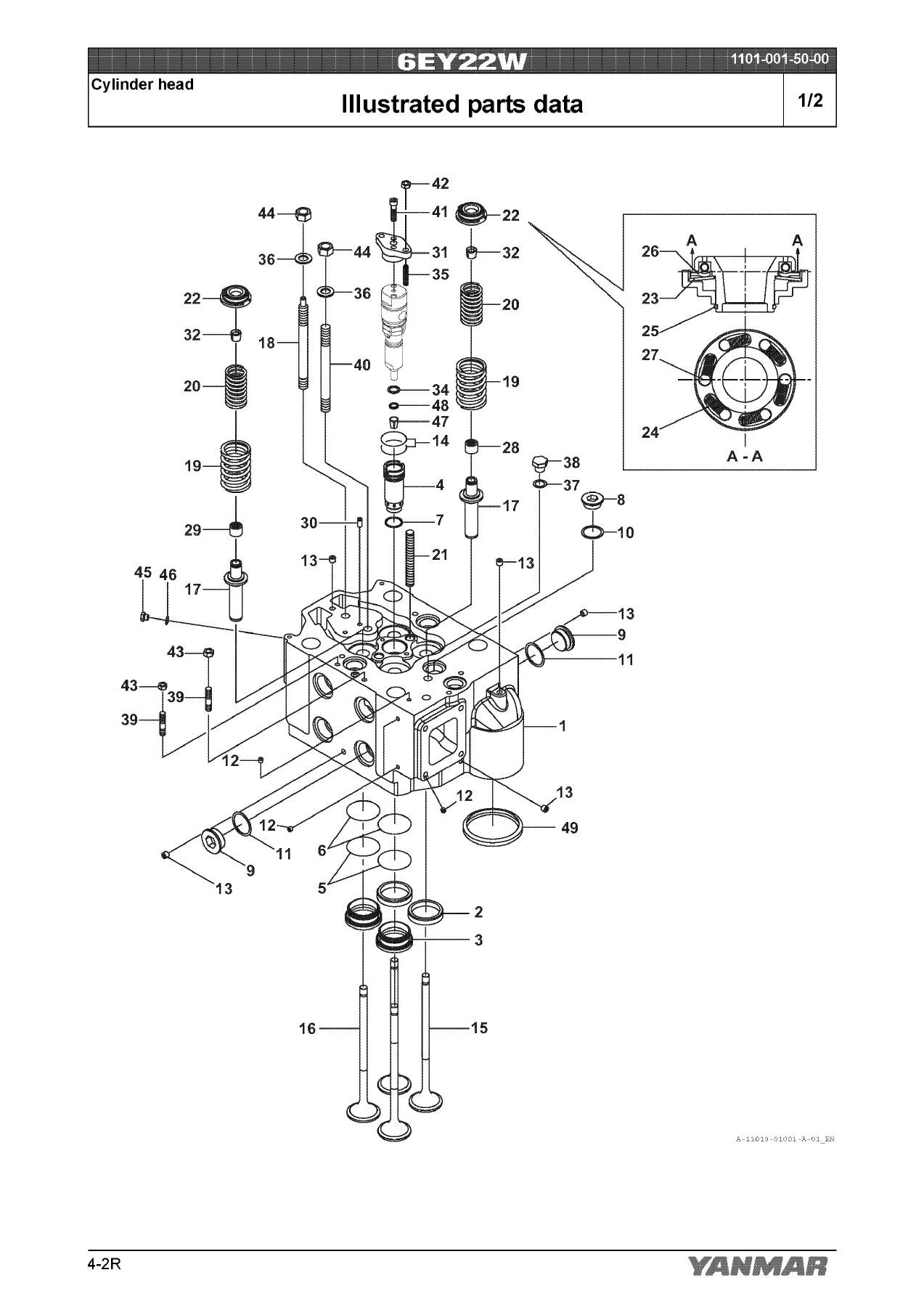

• Cylinder head — cylinder head, intake/exhaust valve, valve seat, valve guide, valve bridge guide, valve rotator, nozzle sleeve, indicator valve
• Timing gear, camshaft, and intake/exhaust swing arm
• Air cooler, exhaust manifold, and turbocharger — cleaning and inspection
• Main bearing, crankshaft, and oil sealing cover — main bearing, crankshaft, flywheel
• Piston and connecting rod
• Lubricating oil system — pump, pressure control valve, thermostat, strainer, cooler, bypass filter FM200DS
• Cooling devices — freshwater-freshwater dual cooling water system, cooling water pump, thermostat, cooling water selecting valve
• Fuel oil system — fuel injection valve, fuel feed pump, fuel injection pump, drive unit, fuel strainer, fuel oil pressure control valve, seal pot, float switch
• Governor and governor drive unit — NZ, UG-8 and UG-25+ governors, speed control device, start/stop handle
• Special attachments — stop solenoid valve, operating station selector, pressure gauge, digital thermometer, fuel injection volume control air piston and stopping air piston
• Starting device — air starting pipe device
• Disassembly tools, other tools — hydraulic jack, hydraulic pump and jack sets, standard and special tools
• Appendix — YANMAR Worldwide Service Network List, TURBOTWIN engine and air starter T50-P service manual, integral relay valve installation and operation manual

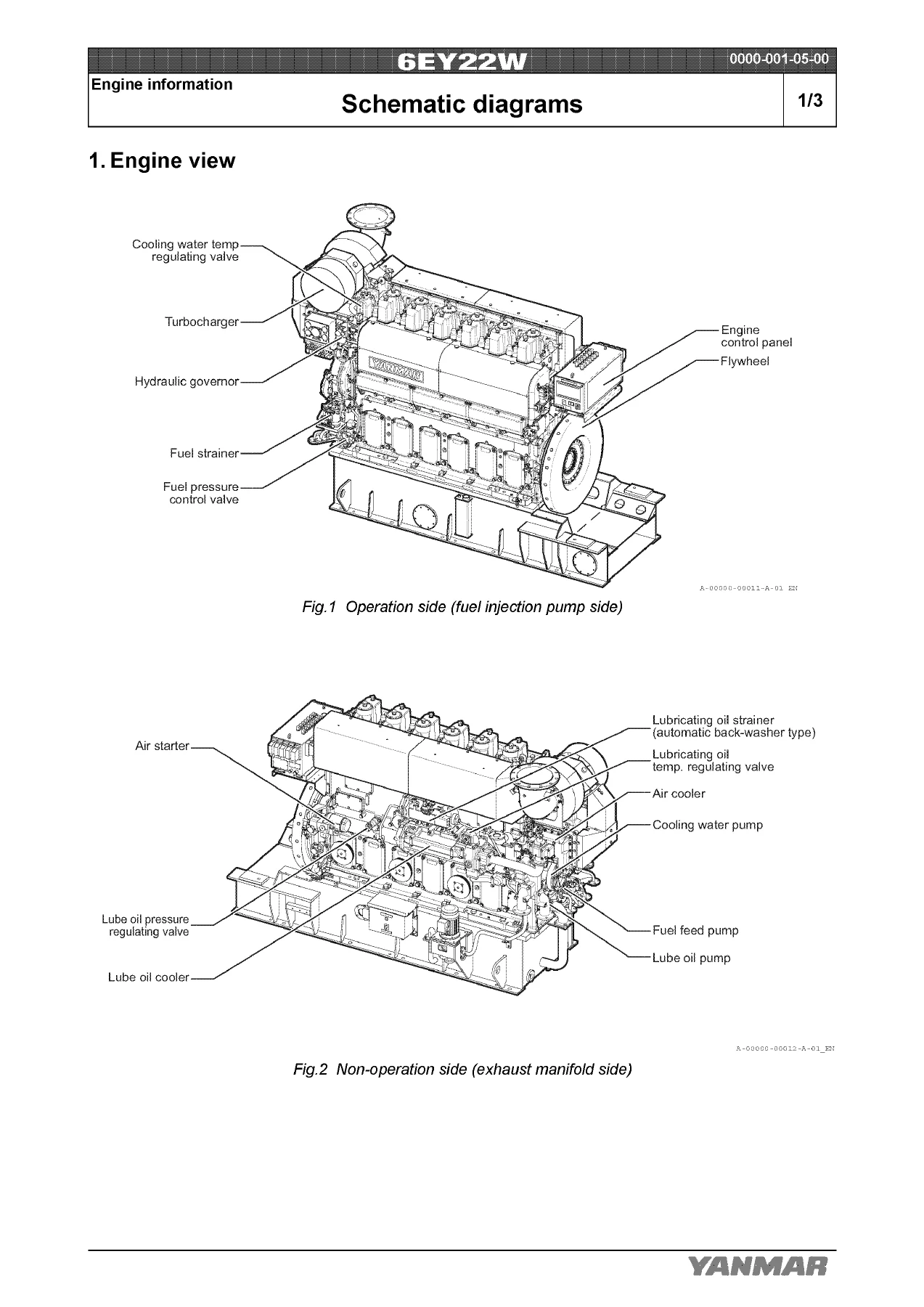

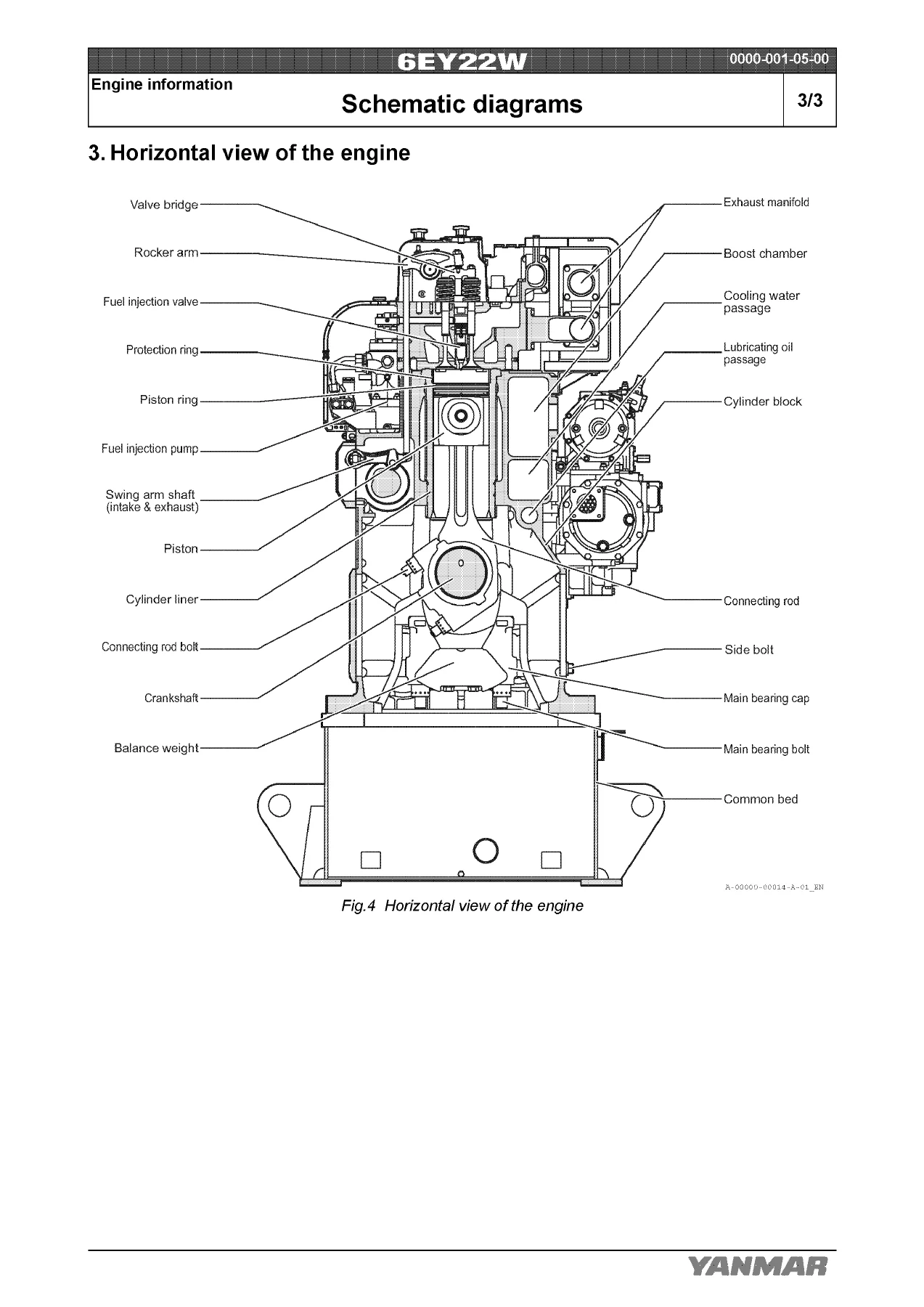

Seen as a whole, the manual follows the real working sequence of a marine auxiliary engine rather than a generic service template. It opens with the safety fundamentals — how to lift the engine, where the warning labels sit, the precautions that apply before any maintenance starts — then establishes the technical data and design tolerances that define the 6EY22LW and 6EY22ALW. From there it walks through every phase of operation, from the first air running and start sequence to switching between marine diesel oil and heavy fuel oil, running in after a rebuild, and the checks taken at engine stop. The second half turns into a full component-level service document, treating each assembly in the order a technician would meet it, and closes with the scheduled inspection tables that set the intervals.

What the technical data and adjustment values give you

The engine information section is where the numbers live, and it is unusually complete for an operation manual. Both models are listed with their own continuous rated output figures and rotation speeds, alongside the shared mechanical data:

• 6 cylinders, bore × stroke Ø 220 × 320, total displacement 72.99, compression ratio 15.2:1, direct injection
• Crankshaft rotation direction and firing order 1-4-2-6-3-5-1
• Forced lubrication by internal pump, with the system oil also serving the turbocharger and rocker arms
• Freshwater-freshwater mix cooling and air starter starting
• Protective device alarm and emergency stop settings for lubricating oil pressure and cooling freshwater temperature, plus rotational overspeed
• Holding volumes of lubricating oil and cooling water, and the pressure and temperature settings for fuel, oil, jacket water, cooler water and starting air
• Assembly adjustment values — piston top clearance, valve head clearance, exhaust valve timing, fuel injection pump beginning of injection, and fuel injection valve opening pressure
• Clearance and wear limits for the cylinder block and liner, piston, piston pin and rings, crankshaft, valve mechanism, camshaft, lubricating oil pump, cooling water pump, fuel feed pump and idle gear
• Tightening torque tables covering hydraulic tightening, angle tightening, torque tightening, general bolts and pipe joint bolts

Those tolerance tables matter because they are what separates a rebuild that lasts from one that comes back. Piston top clearance, valve head clearance, big-end and main bearing clearances, pump gear backlash — all of them are stated as nominal dimension, tolerance, standard clearance, maximum allowable clearance and usage limit, so you can measure a worn part and decide in the same session whether it goes back in or gets replaced.

Fault finding and troubleshooting

The general fault description chapter is organised as decision trees rather than a wall of text, which makes it fast to work from when the engine is misbehaving. Starting failure splits into flywheel did not turn and flywheel turned but no ignition, then down into insufficient starting air, defective air starter, bad turning, no cylinder fires and some cylinders do not fire. The same treatment is given to unstable engine rotation, insufficient output, incorrect exhaust temperature or maximum combustion pressure, bad exhaust gas colour (blue/white and black/dark grey), unusual noise and vibration, sudden engine stop, engine does not stop and overspeed, low lubricating oil pressure, high lubricating oil temperature, and low or high jacket cooling water pressure and temperature. Each branch ends in a concrete action — adjust, clean, replace, or check a specific component — so the manual doubles as a diagnostic companion during a night watch.

Routine and scheduled maintenance

Two inspection tables drive the maintenance side. The routine table covers the daily, weekly and one-month (or 300–500 hour) checks on the starting air reservoir, speed control device, fuel oil system, lubricating oil tank, bypass filter, cooling water pump, turbocharger, air starter, instruments and general engine appearance. The scheduled table stretches out across three months, six months, one year, two to three years, and five years (or the equivalent running hours) and tells you when to pull the fuel injection valve, grind valve seats, inspect the piston and rings, measure the crank pin and journal, disassemble the main bearing, service the governor, replace lubricating oil cooler components, and clean the charge air cooler and turbocharger.

Take the guesswork out of running and servicing the 6EY22

With this Yanmar 6EY22LW 6EY22ALW Marine Auxiliary Engine Operation Manual on hand, a chief engineer can prepare the engine correctly before every start, run it on M.D.O. or H.F.O. within its design limits, carry out the full scheduled inspection programme on time, diagnose a fault before it turns into downtime, and rebuild the cylinder head, pistons, bearings, camshaft, governor and fuel system to the values the manufacturer specified. Getting the clearances, hydraulic tightening pressures and injection timing right is what protects the engine from premature wear, scuffing, blowby and torsional vibration — and it is far cheaper to work from the numbers than to learn them by replacing parts. The manual is delivered as an instant PDF download after payment, needs no shipping and no waiting, can be printed for the engine-room shelf, and can be opened on a laptop, tablet or phone at the machine.
