Volvo Penta AD31 AD41 TAMD31 TAMD41 Diesel Marine Engine Parts Manual PDF Download

Description

Volvo Penta AD31 AD41 TAMD31 TAMD41 Diesel Engine Parts Manual

This is the illustrated parts manual for the Volvo Penta AD31, AD41, TAMD31 and TAMD41 families of marine diesel engines. Every component group is presented as an exploded line drawing tied to a numbered parts table listing the Volvo Penta part number, quantity, description and any applicable serial-number break. If you own, service or restore any engine in the AD31/AD41/TAMD31/TAMD41 range, this is the reference you use to identify the exact component you need before you order or replace it.

The Volvo Penta AD31 AD41 TAMD31 TAMD41 parts manual covers both the 4-cylinder 3.6-litre platform and the 6-cylinder 5.5-litre platform, in naturally aspirated, turbocharged and aftercooled forms, including the SOLAS-rated variants. Because it lists factory part numbers directly against exploded views, it removes the guesswork from ordering gaskets, seals, bearings, valves, injectors, pumps, impellers, hoses, coolers, turbochargers and drive-line parts.

File Details

• Manual type: Illustrated parts manual / spare parts catalogue
• Brand: Volvo Penta
• Models covered: AD31L-A, AD31P-A, AD41L-A, AD41P-A, D41L-A, TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD31S, TAMD31L, TAMD31P, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TAMD41P, TMD31L-A, TMD41L-A
• Language: English
• Page count: 595 pages
• File format: PDF

Chapters Covered

The Volvo Penta AD31 AD41 TAMD31 TAMD41 parts manual is organised into numbered groups in the Volvo Penta system, each with its own illustrated diagrams and matching parts tables.

• 21 Engine

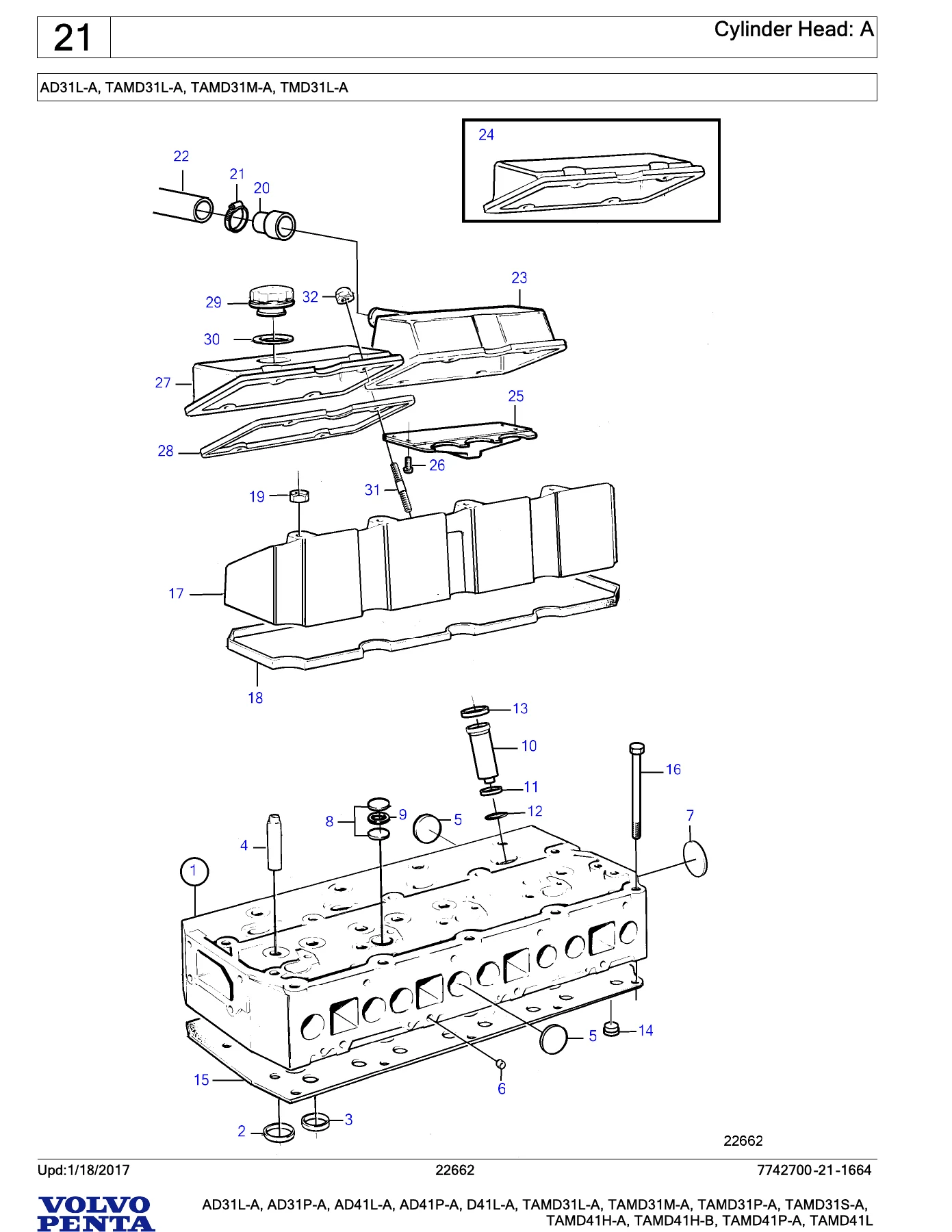

  • Cylinder Head (A, B and C variants, with serial-number breaks)

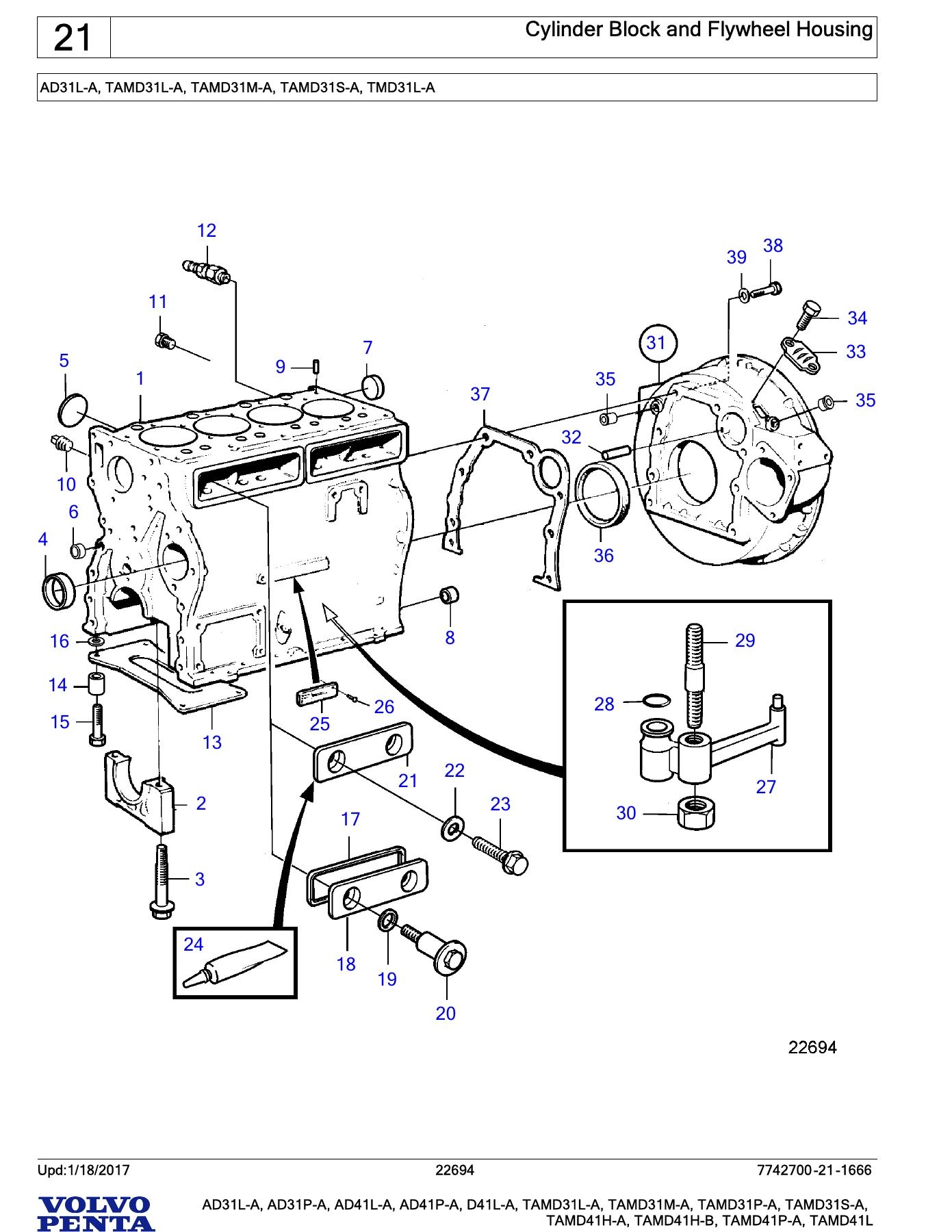

  • Cylinder Block and Flywheel Housing
  • Cylinder Block and Flywheel Housing SOLAS
  • Timing Gear Casing and Gears
  • Camshaft and Valve Mechanism

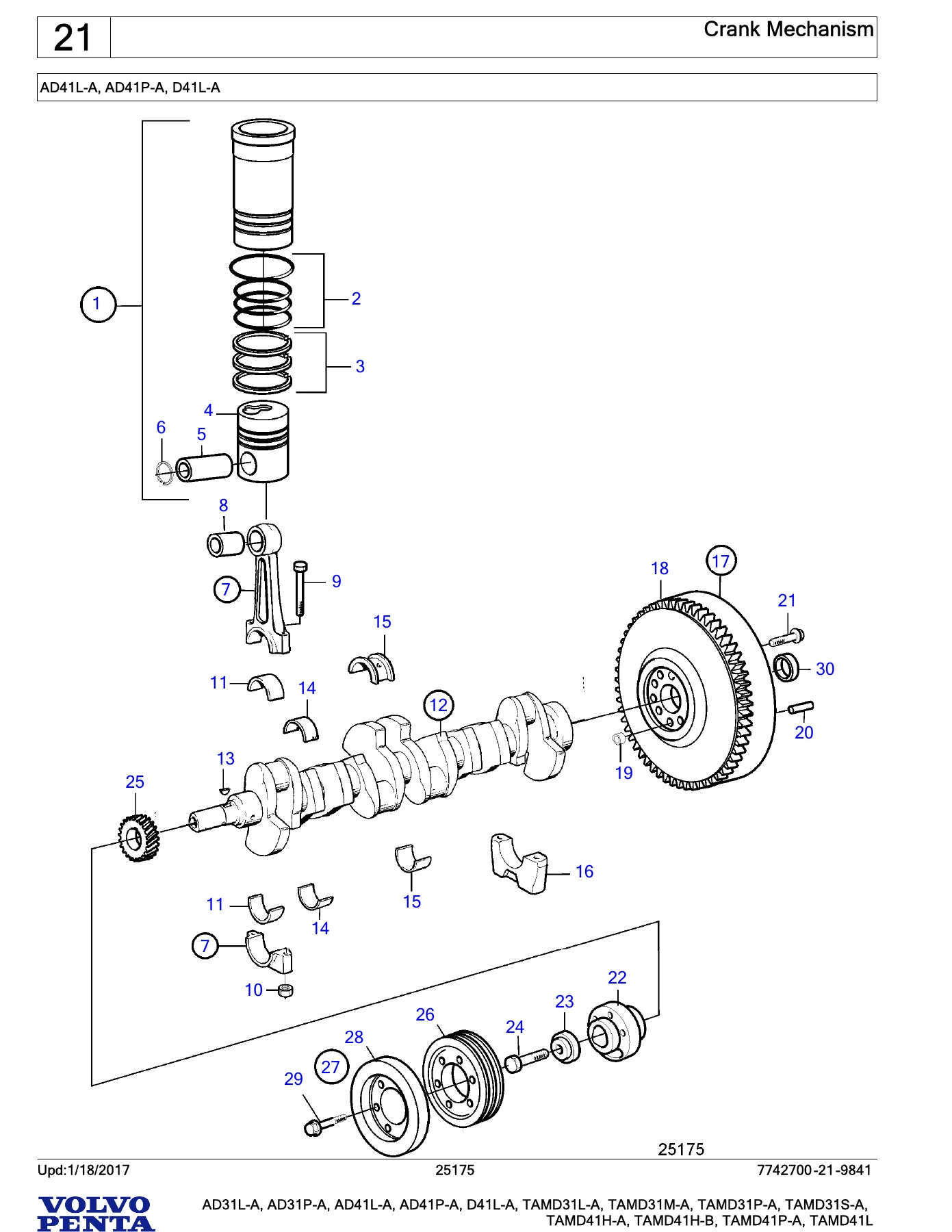

  • Crank Mechanism
  • Engine Suspension and Engine Mounting (DP-drive, SX-drive, jack shaft, SOLAS)
  • Extra Pulley (HC50 and Type B)
• 22 Lubricating System
  • Oil Pump and components
  • Oil Filter Housing
  • Oil Cooler and Cooler Components
  • Oil Dipstick Kit
  • Electric Bilge Pump 12V / 24V
• 23 Fuel System
  • Fuel Injection Pump and components (multiple pump variants by engine)
  • Fuel Injectors and shims/washers
  • Fuel Filter and Fuel Filter/Water Separator
  • Delivery pipes and leak-off lines
• 25 Intake and Exhaust System
  • Induction and Exhaust Manifold
  • Turbocharger and Air Filter
  • Turbocharger component breakdowns
  • Exhaust Thermo Switch Control
  • Drip Protection for Air Filter
  • Water Cooled Silencer and Exhaust Line
  • Dry Exhaust Line
  • Glow Plug Kits (standard and SOLAS)
• 26 Cooling System
  • Oil Cooler variants and internal components
  • Heat Exchanger (A, B and C configurations)
  • Water Pump and Water Pump for Sea Water Cooled Version
  • Water Pump and Expansion Tank for Keel Cooling
  • Thermostat Housing
  • Aftercooler
  • Sea Water Pump, Sea Water Pump components and Sea Water Filter
  • Expansion Tank 861623 and 3581297
  • Hot Water Outlet, Vacuum Valve, Cooling Water Intake for SX Drive
• 27 Controls
  • Control Connection, Speed and Stop Control
  • Control for Side Installation (PC740, PC840, PC741, PC841)
  • Control for Top Installation (PC740, PC840, PC740 Sail Boat)
  • Handles for Control with and without Power Trim
  • Control Cables, Types 233, 333 and 443
  • Dual Station Unit
• 30 Electrical System
  • Alternator (14V 50A, 14V 60A, 14V 130A, 28V 30A, 28V 60A, 28V 100A)
  • Extra Alternator 12V and 24V kits
  • Alternator component breakdowns
  • Charging Distributor variants
  • Starter Motor and Starter Motor components (12V and 24V)
  • Electrical System wiring layouts
  • Instrument Panels (12V, 24V, dual station, mirror-invert)
  • Instruments for Separate Mounting, Speedometer, Log, Rudder Indicator, Air Pressure Gauge, Clock, Tank Meters
  • Oil Level Guard 12V/24V, Main Battery Switch, Emergency Stop Contact, Electrical Materials
• 44 Transmissions
  • Connecting Components for SX Drive Unit and Exhaust/Cooling Water Inlet
  • Hydraulic Pump and Trim Instrument
  • Flywheel Housing and Primary Shaft
  • Hydraulic Cylinders and Ground Cable Kit
  • Transom Shield
  • Duoprop Drive Unit (1.78:1, 1.95:1, 2.30:1)
  • Upper Gear Unit (A and B), Intermediate Housing, Lower Gear Unit
  • Propellers for Duoprop Drives (A, B, C, E, J series)
  • Propeller Cone Kit M20, Drive Extensions, Jack Shaft Kit
  • Connecting Components for Borg Warner, HS1A, PRM 402, HS63A, HS63V
  • Reverse Gear HS1A (1.96:1 and 2.62:1)
  • Greaser and Stuffing Box (D=30, 35, 40 and 45mm)
• 64 Steering System
  • Connecting Kit for Narrow Hulls
  • Steering System STS330
  • Steering System Mechanical and Mechanical with Tilt
  • Installation Kit for Steering Cable, Manual Steering
  • Servo Pump and Servo Pump for SX-Drive
  • Power Steering
  • Link Rod Kit for Twin Installation
• 90 Miscellaneous Equipment
  • Tool Kit
  • Bilge Pump and Engine Room Fan
  • Bilge Pump 30L–75L/min and 130L/min
  • Universal Bracket
• 99 Repair Kits
  • Cylinder liner kits, piston ring kits, bearing kits (standard and oversize)
  • Overhaul kits, gasket kits, de-carbonizing kits
  • Turbo repair kits, intercooler gasket kits, water pump repair kits
  • Upper and lower gear gasket kits

What This Parts Manual Gives You

Every group in the Volvo Penta AD31 AD41 TAMD31 TAMD41 parts manual opens with a clean exploded illustration showing how the components sit relative to each other in the assembly, with callout numbers that map one-to-one to the parts table beside it. That table is the real working value of the document: it gives the Volvo Penta part number, the quantity required, the description of the part and, in many cases, a serial-number or engine-variant note telling you which version of a component was fitted before or after a specific engine number. That serial-number tracking matters enormously on these engines, because Volvo Penta revised the cylinder head, spray sleeve, turbocharger, fuel injection pump and cooling components across the production run.

Because the manual covers the whole AD31/AD41/TAMD31/TAMD41 platform rather than a single model, it also lets you see where parts are shared between the four- and six-cylinder engines and where they diverge. Oil coolers, heat exchangers, sea water pumps, thermostat housings, aftercoolers, control cables, steering components and instrument panels are all broken out per engine configuration, so the correct variant can be identified for a specific hull and drive combination. That includes the DP Duoprop drive, the SX drive, jack shaft installations and the SOLAS-rated builds.

The transmission chapters extend the manual well beyond the engine itself, covering the upper and lower gear units, intermediate housing, propellers, drive extensions, hydraulic trim, and the Borg Warner, HS1A, PRM 402, HS63A and HS63V reversing gear installations. The steering section covers both mechanical systems and servo-assisted power steering, with the component kits and cables documented down to part number level.

Who This Manual Is For

Owners of boats powered by any AD31, AD41, TAMD31 or TAMD41 engine will find this the fastest way to pin down the exact part they need before ordering. Marine mechanics and workshops working on these engines use it as the ordering reference so the correct gasket, seal, impeller, injector, turbocharger or cooler variant arrives the first time. Restoration and repower projects benefit from the serial-number notes, which make it possible to identify what was actually fitted to a given engine rather than assuming a single specification across the whole production run. Parts counters and chandlers will also find the exploded views useful for confirming visually that the part being ordered is the correct one.

Buy the Volvo Penta AD31 AD41 TAMD31 TAMD41 Parts Manual
