Steyr Motors 4 & 6 Cylinder Marine Diesel Engine Operation, Maintenance & Warranty Manual Z001140-0 – PDF

Description

Steyr Motors 4 & 6 Cylinder Marine Diesel Engine Operation, Maintenance & Warranty Manual

This is the complete Operation, Maintenance and Warranty Manual for STEYR MOTORS GmbH 4-cylinder and 6-cylinder marine diesel engines, published under document number Z001140-0, 6th Edition, November 2016. Whether you own a boat powered by an MO-series four-cylinder or an SE-series six-cylinder, this manual provides the operational guidance, maintenance schedules, technical specifications, and warranty information needed to keep the engine running reliably.

The Steyr Motors marine engine range is built around a high-speed diesel design with two-stage high-pressure fuel injection, developed specifically for the marine environment. This manual is the reference document that accompanies those engines from commissioning through years of service.

File Details

• Manual type: Operation, Maintenance and Warranty Manual
• Brand: STEYR MOTORS GmbH
• Document number: Z001140-0
• Edition: 6th Edition
• Date: November 2016
• Language: English
• Page count: 134 pages
• File format: PDF

Chapters Covered

• General Part — Safety precautions, engine overviews for 4-cylinder and 6-cylinder models, product references, insurance, stolen unit reporting, warranty registration approval, dealer service and maintenance, illustration symbols, repair service, replacement parts, pre-departure checks, recommended on-board tools and spare parts, engine submersion, bottom painting, boat bottom care, boating responsibilities, safety warnings, and symbol identification
• Start-Up and Functions — Starting the engine (key switch version), stopping the engine, starting and stopping with push button version, run-in procedure after major overhaul, definitions, engine break-in procedure (first ten hours and final ten hours), operation after break-in, shifting, remote control operating instructions, how to shift and control speed, fuel economy, gearbox information, instrument panel layouts for key switch and push button versions, instrument indication during normal operation, emergency cut-off switch (lanyard), warning lights and audible alarm, electronic engine control unit (ECU), diagnostic system, twin installations, optional propellers, propeller torque, propeller care, water jet, operating procedures for freezing temperatures, salt water operation, high altitude operation, fuel pump, fuel system checks, fuel contamination, cooling system (closed and open circuits), electrical equipment, alternator, battery, circuit breakers and fuses for 4-cylinder and 6-cylinder engines, inversion switch, interrupt crankshaft housing ventilation, and instrument panel notes
• Fuel and Lubricants — Fuel requirements, how to select fuel, filter maintenance and service, engine lubrication, motor oil recommendations, oil identification symbols, and disposal of automotive waste products

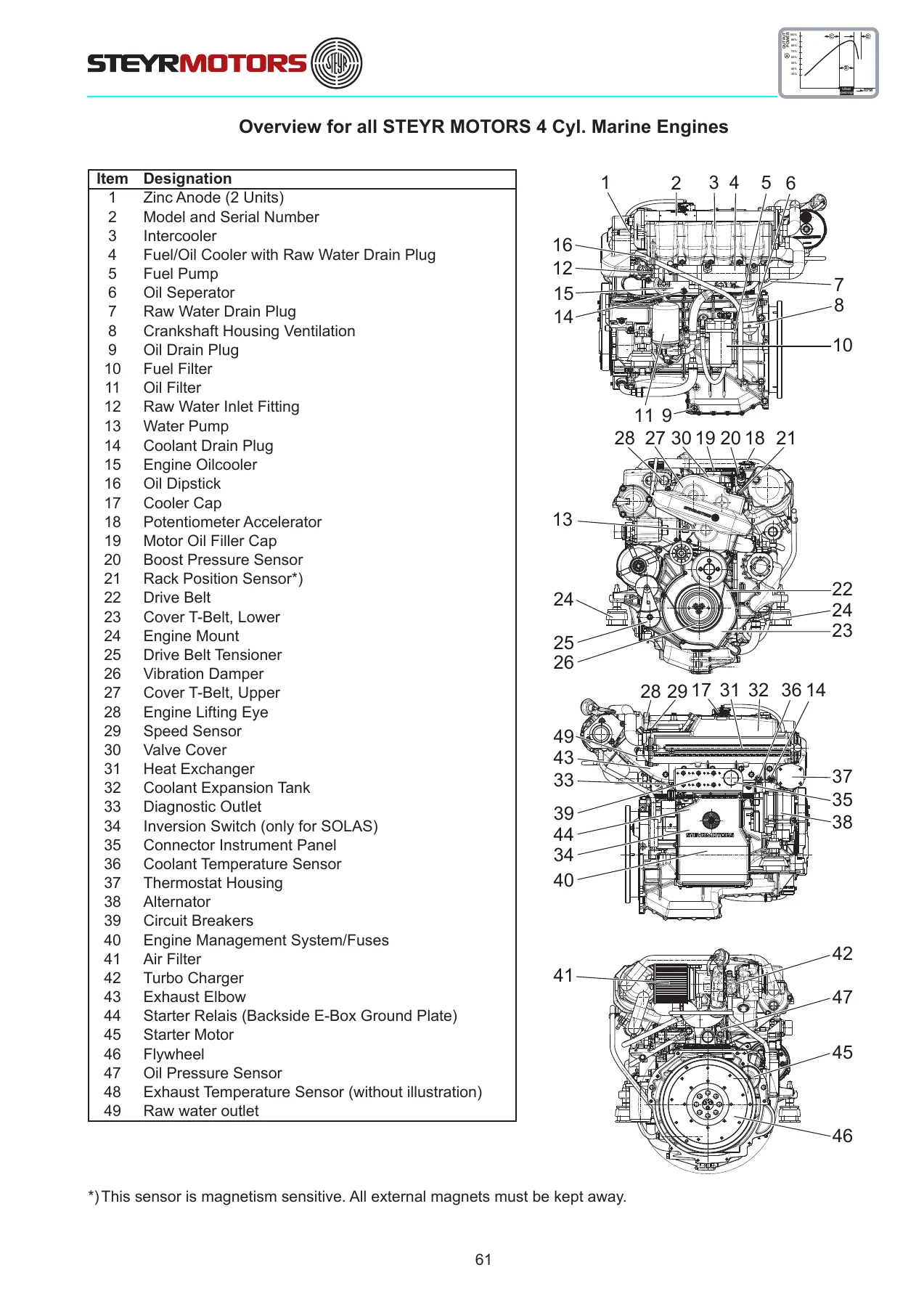

• Technical Data — Detailed technical specifications and overviews for MO84K32, MO94K33, MO114K33, MO144M38, MO164M40, MO174V40, SE144E38, SE164E40, and the full SE six-cylinder range including SE126E25, SE156E26, SE156E32, SE156E34, SE196E35, SE236E40, SE236S36, SE266E40, SE266S36, SE286E40, and SE306J38. Includes rated power, displacement, compression ratio, propped speed ranges, idle speed, injection type, fuel specifications, oil pressure, filling capacities, coolant capacity, electric charging system, and component location illustrations

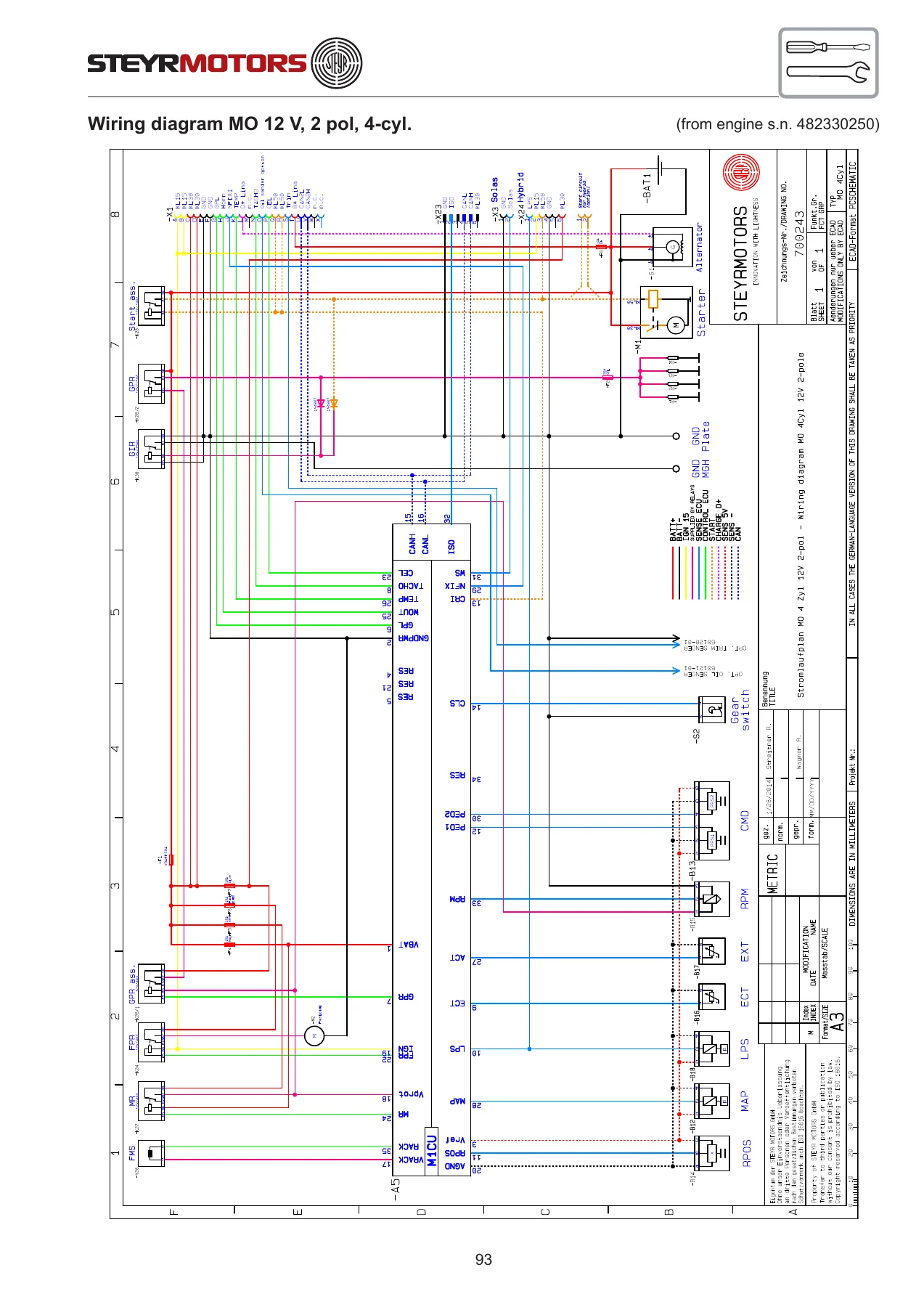

• Maintenance, Trouble Shooting — MO and SE service and maintenance schedules, maintenance log, error indication tables for standard and SOLAS instrument panels, principle service code list for SE engines, principle failure code list for MO engines, trouble check chart, wiring harness descriptions for 4-cylinder MO engines, wiring diagrams for MO 12V and 24V engines (2-pole and 4-pole), wiring diagrams for MO E-Box external configurations, wiring diagrams for SE E-Box 12V and 24V six-cylinder, wiring diagrams for SE E-Box 12V four-cylinder, wiring diagram for instrument CAN panel 12/24V, and wiring diagram for instrument CAN panel SOLAS 12/24V
• Dealer’s Responsibilities — Refilling motor oil, oil level for power steering, oil level for transmission, checking coolant in the closed cooling circuit, draining the raw water circuit, checking raw water connection, draining the cooling water circuit, cooling system anodes, anti-corrosion anodes, propeller selection with propped speed range table, preparations for off-season storage, and start-up after storage
• Warranty, Distributors — Limited engine warranty, products warranted, owner registration requirements, commissioning report, base engine warranty, extended major components warranty, summary of warranty coverage, additional coverage for parts replaced or repaired under warranty, warranty coverage for genuine spare parts, conditions of warranty coverage, limitations and exclusions, procedure for making a warranty claim, venue and applicable law, miscellaneous terms, what to do if you do not receive satisfactory warranty service, and warranty registration approval form

IMAGES PREVIEW

Across these chapters, the manual delivers a complete operational and maintenance reference for the Steyr Motors marine diesel engine family. Early chapters establish safe working practices and familiarise the operator with the engine layout. The start-up and functions section walks through every routine operation from cold starting to shifting and instrument monitoring. Fuel and lubricant specifications remove guesswork from servicing. The technical data chapter provides the exact values needed for tuning, troubleshooting, and parts identification. The maintenance and troubleshooting chapter is the largest section, combining service intervals, diagnostic fault codes, and full wiring diagrams so that electrical faults can be traced systematically. Dealer responsibilities cover seasonal procedures, and the warranty chapter explains coverage terms and claim procedures.

Why This Manual Matters

Marine diesel engines operate in a demanding environment where correct procedures and precise specifications make the difference between reliable service and costly breakdowns. The Steyr Motors 4 & 6 Cylinder Marine Diesel Engine Operation, Maintenance & Warranty Manual provides the manufacturer’s own guidance on break-in, fluid selection, torque values, service intervals, and fault diagnosis. Without it, owners and technicians are left guessing at capacities, adjustment values, and diagnostic codes that are specific to these engines.

The wiring diagrams alone are indispensable for anyone tracing electrical faults in the engine management system, instrument panel, or charging circuit. The service schedules give a clear timeline for oil changes, filter replacements, anode inspections, belt checks, and major component service — all tailored to the MO and SE engine families.

What You Can Do With This Manual

• Perform complete engine break-in procedures correctly for a new or overhauled engine
• Carry out all scheduled maintenance at the correct intervals
• Diagnose faults using the ECU service code and failure code lists
• Trace electrical problems with detailed wiring diagrams for 12V and 24V systems
• Identify the correct fuel, oil, and coolant specifications
• Understand the instrument panel indications and warning systems
• Select the correct propeller based on the propped speed range table
• Prepare the engine for off-season storage and recommission it correctly
• Reference exact technical data for all covered engine models
• Understand warranty coverage, conditions, and claim procedures

Instant PDF Delivery

This Steyr Motors marine engine manual is delivered as a high-quality PDF download immediately after purchase. There is no shipping, no waiting, and no physical media to lose. The file can be viewed on any device — laptop, tablet, or smartphone — and printed pages can be taken directly to the boat or workshop. Whether you are servicing a single engine or managing a fleet, having the complete Z001140-0 manual on hand ensures you always have the manufacturer’s reference at your fingertips.
