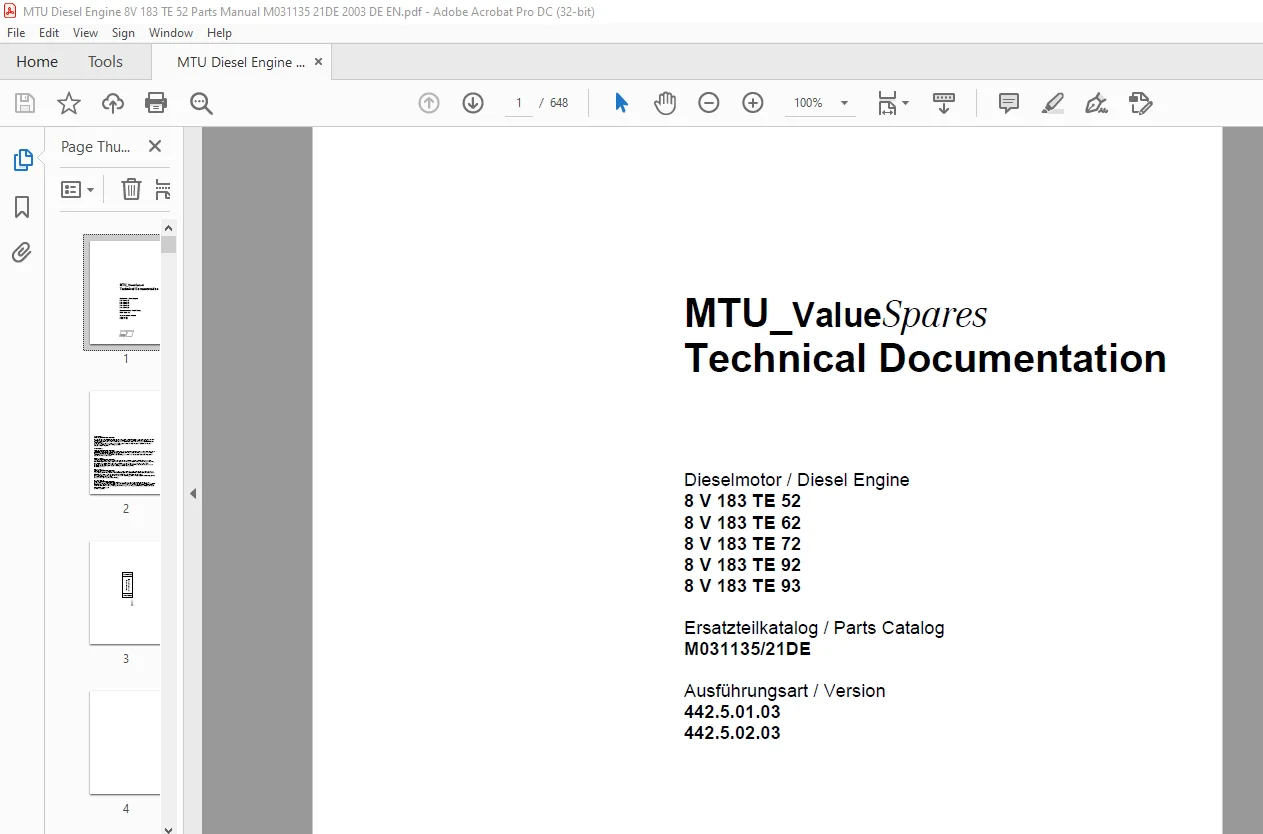

MTU Diesel Engine 8V 183 TE 52 8V 183 TE 62 8V 183 TE 72 8V 183 TE 92 8V 183 TE 93 Parts Manual M031135-21DE PDF DOWNLOAD
$31.95
MTU Diesel Engine 8V 183 TE 52 8V 183 TE 62 8V 183 TE 72 8V 183 TE 92 8V 183 TE 93 Parts Manual M031135-21DE PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
MTU Diesel Engine 8V 183 TE 52 8V 183 TE 62 8V 183 TE 72 8V 183 TE 92 8V 183 TE 93 Parts Manual M031135-21DE PDF DOWNLOAD
FILE DETAILS:
MTU Diesel Engine 8V 183 TE 52 8V 183 TE 62 8V 183 TE 72 8V 183 TE 92 8V 183 TE 93 Parts Manual M031135-21DE PDF DOWNLOAD
Language : English
Pages : 648
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
MTU Diesel Engine 8V 183 TE 52 8V 183 TE 62 8V 183 TE 72 8V 183 TE 92 8V 183 TE 93 Parts Manual M031135-21DE PDF DOWNLOAD

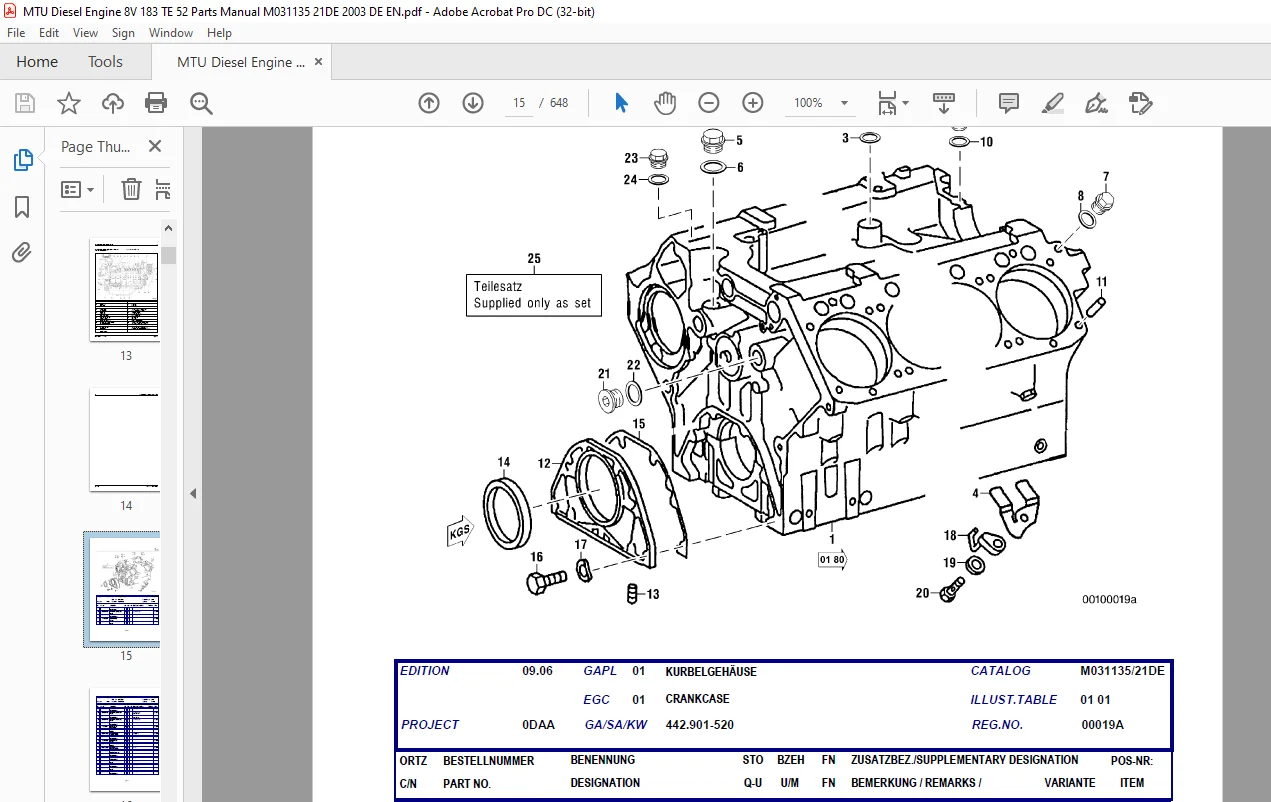

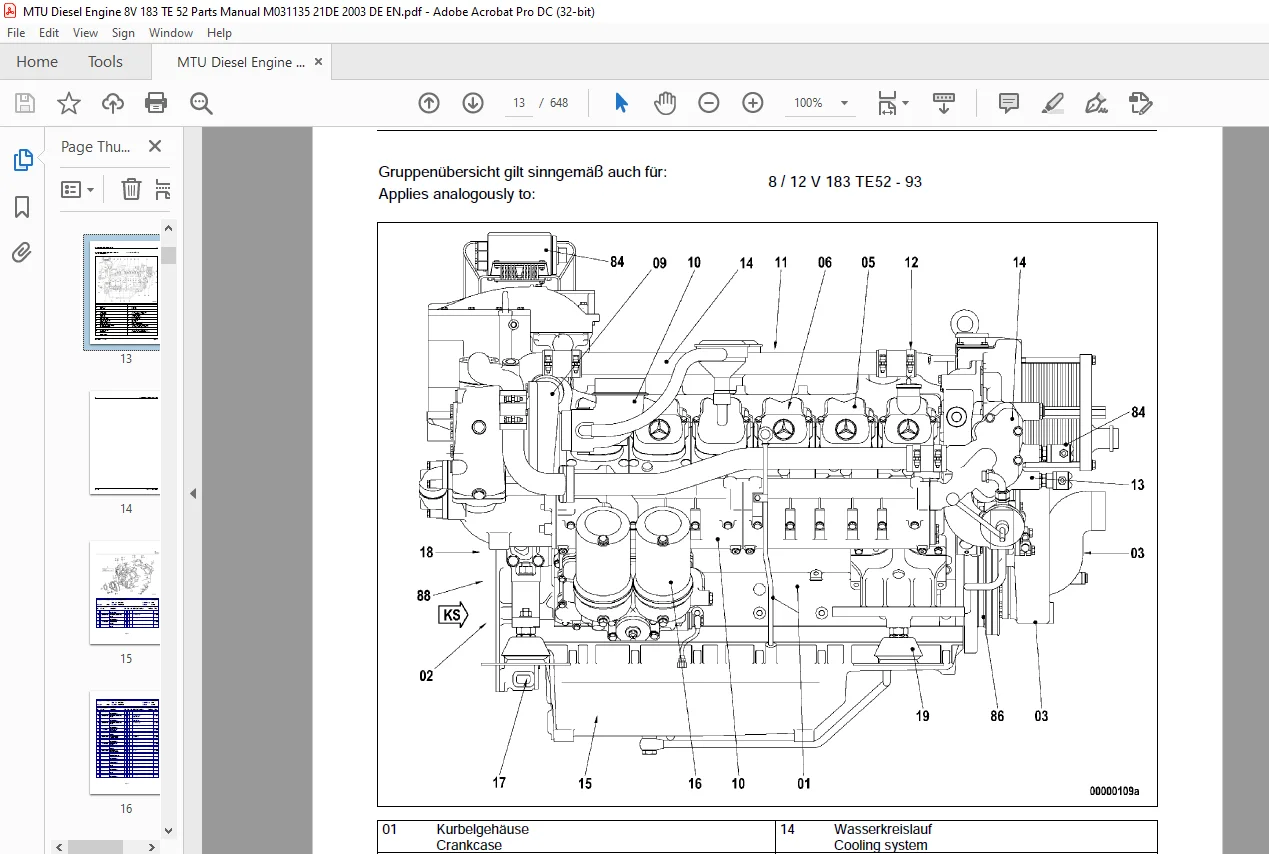

Titel / Title.................................................................................. 1 Vorbemerkung................................................................................... 5 Preface........................................................................................ 9 Gruppenübersicht / Group review................................................................ 13 Gruppenübersicht gilt sinngemäß auch für:Applies analogously to: 8 / 12 V 183 TE52 - 93.... 13 01 - Kurbelgehäuse / Crankcase......................................................... 15 02 - Rädertrieb / Gear Train........................................................... 42 03 - Triebwerk / Gear Train............................................................ 48 05 - Zylinderkopf / Cylinder Head...................................................... 68 06 - Steuerung / Valve Gear........................................................... 79 08 - Regulierübertragung / Governor Linkage............................................ 81 09 - Abgasturbolader / Exhaust Turbocharger............................................ 84 10 - Luftzuführung, Abgasführung / Air/Exhaust System..................................104 11 - Einspritzeinrichtung / Fuel Injection Equipment...................................160 12 - Kraftstoffkreislauf / Fuel System.................................................183 13 - Wasserpumpe / Water Pump..........................................................234 14 - Wasserkreislauf / Cooling System..................................................252 15 - Ölpumpe / Oil Pump................................................................287 16 - Ölkreislauf / Oil System..........................................................296 17 - Antrieb Drehzahlüberwachung / Drive for Speed Monitoring..........................329 18 - Anlasseinrichtung / Starting System...............................................330 19 - Motorlagerung / Engine Mounting...................................................339 84 - Überwachungseinrichtung / Monitoring Equipment....................................349 86 - Zubehör (Elektrisch, Pneumatisch) / Accessories (Electric, Pneumatic) ............483 88 - Zubehör (Mechanisch) / Accessories (Mechanical) ..................................501 Querverweisliste / Cross Reference List........................................................514
Need help? Contact: [email protected]
https://vimeo.com/858603322?share=copy
DESCRIPTION:
MTU Diesel Engine 8V 183 TE 52 8V 183 TE 62 8V 183 TE 72 8V 183 TE 92 8V 183 TE 93 Parts Manual M031135-21DE PDF DOWNLOAD
Preface
This catalog is published for parts requisitioning purposes and provides assistance in engine disassembly and reassembly. It contains a complete list of all engine components, including those not available as replacement parts.
In general, this spare-parts catalog covers more bills of material (BOMs) than are given in the Engine Configuration Card. Reference should therefore always be made to the Engine Configuration Card supplied with the engine.
Catalog Arrangement
- The catalog is subdivided into functional groups to aid in locating the individual parts.
- The applicable group designation and group number, known as equipment grouping code (EGC), appear in the page heading.
- The text and illustration pages within each group are sub-divided as follows:
01 – 09 = GA (basic Daimler Benz engine configuration) 80 = Listing of parts made in house 10 – 19 = SA 018. (special Daimler Benz configuration) 85 = Listing of purchased parts 20 – 29 = SA 080. (special Daimler Benz configuration) 50 – 58 = SA (special MTU engine configuration, modules) 60 = KW (MTU customer request)
- Validity of the bills of materials is specified on the Engine Configuration Card, with MTU SAs having priority.
Illustrations
- The page heading includes a five-digit illustrated table number and, in the second section, an additional illustration registration number.
Explanation of Columns
- C/N (Callout No.): Provides a cross-reference from illustration to text section. Non-illustrated parts are indicated by the suffix “Z” after the C/N.
- Order No.: This is the number valid for ordering the associated part.
- Designation: In addition to the precise part name, this column provides indication as to whether it is a single part, or an element of an assembly or functional group. An indented designation indicates the part concerned is included in the previous less or non-indented designation.
- Q/U (Quantity in Unit): This column indicates the quantity of this part required for the functional group. Qty. “0” indicates the part is replaced by an SA or KW part, or that it is a repair-stage component.
- U/M (Unit of Measure): The 2-character codes indicate: EA = each, KG = Kilogram, MR = Meter, RL = Roll, SE = Set.
- FN (Footnote): Provides additional parts information. For clarification of footnote symbols, see Page 2.
- Supplementary Designation: This column contains additional information, such as applicable standards, subcontractor designations etc.
- Item No.: This is the line identification number within the parts group.
- Remarks: This column is intended for supplementary information.
