New Holland T6010 T6020 T6030 T6040 T6050 T6060 T6070 Tractor Service Manual – Electronic System & Fault Codes

Description

New Holland T6010-T6070 Tractor Service Manual – Electronic System and Fault Codes

This New Holland T6010-T6070 tractor service manual delivers the complete electronic system and fault code coverage for the T6010, T6020, T6030, T6040, T6050, T6060 and T6070 tractors. Organized as section 50.A (Electronic System / Fault Codes) within the broader Hydraulic-Pneumatic-Electrical-Electronic Systems documentation, it gives technicians the diagnostic menus, controller configuration procedures, calibration routines and the full fault code index for every on-board electronic control module. Whether the instrument cluster is displaying a stored fault code, a transmission clutch needs recalibration, a control module has been replaced and requires configuration, or a steering or suspension fault has to be diagnosed, the procedures in this T6010-T6070 electronic system service manual walk through the exact steps.

File Details

• Manual Type: Service Manual – Electronic System and Fault Codes
• Brand: New Holland
• Models Covered: T6010, T6020, T6030, T6040, T6050, T6060, T6070
• Section Reference: Hydraulic – Pneumatic – Electrical – Electronic Systems – A / Electronic System 50.A / Fault Codes 50.A
• Publication Reference: 84276574A
• Date: 10/05/2010
• Language: English
• Format: PDF
• File Reference: 84410761

Chapters Covered

• TECHNICAL DATA – Control Module Configure
  • Configure (DR Module – 24×24 Transmission, Electronic Draft Control, Rear PTO, Front Wheel Drive, Differential Lock, Engine)
  • Configure (DS Module – 16×16 Transmission, Electronic Draft Control, Rear PTO, Front Wheel Drive, Differential Lock, Engine)
  • Configure GA Controller H Routines (12×12 PTO Controller – Rear PTO, Differential Lock, Four Wheel Drive)
  • Configure KA – Steering Control (HH Turn Assist)
  • Configure LA Module (Armrest)
  • Configure DU Module (Front PTO, Front Hitch, Front Axle Suspension, Electronic Hydraulic Remotes)
  • Configure HJ / HK – Enhanced ADIC and Basic ADIC
• FUNCTIONAL DATA – Control Module
  • Fault code index
• SERVICE – Electronic System
  • Calibrate

What the Diagnostic H-Menus Let You Do

A large portion of this New Holland T6010-T6070 service manual is built around the H-menu diagnostic structure accessed through the instrument cluster. For the DR and DS transmission modules the manual documents H1 calibration procedures, H2 viewing of stored calibration values, H3 configuration options, H4 software revision level, H5 switch operation tests, H6 vehicle information, H7 transmission test modes, H8 EEPROM clearing, H9 voltmeter readings, HA demonstration mode, HB stored fault code display, HC fault code clearing, HE frequency input display and HF controller hardware information. Transmission configuration channels are spelled out in detail – quick fill time adjustment (16×16 and 24×24), sharp shuttle option (16×16), fly-shift speed threshold (24×24), driver selectable shuttle modes (16×16), 40 km/h maximum speed restriction, creeper option enable, anti-creep enable and the large tyre option for six-cylinder electronic engines. Electronic Draft Control configuration covers hydraulic ram size, EDC enable/disable and slip control enable/disable. Rear PTO configuration covers PTO management option, PTO fender switch options, PTO clutch calibration adjustment and PTO quick fill time. Differential lock and four-wheel-drive configuration covers axle type selection (standard or Supersteer), four-wheel-drive braking speed selection and front axle angles for the auto difflock function.

Calibration Procedures

Detailed calibration procedures cover transmission clutch and synchroniser calibration on both the 16×16 and 24×24 transmissions with the full sequence of U-code error messages, electronic draft control valve calibration, PTO torque sensor calibration, front axle suspension calibration on the DU module, rear hydraulic electronic remote valve calibration and steering control calibration for the HH Turn Assist / Fast Steer system. Each procedure lists the pre-conditions – oil temperature, engine speed, parking brake status, shuttle lever position – and identifies the specific fault codes that will prevent calibration until corrected. Default calibration values are given for the EDC raise and lower solenoids, the rear PTO solenoid, the steering angle sensor and the PTO torque sensor.

Complete Fault Code Coverage

The fault code index in this T6010-T6070 tractor service manual covers the electronic draft control codes (1000 series), transmission codes (2000 series), engine codes (3000 series), rear electronic hydraulic remote codes (4000 series), rear PTO codes (5000 series), four-wheel-drive codes (6000 series), differential lock codes (7000 series), front PTO codes (8000 series), front hitch codes (9000 series), suspended front axle codes (10000 series), steering controller codes (15000 series) and air conditioning controller codes (16100 series). Stored fault code display routines show the fault number, hour of first occurrence, hour of last occurrence and total number of occurrences. The switch diagnostics tables give the pin numbers and switch identifiers used by the H5 switch operation test across the DS, DR, DU, GA, KA, HJ and HK modules.

Vehicle Test and Verification Modes

H6 vehicle information displays transmission speed and engine horsepower. H7 transmission test modes cover the clutch switch test, forward/reverse synchroniser test and 1-4 / 5-8 range synchroniser test for the 16×16 transmission. H9 voltmeter routines list the typical reading for each monitored channel – clutch pedal position, transmission oil temperature, fuse supplies, 5-volt and 8-volt sensor supplies, 12-volt sources, EDC raise and lower solenoid current, lift arm and lift control potentiometers, drop rate, height limit, sensitivity and slip limit potentiometers, load sensing pins, clutch and synchroniser solenoid currents, throttle potentiometers and PTO speed and torque sensor voltages – so any circuit can be verified against a known good value. HE frequency inputs display wheel speed, radar, rear PTO speed, PTO twist speed, engine flywheel speed and PTO twist measurement channels.

Why This Manual Matters for T6010-T6070 Owners and Technicians

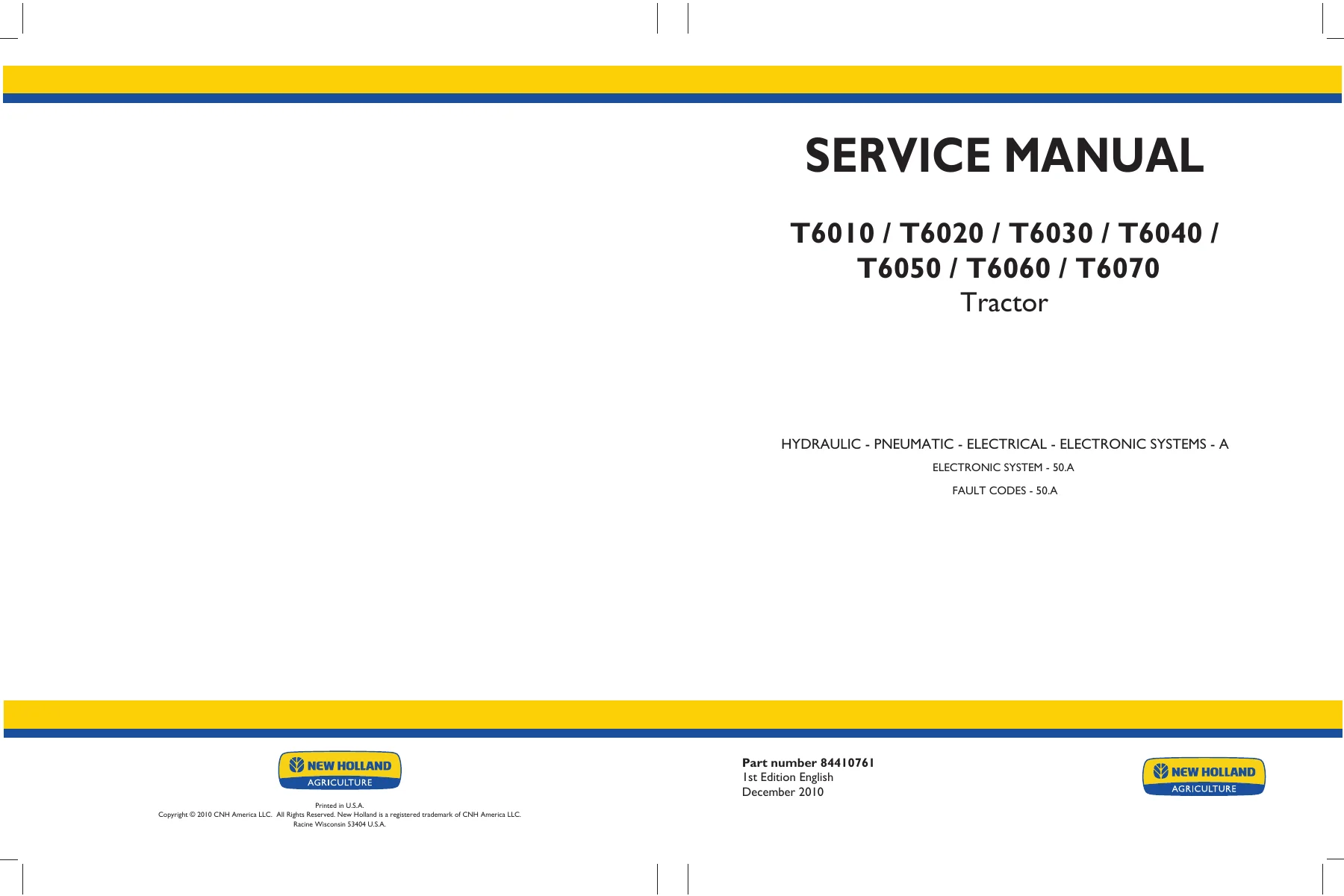

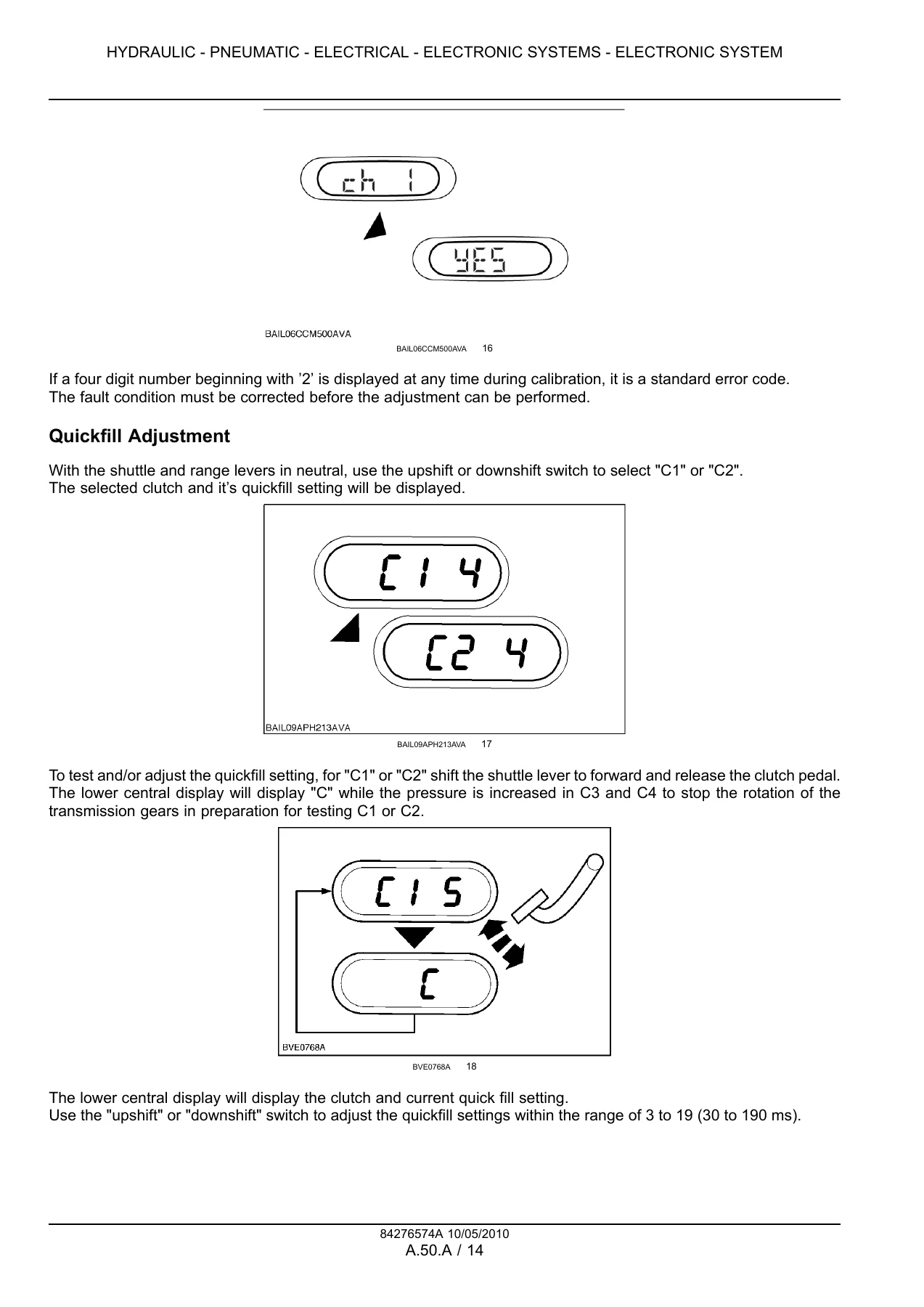

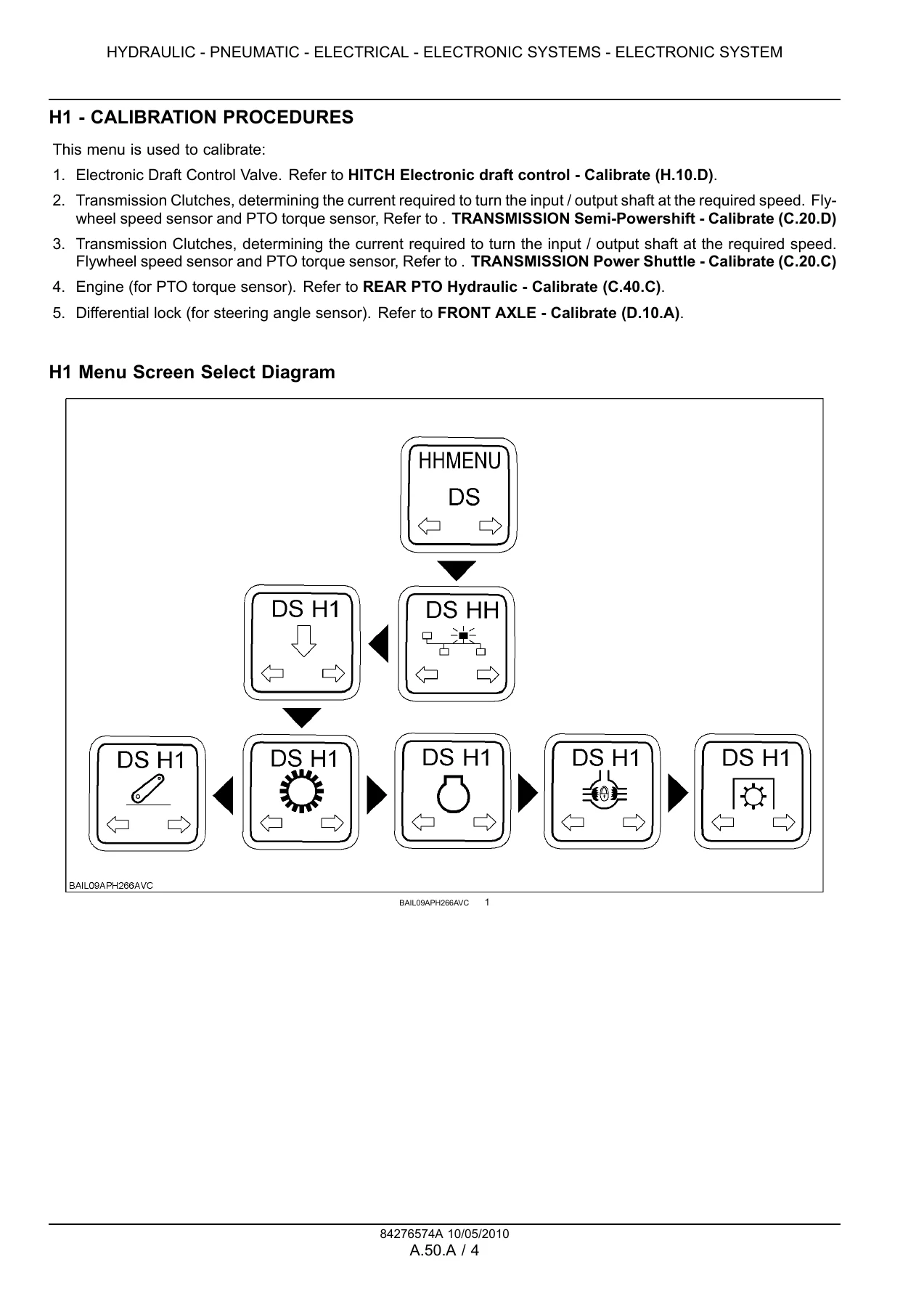

IMAGES PREVIEW

With this New Holland T6010-T6070 tractor service manual you can enter the diagnostic H-menu on the instrument cluster, read and clear stored fault codes, run switch and voltmeter diagnostics across every electronic module, configure transmission, EDC, PTO and differential lock options, calibrate clutches, synchronisers, draft control valves, PTO clutches and steering systems, and confirm component operation against factory typical readings. Correct fault code interpretation and proper calibration procedures are what separate a first-time fix from repeated returns – guessing at electronic faults on these tractors quickly becomes expensive. The manual is delivered as an instant PDF download with no shipping, opens on any computer, tablet or smartphone, and can be printed for the workshop. Once payment is confirmed the file is available immediately so you can start diagnosing without waiting for a physical book to arrive.
