Nichiyu FBR 75 Series Forklift Troubleshooting Manual – IGBT, FET & CAN-BUS Control

Description

Nichiyu FBR 75 Series Forklift Troubleshooting Manual

This troubleshooting manual covers the Nichiyu FBR-75 series electric forklifts, including models equipped with IGBT Control, FET Control, FET with New Accelerator, and CAN-BUS Control systems. Published by Nippon Yusoki Co., Ltd., this second edition (September 2008) provides maintenance personnel and technicians with the diagnostic procedures, adjustment methods, and wiring data needed to service these forklifts correctly.

File Details

• Manual Type: Troubleshooting Manual
• Brand: Nichiyu (Nippon Yusoki Co., Ltd.)
• Model Series: FBR-75 (FBR 9~13, FBR 10H/13H, FBR 14~18, FBR 20/25, FBR 30~40)
• Edition: Second Edition, September 2008
• Language: English
• Page Count: 214
• File Format: PDF

Chapters Covered

• 1. Introduction

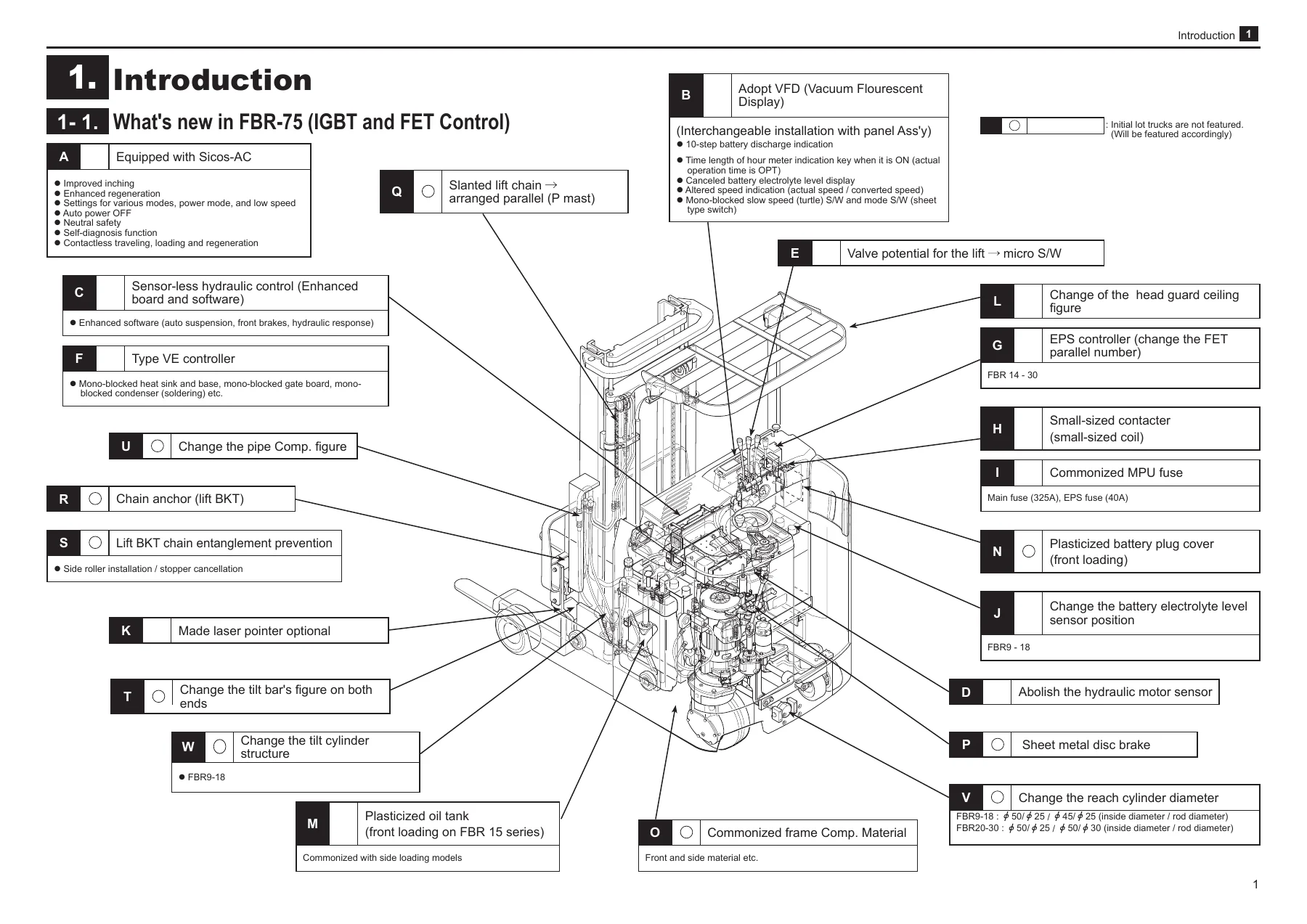

  • What’s new in FBR-75 (IGBT and FET Control)

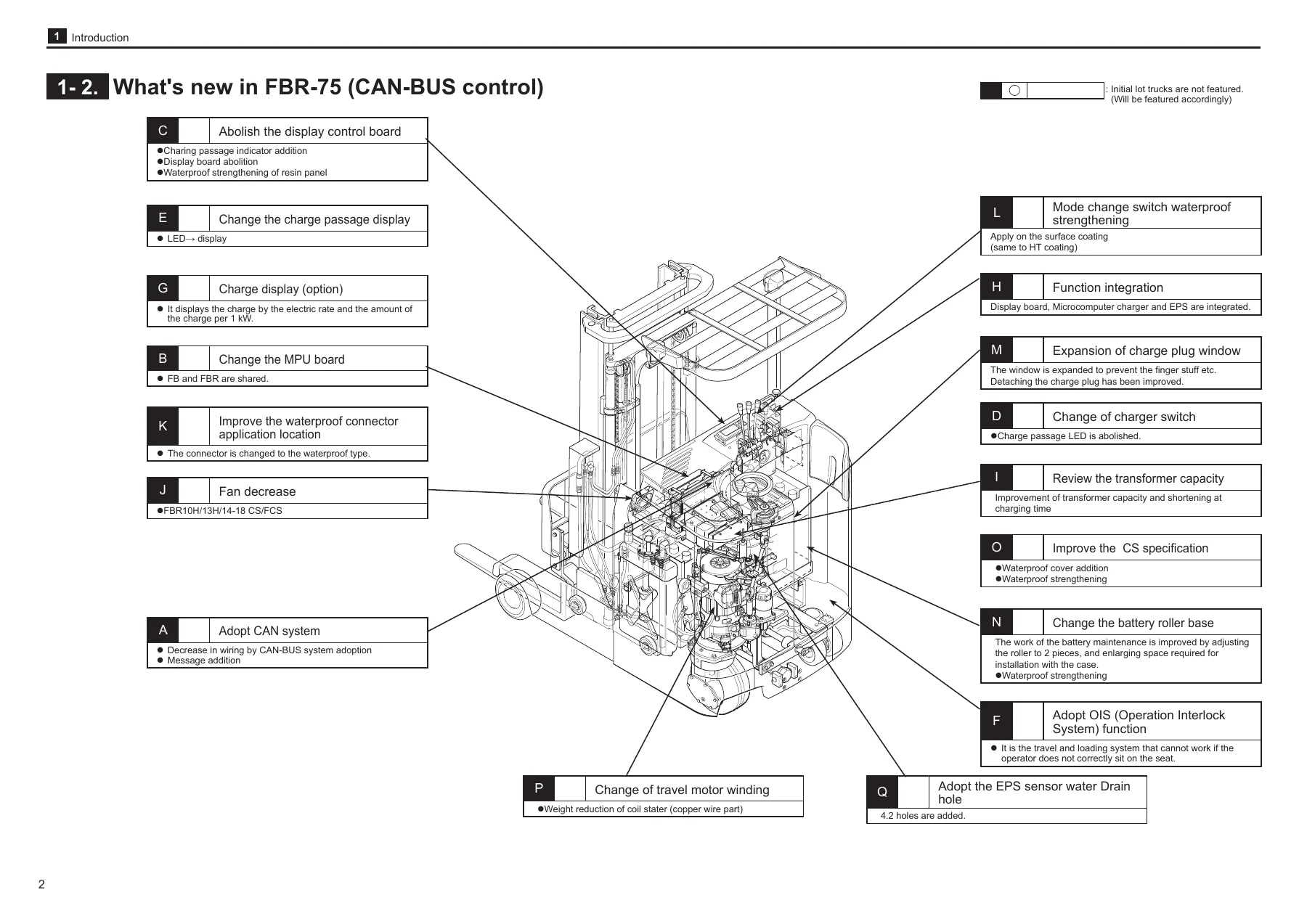

  • What’s new in FBR-75 (CAN-BUS Control)
• 2. Adjustment of SICOS-AC
  • Explanation of the monitor display
  • Explanation of the MPU board
  • SICOS-AC check and adjustment
• 3. Troubleshooting
  • Self diagnosis function
  • Error history memory
  • I/O Check

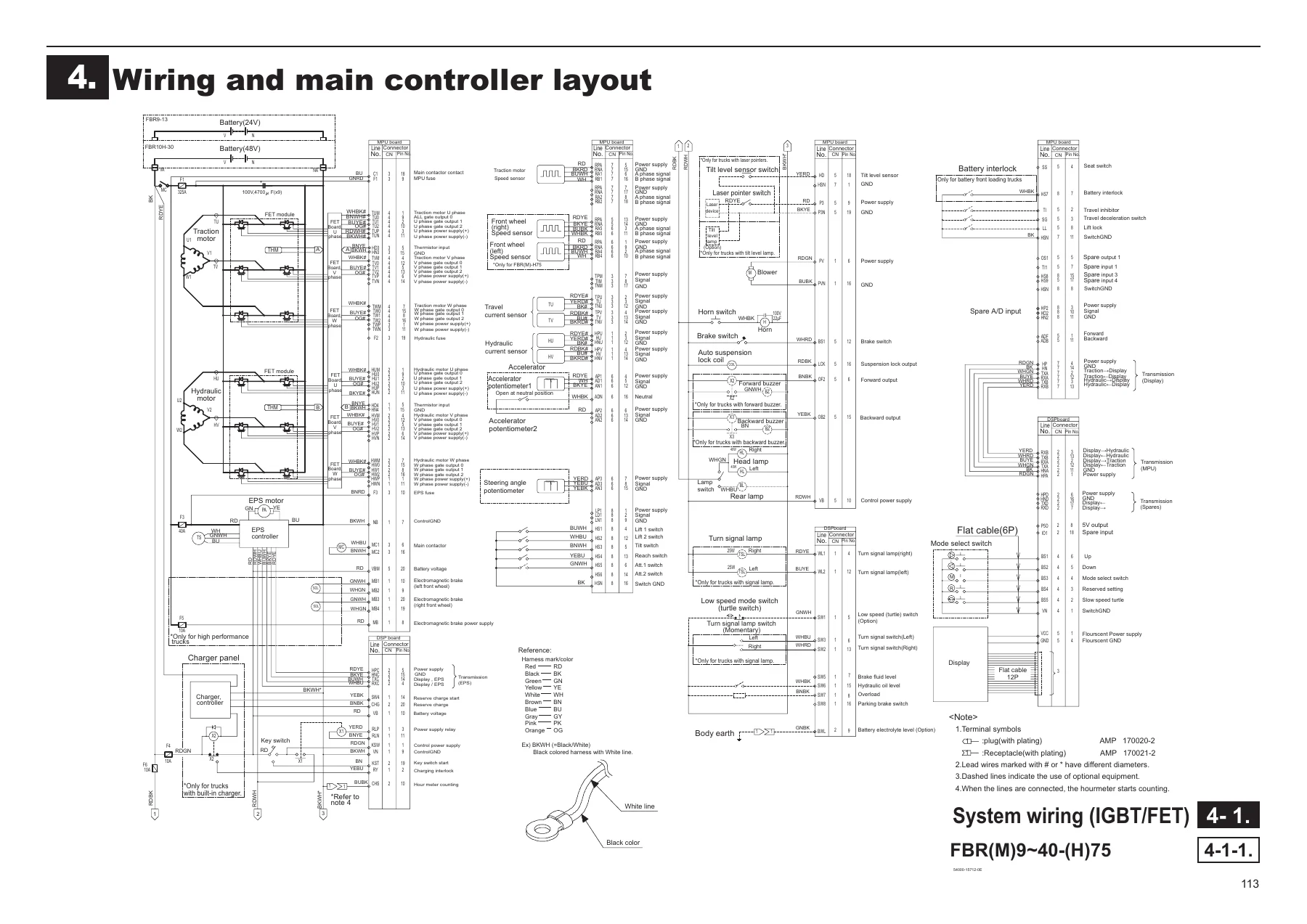

• 4. Wiring and main controller layout
  • IGBT Control
  • FET Control
  • CAN-BUS Control
  • Built-in charger
  • Accessory wiring
  • AOS / Fingertip (Option)
• 5. Reference
  • MPU board connectors
  • Water resistant connectors

This Nichiyu FBR 75 Series troubleshooting manual is organized around the SICOS-AC control system and its associated components. It opens with an introduction to the control system changes across the FBR-75 range, then moves into adjustment procedures for the monitor display, MPU board, and display board. The troubleshooting chapter provides the self-diagnosis function, error message tables, error history memory, and I/O check modes needed to pinpoint faults. Wiring diagrams and main controller layouts for IGBT, FET, and CAN-BUS control systems follow, along with built-in charger wiring and accessory circuits. The reference section covers connector pin arrangements and water-resistant connector servicing.

Technicians working on these trucks will find the adjustment standards, error code tables, I/O port assignments, and wiring diagrams arranged so that diagnostic work can proceed systematically. The manual distinguishes between IGBT/FET control and CAN-BUS control throughout, because the control board composition and error message formats differ between these systems.

What This Manual Enables You To Do

With this Nichiyu FBR 75 Series troubleshooting manual, you can diagnose and repair electric forklift faults using the manufacturer’s self-diagnosis function, interpret error codes for travel, hydraulic, steering, and battery systems, and perform the adjustment procedures for hydraulic speed, regenerative braking, anti-slip, accelerator potentiometer, steering angle potentiometer, and load sensor calibration. The wiring diagrams support tracing circuits for IGBT, FET, and CAN-BUS controlled trucks, while the I/O port tables help verify sensor and actuator signals at the connector level.

Because the manual covers multiple control system generations across the FBR 9 through FBR 40 models, it is applicable to a wide range of FBR-75 series trucks. The adjustment standards list provides the baseline values needed to return a truck to correct operation after repair or component replacement.

Why This Manual Matters

Electric forklift control systems are not interchangeable between generations. Using the wrong procedure or adjustment value can leave a truck in a degraded state or cause further damage. This manual provides the correct procedures and specifications for each control system variant, so that maintenance work is performed safely and accurately.

The error code tables and I/O check data are particularly valuable because they allow faults to be isolated without guesswork. The wiring diagrams show the actual connector and harness routing, making electrical troubleshooting more efficient.

Delivery

IMAGES PREVIEW

This Nichiyu FBR 75 Series troubleshooting manual is delivered as an instant PDF download after payment. No shipping is required. The file can be viewed on any device that supports PDF, and pages can be printed for use in the workshop.
