Nissan 1F2UCU Series Forklift Parts Catalogue August 2009 – CF720-UBOOK PDF Download

Description

The Nissan 1F2UCU Series forklift parts catalogue is the illustrated component reference for the 1F2 cushion-tyre counterbalance trucks, published by Nissan Forklift Corporation under publication number CF720-UBOOK and issued in August 2009. Every section pairs an exploded assembly drawing with a keyed parts list, so a callout number on a drawing leads straight to the part number, part name, specification, quantity and applied date for that component. Coverage runs from the K21 and K25 gasoline engines and their LPG and dual-fuel variants, through the ATM single-speed and FTM two-speed automatic transmissions, drive and steering axles, brakes, steering gear and hydraulic system, to the overhead guard, floor panel and seat.

File Details

• Manual type: Illustrated parts catalogue (parts manual)
• Brand: Nissan Forklift (Nissan Forklift Corporation)
• Model series: 1F2UCU – 1F2 series, 2.0 to 3.6 tonne cushion-tyre trucks
• Publication number: CF720-UBOOK
• Issue / revision: August 2009 (revised August 2009), with a July 2010 seat revision bulletin and updated seat pages
• Languages: English, Spanish, French, German
• File format: PDF
• Page count: 579

Chapters Covered

• Engine Mechanical
• Fuel & Engine Control
• Exhaust & Cooling
• Engine Electrical
• Body Electrical
• Power Train
• Axle & Suspension
• Brake
• Steering
• Body (Front, Roof & Floor)
• Body (Side, Rear & Seat)
• Miscellaneous
• Alphabetical Part Name Index (English, Spanish, French, German)
• Part Number Index

Engine Mechanical (Sections 100-150)

The largest block of the Nissan 1F2UCU parts catalogue. It opens with the engine gasket kit breakdown for regrind and repair jobs, then the cylinder head and rocker cover assembly, engine and mounting hardware, pistons, crankshaft and flywheel, camshaft and valve mechanism, front cover and fittings, intake and exhaust manifolds, and the complete lubricating system including the oil pump assembly. Each drawing breaks down to individual bearings, seals, shims and fasteners.

Fuel & Engine Control (Sections 160-199B)

Carburettor assemblies, fuel strainer and fuel hose routing, air cleaner, fuel piping, accelerator linkage and pedal components, the LPG vaporizer with its seal and screw kits, LPG filter and piping, and both LPG bombe mounting configurations – the standard bracket and the swing-down version. This is where you identify the correct vapouriser and tank-mounting parts for LPG and dual-fuel 1F2UCU trucks.

Exhaust & Cooling (Sections 200-216)

Exhaust tube and muffler with the diffuser variant, water pump, cooling fan and thermostat, radiator, shroud and fitting hardware including the anti-rust meter cover treatment, and the torque converter oil cooler with its piping. Hose clamps, brackets and mounting fasteners are all keyed individually.

Engine Electrical (Sections 221-253)

Distributor and ignition coil harness, vacuum piping, engine control module, alternator with its pulley and rectifier breakdown, engine room and instrument wiring harnesses, wiring for the body including the FC option and tilt levelling system option layouts, battery and battery mounting, the instrument panel meter assembly with its warning lamp and LCD callouts, switches and the electrical unit with relays.

Body Electrical (Sections 260-261)

Head lamp assemblies for raised, inside-mount and drive-in overhead guard configurations, and the front combination lamp with its bracket and mounting hardware.

Power Train (Sections 310A-380C)

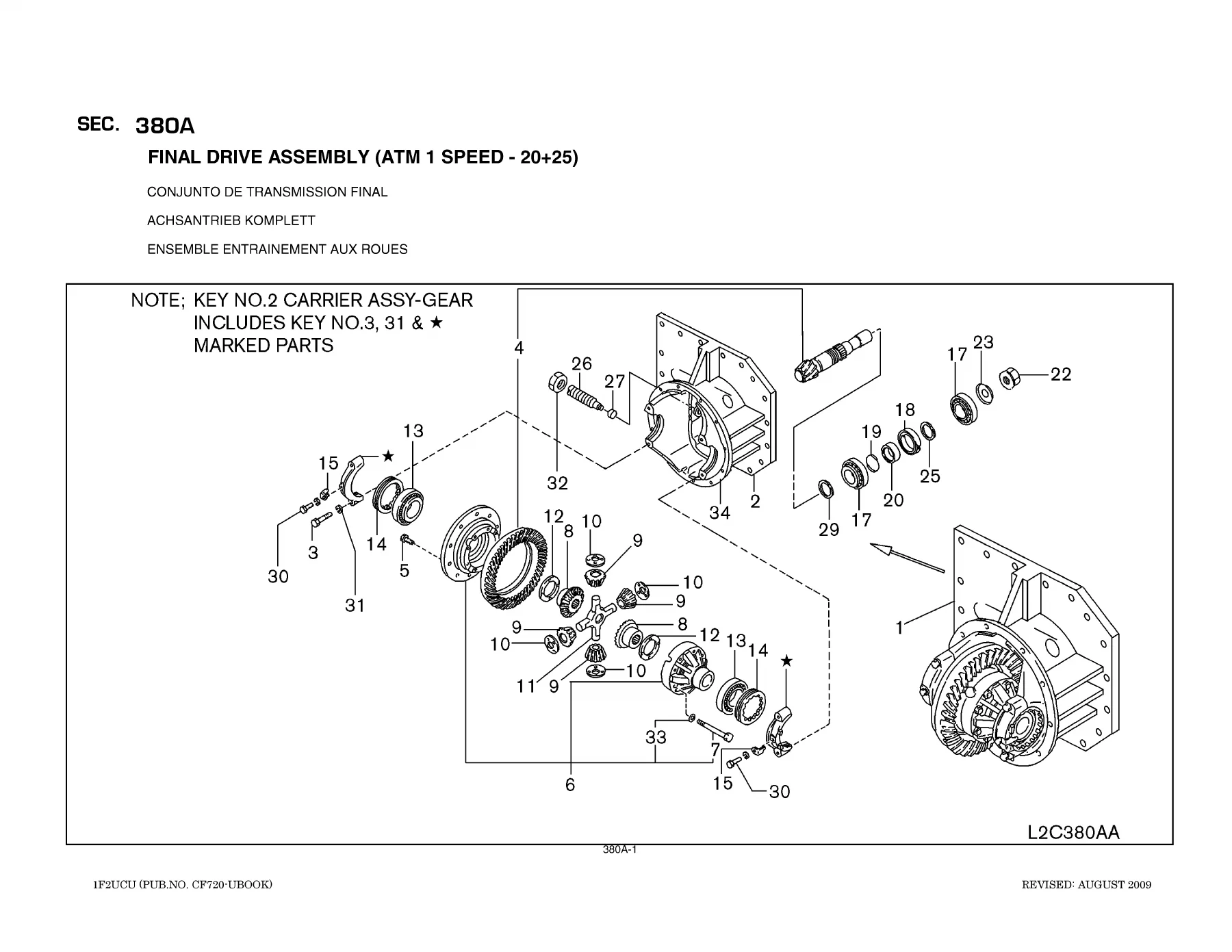

Split by transmission type, so you select the right page before ordering. It covers the transmission assembly and fitting for both the ATM single-speed and the FTM two-speed automatic, torque converter case and housing for each, oil pump parts, governor and gear parts, clutch and brake band assemblies, control valve, and the final drive assembly in three variants – ATM for 20 and 25 rated trucks, ATM for 28, 30 and 33 rated trucks, and the FTM two-speed unit.

Axle & Suspension (Sections 402-434)

Drive axle and steering axle assemblies with their bearings, king pins, spindles, shims and bushes, plus road wheel and tyre listings for both the drive axle and steering axle in cushion specification.

Brake (Sections 440-465)

Front brake assemblies with wheel cylinders, brake shoes, springs and adjusters, parking brake control with cables and lever, brake master cylinder with its piston kit, brake piping and control valve, and the brake and clutch pedal assembly including the FTM two-speed variant.

Steering (Sections 480-485)

Steering gear and power steering valve assembly, steering wheel components, and the steering linkage with tie rod tube, cylinders, seals and end fittings.

Hydraulic System (Sections 691B-699U)

Hydraulic oil pump and fittings, pump assembly, control valves including the 3-spool and 4-spool versions and the FC option, control valve fittings, hydraulic control levers for 3-lever, 4-lever, 2-lever and 3-lever configurations, oil piping from tank to pump, tank to valve, valve to cylinder and tank to steering, mast piping for 2H, 2F, 3F, 3V, 2WT-Truckers and 2W inner chain masts, and attachment piping for every mast and spool combination.

Body and Miscellaneous (Sections 737-993)

Overhead guard, floor panel, and the seat section covering both the earlier seat (from 0107) and the later ELR suspension seat (from 0710) with its full kit breakdown – springs, linkage, weight adjustment, slide, swivel, seat belt, hip rest, cushion and back kits. The caution plate and label sections close the catalogue with the car, electrical and mast decal listings.

Indexes

An alphabetical part name index is supplied in English, Spanish, French and German, followed by a part number index. The four-language index is the fastest route when you know the component name but not its figure number.

How the 1F2UCU Parts Lists Are Organised

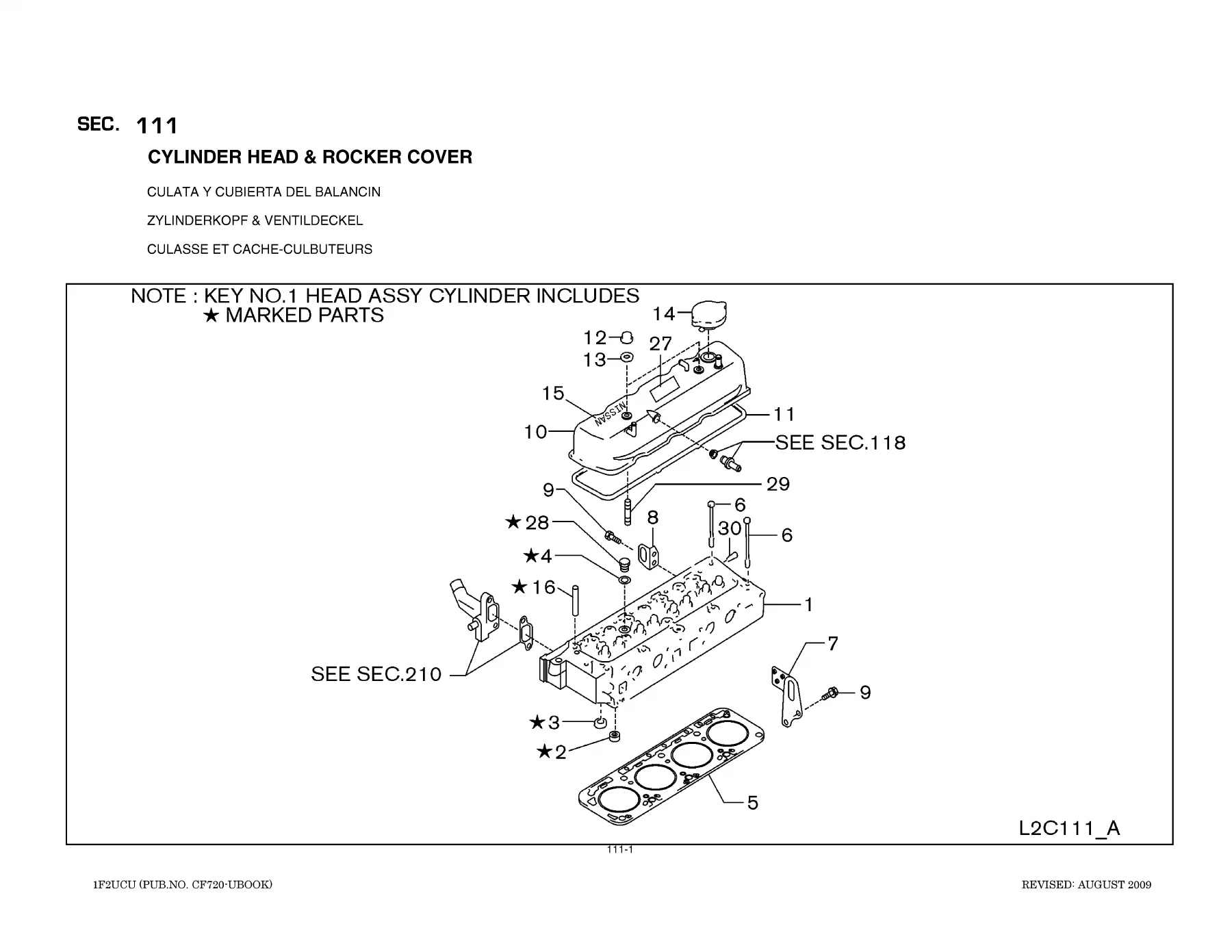

Each section number – 111 for the cylinder head, 214 for the radiator, 440 for the front brake, and so on – carries its own exploded illustration and matching table. The table columns give the key number, part number, part name, specification, quantity, applied date and interchange information, with former part numbers flagged where a supersession applies. That structure means this Nissan 1F2UCU Series parts catalogue works both ways: start from a drawing callout and read across to the number, or start from a number and confirm it belongs on your truck.

Models and Configurations Covered

The classification tables in the opening pages map the catalogue to the 1F2 cushion-tyre range across capacity ratings 20, 25, 28, 30, 33, 35 and 36 – that is 4,000 lbs / 2,000 kg up to 8,000 lbs / 3,600 kg. Both standard wheelbase and long wheelbase trucks are included, with ATM single-speed or FTM two-speed automatic transmission, K21 or K25 engine, and LPG or dual-fuel (gasoline/LPG) fuel system. Truck-mounted model codes listed in the catalogue include 1F2A20LU, 1F2A20DU, 1F2A25LU, 1F2A25DU, 1F2A28LU, 1F2A28DU, 1F2A30LU, 1F2A30DU, 1F2A33LU, 1F2A33DU, 1F2F30LU, 1F2F30DU, 1F2F35LU, 1F2F35DU, 1F2F36LU and 1F2F36DU. The model code diagram also explains the individual characters – manufacturer, tyre type, engine, body size, basic model, transmission, load capacity rating, fuel and destination – which is useful when you need to confirm a variant before ordering.

Serial Number and Identification Support

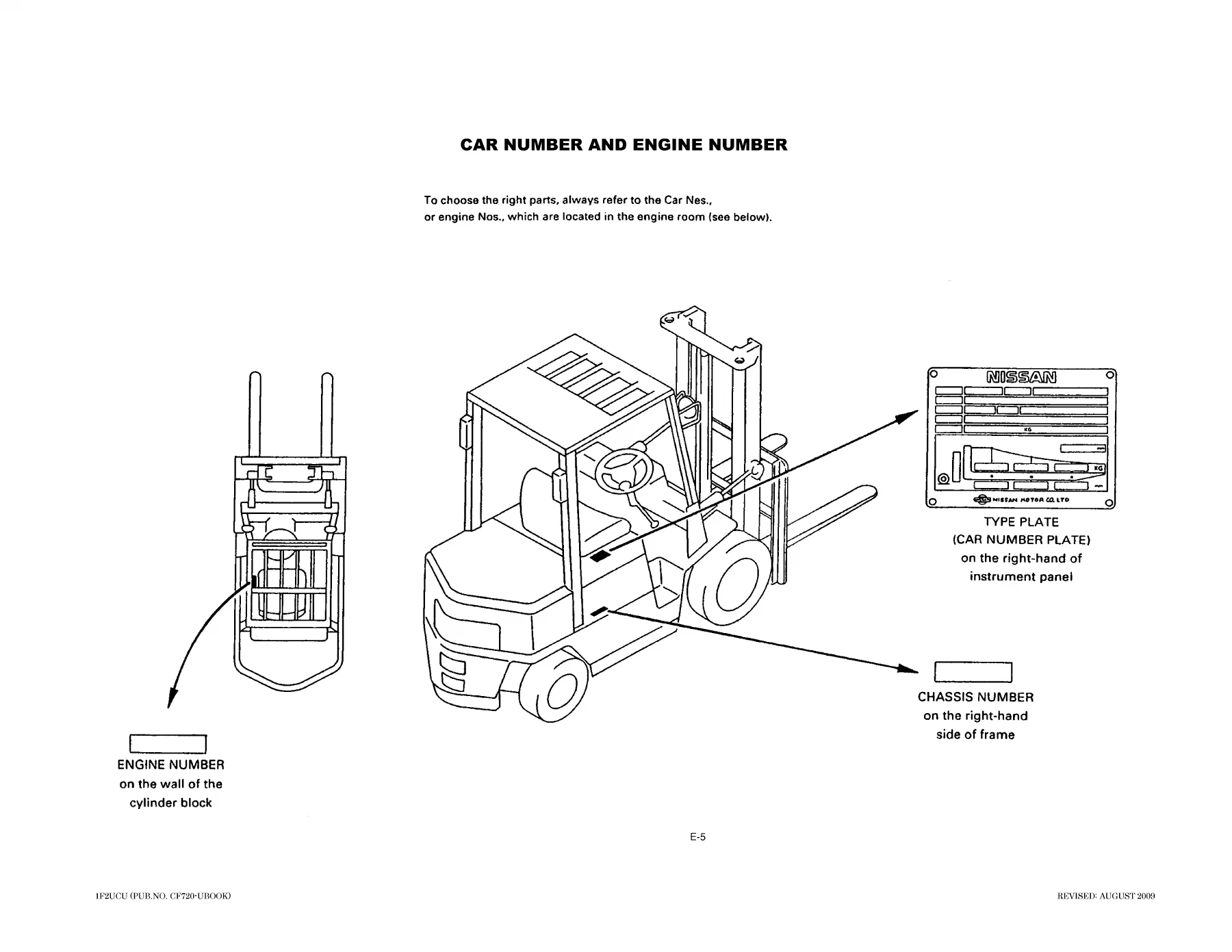

An identification page shows where to read the engine number on the cylinder block wall, the chassis number on the right-hand side of the frame, and the type plate on the right-hand side of the instrument panel. A table of chassis numbers is included to help work out when a given truck was built, so the correct applied date column can be matched before a part is selected.

Get the Right Part First Time

Ordering a component for a cushion-tyre Nissan forklift without the illustrated breakdown is guesswork, and guesswork is expensive when a bearing, seal, clutch plate or hydraulic fitting turns up wrong. This Nissan 1F2UCU Series forklift parts catalogue removes that risk: you see the assembly, you see how the parts sit in relation to one another, and you read the exact part number from the keyed table for your truck’s capacity rating, engine, fuel system and transmission. It supports the jobs that actually stop a forklift – resealing a cylinder head, rebuilding the front brake, replacing a clutch and brake band in the ATM or FTM transmission, chasing a hydraulic leak through the mast piping, fitting a new vapouriser or LPG filter, renewing axle bearings or king pins, and sourcing seat, overhead guard and floor panel components.

IMAGES PREVIEW

Because it is delivered as an instant PDF download, there is no shipping, no waiting and no courier damage. Open it on a laptop in the workshop, a tablet on the shop floor or a phone alongside the machine, zoom into the exploded views, and print the pages you need for the job at hand. The multi-language part name index means the whole parts lookup process stays quick even when a component is known by different names across regions. Keep it on file as the working reference for every 1F2 cushion-tyre truck in your fleet.
