Normet Carrier HD214 Maintenance Manual – 100067940 Workshop PDF

Description

Normet Carrier HD214 Maintenance Manual – Document 100067940

This Normet Carrier HD214 maintenance manual is the complete scheduled-service guide for carrier HD214, issued under document number 100067940. It walks a technician through the carrier’s full maintenance programme in interval order – daily or once per shift (10 h), every 500 hours, every 1000 hours and every 1500 hours – and backs up each task with component illustrations, tightening torques, fluid capacities and troubleshooting tables. Because the engine section follows Mercedes-Benz service product specifications, the manual also settles the practical questions that come up in the workshop: which diesel fuel and engine oil grades are approved, how the coolant has to be mixed, and when filters and fluids must be renewed. Everything is written for the machine in front of you, not for a generic diesel carrier, which is what makes this Normet Carrier HD214 maintenance manual genuinely usable on the workshop floor.

File Details

• Manual type: Maintenance manual
• Brand: Normet
• Model / carrier: Carrier HD214 (Carrier No. HD214)
• Document number: 100067940
• Language: English
• Page count: 149 pages
• File format: PDF

Chapters Covered

• 1. Safety Precautions – service precautions, hydraulics, other precautions
• 2. Oil Samples – patch testing and laboratory analysis as part of the maintenance programme
• 3. Engine – lubricant recommendations (service products, diesel fuels, FAME fuels, engine oils, coolant), general information, procedures by interval, troubleshooting
• 4. Powershift Transmission – lubricant recommendations, procedures, general troubleshooting, troubleshooting guide
• 5. Mechanical Transmission – lubricant recommendations, tyre and driveline checks, axle differential and planetary gear oil, brake plate wear, brake bleeding, troubleshooting
• 6. Hydraulic System – lubricant recommendations, pressure accumulator safety precautions, procedures, steering and brake troubleshooting
• 7. Frame – lubricant recommendations, greasing fittings, oscillation axle bushings, frame joint bearings, steering cylinder checks
• 8. Enclosed Cabin Equipment – windshield washer, cabin fresh air filter, air conditioning dryer and system care

Read together, these chapters form a complete service cycle rather than a scattered collection of tips. The engine chapter alone runs from daily oil and coolant level checks through 500-hour oil and filter changes, 1000-hour line, hose and air cleaner inspections, and 1500-hour valve clearance adjustment, fuel filter replacement and coolant renewal – and each procedure tells you the torque, the fluid grade or the wear limit that decides whether the job is finished. The transmission and mechanical transmission chapters carry the same logic into the driveline and axles, covering oil level checks, filter replacement, differential and planetary oil changes, wheel nut torque, brake plate wear measurement and brake bleeding. The hydraulic chapter adds accumulator handling rules, filter and fluid changes, and the pressure checks and adjustments for steering, charging, service brake and safety/parking brake circuits.

Maintenance Intervals Built Into the Schedule

The manual organises work by operating hours so nothing is missed: daily or once per shift (10 hours), weekly (50 hours), every 125 hours, every 250 hours, every 500 hours, every 1000 hours and every 1500 hours, plus an as-required section for brake bleeding and pressure adjustments. A first-service reminder runs through the document as well – oil and filters are changed after the first 50 hours, and the valve clearance is adjusted at the first maintenance service. That structure makes this Normet HD214 maintenance manual easy to slot into an existing fleet servicing routine instead of treating it as a one-off reference.

Specifications You Will Actually Reach For

The pages are dense with the numbers that decide a repair. Valve clearance is given as 0.40 mm for the intake valves and 0.60 mm for the exhaust valves. Coolant capacity is listed for the OM904LA and OM906LA engines, along with the 50/50 water to antifreeze-corrosion inhibitor mixing ratio that protects down to approximately -37 degrees C. Axle differential and planetary reduction capacities are tabulated by axle, transmission oil capacities by transmission series, and hydraulic reservoir capacity by carrier series. Pressure accumulator pre-charge, charging pressure, steering pressure, service brake pressure and safety/parking brake release pressure are all stated with their check points and adjustment screws identified.

Illustrations and Troubleshooting Support

Procedures are supported with photographs and drawings of the components involved: the engine layout, dipstick, fuel reservoir, air cleaner and dust discharge valve, oil and fuel filter assemblies, poly-V-belt routing and its wear patterns, cylinder head and valve adjustment points, axle filler and drain plugs, planetary gear oil plugs, driveline greasing fittings, greasing points on the frame, the frame joint adjuster, hydraulic filter assembly and reservoir breather, pressure check points and brake valves. Troubleshooting tables at the end of the engine, transmission, mechanical transmission and hydraulic chapters map symptoms to probable causes and remedies, so you can diagnose a starting fault, a lack of power, an overheating engine, a slipping clutch, a soft brake pedal or a safety/parking brake that will not release without guesswork.

What This Normet Carrier HD214 Maintenance Manual Lets You Do

With this manual on hand you can run the full scheduled maintenance programme on carrier HD214 yourself – daily checks, the 500-hour service, the 1000-hour inspection and the 1500-hour major service – and carry out the engine oil and filter changes, fuel filter and prefilter work, coolant renewal, valve clearance adjustment, poly-V-belt inspection and replacement, transmission oil and filter changes, axle differential and planetary oil changes, brake plate wear checks, brake bleeding and hydraulic pressure checks and adjustments. Just as importantly, it gives you the correct torque, clearance and fluid specification for each of those jobs, so a repair is done to the manufacturer’s values rather than to a best guess. It also tells you when a job belongs in a qualified specialist workshop, which matters for safety-related work on the braking and steering circuits.

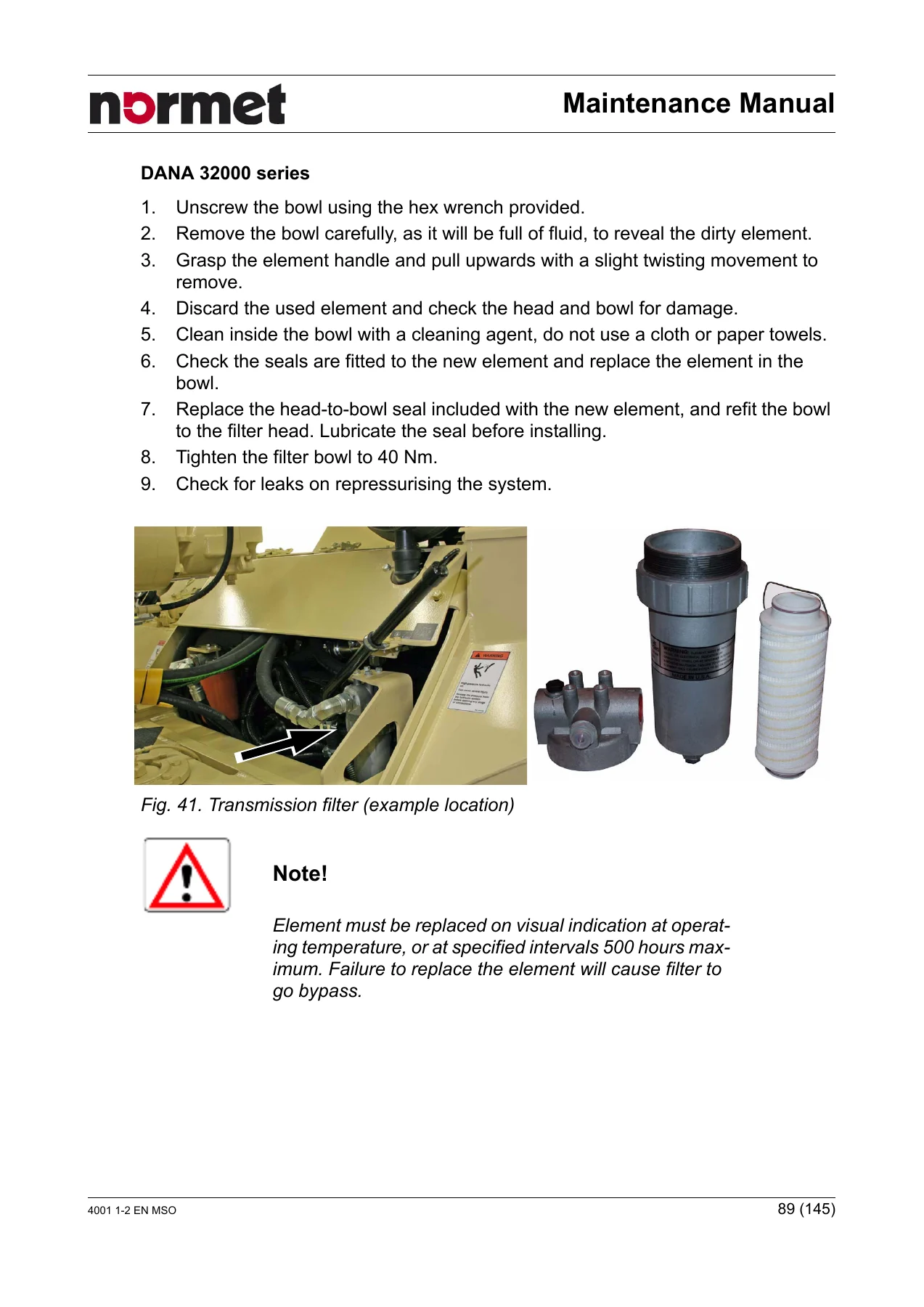

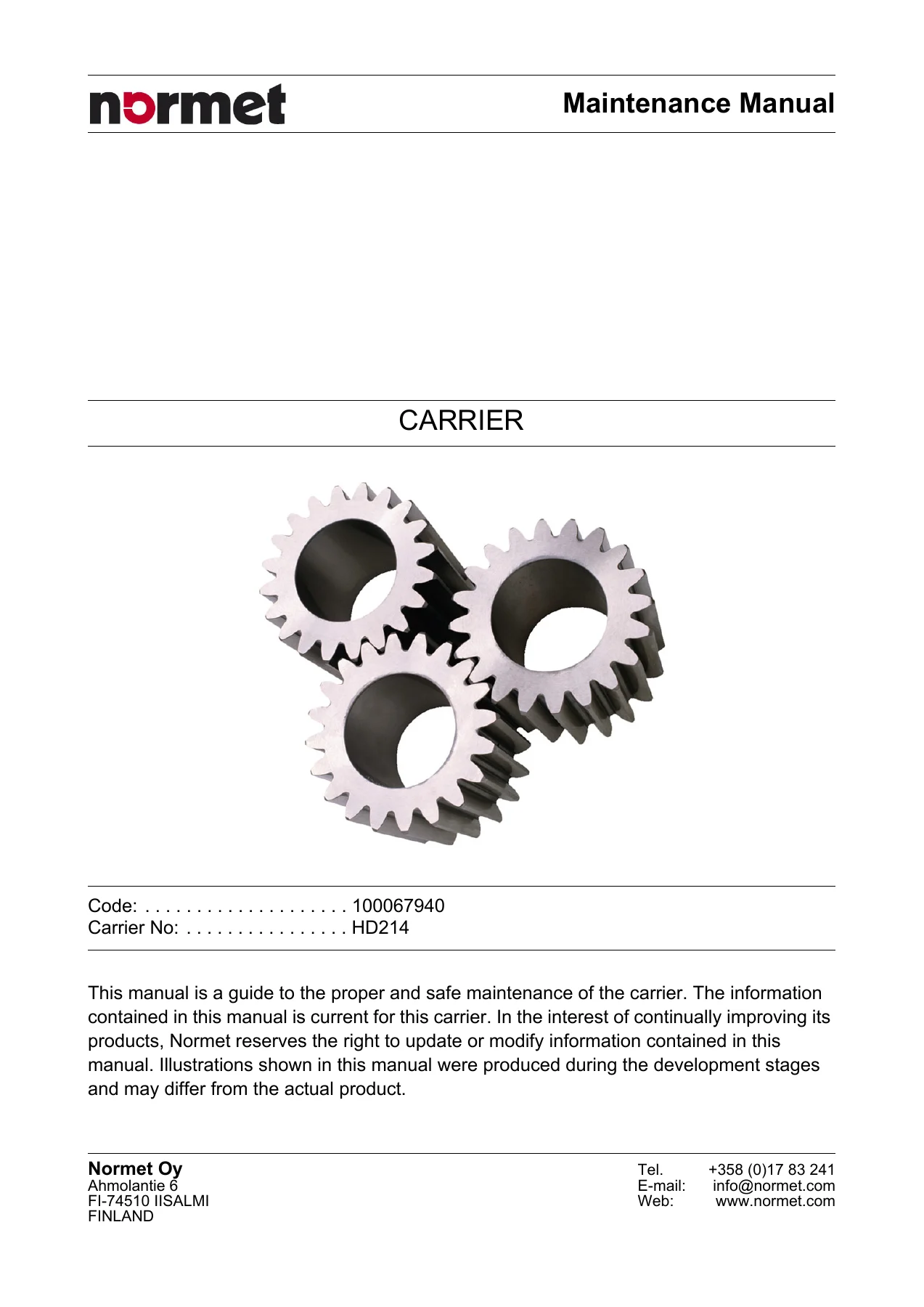

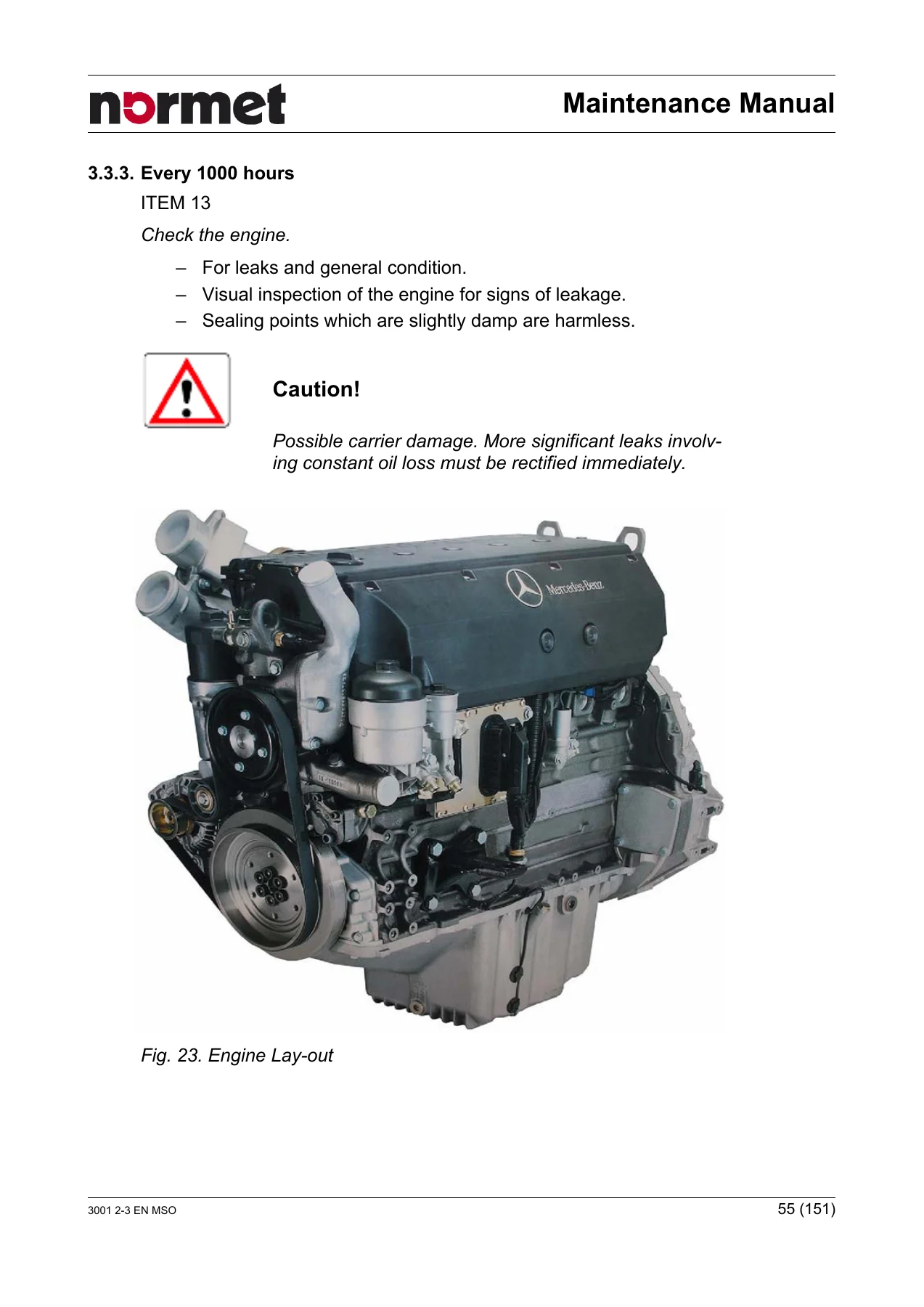

IMAGES PREVIEW

Delivered as an instant PDF download after payment, with no shipping and no waiting. The file opens on any computer, tablet or phone and the pages you use most can be printed for the workshop, so the procedure, the torque figure and the fluid chart stay at the machine while you work.
