Normet Charmec 9910 BC ANX 1000 Equipment Parts Catalog

This is the Section 7 Equipment parts catalog for the Normet Charmec 9910 BC ANX 1000, published under document number 100027815 with the revision tag #DD402. Every page is built around exploded assemblies and itemised part numbers, so a fitter can identify a component on the machine, cross it to the illustration, and order the exact number without guesswork. The catalog runs 209 pages and covers the boom, the Anfo charging circuit, the lubrication and fire suppression systems, the hydraulic pump, the compressor and the pressure washer as separate sub-sections.

File Details

• Manual type: Illustrated parts catalog (Section 7 – Equipment)
• Brand: Normet
• Machine: Charmec 9910 BC ANX 1000
• Document number: 100027815
• Revision tag: #DD402
• Language: English
• Page count: 209 pages
• File format: PDF

Chapters Covered

• 7.1 Normet boom NSB-900
• 7.2 Anfo charging system
  • Anfo filling system assembly
  • Anfo filling outfitting
  • Console
  • Flow control valve assembly and fittings
  • Filling valve fittings
  • Pressure accumulator assembly and fittings
  • 2/2 valve assembly and fittings
  • Pressure reducing valve fittings
  • Ball valve assembly
  • Turning unit assembly
  • Hydraulic motor
  • Shuttle valve fittings
  • Anfo filter assembly and filter unit
  • Vacuum pump assembly, hydraulic motor, vacuum pump
  • Anfo tank equipment
  • Safety valve fittings
  • Operating device
  • Ejector assembly
  • Suction line valves
  • Anfo inlet hose
  • Control box assembly and control box
  • Air outlet tap
  • Anfo module frame
  • Filler platform
  • Air schema, inlet
  • Air tap
  • Water separator
  • Air schema, charging control unit
  • Air schema, boom air piping
  • Spray lubricator fittings
  • Air schema, piping (Pages 1/3, 2/3, 3/3)
  • Pressure switch assembly
  • Air schema, charging controls
  • Charging hand control
  • Charging control pedal piping
  • Pedal assembly
  • Air schema, ground level control
  • Operation valve fittings
  • Charging hose
• 7.3 Boom control valve, 56073976
• 7.4 Lubrication system
• 7.5 Fire suppression system
• 7.6 Hydraulic pump, 56060070
• 7.7 Compressor
  • Diagram / piping, compressor
  • Magnetic valve fittings
  • Oil cooler fittings and oil cooler
  • Compressor control kit
  • Air pressing assembly
  • Oil sump
  • Rotor-stator assembly
  • Valve block assembly
  • Oil separator
• 7.8 Pressure washer
  • Diagram / piping, pressure washer
  • Pressure washer water piping
  • Pressure washer assembly
  • Pressure washer handle
  • Electric schema, pressure washer
  • Water inlet piping

What ties the whole catalog together is the way each sub-section is split into small, self-contained assemblies. Rather than a single flat parts list, the boom chapter is broken down into outer tube, inner tube, roller support, sliding part, turning unit and cylinder groups, each with its own illustration and its own numbered list of pins, bearings, lock plates, grease fittings and fasteners. The same treatment is applied to the Anfo charging circuit, where valves, filters, vacuum pump, accumulator and control box all appear as separate exploded assemblies with their own fitting lists. For the compressor and pressure washer, the catalog goes a step further and pairs the parts breakdown with hydraulic, pneumatic and electrical schematics, so you can follow the circuit as well as identify the hardware on it. Anyone maintaining a Charmec 9910 will find the interleaved schematics and exploded views useful when tracing a fault back to a specific valve, hose or coupling rather than replacing parts by trial.

Exploded Views and Schematics

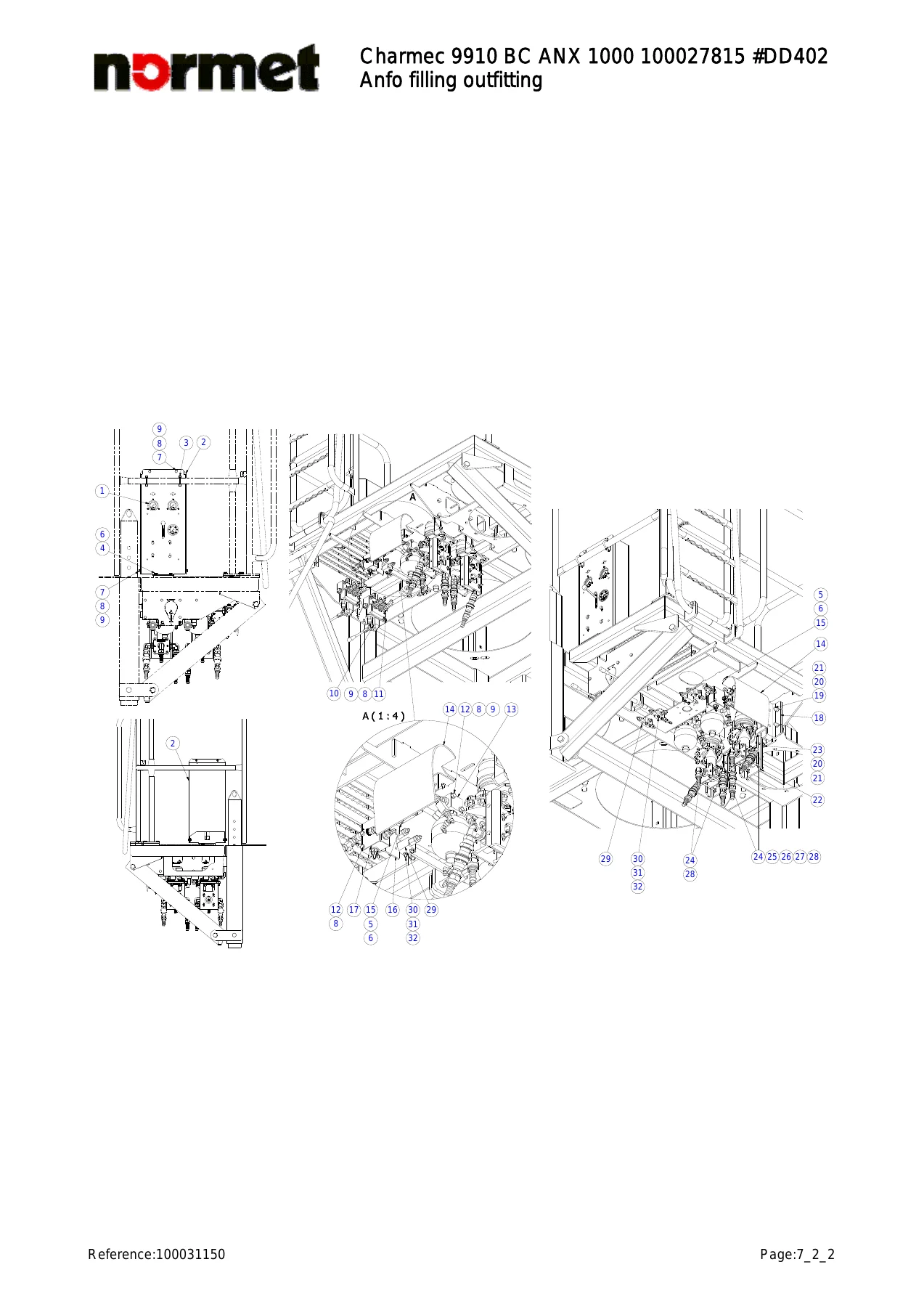

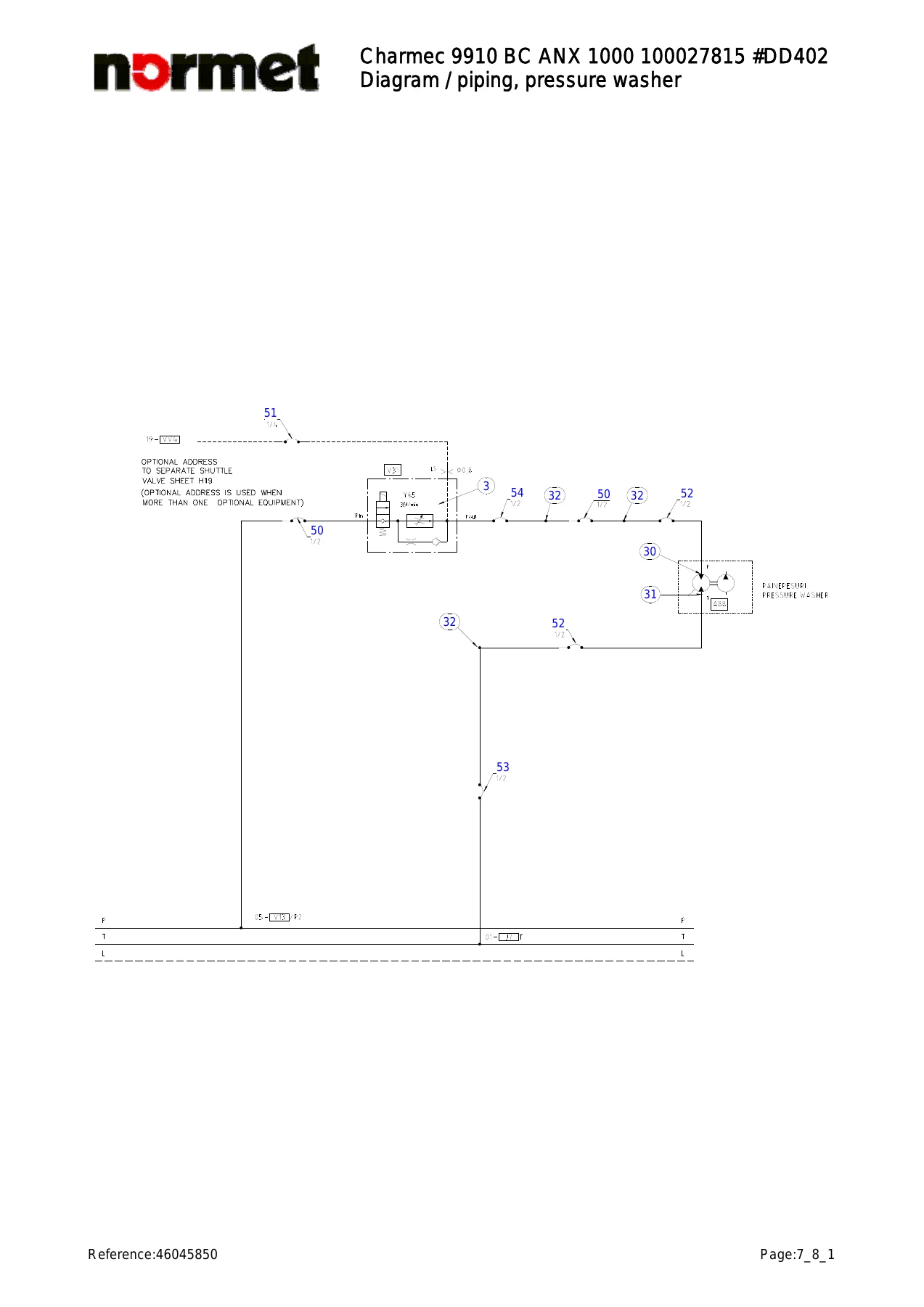

The catalog relies on line-drawn exploded views rather than photographs, which makes it easy to see the assembly order of stacked components – bearings, spacers, circlips and seal rings on a cylinder, or the plate stack inside a valve module. Callout bubbles on the illustrations point directly to the item numbers in the accompanying list, so a part can be found in either direction. Schematic pages cover the air piping for the charging system, the hydraulic circuit for the vacuum pump, the compressor circuit and the pressure washer water and electrical circuits. Seal kits, repair kits and complete assemblies are listed as their own line items where the catalog supports them, which helps when deciding between a full replacement and a rebuild.

Why This Parts Catalog Matters

Ordering the wrong part on an underground charging unit costs downtime, not just money. The Normet Charmec 9910 BC ANX 1000 Equipment Parts Catalog 100027815 DD402 removes that risk by giving you the manufacturer’s own part numbers for every item in Section 7, tied to the exact assembly they belong to. Standard designations are printed alongside the Normet numbers – hex screw sizes, DIN standards, circlip dimensions, seal ring sizes – so common hardware can be sourced locally while proprietary items are ordered by their factory number. That combination of factory numbers and standard designations makes this catalog usable both for a planned rebuild and for a same-day repair.
