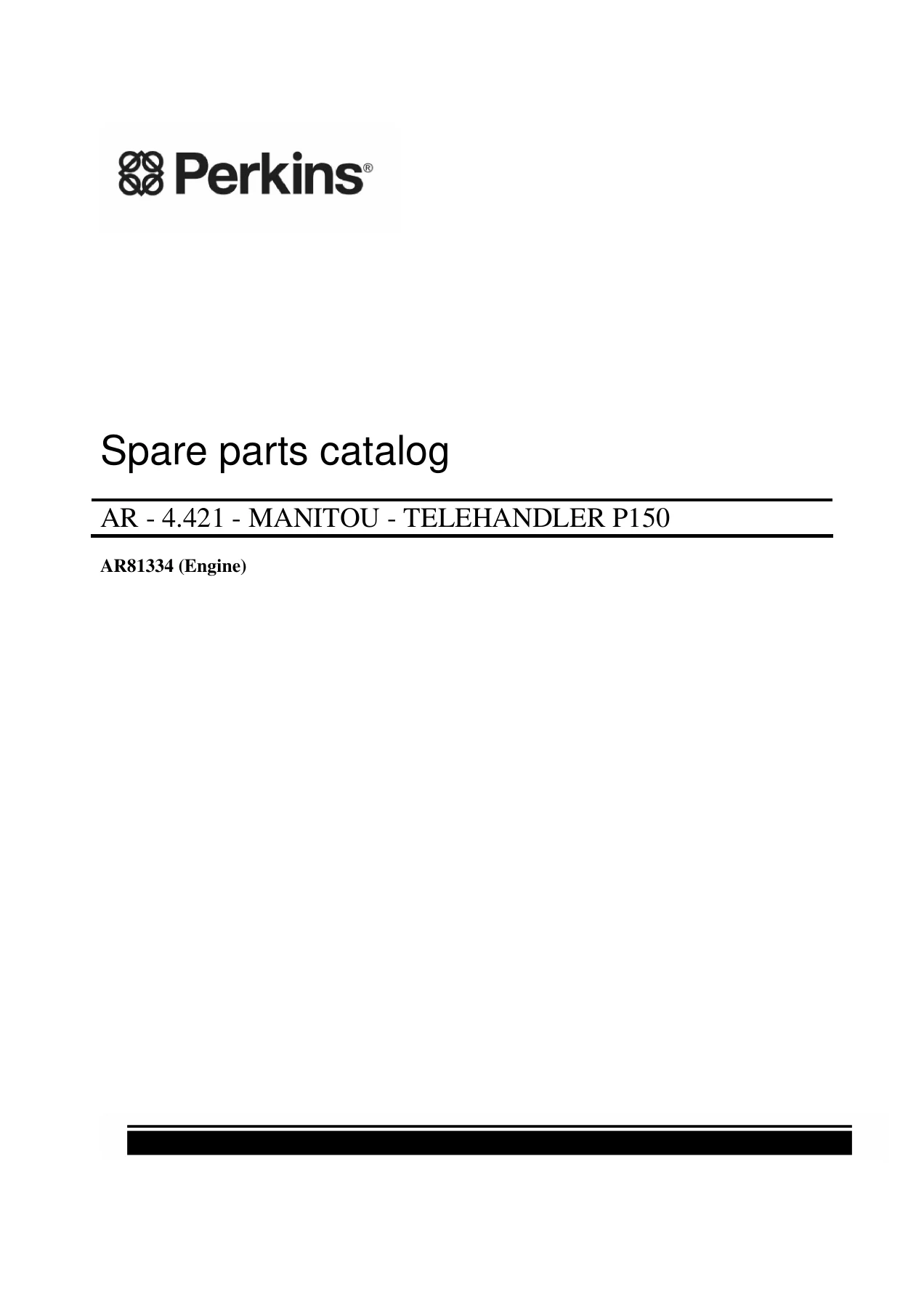

Perkins 4.421 Manitou Telehandler P150 Spare Parts Catalog AR81334

Description

Perkins 4.421 Manitou Telehandler P150 Spare Parts Catalog

This is the complete Perkins 4.421 spare parts catalog issued for the Manitou Telehandler P150, published under document reference AR81334. It is the parts identification book for this specific engine build and breaks the 4.421 engine down into every major assembly, listing the individual part numbers, quantities, descriptions, notes and weights needed to order the correct components.

File Details

• Manual type: Spare Parts Catalog
• Brand: Perkins
• Engine series: 4.421
• Application: Manitou Telehandler P150
• Document reference: AR81334
• Language: English
• Page count: 121 pages
• File format: PDF
• Edition/publication: 2021-2022 catalog edition

Chapters Covered

• Long Engine
• Short Engine

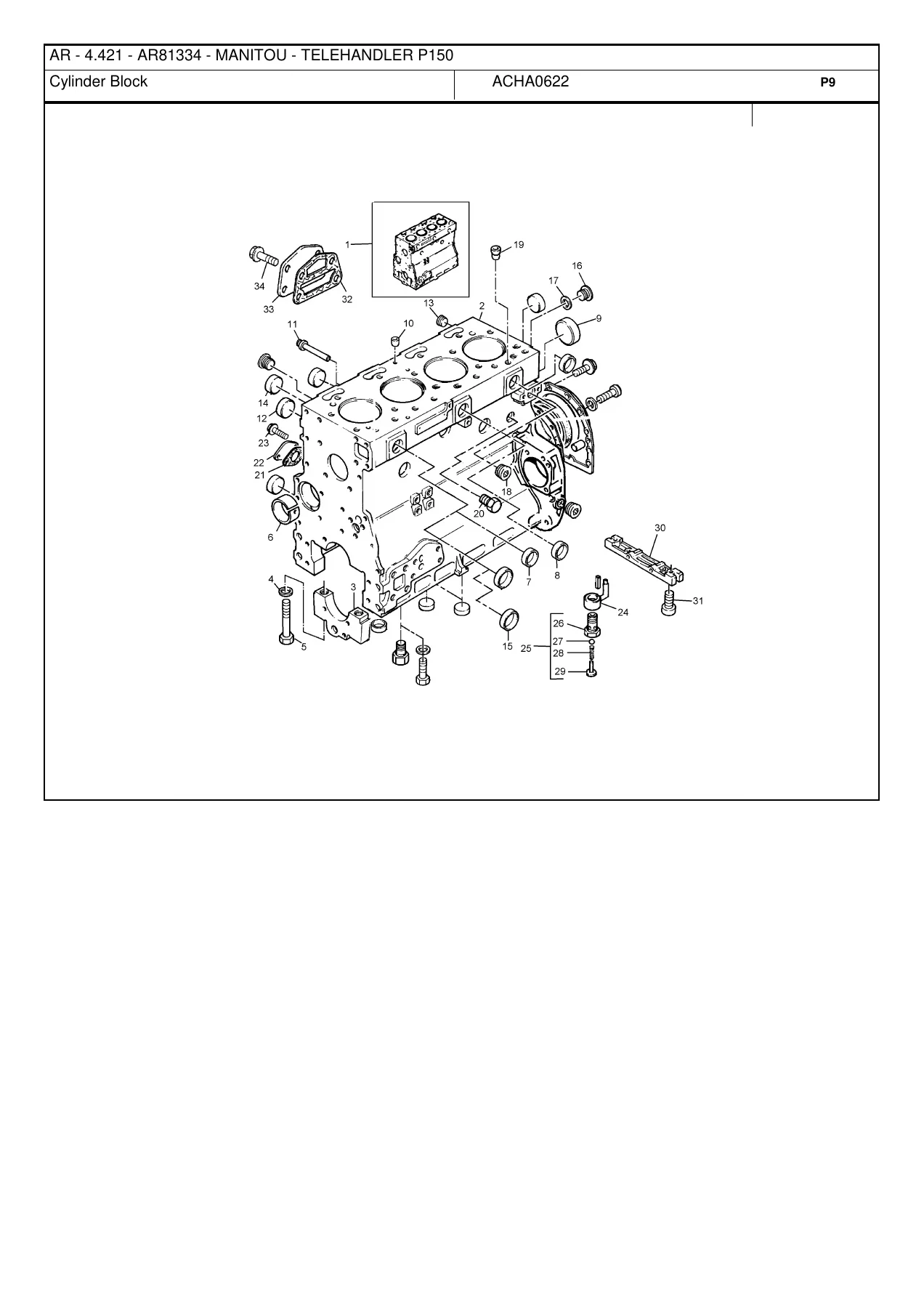

• Core Unit – Cylinder Block
• Crankshaft, Pistons & Connecting Rods

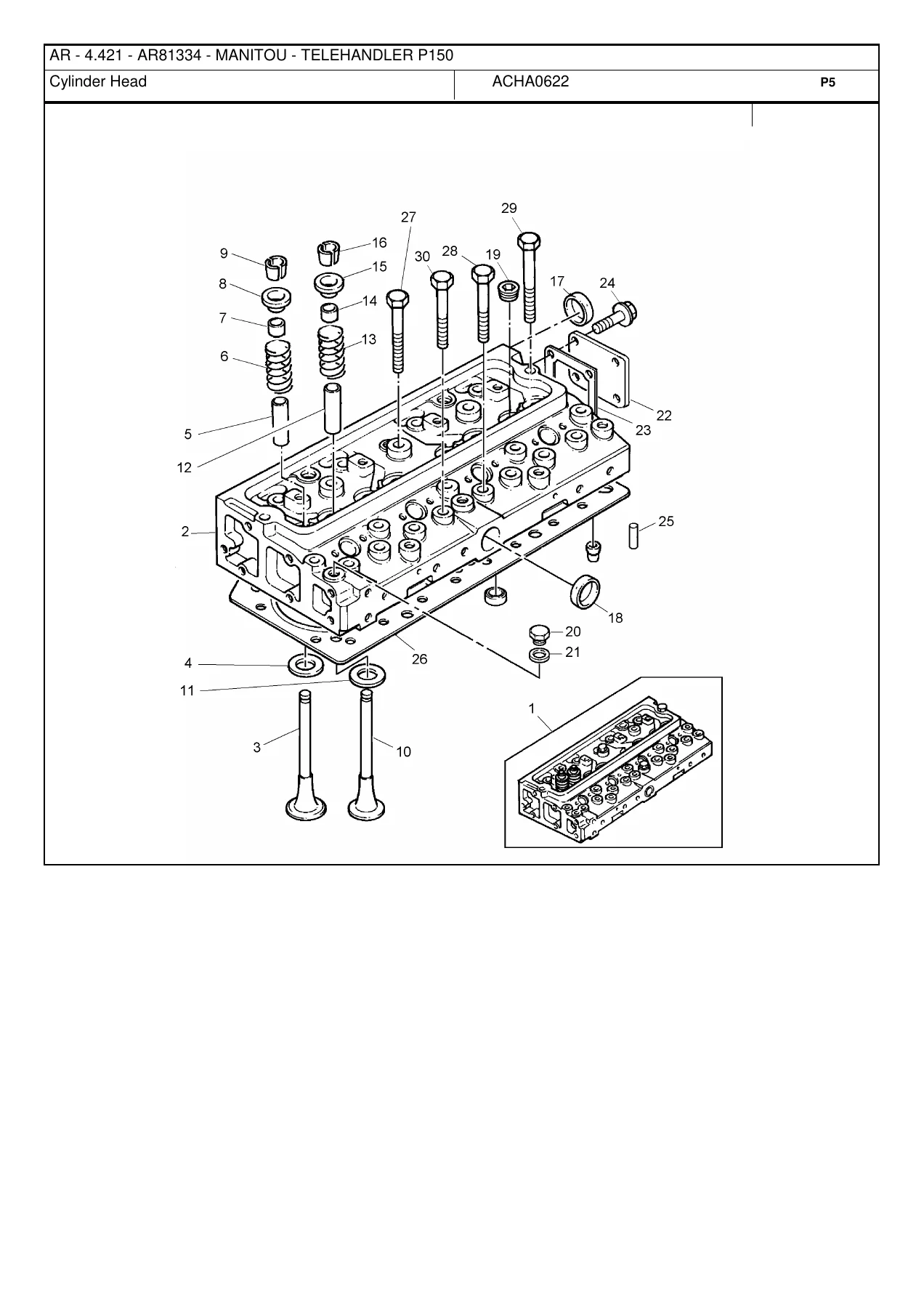

• Cylinder Head
• Rocker Shaft
• Timing Gear & Camshaft
• Lubricating Oil Pump & Delivery Housing
• Engine Kits – Thrust Washer Kit
• Engine Overhaul Kit
• Engine Overhaul Kit – Oversize
• Valve Train Kit
• Fuel Injection Equipment (Diesel)
• Flywheel & Starter Ring
• Starter Motor
• Fan Drive
• Lubricating Oil Sump
• Lubricating Oil Filler & Breather
• Cylinder Head Cover
• Breather
• Blanking Plates
• Lubricating Oil Filter & Integral Oil Cooler
• Front End Drive Input
• Water Pump & Thermostat
• Water Outlet & Inlet
• Alternator & Generator – Alternator, Breakdown, Bracket & Fixings, Pulleys
• Gear Drive Auxiliary Drive Option
• Joint & Gaskets – Top Service Kit
• Joint & Gaskets – Bottom Service Kit
• Induction Manifold & Air Charge Cooler
• Pipework & Connections
• Air Cleaner & Restriction Indicator
• Exhaust Manifold
• Exhaust Outlet Flange
• Low Pressure Fuel System
• Cold Start System
• Engine Lifting Eyes
• Heater/Starter Switch
• Lubricating Oil Pressure Switch / Gauge
• Temperature Gauge & Sender
• Radiator & Cowling
• Fuel Pre-Lift Pump
• Application Miscellaneous & Auxiliaries

Everything in the book is organised the same way a parts counter works: an index list points you to the correct page, each page pairs an exploded illustration with an itemised table giving the item number, Perkins part number, reference, quantity, description, notes and component weight or size. You can identify a fastener, a seal, a gasket, a piston kit, a con rod grade, a camshaft, a timing case, an oil pump or a complete short/long engine by matching the drawing number to the table row. The catalog also carries a dedicated long engine section explaining how power-exchange long engines are shipped, how the fuel pump drive gear must be transferred from the original engine, and how sump and oil pickup variations should be handled – all information you need before you order or install replacement parts.

What This Catalog Lets You Do

• Identify individual engine components on the Perkins 4.421 before removing or ordering anything.
• Order the exact part number for a Manitou Telehandler P150 engine instead of a guess-fit substitute.
• Check piston and piston ring oversizes (0.5 mm and +1.0 mm variants are listed) and con rod grades by colour code.
• Compare short engine, long engine and exchange unit options for a rebuild or replacement.
• Look up service kits – thrust washer kit, engine overhaul kit, oversize overhaul kit and valve train kit – in one place.
• Trace gaskets, seals, O-rings, plugs, thimbles, dowels and fasteners across every sub-assembly.
• Match cooling system components: water pump, thermostat housing, water outlet and inlet, radiator and cowling.
• Verify electrical parts: starter motor and its sub-components, alternator and breakdown parts, brackets, pulleys and switches.
• Identify low pressure fuel system pipes, olives, union nuts, clips and the lift pump.
• Confirm intake and exhaust side components: induction manifold, pipework, air cleaner, exhaust manifold and outlet flange.

Why This Matters

Parts ordering on a Perkins 4.421 is not forgiving. Different con rod grades, piston oversizes and running-change components look similar but do not interchange, and a single wrong gasket or seal can cost you a second teardown. Working from the exploded illustrations and the itemised part number tables means you can cross-check what is physically on the engine against what the catalog says should be there, and order only what you actually need. The long engine section alone is worth having before you commit to a replacement, because it explains what is supplied, what must be transferred and what must be returned on the core.

Get Your Copy

IMAGES PREVIEW

The Perkins 4.421 Manitou Telehandler P150 Spare Parts Catalog AR81334 is delivered as an instant PDF download – no waiting for a physical book, no shipping cost. Open it on a workshop PC, a laptop, a tablet or a phone, zoom into the exploded drawings on screen, or print the pages you need and take them to the machine. Keep it on file for the whole life of the engine so every future parts order starts from the correct reference.
