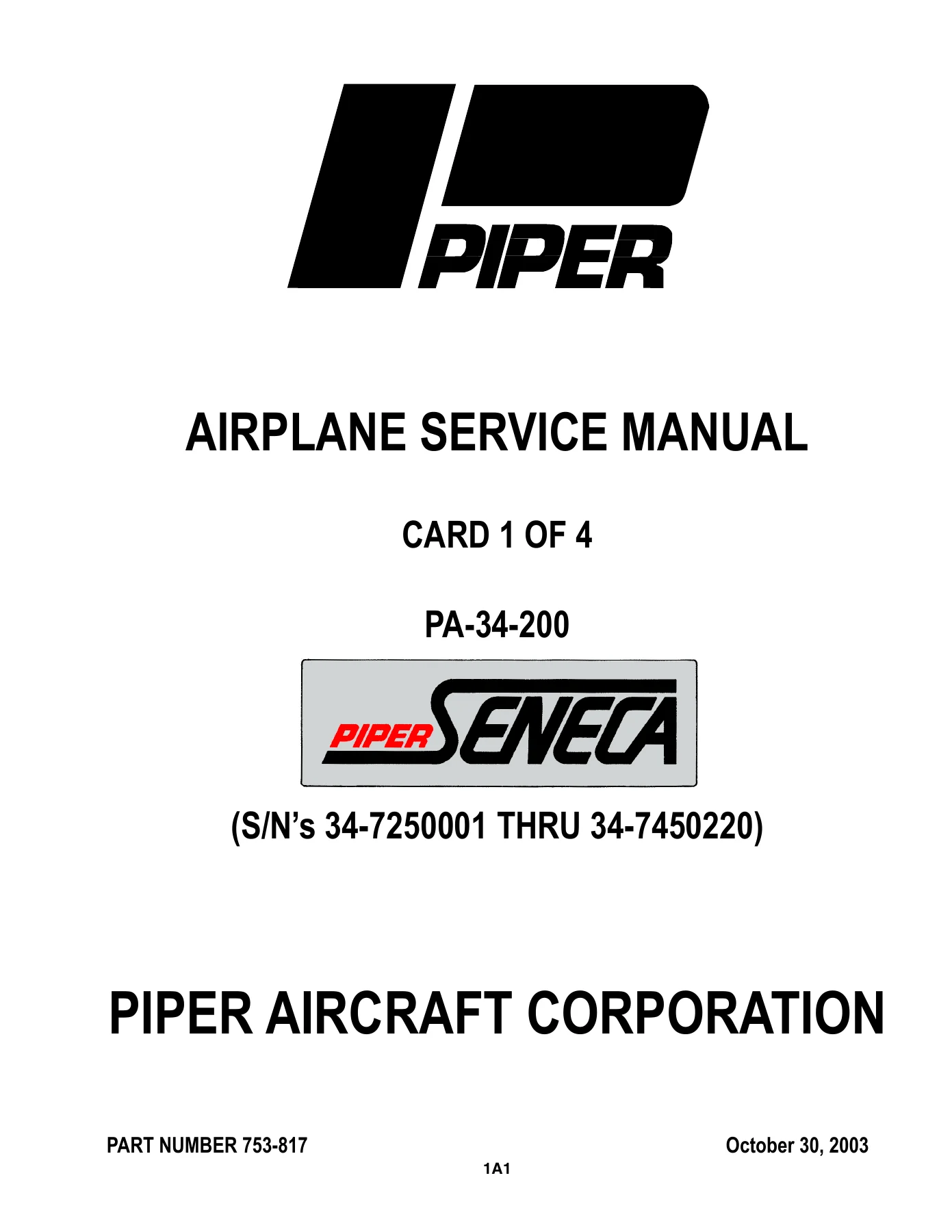

Piper PA-34-200 Seneca Service Manual – 1972, 1973, 1974

This Piper PA-34-200 Seneca Service Manual is the full Instructions for Continued Airworthiness for the Seneca twin, covering every major airframe and powerplant system across the 1972, 1973 and 1974 model years. It is the same document referenced by part number 753-817 and is presented here as a single, complete PDF spanning all four aerofiche cards. Whether you are performing a 100-hour inspection, troubleshooting a hydraulic fault, rigging a stabilator, or overhauling a landing gear oleo, this Piper PA-34-200 Seneca service manual puts the factory procedures, tolerances and torque values in front of you.

File Details

• Manual type: Airplane Service Manual (Instructions for Continued Airworthiness)
• Brand / manufacturer: Piper Aircraft Corporation / The New Piper Aircraft, Inc.
• Model: PA-34-200 Seneca
• Serial number range: 34-7250001 thru 34-7450220
• Model years covered: 1972, 1973, 1974
• Document number: 753-817
• Revision: CR031030 – October 30, 2003 (complete reissue)
• Language: English
• File format: PDF
• Cards included: 1, 2, 3 and 4 (complete set)

Chapters Covered

The manual is divided into fourteen numbered sections, each with its own table of contents, list of effective pages and grid index. The full section list is below.

• Section I – Airworthiness Limitations: Life-limited parts, 500-hour nose gear drag link bolt replacement, life-limited parts marking and disposition.

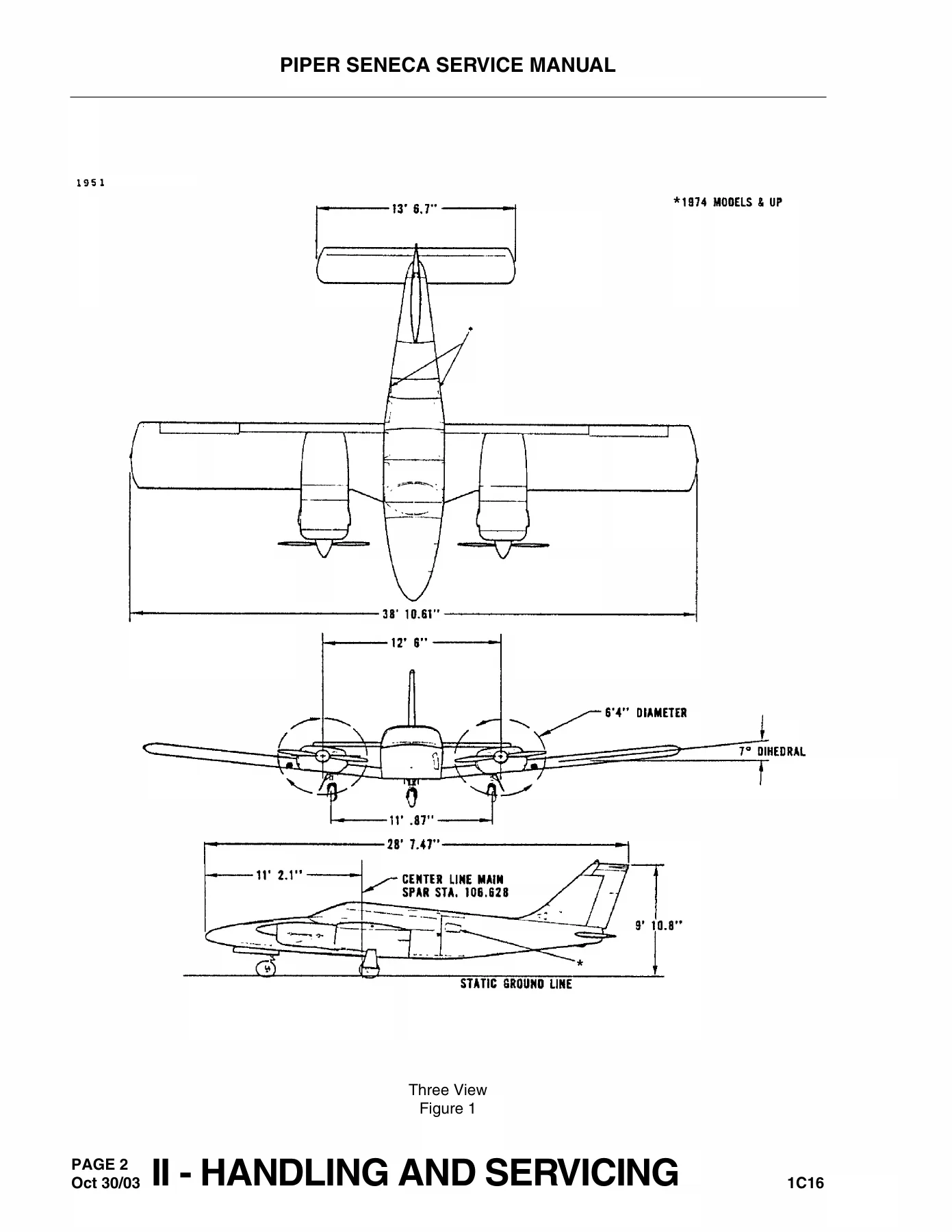

• Section II – Handling and Servicing: Dimensions, station reference lines, weight and balance data, jacking, weighing, leveling, mooring, parking, towing, taxiing, external power receptacle, fuel, brake, oleo strut, tire, hydraulic, battery and oil system servicing, lubrication chart, consumable materials, conversion tables.
• Section III – Inspection: Annual / 100 hour inspection procedure, scheduled maintenance by group (propeller, engine, cabin and cockpit, fuselage and empennage, wing, landing gear, operational, general), special inspections per flight hour, per calendar year, per operating environment, and unscheduled maintenance checks (lightning strike, overspeed, hard landing, flood damage, and more).
• Section IV – Structures: Wing group, wing tip, aileron, wing flap, wing removal and installation, aft wing attach fitting corrosion inspection, empennage group, stabilator, rudder, vertical fin, fuselage assembly, windshield, side windows, cabin door window, cockpit and cabin doors, baggage doors, door snubbers, seats, structural repairs, fiberglass repairs, thermoplastic repairs, safety walk repair, control surface balancing, fluid line identification, flexible hose installation, Cherrylock rivet removal.
• Section V – Surface Controls: Control column assembly, aileron controls, aileron bellcrank, stabilator controls, stabilator trim controls, rudder pedal assembly, rudder controls, rudder trim controls, flap controls, control cable inspection, rigging and adjustment for each control surface, fabricated rigging tools.

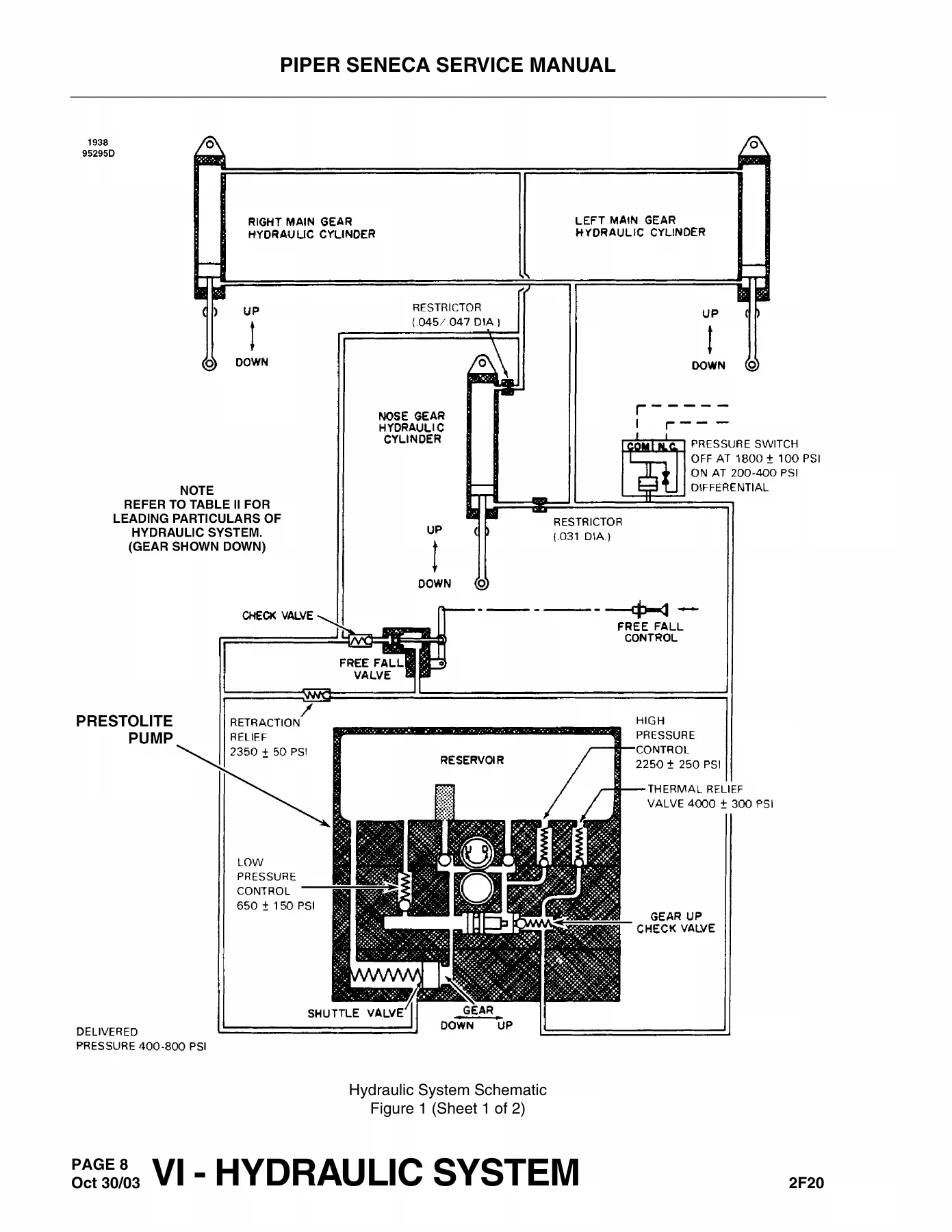

• Section VI – Hydraulic System: Prestolite and Oildyne hydraulic pumps, removal, disassembly, cleaning, inspection, repair, assembly, test and adjustment, installation, landing gear free-fall valve assembly, gear actuating cylinders, hydraulic lines, testing the hydraulic system, servicing the hydraulic pump/reservoir.
• Section VII – Landing Gear and Brakes: Nose landing gear, main landing gear, oleo struts, modified components, trunnion inspection, drag link upper attach bolt inspection, installation and rigging, alignment, doors, limit switches, squat switch, gear warning switch, wheels, brake system, wheel brake assembly, brake master cylinder, toe brake cylinder, brake bleeding, brake system leak check.
• Section VIII – Powerplant: Engine cowling, cowl flaps, propeller, propeller governor, engine removal and installation, engine shock mounts, throttle and mixture controls, alternate air door, fuel injector, idle speed and mixture adjustment, fuel-air bleed nozzles, ignition system, magnetos, harness assembly, spark plugs, lubrication system, oil pressure relief valve, oil screens and filters, exhaust system 25 hour inspection, heat exchanger 100 hour inspection.
• Section IX – Fuel System: Fuel tanks, inboard and outboard tank removal and installation, fuel system inspection, fuel tank vent obstruction test, fuel quantity sender unit, fuel quantity sender/gauge check, gascolator, fuel selector valve, cleaning the fuel system, electric fuel pump.
• Section X – Instruments: Face mounted and cluster mounted instrument removal/installation, vacuum system, vacuum gauges, vacuum filter(s), vacuum regulators, vacuum pump, directional gyro, gyro horizon, rate of climb indicator, sensitive altimeter, airspeed indicator, magnetic compass, manifold pressure gauge, tachometer, engine oil pressure gauge, fuel pressure gauge, turn and bank, fuel quantity indicator, oil temperature indicator, ammeter, EGT gauge, CHT gauge, fuel flow gauge, instrument markings.
• Section XI – Electrical System: Alternator system, alternator overhaul, voltage regulator, overvoltage relay, starters, battery, external power receptacle, exterior lights, landing and taxi lights, navigation lights, anti-collision/strobe lights, interior lights, dimmer control, aluminum wiring, stall warning indicator, lift detectors, electrical schematics and wire coding.
• Section XII – Electronics: Emergency Locator Transmitter (ELT) battery removal and installation for Garrett, Communications Components Corp. and Narco units, pilot’s remote switch, testing, autoflight and AFCS equipment contacts.
• Section XIII – Heating and Ventilation System: Cabin heat and defrost controls rigging, optional combustion heater (Janitrol) description, operation, troubleshooting, heater system operational test, inspections, heater electrical system checks, heater overhaul, combustion air blower, spark plug, ignition unit, cycling and limit switches, combustion air pressure switch, fuel regulator and shutoff valve, fuel filter, duct switch, bench test, fuel nozzle orifice inspection, optional overhead vent blower.
• Section XIV – Accessories and Utilities: Propeller deicing system, brushes, slip rings, deicers, timer test, balancing, final electrical check, pneumatic deicing system, electrical test, pressure leakage test, vacuum regulators, inspections, component maintenance, deicers (boots) removal/installation/repair/resurfacing, wing ice inspection light, restraint system, shoulder harness inertia reel adjustment, seat belt and shoulder harness inspection.

Beyond the contents list, this Piper PA-34-200 Seneca service manual gives a technician a complete working reference: factory torque values for airframe and engine fasteners, control surface travel and cable tension tables, oleo strut servicing pressures, hydraulic system leading particulars for both Prestolite and Oildyne pumps, landing gear service tolerances, and a full electrical schematic index. It is not a quick-start guide – it is the reference used to keep a Seneca airworthy across its entire service life.

What You Can Do With This Repair Guide

Because the manual breaks the aircraft into fourteen self-contained sections, it supports a wide range of jobs on the PA-34-200. A few examples of what the document directly enables:

• Perform a full annual or 100-hour inspection using the scheduled maintenance groups and note references.
• Service and adjust landing gear oleo struts, steering bungees, brakes and wheel bearings.
• Rig and adjust ailerons, stabilator, rudder and flaps with the published travel limits and cable tensions.
• Troubleshoot hydraulic retraction and extension faults using the system schematic and pressure values.
• Remove and install engines, propellers, magnetos and the fuel injector.
• Diagnose electrical problems using the wire coding, component loads and schematic diagrams.
• Overhaul the Janitrol combustion heater and pneumatic deice system components.
• Repair fiberglass, thermoplastic and structural damage with the published procedures and skin thickness chart.

The 1972-1974 Seneca has enough model-year variation that the manual calls out serial-number-specific procedures, kits and service bulletins throughout – which is why this document is the correct reference rather than a generic twin manual. The Piper PA-34-200 Seneca service manual for serial numbers 34-7250001 thru 34-7450220 keeps those variations straight.

Why This Manual Matters

Piper built the PA-34-200 around a specific set of torques, clearances and rigging dimensions. The airworthiness limitations section alone identifies a life-limited bolt that must be replaced every 500 hours time-in-service, and the inspection section flags a list of Piper Service Bulletins and Airworthiness Directives that apply to specific serial ranges. Working from guesswork or a generic manual risks incorrect cable tension, wrong oleo pressures, or a missed life-limited part – all of which can affect the airworthiness of the aircraft. This Piper Seneca repair guide gives the exact values the factory published.
