Powerscreen 1300 Maxtrak Illustrated Parts Catalog 2017 – Complete PDF Parts Manual

Description

File Details

• Manual Type: Illustrated Parts Catalog
• Brand: Powerscreen (Terex GB Ltd)
• Model: 1300 Maxtrak
• Document Title: 1300 MAXTRAK Illustrated Parts Catalog – Master Copy
• Edition/Revision: 2017 Master Copy; individual figure revisions range from A to B
• Language: English
• Page Count: Approximately 399 pages
• File Format: PDF

Chapters Covered

• General Information, Spare Parts Enquiry & Serial Number Identification
• Chassis, Track Cut-Off Solenoids, Ball Valves & PVG Valve Block
• Strickland Tracks Assembly
• Feed Conveyor, Feeder Belt, Hopper & Wear Plates
• Tier 3 CAT C13 Engine Service, Compartment, Air, Exhaust & Fuse Panel
• Tier 4 Scania DC13 Engine, Urea Tank & Exhaust Arrangement
• PT Tech Clutch & Rebuild Kits
• Hydraulic Tank, Fuel Tank & Lube Tank
• Eccentric, Upper Frame, Conehead, Mainframe & Countershaft Assemblies
• Cone Feedbox & Crusher Feed Boot
• Product Conveyor Head, Top, Mid & Bottom Sections
• Crusher Platform Handrails & Catwalks (Tier 3, Tier 4i & Tier 4)
• Electrical Control Panels, Harnesses, PLC/PDM, Nodes & Metal Detector
• Control Cabinets, Hydraulic Cabinet, Water Pump & Cone Control Block

General Information & Serial Number Identification

Before diving into the part numbers, this catalog opens with essential guidance on ordering genuine Powerscreen 1300 Maxtrak spares. It explains how to read your machine serial number — breaking down the PID prefix, model code, check digit, plant code, year code, month code and sequence number. A year-code table covers 2010 through 2016, and a month-code table runs from January to December. There is also a dedicated section on locating your track identification plate and engine serial plate, plus instructions for finding the software version of your PDM and PLC. Paint codes for Powerscreen Green (RAL 5021), Grey (RAL 7024) and Black (RAL 9005) are included for touch-up work.

Chassis, Hydraulics & Tracks

The chassis section covers the track cut-off solenoids, fittings and hoses, ball valves for the cone, and both parts of the PVG valve assembly. A full breakdown of the PVG valve block is provided. The Strickland Tracks ASM figure lists track shoes, chains, rollers, idlers, tensioners, master pins and repair links — with a clear note that track serial numbers are required to order the correct parts. Hydraulic tank assemblies are split by serial number, covering both the upto and from PID13MXTLOMF30202/30203 ranges, with hoses, filters, ball valves and level switches detailed.

Feed Conveyor & Feeder System

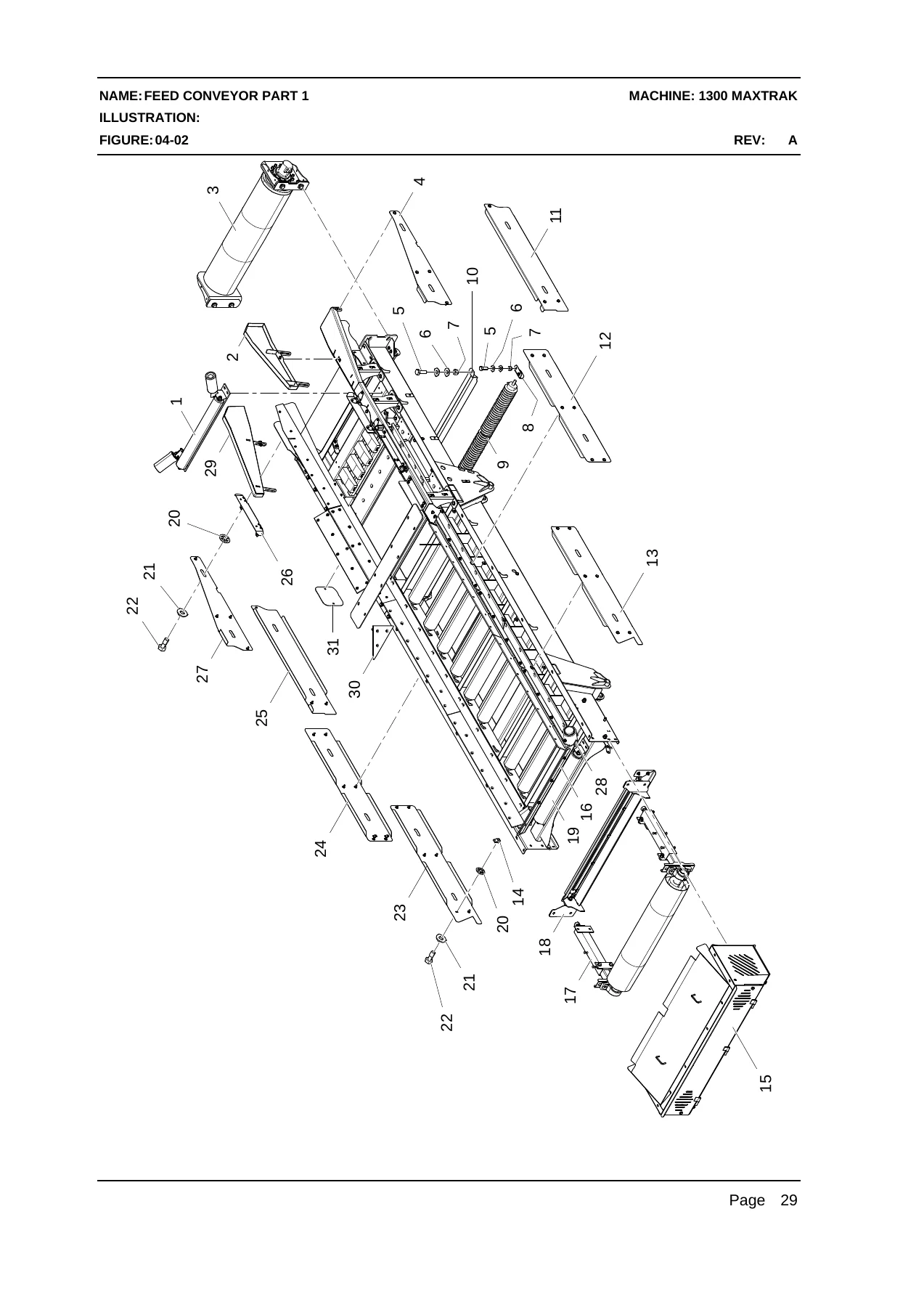

This is one of the largest sections, spanning from the feed conveyor head section through to the feeder front section wear plates. It includes the feeder belt support, impact bars and frame, feed conveyor extensions with top metal detector assembly, upper and lower trestle assemblies, roller sets, bottom drum, back parts, bottom scraper, and non-metallic skirt sections. Serial number breaks are noted for the impact bar frame and metal detector coil — upto PID13MXTAMOE28204 and from PID13MXTAMOE28205. Hopper wear plates, skirt rubber retaining plates, anti-friction pads and nip guards are all itemised.

Tier 3 CAT C13 Engine & Compartment

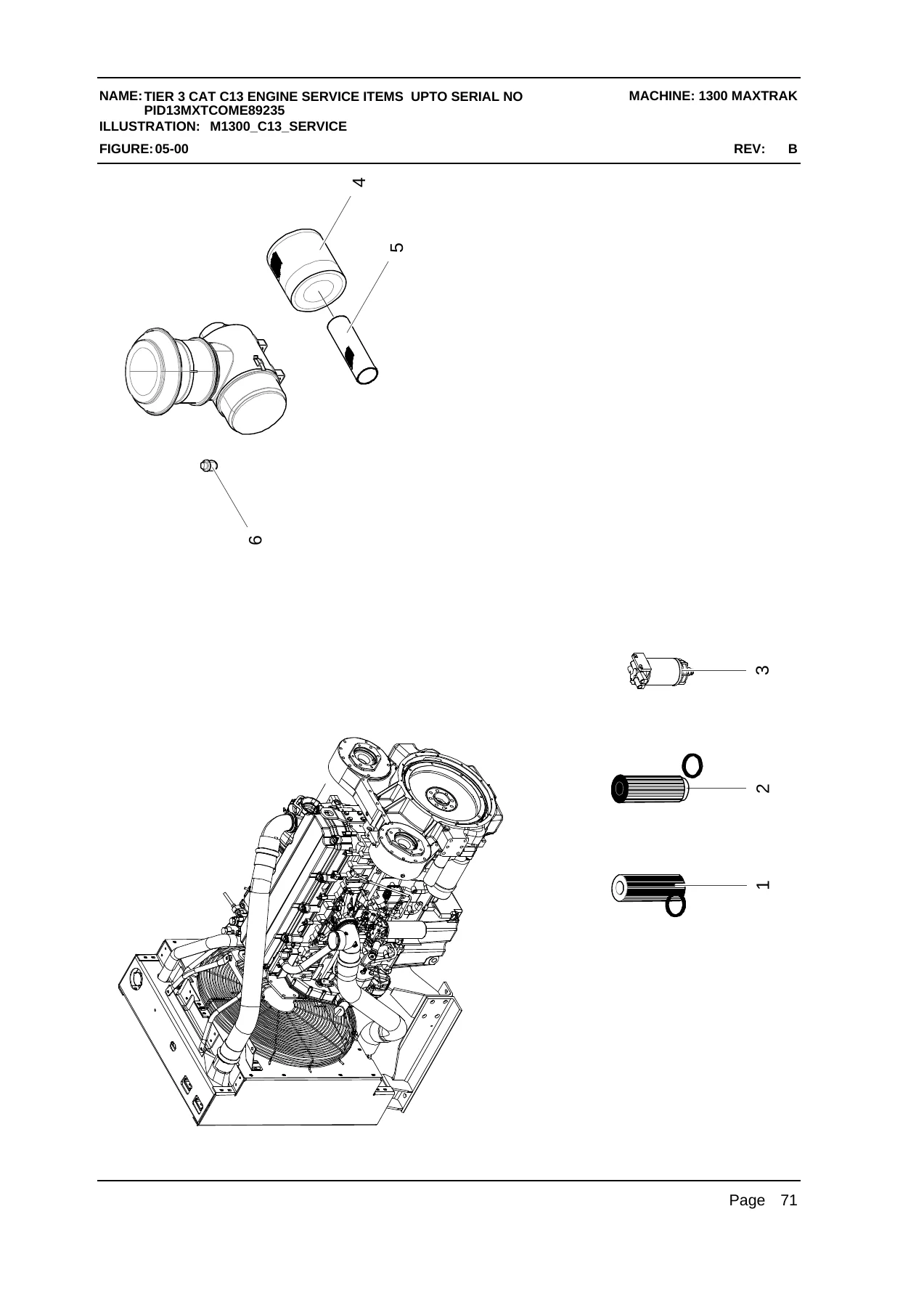

For machines with the Tier 3 CAT C13 engine, this catalog covers the engine service items, compartment assembly, engine assembly, engine base, air induction, exhaust, fuse panel and battery assembly. All Tier 3 engine sections are marked upto serial number PID13MXTCOME89235, with a separate set of figures from PID13MXTCOME89236 onward covering the engine compartment overview, roof, LHS and RHS panels, front, base, back, engine assembly, pulley guard, pump assemblies, PT Tech clutch, PRV valves, sun pressure valve, pressure filter, PVG valve block and heat exchanger. Engine mounting, air cleaner group, exhaust silencer, scavenger hose and fuel system components are all broken down with part numbers and quantities.

Tier 4 Scania DC13 Engine & Urea System

The Tier 4 section covers the Scania DC13 070A engine and its associated systems. It includes the engine service items, engine compartment overview from serial number PID13MXTCOME58714, compartment roof, exhaust guard assemblies, front and back assemblies, base assembly, battery, engine assembly, exhaust arrangement and air filter arrangement. The urea tank assembly, SCR filter kit, dosing unit, evaporator, DOC (Diesel Oxidation Catalyst) and NOX sensor pipe are all documented. This section also covers the Tier 4 final engine compartment with gull wing doors, side panels, front louver panel and powerunit base.

PT Tech Clutch & Rebuild Kits

For machines fitted with the PT Tech clutch, the catalog provides a complete breakdown of the clutch assembly plus individual kits: outer dual seal kit (including and excluding end plate), friction disc kit, bearing and seal kit, end plate kit, complete rebuild kit, shaft kit and universal seal kit. The clutch HPTO assembly, PWM valve, proportional valve, speed pick-up, pressure transducer and clutch manifold are all listed with part numbers. Serial number breaks are noted for the outer dual seal kit — upto PID13MXTPM0CB5998 and from PID13MXTPM0CB5999.

Cone Crusher Assemblies

The cone crusher section is comprehensive. It opens with the eccentric assembly, listing cylindrical roller bearings, circlips, bevel gears, eccentric, dowel studs, piston rings, labyrinth strips, balance ring and upper radial clamp plate. The upper frame assembly covers concave options for Autosand and Automax configurations, with part numbers for medium coarse, extra coarse and 22% manganese variants. The conehead assembly details the cone head, cylindrical roller bearing, oil flinger, mantle, burning ring, cover plate, mantle nut and wear plate. The mainframe assembly includes stub shaft, bearing clamp, main shaft spacer, frame liner, countershaft arm shield, dumpy jacks and wedge rings. The countershaft assembly covers the countershaft, oil guard, radial lip seal, tapered roller bearings, bevel pinion, locking ring and housing. The cone feedbox assembly is split by serial number — upto PID13MXTJOMF50542 and from PID13MXTJOMF50543 — with feed box welded assembly, sensor guard, level sensor, spray bar, spray nozzles and door assembly. The crusher feed boot assembly lists support legs, clamp plates, liner plates, skirt rubber, rubber curtain and spray bar components.

Product Conveyor

The product conveyor is covered across multiple figures: head section, hydraulic motor, head section scrapper, top section 1 and 2, roller set, mid section on chassis, bottom section assembly, dust hood and dust suppression spray bar. The hydraulic motor section includes the OMV630 motor, bonded seal, adaptors and hoses. The roller set lists centre rollers, wing rollers, U-clamps, transomes and mounting hardware. The bottom section covers return idlers, tail section stringer assembly, pillow block bearings, tail drum and tail frame support struts.

Platforms, Catwalks & Handrails

Three separate platform sections cover the different emission tiers. The Tier 3 crusher platform handrail section includes RHS and LHS catwalks, floor panels, ladder sections, self-closing safety gates, spring housings and engine platform handrails. The Tier 4i section covers walkway assemblies, crusher platform flooring, engine platform flooring, kick strips, packer plates and ladder pivot brackets. The Tier 4 catwalk section references the crusher engine internal and inside handrails.

Electrical Systems, Control Panels & Harnesses

The electrical section is extensive and split by serial number. It covers the Autocone electrical control panel, Autocone hydraulic parts, electrical components, Tier 3 main control panel and its internals (circuit breakers, relays), Tier 3 engine core harness, front harness, rear harness, engine compartment harness, battery lead kit and PT Tech clutch. For Tier 4i and Tier 4, it covers the main control panel, panel internals, track control system, Node 1, Node 2, Node 3, engine harness and PT Tech clutch. A separate section from serial number PID13MXTKOMFB1414 (Tier 3) and PID13MXTJOMF50543 (Tier 4) covers the updated electrical components, main control panel, panel internals, track control system, nodes and engine harness. The metal detector components section lists the MA3000 control unit, PTL147A control board, relay, fuse, door indicator kit, coil cables, bottom coil and top coil.

Cabinets, Water Pump, Urea Tank & Cone Control Block

The lube tank assembly is split by serial number — upto PID13MXTKOMF20004 and from PID13MXTKOMF20005 — covering suction filter elements, pressure relief valve, gear pump, bell housing, drive coupling, hydraulic motor, filter elements, thermostat, check valve, flowmeter, cooler kit, fan and motor assembly, float level sensor, oil reservoir and motor mount plate. The drive guard assembly, control cabinet assembly, control panel pressurization assembly (option), hydraulic cabinet, hydraulic water pump, feeder level sensor and bracket (option), urea tank and oil cooler, lubrication tank fittings and hoses, waterpump manifold and hydraulic control cabinet are all documented. The cone control block is covered in two versions — upto serial number PID13MXTEOMF30168 (Tier 3) and PID13MXTKOMF20004 (Tier 4), and from serial number PID13MXTEOMF30169 (Tier 3) and PID13MXTKOMF20005 (Tier 4) — with check valves, filter elements, pressure reducing valves, relief valves, needle valves, solenoid cartridges, P.O. check valves and complete seal kits.

Why This Powerscreen 1300 Maxtrak Parts Catalog Is Essential

IMAGES PREVIEW

Ordering the wrong part for a cone crusher is expensive and downtime is even more costly. This illustrated parts catalog gives you the exact part numbers, quantities and exploded diagrams you need to identify and order the correct components the first time. Whether you are maintaining a Powerscreen 1300 Maxtrak with the Tier 3 CAT C13 engine, the Tier 4 Scania DC13 engine, or a Tier 4 Final machine, this catalog covers the full scope of the machine — from the tracks and chassis through to the cone crusher, conveyor systems, hydraulics, electrical harnesses and operator platforms. The serial number breaks throughout the catalog ensure you order parts that actually fit your specific machine build, not a generic version that may have been superseded. Every major assembly is shown in exploded view with item numbers cross-referenced to part numbers, descriptions and quantities. This is the same parts catalog used by Powerscreen dealers and service engineers, and it is equally valuable for independent workshops, maintenance teams and owners who prefer to source their own components. Delivered as an instant PDF download, you can access it on any device, print the pages you need for the workshop, and keep the complete catalog on file for future reference. No shipping, no waiting, no incomplete parts diagrams. If you own, operate, service or repair a Powerscreen 1300 Maxtrak, this illustrated parts catalog is the reference you will reach for every time a component needs replacing.
