QJMOTOR SRK 800 QJ800-H Motorcycle User Manual – 2025 Owner’s Guide PDF

Description

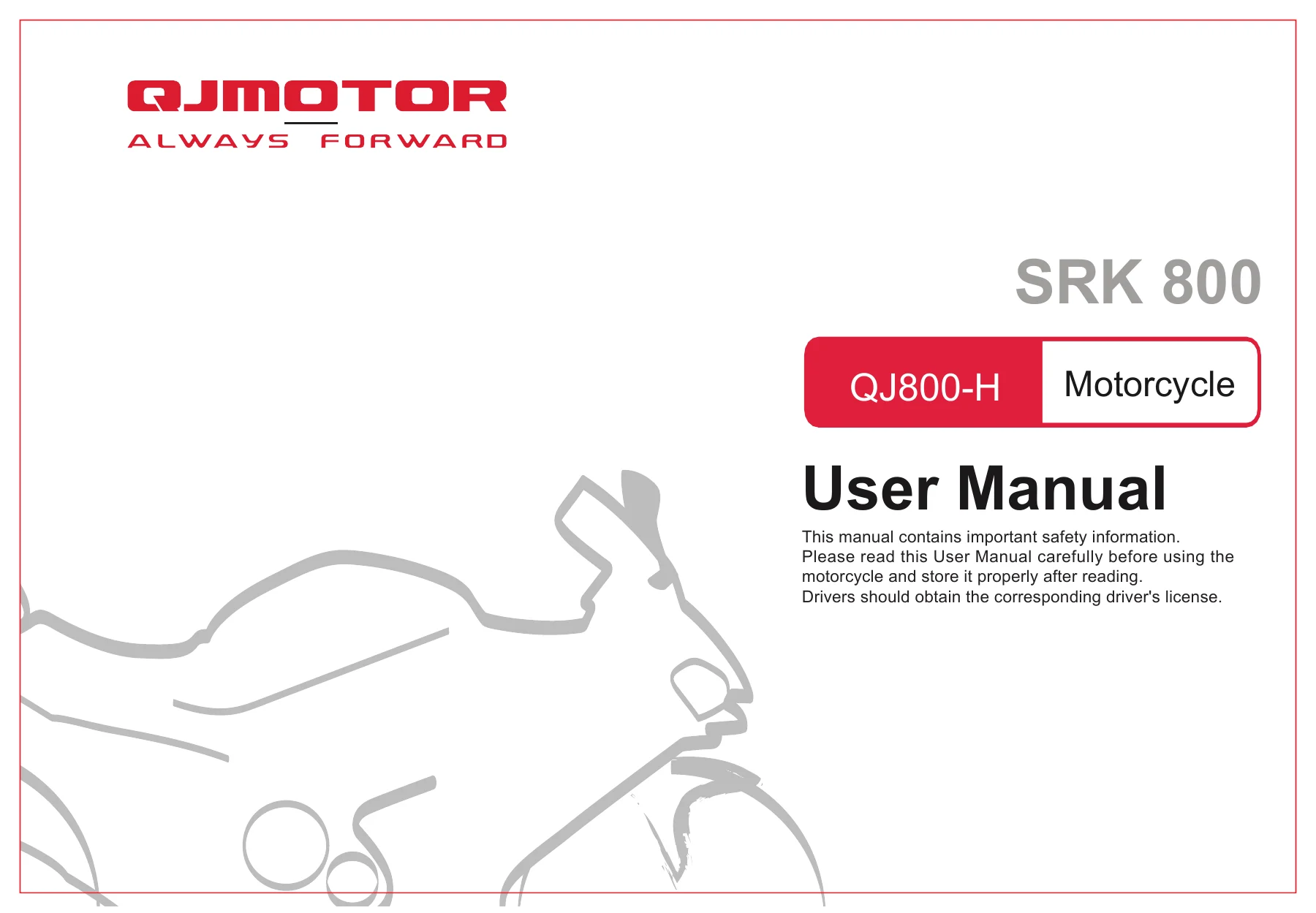

QJMOTOR SRK 800 QJ800-H Motorcycle User Manual – 2025 Owner’s Guide

The QJMOTOR SRK 800 QJ800-H Motorcycle User Manual is the factory-issued owner’s guide from Zhejiang Qianjiang Motorcycle Co., Ltd. for the SRK 800 two-wheeled motorcycle. This is the First Edition, dated March 2025, and it walks an owner through every operation, adjustment and inspection that matters on the SRK 800 – from the first cold start to torque-checked suspension setup and long-term storage. If you ride a QJ800-H, this is the document the bike was delivered with, and it is the same reference the dealer network works from.

File Details

• Manual type: Owner’s / User Manual
• Brand: QJMOTOR (Zhejiang Qianjiang Motorcycle Co., Ltd.)
• Model: SRK 800 / QJ800-H
• Engine code: QJ467MW-A
• Edition: First Edition, March 2025
• Languages: English, Spanish, Italian, French, German
• File format: PDF

Chapters Covered

• Vehicle Safety – safety precautions, pre-ride preparation and inspection, label instructions, accessories and modifications, loading requirements
• Technical Parameter – body information (frame number, nameplate, engine number), parameters, parameters of vulnerable parts

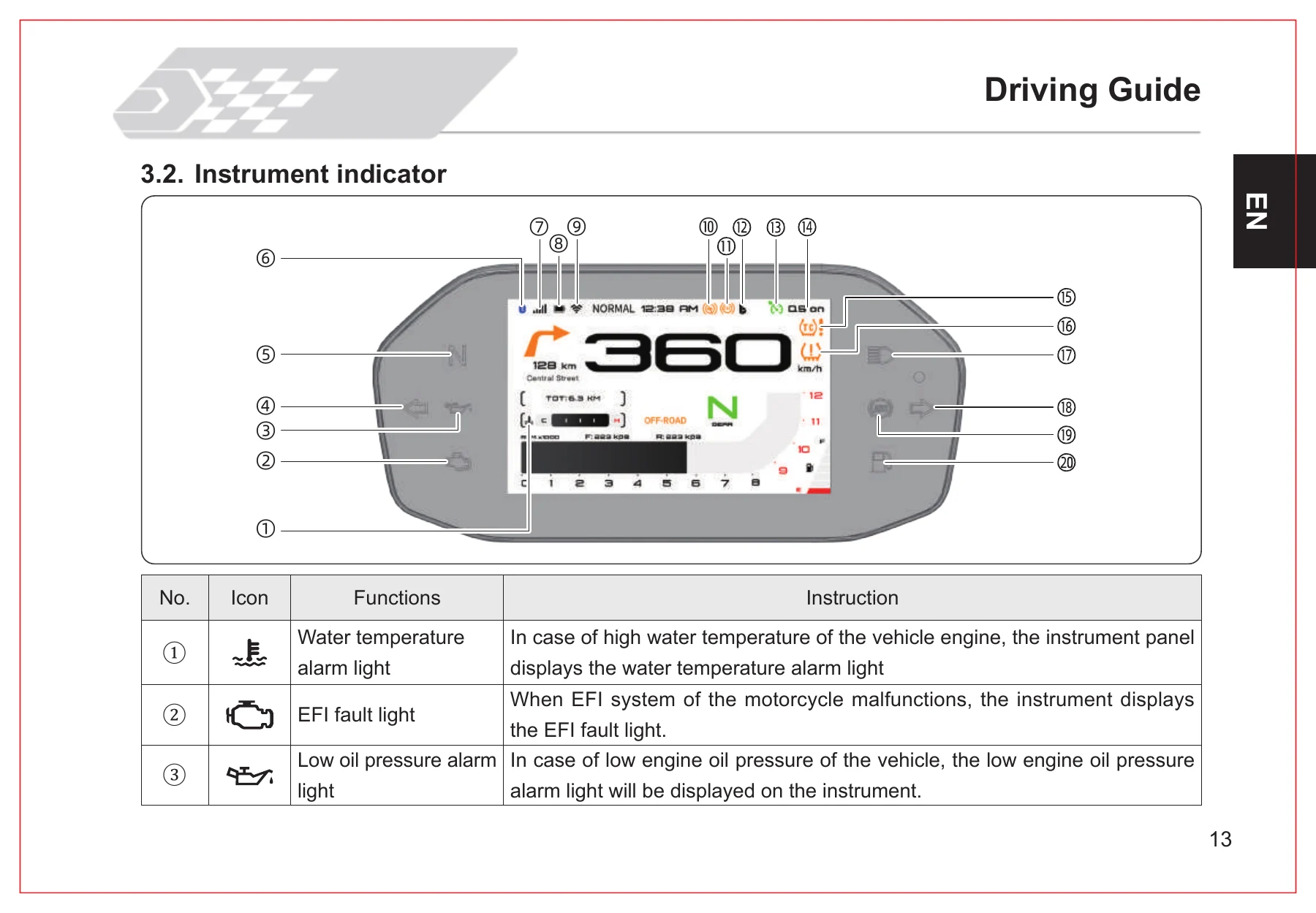

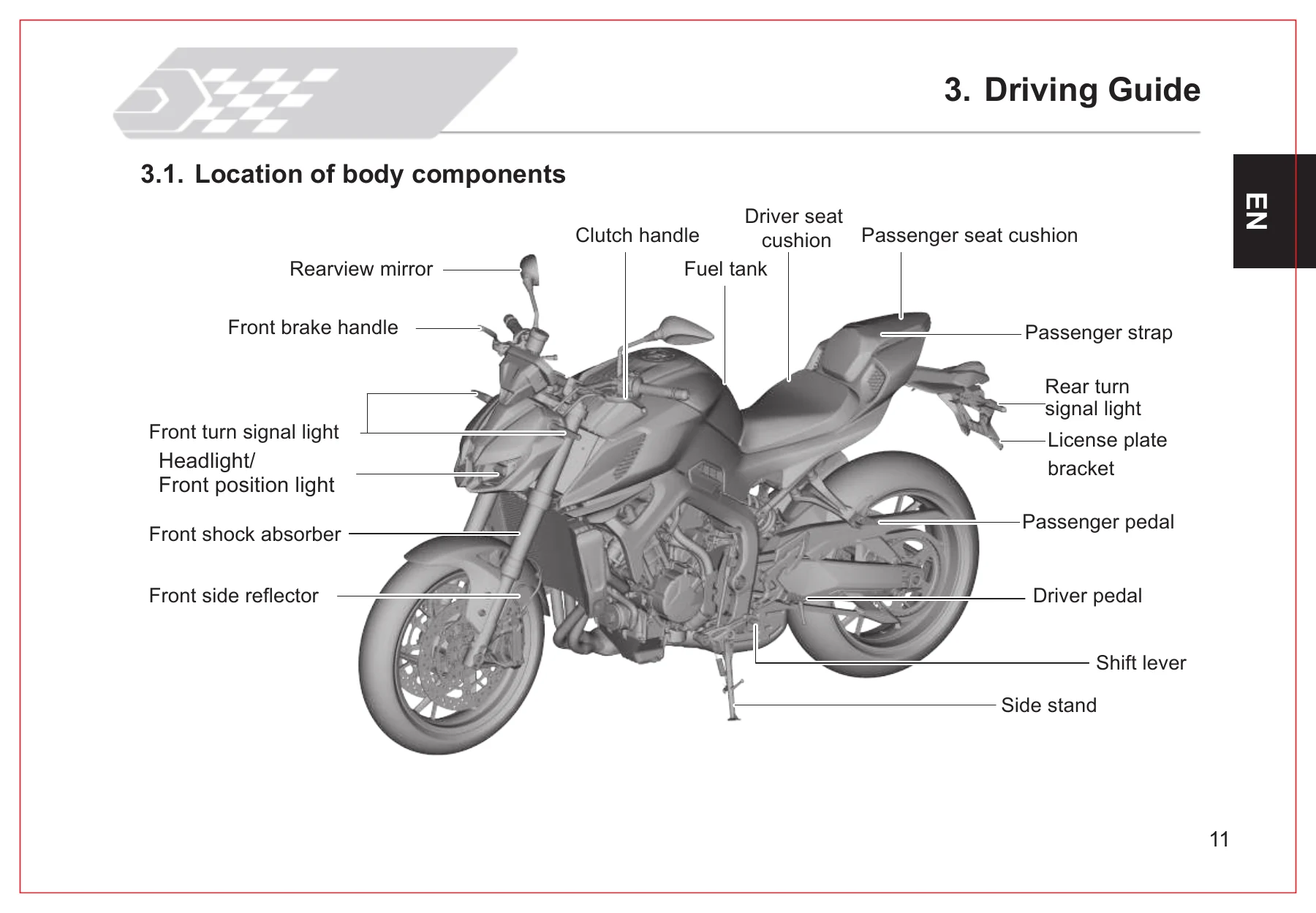

• Driving Guide – location of body components, instrument indicator, instrument interface, operating instructions of the TFT instrument (DRIVE MODE, BLUETOOTH, TIRES, APPEARANCE, BRIGHTNESS, INFO, CLOCK, UNIT, LANGUAGE, QS, ABS settings), left handle combination switch, right handle combination switch, main power switch, ABS, TCS, cruise control, running-in, starting/parking, shifting, fuel filling, on-board tools, seat cushion, adjustment of suspension system, Bluetooth receiver parameters
• Maintenance – maintenance instructions, maintenance schedule, battery, fuse, throttle handle, engine oil, coolant, disc brake pad, brake fluid, chain and gear, tires, side stand, free stroke of rear brake pedal, free stroke of clutch handle, clutch handle-to-handlebar clearance, front brake handle-to-handlebar clearance, shock absorber inspection
• Troubleshooting – engine starting failure, water temperature alarm, fuel level alarm, tire pressure alarm, low oil pressure alarm, battery power loss, damaged body light
• Other Information – maintenance, environmental protection, silencer catalytic converter
• Index

Inside, the manual is organised the way a rider actually uses a bike. The first chapter closes the door on everything safety – helmet and gear standards, passenger rules, the 160 kg load limit, and the exact pre-ride checklist you should run through before every trip. The Technical Parameter chapter fixes the SRK 800’s identity: the QJ467MW-A 778 cm3 four-stroke engine, the 67.0 mm x 55.2 mm bore and stroke, the 11.4:1 compression ratio, the 17.5 litre tank and the 198 kg curb weight. The Driving Guide is where the bulk of the day-to-day value sits – the TFT instrument’s every menu, the ride-mode selector (RAIN / NORMAL / SPORT), how to pair a phone over Bluetooth, how to project navigation, how to read and clear Trip A/Trip B, how to enable ABS OFF for off-road use, how to arm cruise control between 40 and 130 km/h, and how to set the front and rear shock preload and damping using the exact turn counts the factory specifies. The Maintenance chapter then carries the full periodic service table by odometer reading (1,000 km through 30,000 km and beyond), plus step-by-step procedures for checking and topping up engine oil (SN 15W-50), coolant, DOT 4 brake fluid and chain tension (the standard 25-35 mm verticality), inspecting disc pads to the 1 mm wear limit, and testing the side stand cut-off switch. The Troubleshooting chapter tells you what each dashboard warning light means and how to react without guesswork.

What This SRK 800 Manual Lets You Do

Everything an owner or independent workshop needs to run the QJ800-H correctly is in here. You can perform the first 1,000 km break-in service to the factory’s own interval table, dial in the suspension for your weight and riding style, top up the right fluids to the right levels, spot a worn chain or glazed brake pad before it becomes a road-side failure, and interpret the EFI, ABS, TCS and low oil pressure warnings the moment they appear. Riding a modern 778 cc parallel-twin without the correct torque figures, the correct chain verticality, the correct oil grade and the correct TFT menu path is guesswork – and guesswork on a bike with ABS, traction control and a quick-shifter is expensive. Using the owner’s manual keeps you inside the design intent, keeps the running-in period honest, and protects the long-term life of the engine, clutch, chain and brake system.

IMAGES PREVIEW

The file is a digital PDF delivered by instant download after checkout – no shipping, no waiting, no physical book to lose. Read it on a phone in the garage, on a tablet on a lift, or on a laptop at the bench, and print the pages you want to keep beside the bike. Whether you are booking the 1,000 km service, planning a long touring ride and want to pre-set the suspension, or simply trying to work out why a warning light has come on, this SRK 800 QJ800-H user manual is the reference to reach for.
