Suzuki GSX250RL & GSX250FRL Owner’s Manual – Full PDF Workshop & Rider Guide

Description

Suzuki GSX250RL & GSX250FRL Owner’s Manual – Full PDF

This is the complete owner’s manual issued for the Suzuki GSX250RL and GSX250FRL, supplied as a single 177-page PDF. It is the document that ships with the motorcycle, reproduced in full, and it covers everything from the first 1600 km break-in routine through to the torque figures you need when the rear wheel comes off. If you own either variant and want the factory procedure rather than a forum guess, this is the reference to keep on your phone or in the workshop.

File Details

• Manual type: Owner’s Manual
• Brand: Suzuki
• Models covered: GSX250RL, GSX250FRL
• Issued by: Suzuki Philippines, Incorporated
• Language: English
• Page count: 177 pages
• File format: PDF

Chapters Covered

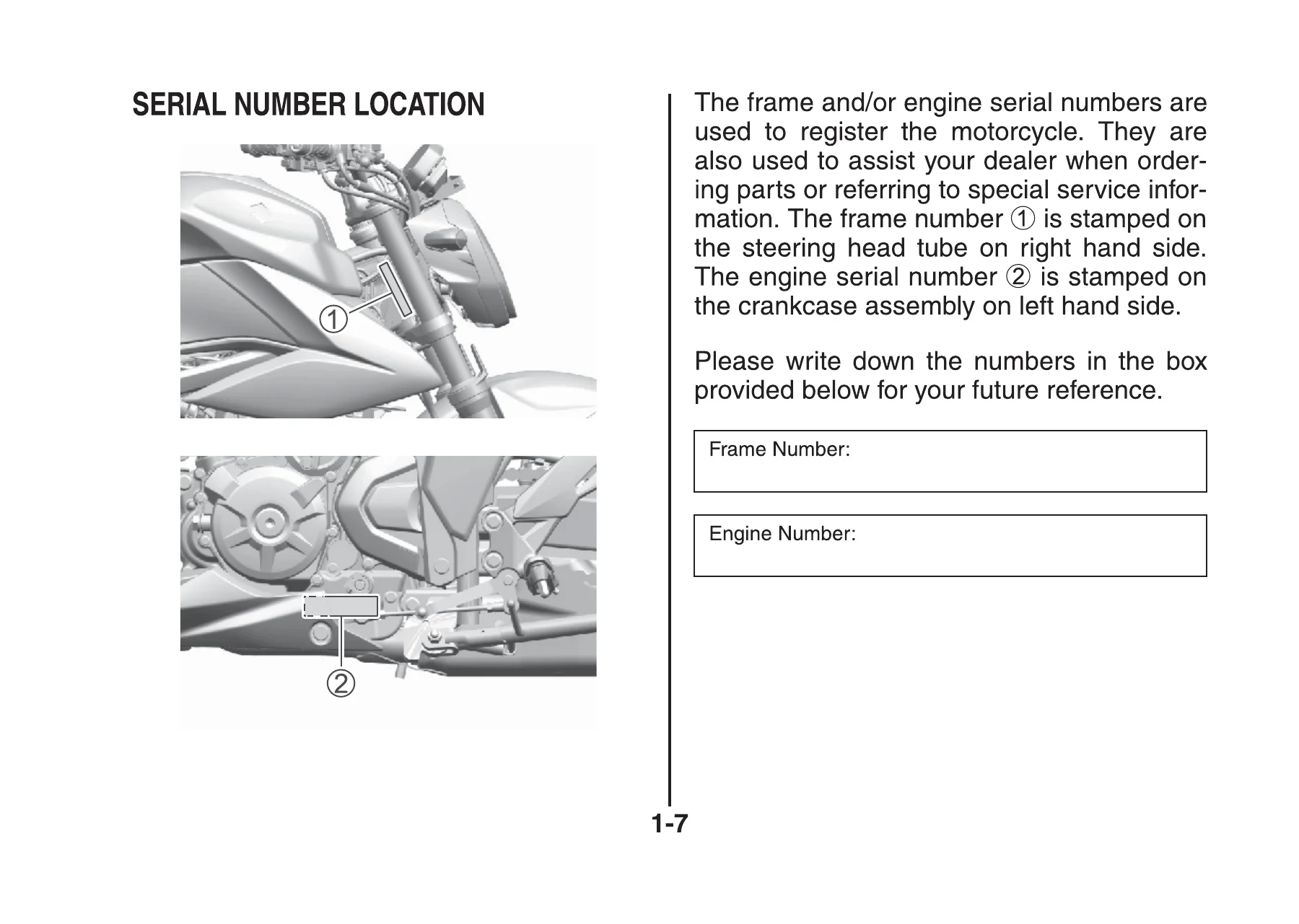

• Consumer Information – accessory use and motorcycle loading, accessory installation guidelines, loading guidelines, modification, safe riding recommendations, labels, serial number location

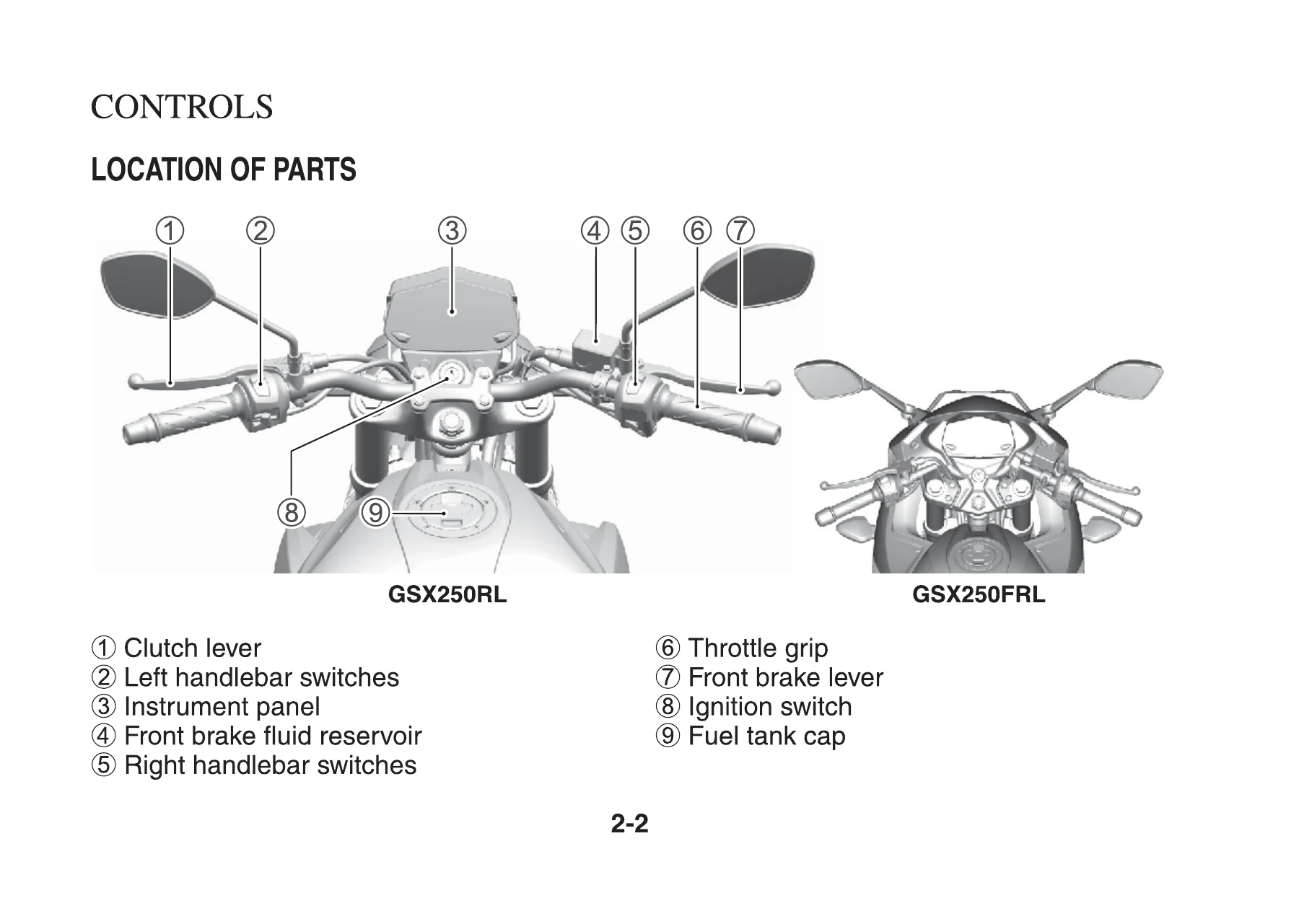

• Controls – location of parts, key and ignition switch, instrument panel, tachometer, gear position indicator, speedometer, engine rpm indicator, fuel level indicator, ABS indicator light, engine temperature indicator light, high beam indicator, oil change indicator, odometer and trip meters, clock, neutral indicator, malfunction indicator light, left handlebar switches, right handlebar switches, fuel tank cap, gearshift lever, rear brake pedal, seat lock and helmet holders, side stand, rear suspension
• Fuel and Engine Oil Recommendation – fuel octane rating, oxygenated fuel recommendation, gasoline/ethanol blends, engine oil quality and viscosity, JASO T903 classification
• Break-In (Running-In) and Inspection Before Riding – maximum throttle opening recommendation, varying engine speed, breaking in new tyres, avoiding constant low speed, the first and most critical service, pre-ride inspection checklist
• Riding Tips – starting the engine, Suzuki Easy Start System, starting off, using the transmission, riding on hills, stopping and parking, Anti-lock Brake System (ABS)
• Inspection and Maintenance – tools, frame cover removal, fairing removal, lubrication points, battery, air cleaner, spark plug, fuel hose, engine oil and oil filter, engine idle speed, throttle cable adjustment, clutch cable play, drive chain inspection and adjustment, brakes, tyres, front wheel removal, rear wheel removal, light bulb replacement, fuses, catalytic converter
• Troubleshooting – fuel supply check, ignition system check, engine stalling
• Storage Procedure and Motorcycle Cleaning – storage preparation, maintenance during storage, returning to service, corrosion prevention, washing, plastic parts, waxing, matte finish care, inspection after cleaning
• Specifications – dimensions, kerb mass, engine, drive train, chassis, electrical, capacities
• Index and Service Record

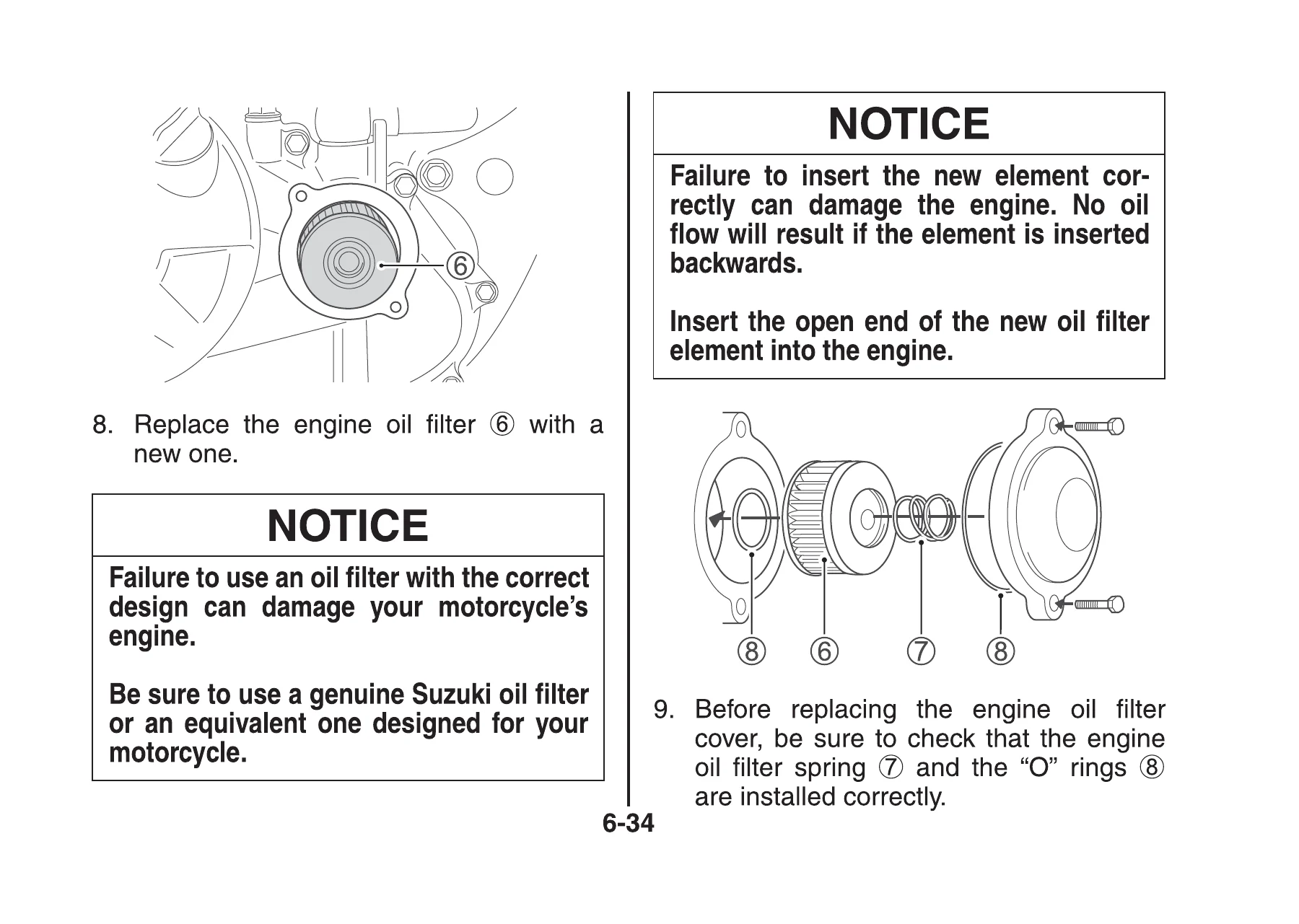

Read together, these chapters amount to a full ownership and servicing reference for the GSX250RL and GSX250FRL rather than a quick-start leaflet. The maintenance chapter alone walks through valve clearance inspection points, spark plug removal and gap setting, engine oil and filter replacement with the drain plug tightening torque, throttle cable play measurement, clutch lever free play, drive chain slack adjustment with the axle nut torque, brake pad wear limits, brake fluid replacement intervals and tyre pressure tables for solo and dual riding. The instrument panel chapter decodes every warning light, including the engine temperature indicator, the ABS indicator, the malfunction indicator light and the oil change interval counter, so a rider can tell the difference between a low battery warning and a genuine fuel injection fault.

What This Manual Helps You Do

With this Suzuki GSX250RL and GSX250FRL owner’s manual in hand you can carry out the scheduled services at the correct intervals instead of guessing, reset the oil change indicator after an oil swap, set the engine rpm indicator light to light or blink at your preferred threshold, adjust the rear suspension spring pre-load across its seven positions, and correctly torque the front axle shaft, front axle holder bolts, front brake caliper mounting bolts and rear axle nut. It also covers the break-in schedule in kilometres, the maximum recommended throttle opening for each stage, and the tyre break-in procedure for the first 160 kilometres, which is the part most new owners skip and most tyre fitters never mention.

The troubleshooting chapter is deliberately narrow but practical: it tells you how to check the fuel supply, how to confirm whether the fuel injection system has logged a fault through the “FI” display, and how to run a spark test safely. The storage chapter covers the steps needed before a long lay-up and the procedure for returning the motorcycle to service afterwards, including battery care and the tyre inflation check.

Specifications at a Glance

The final chapter collects the numbers in one place: a 249 cm3 four-stroke, oil-cooled, OHC single with a 76.0 mm bore and 54.9 mm stroke, a 10.7:1 compression ratio, fuel injection, a six-speed constant mesh transmission with a 1-down, 5-up shift pattern, front and rear disc brakes, a 12.0 L fuel tank, and engine oil capacity of 1180 ml on a drain-and-refill, 1200 ml with a filter change and 1800 ml on overhaul. Front and rear tyre sizes, cold inflation pressures for solo and dual riding, the NGK MR8E-9 spark plug, the 12V battery rating, fuse ratings, and every gear ratio and reduction ratio are listed in the same section.

Why the Correct Document Matters

Torque values, clearances and fluid capacities on a modern fuel-injected motorcycle are not interchangeable between models, and a chain adjusted to the wrong slack or an axle nut tightened by feel is how riders end up with a snapped chain or a loose rear wheel. Having the correct procedure written for the GSX250RL and GSX250FRL removes that guesswork entirely. The manual also documents the ABS behaviour on this model, including the fact that ABS does not operate below roughly 5 km/h or with a discharged battery, which is exactly the kind of detail owners need to know before they start chasing a fault that does not exist.

This manual is an owner-level document. It covers routine maintenance and inspection in full, and it tells you plainly which jobs should be handed to an authorised Suzuki dealer or a qualified mechanic, particularly brake pad replacement, chain replacement and steering, suspension and wheel component work.

IMAGES PREVIEW

Instant PDF Delivery

The file is delivered as a PDF immediately after payment, with no shipping and no waiting for a parcel. It opens on any device – laptop, tablet or phone – and every page can be printed if you prefer a paper copy in the garage. Keep it on the workbench, keep a copy on your phone for roadside checks, and stop relying on half-remembered forum posts for the numbers that matter.
