Raymond 8310 8410 8510 8610 Pallet Trucks & Tow Tractor Parts Manual 2017

Description

The Raymond 8310 8410 8510 8610 Pallet Trucks & Tow Tractor Parts Manual is the full illustrated parts reference for these four truck models, issued under document number 1152124 and generated March 22, 2017. Rather than a generic catalog, this is the assembly-by-assembly breakdown: every caster, handle, control head, brake, drive unit, contactor panel, lift pump, mast linkage and option kit is exploded into its individual components and listed with part number, description, service group, item number and required quantity.

File Details

• Manual type: Illustrated Parts Manual
• Brand: Raymond (The Raymond Corporation)
• Models covered: 8310, 8410, 8510, 8610 Pallet Trucks and Tow Tractor
• Document number: 1152124
• Date generated: March 22, 2017
• Language: English
• Page count: 402 pages
• File format: PDF

Chapters Covered

• Section 1 – General Information
  • List 1-H: Hardware (9 sheets)
  • List 1-C: Critical Parts
  • List 1-R: Recommended Spare Parts
• Section 2 – Finish & Accessories

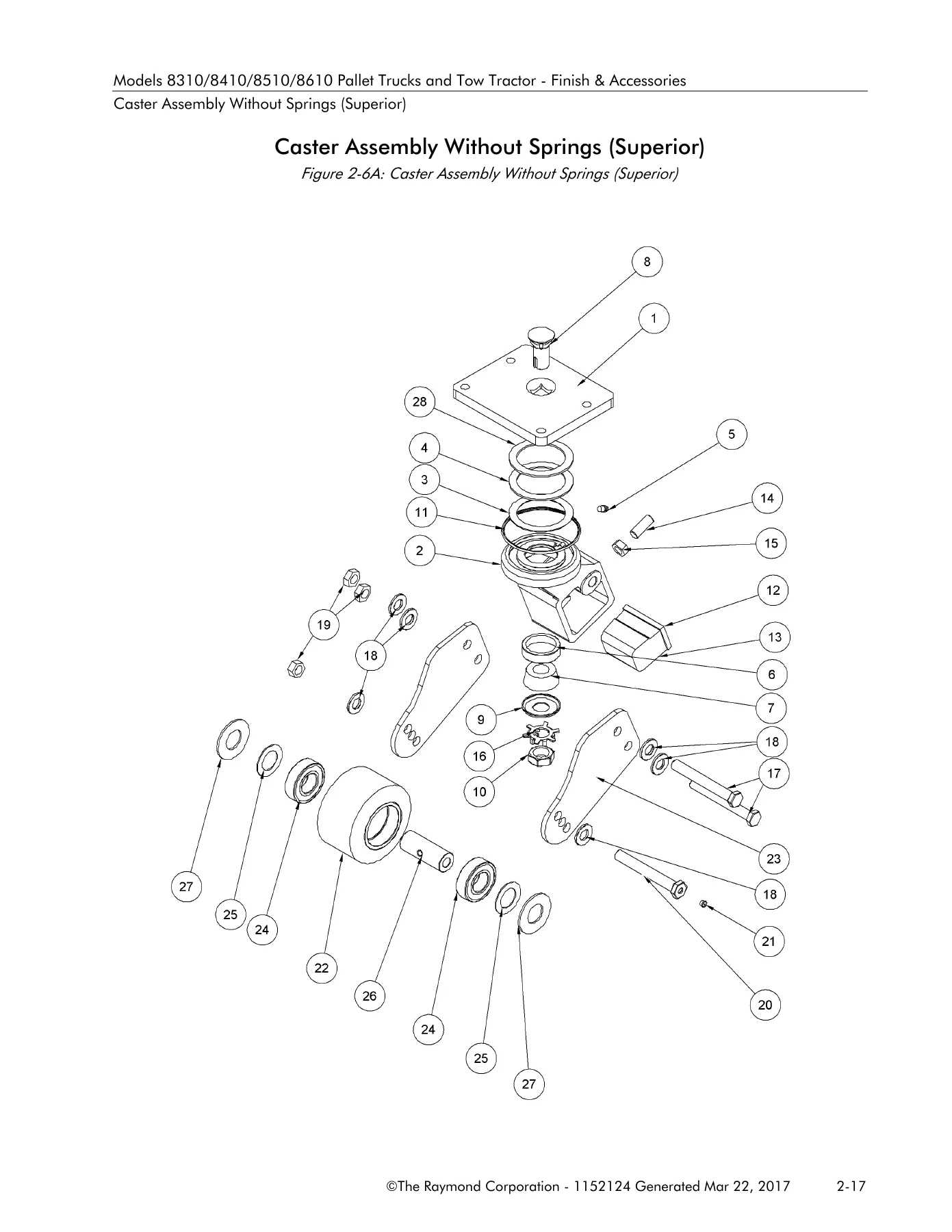

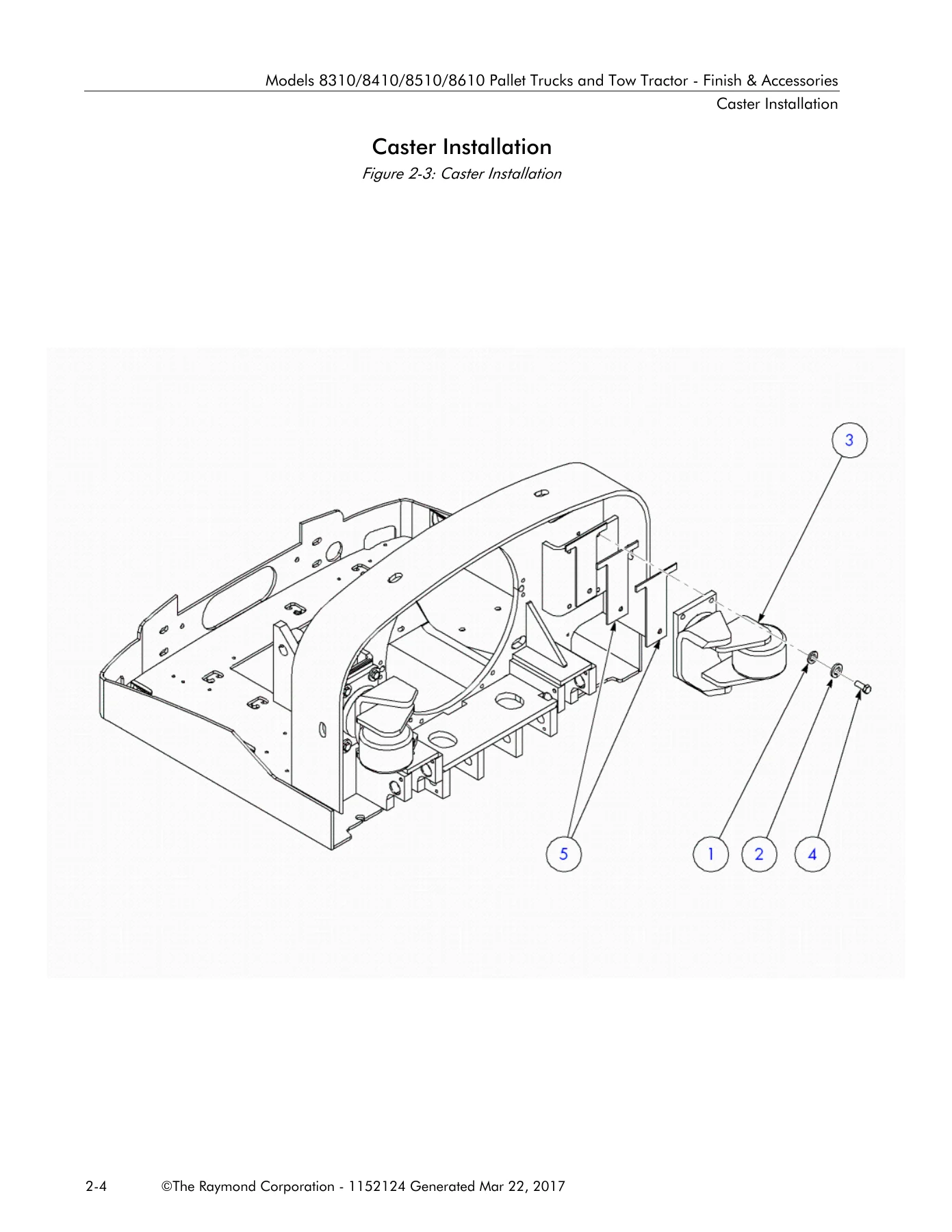

  • Suspension assembly, caster installation and caster assemblies
  • Finish instructions and environmental package
  • Front cover and logo installation
  • Cushion and floor pad installation
  • Console cover installation
  • Battery roller, gate and shim-spacer installation
  • Platform installation
• Section 3 – Steering & Controls
  • Handle arm and mounting
  • Handle and control head assemblies
  • Power steering installation and gear motor assembly
  • Throttle, deadman handle and pull lever brake assemblies
  • Handle return and brake actuator assembly
• Section 4 – Drive & Brake
  • Brake installation and brake assembly
  • Drive unit and motor assembly
  • Brake installation, electric steer
  • Drive unit assembly
  • Brake control assembly and drive wheel assembly
• Section 5 – Electrical Components & System
  • Electrical system and EE electrical system
  • Contactor panel assembly and contactor assembly
  • Grab rail assembly
  • Ignition switch installation
  • Battery connector assembly
  • Drive motor and EE drive motor
• Section 6 – Hydraulic Components
  • Hydraulic system
  • Lift pump and motor assembly
  • Lift cylinder assembly and 6K lift cylinder assembly
• Section 7 – Mast
  • Fork attachment assemblies, including Rolltainer
  • Fork linkage, 8K and 6K
  • Pullrods and downstop installation
  • Load wheel assemblies: 6K/8K, dual single, triple single, 8K split wheel tandem, 8K single wheel tandem
  • Roller entry and slider entry installation
• Section 8 – Options & Kits
  • Battery gate interlock
  • Tow coupler installations and adjustable coupler
  • Storage trays, standard and deep
  • Load backrest installations
  • Travel alarm and auxiliary power hook-up
  • Tractor skirt, bumper and skirt installation
  • Controller splash guard and accessory bars
  • Steel skirt bumper and fan assembly
  • Auxiliary light assembly
  • CoastPRO installation, actuator and spring assemblies
  • i-Port, iW Essential and iW Evolution
  • RollTainer attachment and warning light
  • Battery connector assembly (SBX-175) and adapter
  • Pick to Pallet
• Appendix A – Alphabetical Parts Index
• Appendix B – Numerical Parts Index

What makes the Raymond 8310 8410 8510 8610 Pallet Trucks & Tow Tractor Parts Manual genuinely useful on a shop floor is the way the content is layered. Every exploded illustration carries circled item numbers that key directly into the accompanying list, so a technician can look at the drawing, trace the component, and land on the exact part number without guesswork. The service type column tells you immediately whether a part is standard Hardware, a Critical Part, or a Recommended Spare – which is exactly what you need when deciding what to keep on the shelf.

Because all four truck models share this single volume, components that appear across platforms are listed side by side with their used-on designations. Caster assemblies, for example, are broken out by Standard, Medium Duty, Heavy Duty, Food Grade Grease and the steel skirt variant for the 8610, each pointing to its own assembly number. Load wheel content covers 6K and 8K configurations, dual single, triple single and both tandem layouts. The drive and brake section separates standard, greasable and power steering drive unit builds, and Section 3 splits handle and control head content across 8310, 8410, 8510 and 8610 with jog, deadman and power steering variants called out individually.

The two indexes at the back are what turn a 402-page document into something you can actually navigate. Appendix A lists every part alphabetically by description with its part number and page reference; Appendix B does the same in part number order. If a customer reads a number off a tag, or a technician knows only the description of what broke, either index gets to the right page quickly.

Who This Manual Is For

Fleet maintenance departments running Raymond 8310, 8410, 8510 or 8610 trucks will find this the fastest route from a failed component to the correct replacement number. Independent repair shops benefit from the service type coding, since Critical and Recommended Spare designations help prioritise what a customer should stock. Parts counter staff can confirm assemblies and sub-components before quoting rather than after. And anyone rebuilding a caster, drive unit, control head, mast linkage or hydraulic lift assembly gets the exploded view and the itemised bill of materials for that exact subassembly, including the seal kits, bearings, washers, fittings and fasteners that are easy to forget on a first attempt.

Buy the Raymond 8310 8410 8510 8610 Parts Manual

With this Raymond parts manual on hand you can identify and order the right component for a caster overhaul, a drive unit rebuild, a brake job, a control head replacement, a lift pump or lift cylinder service, a mast and load wheel repair, or any of the accessory and option installations covered in Section 8 – including CoastPRO, i-Port, iW Essential and iW Evolution fitments. Ordering against the correct part number the first time is what keeps a truck out of the bay and off the downtime sheet, and the used-on flags keep you from fitting a component meant for a different model in the same family.

IMAGES PREVIEW

The Raymond 8310 8410 8510 8610 Pallet Trucks & Tow Tractor Parts Manual is delivered as an instant PDF download – no shipping, no waiting on a courier. Open it on a laptop in the workshop, a tablet at the truck, or a phone at the parts counter, and print whichever exploded view or parts list you need for the job in front of you.
