Ricoh Aficio MP 2500 / Savin 7025 Service Manual (D010) PDF

Description

Ricoh Aficio MP 2500 / Savin 7025 Service Manual (D010) PDF DOWNLOAD

Description

Need the real technician manual for the Ricoh MP 2500 family? This D010 factory service manual is the full workshop-level guide used by field techs—ideal for diagnosing SC codes, fixing jams, correcting image issues, completing PM services, and doing full component replacements and calibrations.

It covers the core machine plus common options and brand variants, so you can service the same engine platform under multiple names.

✅ Models / Equivalents Covered

• Ricoh Aficio MP 2500

• Savin 7025

• Lanier LD125

• Gestetner DSm625

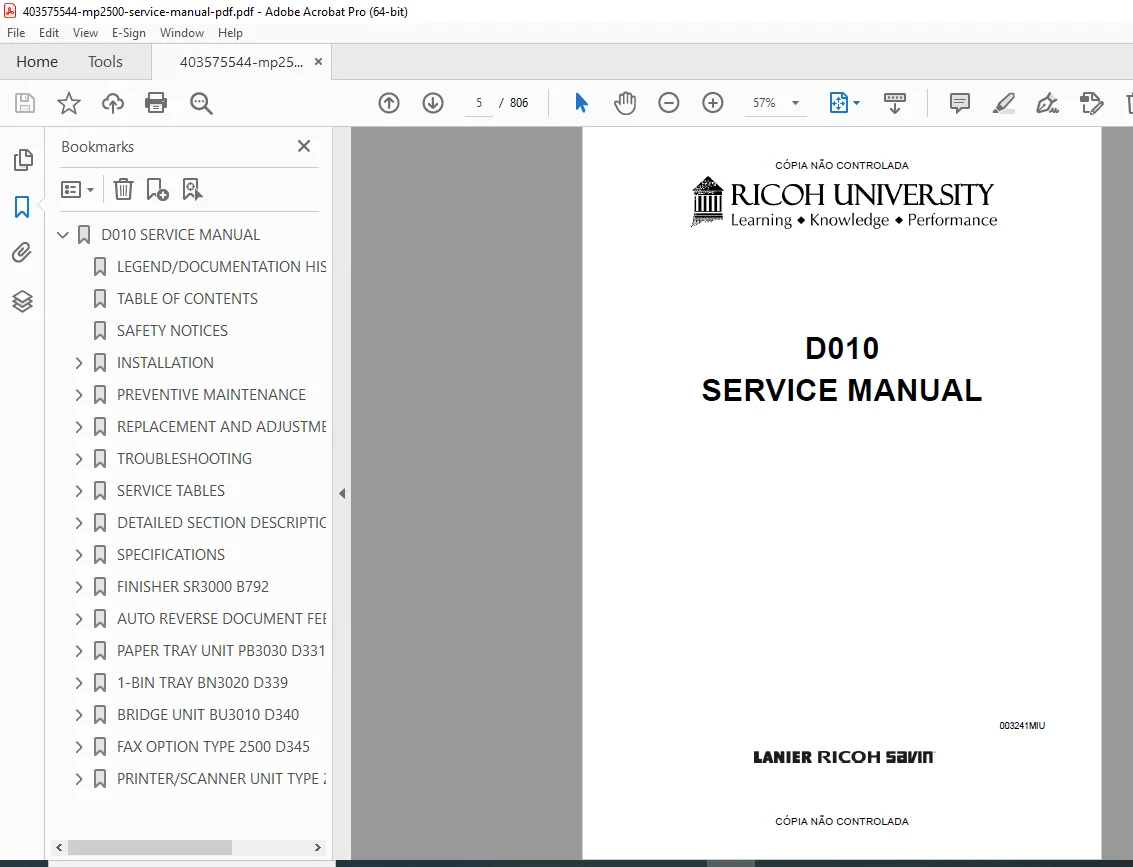

• Product code: D010 (Service Manual 003241MIU, original printing 09/2007)

⭐ What’s Inside (Neatly Categorized Contents)

🧰 1) Installation

• Installation requirements (environment, leveling, space, power)

• Copier installation procedure

• Platen cover installation

• ARDF installation

• Paper tray unit installation (1-bin tray / bridge unit setups)

• 500-sheet finisher installation

• Optional heaters (anti-condensation, tray heaters)

• Key counter interface installation

• DDST expansion / PCL option / mechanical counter installs

🧽 2) Preventive Maintenance (PM)

• PM tables by system:

  • Optics

  • Drum area

  • Paper feed

  • Fusing unit

  • ARDF

  • Paper tray unit

• PM counter reset procedure

🔧 3) Replacement & Adjustment (Teardown + Calibration)

• Special tools & lubricants

• Covers, panels, doors, trays

• Scanner unit (glass, sensors, motors, position adjustments)

• Laser unit (safety, alignment)

• PCU section (OPC drum, charge roller, developer, cleaning parts)

• Paper feed section (rollers, clutches, sensors, lift motors)

• Transfer & image density systems

• Fusing unit (thermistors, lamps, rollers, nip adjustment, thermostats)

• Duplex unit components (sensors, motors)

• Copy/scan adjustments (registration, magnification, white density, etc.)

• ARDF image adjustment

🧪 4) Troubleshooting

• Service call conditions + SC code descriptions

• Electrical component defect tables (sensors, switches)

• Blown fuse conditions

• LED display diagnostics (BICU)

🧾 5) Service Tables / Service Mode

• How to enter SP Mode

• Copier SP mode tables:

  • SP1 (Feed), SP2 (Drum), SP3 (Process), SP4 (Scanner), SP5 (Mode), SP6 (Peripherals), SP7/8 (Data logs), SP9 (Etc.)

• Input/output checks, memory clear, NVRAM upload/download

• Firmware update procedures

• Test pattern printing, jam history, sensor output displays

🧠 6) Detailed Section Descriptions

• Component layout, paper path, drive layout

• Board structure (BICU/SBU, block diagrams)

• Copy process overview

• Scanning & original size detection logic

• Image processing (gamma, shading, erase, ADS, filtering, gradation, etc.)

• Laser exposure & APC

• Drum charge, development & toner density control

• Paper feed mechanics & detection systems

• Transfer/separation, fusing control, duplex operation

• Energy saver modes (basic + DDST machines)

📌 7) Specifications

• General specs

• Supported paper sizes (regions)

• Machine configuration

• Optional equipment overview

🧩 Optional Units / Sections Included

• ARDF DF3020 (D330)

• Paper Feed Unit PB3030 (D331)

• 1-Bin Tray BN3020 (D339)

• Bridge Unit BU3010 (D340)

• Fax Option Type 2500 (D345)

• Printer/Scanner Unit Type 2500 (D359)

• Finisher SR3000 (B792)

📌 File Details

Fix SC codes, jams, and image problems the proper way—using the same factory technician manual the pros rely on. Download instantly and get your MP 2500 / 7025 back in service faster.
