Ricoh Aficio MP6001/MP7001/MP8001/MP9001 Service Manual Book 1 PDF
Original price was: $110.00.$25.95Current price is: $25.95.
Official Ricoh D062/D063/D065/D066 service manual (004778MIU) Book 1 of 2 β massive 1351-page factory technician guide for MP 6001/7001/8001/9001 (also Lanier LD260/270/280/290, Savin C6055/7070/7570/9070, Gestetner DSm755/765/775/790) B&W MFPs. Complete SP modes, fault codes, replacement procedures and wiring.
Description
Ricoh Aficio MP6001/MP7001/MP8001/MP9001 Service Manual Book 1 PDF DOWNLOAD
Description
This is Book 1 (Mainframe) of the complete factory Ricoh Aficio MP 6001 / MP 7001 / MP 8001 / MP 9001 Service Manual (machine codes D062/D063/D065/D066, document 004778MIU) β the essential 1351-page technical reference used by Ricoh-authorized technicians worldwide. These 60β90 ppm high-volume monochrome laser MFPs remain heavily installed in 2025 in corporate print rooms, universities, and government offices.
Also fully applies to rebadged models:
- Lanier LD260 / LD270 / LD280 / LD290
- Savin C6055 / C7070 / C7570 / C9070
- Gestetner DSm755 / DSm765 / DSm775 / DSm790
- Nashuatec/NRG/Rex-Rotary/Infotec equivalents
Contains everything needed for professional servicing:
- Complete Service Program (SP) mode tables & explanations
- Detailed troubleshooting RAPs and error code/SC tables
- Step-by-step removal/replacement procedures with illustrations
- DIP switch & NVRAM reset procedures
- Full electrical block diagrams and BSDs
- Paper path, fusing unit, development, laser exposure diagnostics
- Parts catalog with exploded views (Book 1 focuses on mainframe)
Major Sections (Book 1):
- Installation Procedures
- Preventive Maintenance
- Replacement & Adjustment (all major units)
- System Maintenance Reference (SP modes 1xxxβ8xxx)
- Troubleshooting (SC codes, jam codes, image quality)
- Service Tables & DIP Switches
- Detailed Section Descriptions (paper feed, image processing, etc.)
- Appendices
Invaluable for copier technicians, biomed departments, and third-party service companies maintaining these bullet-proof high-volume Ricoh engines.
File Details
- Manual name: D062/D063/D065/D066 Service Manual (Book 1 of 2) β Mainframe
- Models covered: Ricoh MP 6001, MP 7001, MP 8001, MP 9001 + all Lanier/Savin/Gestetner equivalents
- Year: ~2010β2012 era (document 004778MIU)

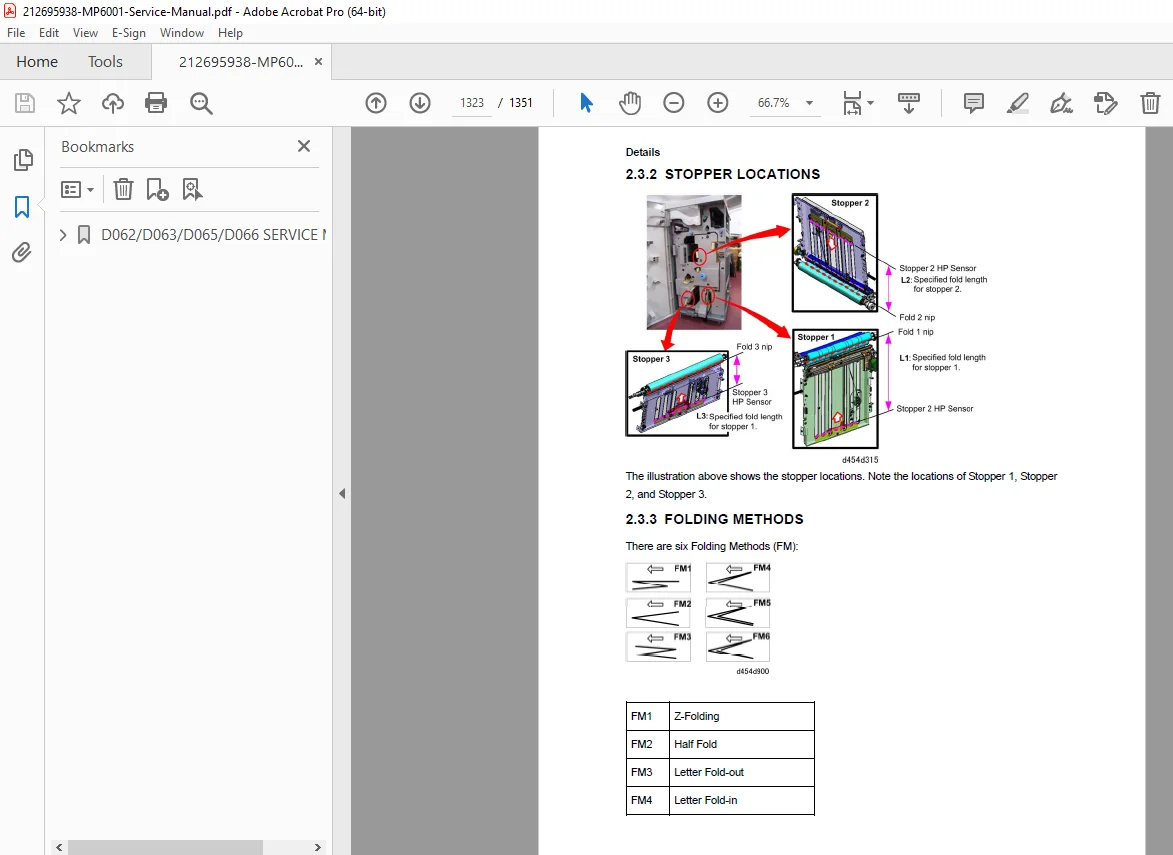

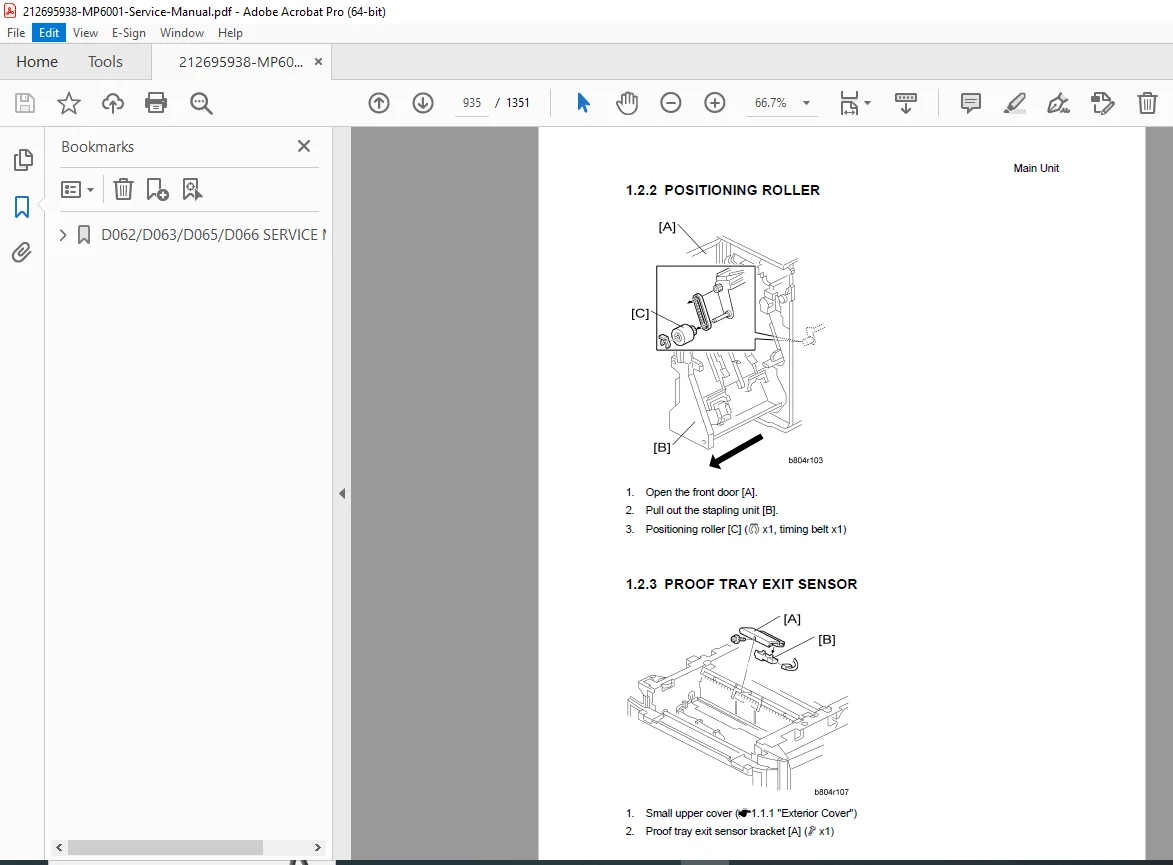

- PDF quality: Excellent factory scan, fully searchable, high-resolution diagrams
- Number of pages: 1351 (Book 1 only)
