Ricoh M160 / M161 (SP 4510SF / MP 401SPF) Service Manual PDF
Original price was: $95.00.$15.95Current price is: $15.95.
Official Ricoh factory service manual for M160 & M161 multifunction printers (SP 4510SF / MP 401SPF). Covers installation, preventive maintenance, disassembly, calibration, firmware updates, SP modes, error codes, jam diagnostics, wiring, and complete repair procedures for technicians.
Description
Ricoh M160 / M161 (SP 4510SF / MP 401SPF) Service Manual PDF DOWNLOAD
Description
This Ricoh M160 / M161 Service Manual is the complete technician-grade reference used by Ricoh service engineers. It covers every mechanical, electrical, and firmware aspect of the machine, including the branded equivalents:
Ricoh SP 4510SF
Ricoh MP 401SPF
Lanier & Savin equivalents
Designed for field technicians, workshops, refurbishers, and IT departments, this manual provides in-depth guidance for:
Safe disassembly & reassembly
Preventive maintenance schedules
Component replacement (PCDU, fuser, motors, sensors, boards, ARDF, scanner)
Firmware upgrades & recovery
Service Program (SP) modes
SC error codes & diagnostics
Jam detection logic & sensor layouts
Image quality calibration & alignment
Network & controller option installation
🔧 Key Sections (Extracted from the Manual)
📖 Product Information
Component layout & paper path
436409918-Service-Manual-Sp4510…
Drive layout (motors, clutches, gears)
436409918-Service-Manual-Sp4510…
Machine codes for M160 & M161
External & internal options
Consumables and yield tables
🛠 Installation & Configuration
Environment & space requirements
Power specifications
Main machine installation
Security & administrator password setup
Accessory & option installation

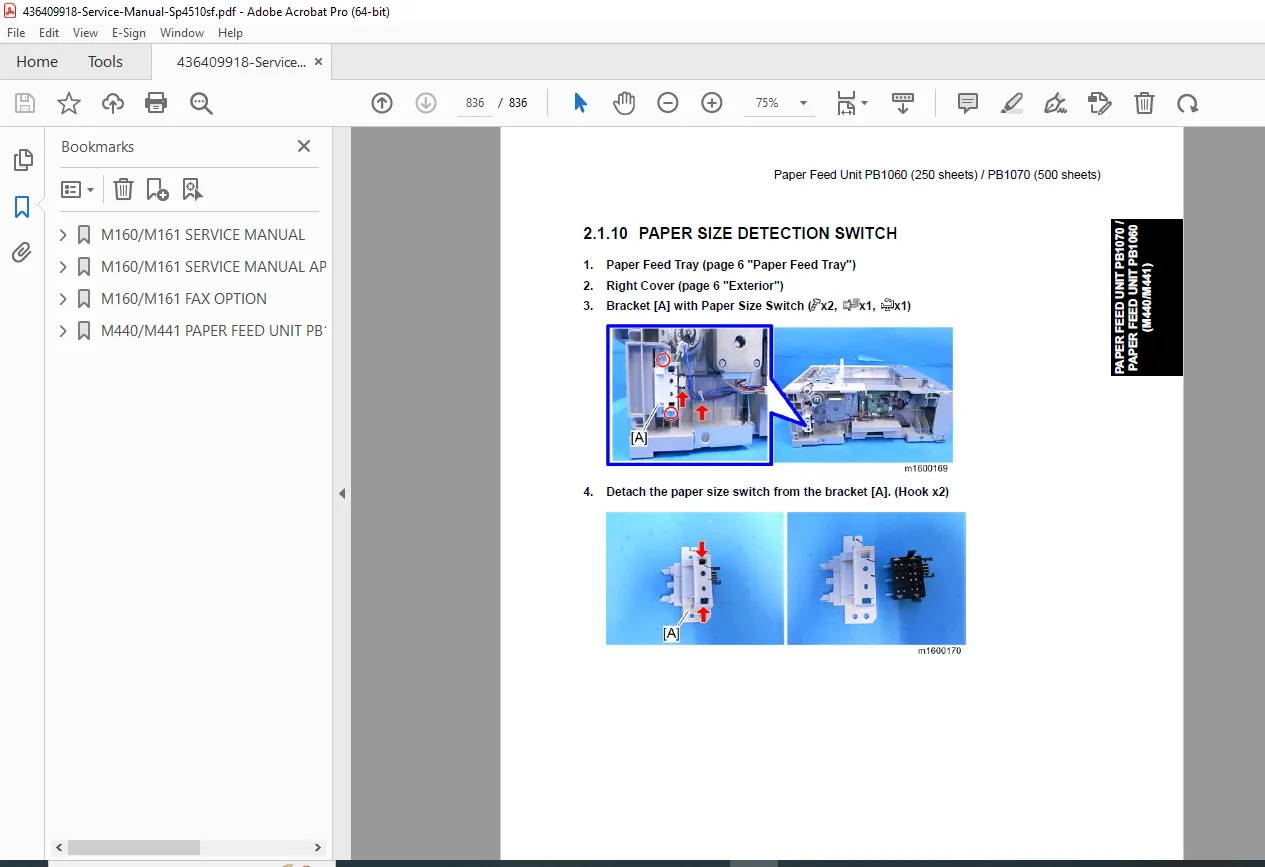

Paper feed units (PB1060 / PB1070)
Controller options & SD card slots
Browser, OCR, IPDS, XPS, NetWare options
🔄 Preventive Maintenance
Maintenance schedules
Image quality standards
Paper transfer quality benchmarks
🔩 Replacement & Adjustment
Covers & panels
LED optics
PCDU & toner system
Drive motors & clutches
Fusing unit & rollers
Paper feed & transport
Electrical boards (BICU, FCU, PSU, HVPS, HDD)
ARDF & scanner assemblies
🧠 System Maintenance
Service Program (SP) Mode
Firmware update procedures
NVRAM backup & restore
Address book backup
Debug log capture
🚨 Troubleshooting
SC error codes (SC100–SC900)
Jam detection & sensor maps
Image positioning & skew correction
Scanner & ARDF alignment
Banding, spots, feed issues
This is a true factory workshop manual, not a user guide. It provides step-by-step service logic, diagrams, and engineering-level detail used in professional repair environments.
📂 File Details
| Item | Details |
|---|---|
| Manual Name | Ricoh M160 / M161 Service Manual |
| Models Covered | M160, M161, SP 4510SF, MP 401SPF (Lanier/Savin) |
| Year | 2015 |
| PDF Quality | High-resolution scanned original |
| Total Pages | 836 pages |
🚀 Instant Access Advantage
Diagnose faults, clear SC errors, replace assemblies, and calibrate with absolute precision. Download this complete Ricoh factory service manual now and get every procedure, diagram, and adjustment you need—instantly, in one click.
